Road Construction Machinery 8 Ton Drum Roller with Hydraulic Vibrating
Sinoway Industrial (Shanghai) Co., Ltd.- After-sales Service：Available
- Warranty：1 Year
- Type：Road Roller
- Working Method：Vibration
- Axle：Single Drum
- Grinding Wheel Type：Smooth Drum
Base Info
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
- Centrifugal Force：40KN
- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Operating Weight：8 Ton
- Drum Width：1600 mm
- Drum Dia.：1200 mm
- Tire Size：12.00-24
- Transmission：Hydraulic
- Gradeability：30%
- Ground Clearance：275mm
- Transport Package：Naked
- Specification：ISO2008
- Trademark：Sinoway
- Origin：China
- HS Code：84314990
- Production Capacity：300 PCS,Month
Description
Basic Info.
Compaction Depth 40cm Engine Type Diesel Engine Travel Speed 40cm/s Centrifugal Force 40KN Certification ISO 9001:2000, ISO 9001:2008 Condition New Operating Weight 8 Ton Drum Width 1600 mm Drum Dia. 1200 mm Tire Size 12.00-24 Transmission Hydraulic Gradeability 30% Ground Clearance 275mm Transport Package Naked Specification ISO2008 Trademark Sinoway Origin China HS Code 84314990 Production Capacity 300 PCS/MonthProduct Description
SWR208H is a 8 ton HYDRAULIC drive and hydraulic vibration roller with single steel wheel, Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.Advantage
1.Hydraulic transmission, front wheel hydraulic vibration, hydraulic steering
2. Using small round edge bridge, stable quality, reliable performance, the main clutch and brakes using oil oil power manipulation, lightweight flexible, safe and reliable
3. Handle adopt mechanical composite manipulation, concise and comfortable
4. To adopt BAUMACH engine, satisfies the requirement of China standard emission, low fuel consumption, performance is good; Engine and transmission directly connected, compact structure
5. Has reliable performance and optimum function/price ratio

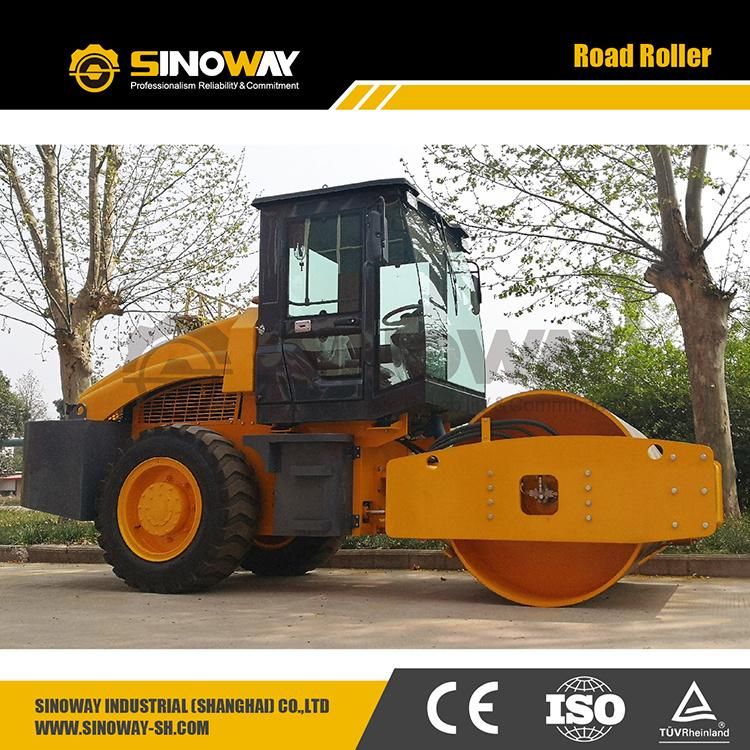

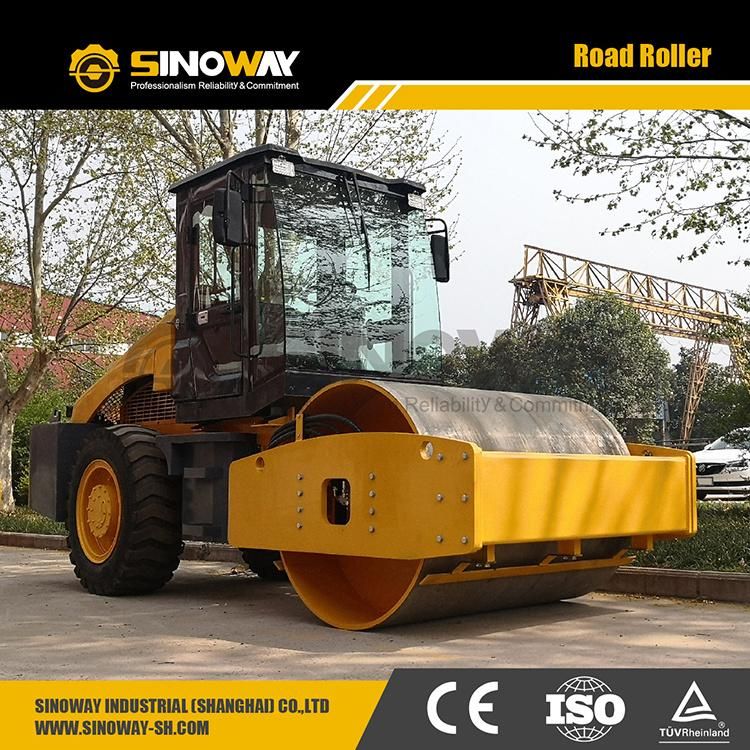

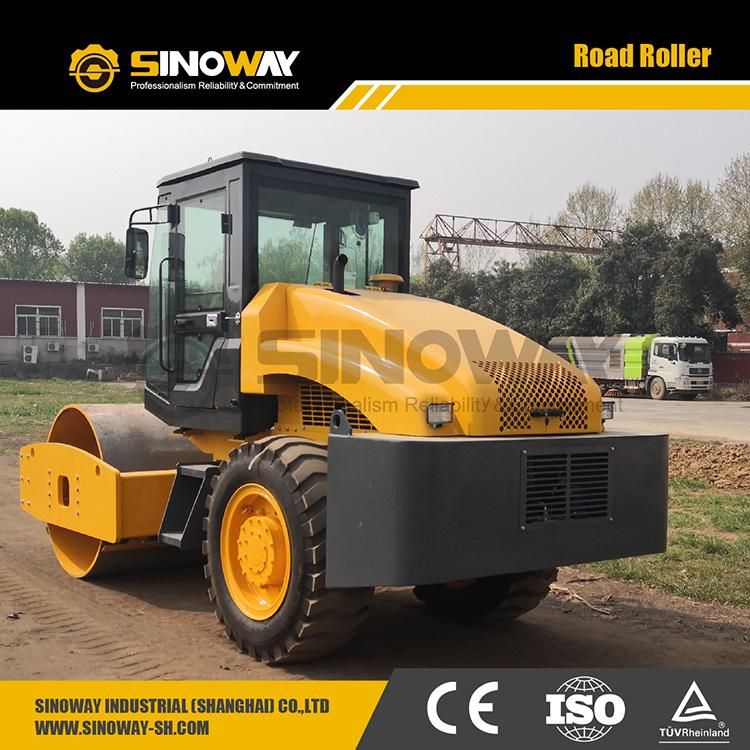

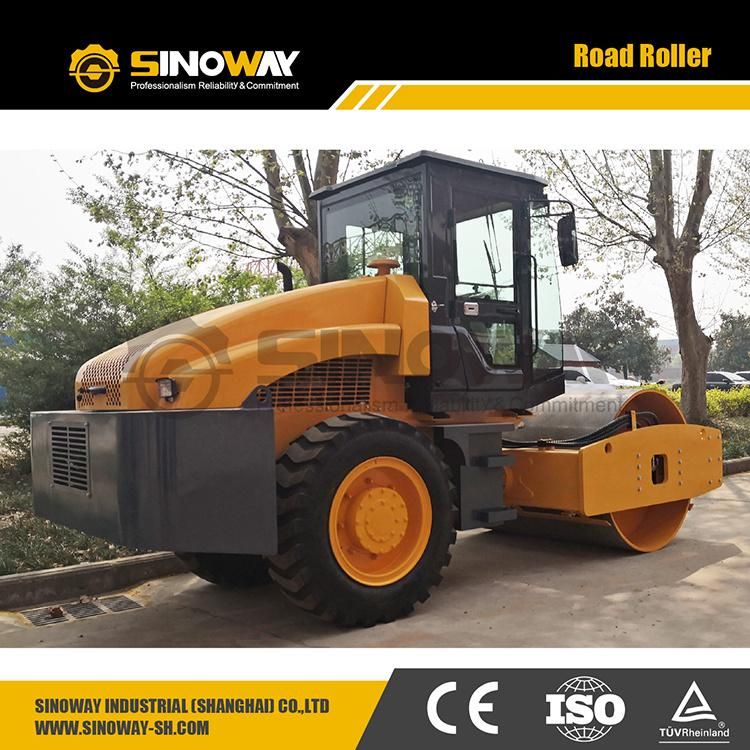

Product Show
Specifications
| Operating weight | 7.8 ton |
| Engine power | 58.8kw |
| Static linear load | 225N/cm |
| Frequency | 50Hz |
| Centrifugal force | 120kN |
| Travelling speed (F&R) | 0-9.2km |
| Grade ability | 30% |
| Min. turning radius | 5510mm |
| Drum width | 1600mm |
| Drum Dia. | 1200mm |
| Wheel base | 2580mm |
| Overall dimension | 4800x1765x2645 mm |
