• Model NO.：XS223J
• Compaction Depth：35cm
• Engine Type：Diesel Engine
• Travel Speed：2.7~10.5km,H
• Centrifugal Force：27KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Operating Weight：22 Ton
• Power：136kw
• Theoretical Gradeability：30%
• Transport Package：Seaworthy Packing
• Specification：ISO
• Trademark：Evangel
• Origin：Jiangsu, China
• HS Code：84292090
• Production Capacity：60000 PCS,Month

Basic Info.

Model NO. XS223J Compaction Depth 35cm Engine Type Diesel Engine Travel Speed 2.7~10.5km/H Centrifugal Force 27KN Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Operating Weight 22 Ton Power 136kw Theoretical Gradeability 30% Transport Package Seaworthy Packing Specification ISO Trademark Evangel Origin Jiangsu, China HS Code 84292090 Production Capacity 60000 PCS/Month

Product Description

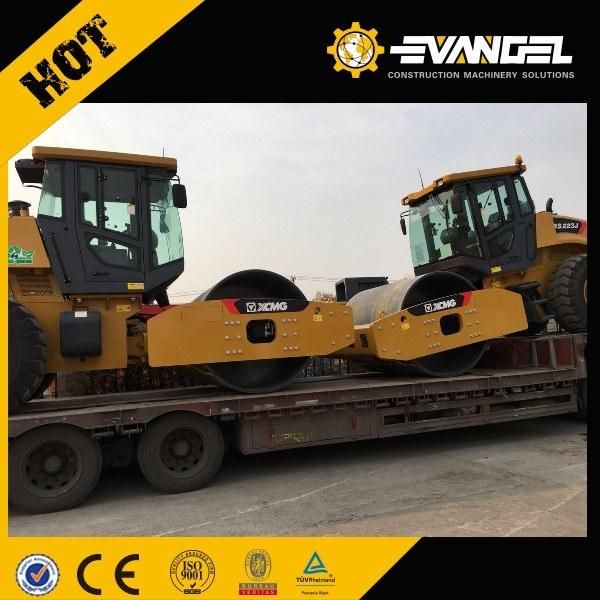

China 22T Mechanical Single Drum Roller XS223J


Type	Unit	XS223J
Operating weight	kg	22000
Load on front drum	kg	11000
Load on rear wheels	kg	6500
Drum width	mm	2130
Static linear load	N/cm	516
Vibration frequency(Low/High)	Hz	28/33
Nominal amplitude(High/Low)	mm	1.86/0.93
Excitation force(High/Low)	KN	340/240
Travel speed	km/h	0-10
Steering angle	°	±33
Swing angle	°	±10
Theoretical gradeability	%	50
Min. turning radius	mm	6500
Engine model		Shangchai
Engine power	kw	374
Rated engine speed	r/min	1800
Engine oil consumption	g/kW.h	205
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	310
Dimensions	mm	6220*2390*3200



Feature:
Vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Performance feature
The spacious and bright cab features wide view and comfort.
Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.
Optional configuration
The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.
