• Model NO.：Xc6-4517 4.5
• Type：4.5t Handler
• Color：Yellow
• Rated Operating Load：4500kg
• Cross Weight：13500kg
• Engine Brand：Cummins
• Engine Power：82kw
• Maximum Lifting Height：16700mm
• Maximum Forward Reach：12600mm
• Effective Load at Maximum Forward Reach：490kg
• Center Distance of Load：600mm
• Luffing Angle：-4~73 Degree
• Fork Angle：-90~18 Degree
• Maximum Traction Force：-90~18 Degree
• Maximum Traveling Speed：36km,H
• Braking Distance：-,+10 (Initial Speed 32±2km,H)
• Fork Length：1200mm
• Transport Package：Nude Packing
• Specification：6960*2500*2850
• Trademark：X C M J
• Origin：China
• HS Code：8429510000
• Production Capacity：5000 Per Month

Basic Info.

Model NO. Xc6-4517 4.5 Type 4.5t Handler Color Yellow Rated Operating Load 4500kg Cross Weight 13500kg Engine Brand Cummins Engine Power 82kw Maximum Lifting Height 16700mm Maximum Forward Reach 12600mm Effective Load at Maximum Forward Reach 490kg Center Distance of Load 600mm Luffing Angle -4~73 Degree Fork Angle -90~18 Degree Maximum Traction Force -90~18 Degree Maximum Traveling Speed 36km/H Braking Distance -/+10 (Initial Speed 32±2km/H) Fork Length 1200mm Transport Package Nude Packing Specification 6960*2500*2850 Trademark X C M J Origin China HS Code 8429510000 Production Capacity 5000 Per Month

Product Description

Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang

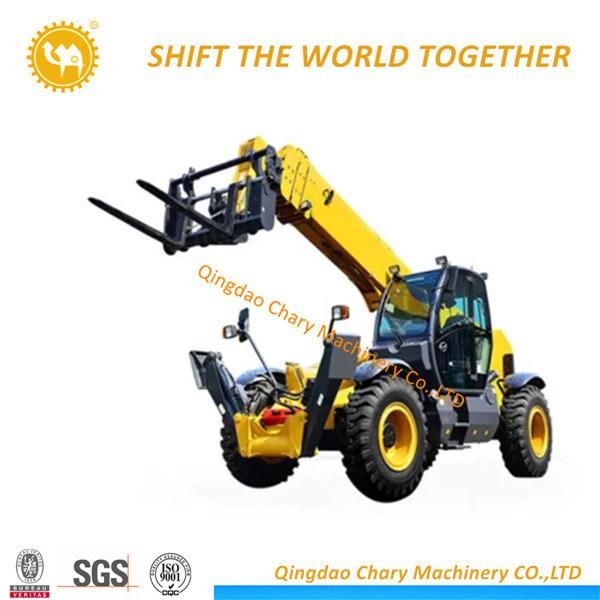

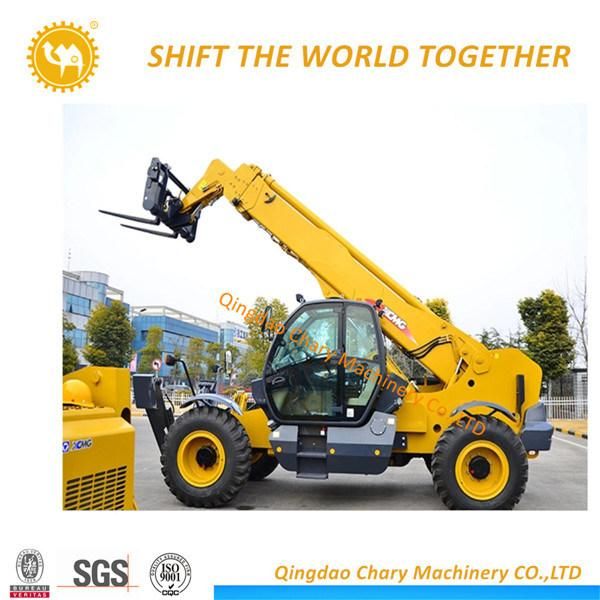

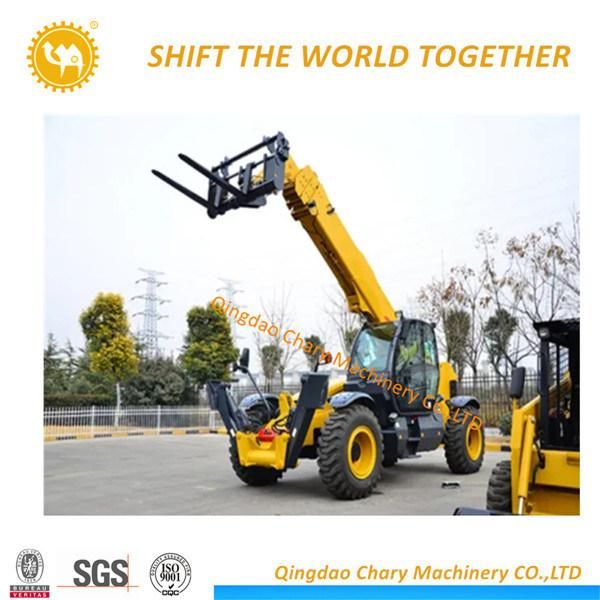

                    Xc6-4517 4.5 Ton Telehandlers 17m Forklift/Telescopic Handler






Product discription:

Description	Unit	Parameter value
Gross weight	kg	13500
Engine power	kW	82(CUMMINS)/74.9(DDE)
Rated load	kg	4500
Maximum lifting height	mm	16700
Maximum forward reach	mm	12600
Effective load at maximum forward reach	kg	490
Center distance of load	mm	600
Luffing angle	°	-4~73
Fork angle	°	-90~18
Maximum traction force	kN	≥70
Gradeability	°	≥25
Maximum traveling speed	km/h	36
Turning radius	mm	≤5000
Braking distance	m	≤10 (Initial speed 32±2km/h)
Overall length	mm	6960
Overall width	mm	2500
Overall height	mm	2850
Wheelbase	mm	3900
Wheel tread	mm	2060
Fork length	mm	1200

MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU





WHY CHOOSE US?


Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


OUR SERVICE

(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

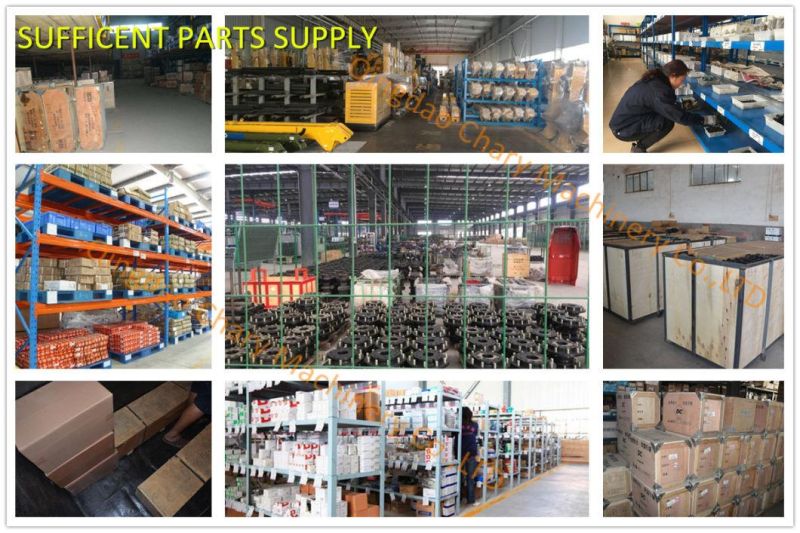

(6) Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.





FAQ

1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.

2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.

3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.

If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.
