• Model NO.：HW930
• Certification：ISO 9001:2000, ISO 9001:2008
• Condition：New
• Name：Guardrail Pile Driver
• Application：Guardrail, Fence, Highway
• Engine Power：40kw
• Pile：Round or Square Steel Pile
• Power Head Model：68#
• Drillig Diameter：0-250mm
• Drill Depth：2500mm
• Pile Diameter：50-260mm
• Pile Max.Length：2800mm
• Geology：Soil and Rock
• Transport Package：20" or 40" Container
• Specification：5000*2000*2700mm
• Trademark：Hengwang
• Origin：Shandong, China
• HS Code：8430100000
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. HW930 Certification ISO 9001:2000, ISO 9001:2008 Condition New Name Guardrail Pile Driver Application Guardrail, Fence, Highway Engine Power 40kw Pile Round or Square Steel Pile Power Head Model 68# Drillig Diameter 0-250mm Drill Depth 2500mm Pile Diameter 50-260mm Pile Max.Length 2800mm Geology Soil and Rock Transport Package 20" or 40" Container Specification 5000*2000*2700mm Trademark Hengwang Origin Shandong, China HS Code 8430100000 Production Capacity 500 Sets Per Month

Product Description

Loading guardrail pile driver highway guardrail pile driver
1, the host model:  the domestic standard 20 loader.
2, construction geology: highway, railway guardrail pile driver, (plus air compressor can play rock).
3, the standard diameter: standard diameter 114-180mm, the largest aperture 200mm.
4, configuration air compressor: Recommended 8 cubic air compressor, for the duration requirements, please configure a large air compressor, powerful, fast.
5, the product advantages: four-wheel drive, turbocharged, powerful.
Loading guardrail pile driver highway guardrail pile driver Parameter


Model	HW-930
Diesel power(KW)	40
Pile diameter mm	114-220
Pile length m	2.6-3.3
Hydraulic system  flow(L/Min)	80-110
Rated system pressure(Mpa)	15
wheel track (M)	1620
wheel base(M)	2070
Dimension(L*W*H)	3200*2000*2900
Weight(Kg)	3400
Pile hydraulic hammer weight((Kg)	80
Hydraulic hammer frequency(Bpm)	500-900
Hydraulic hammer working flow(L/min)	40-70
Hydraulic hammer working pressure(Mpa)	11-14
Drill power unit weight(Kg)	60

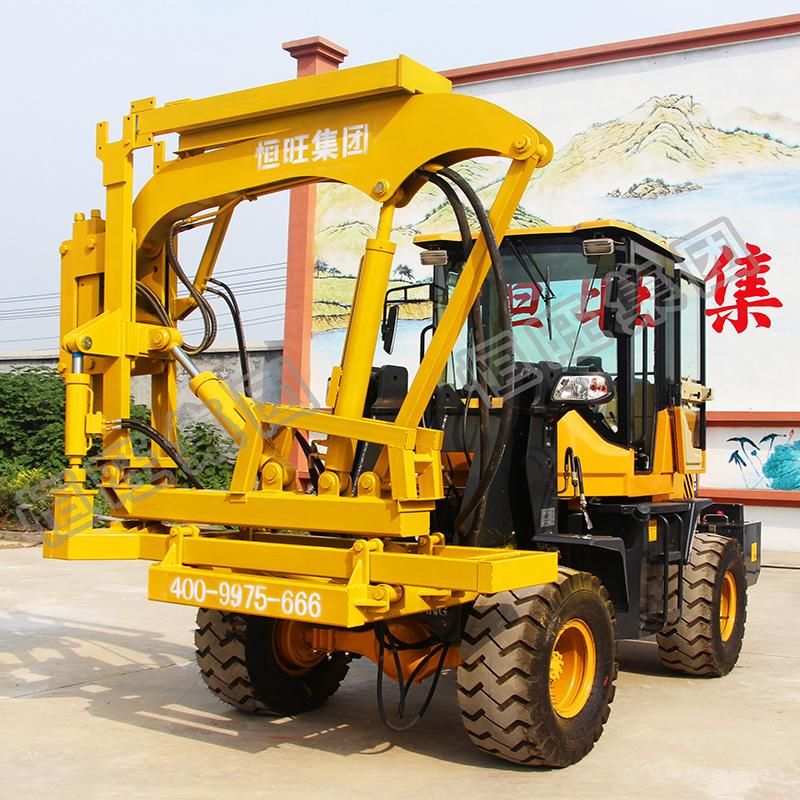

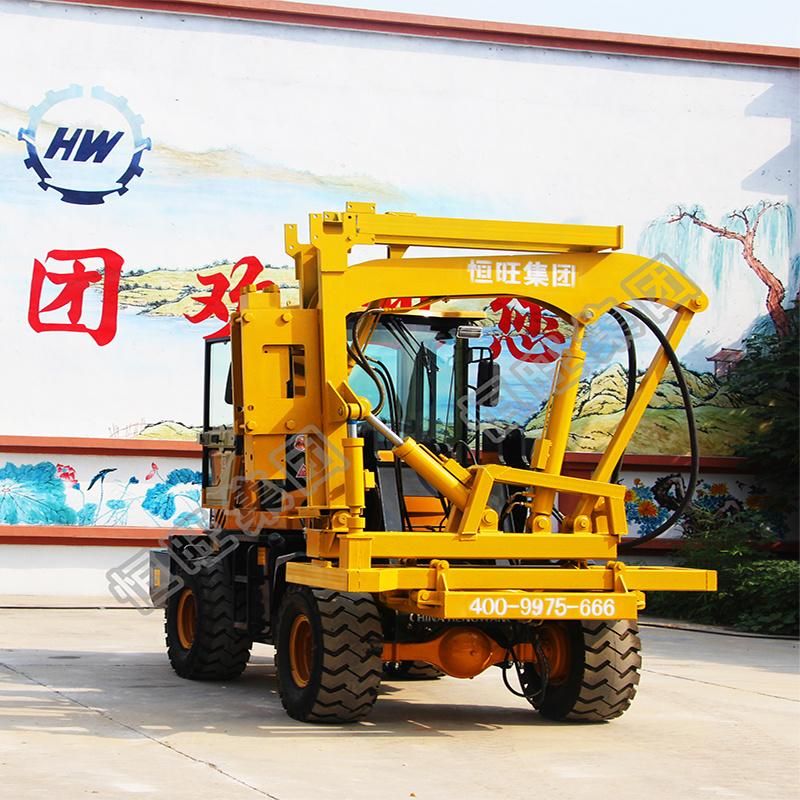

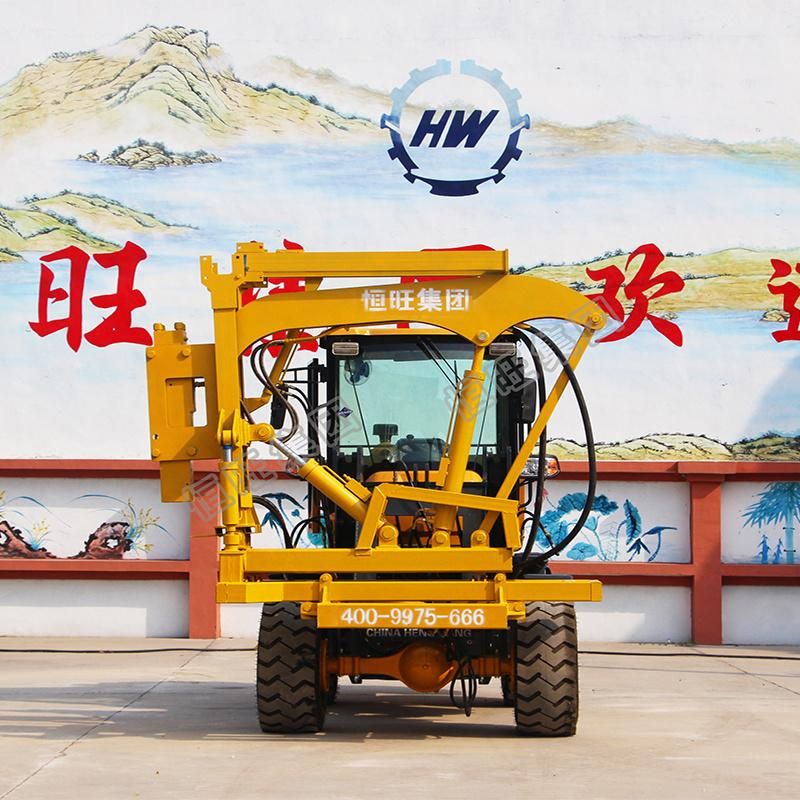

Loading guardrail pile driver highway guardrail pile driver Photos

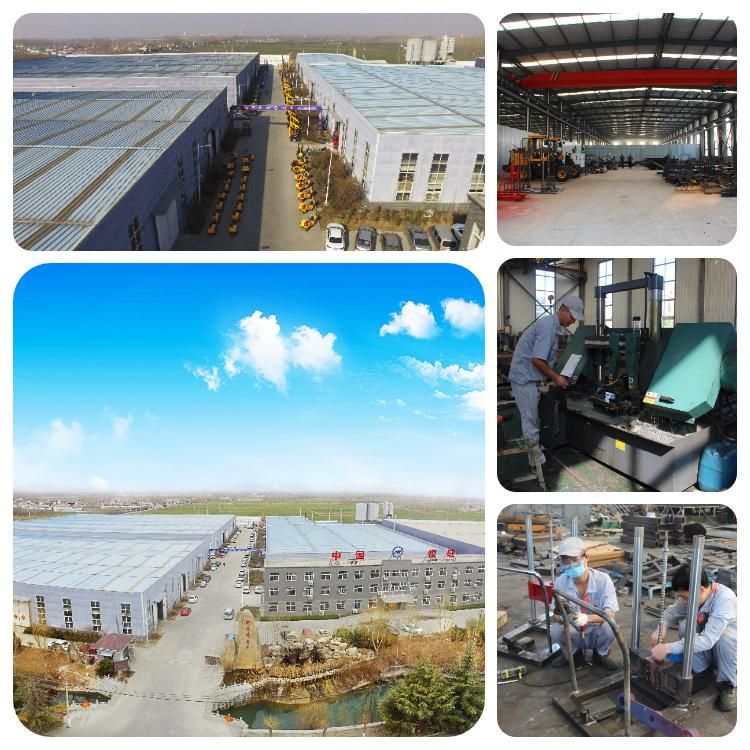

Company Introduction
   Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
   Our company produces the piling machinery a total of 10 major series more than 20 varieties, mainly include photovoltaic crawler pile driver, caterpillar screw drivers, HW series, KLB hydraulic pile driver walking long spiral drill, caterpillar diesel pile hammer machine, vibration sinking pipe pile, DZB multi- function rig, water well driling rig machine,concrete pump and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction
of the dam seepage control and so on.
