Engineering & Construction Machinery

Compact Equipment Tractors Machine Front Wheel Loader for Agriculture

Shandong Honest Machinery Co., Ltd.
  • Warranty:12 Months
  • Certification:TUV, UL, ISO, RoHS, CE, Rops Fops
  • Condition:New
  • Rated Load:1-3t
  • Transmission:Hydrostatic
  • Load and Unload Mode:Front Discharge

Base Info

  • Model NO.:M910
  • Walking Mode:Wheeled
  • Type:Small Loader
  • Product:Mini Wheel Loader
  • Engine:Perkins,Yanmar,Kohler,Chinese
  • Power:30-70HP
  • Max. Lifting Height:3000-4000mm
  • Bucket Capacity:0.5-1.5m3
  • Operating Weight:1600-3000kg
  • Oil Flow:30-100L,Min
  • Wheel Drive:4WD
  • MOQ:1 Set
  • Transport Package:2 Sets,20′gp; 4 Sets,40′hq
  • Specification:2690X1240X2285mm
  • Trademark:STEEL CAMEL
  • Origin:Shandong
  • HS Code:8429510000
  • Production Capacity:800 Sets Per Year

Description

Product nametelescopic wheel loader M910Dimension with cabin (LxWxH)2690x1240x2285mmMax. lifting height (normal boom)2512mmMax. lifting height (telescopic boom)3030mmPulling force12kNBucket capacity0.5m3Rated loading capacity950-1200kgMin. turning radius2120mmTurning angle45 degreeMin. ground clearance268mmSpeed0-10km/h; 0-8-16km/h (two speed optional)Operating weight1850kgStandard tire26x12-12Oil tank capacity45LPressure190barWorking oil flow33.5L/minx2Tracking oil flow78L/minFuel tank capacity30LEnginePerkins 404D-15Power33hp/24.6kw

Loader+Tractor, one Multi-purpose helper for all your works

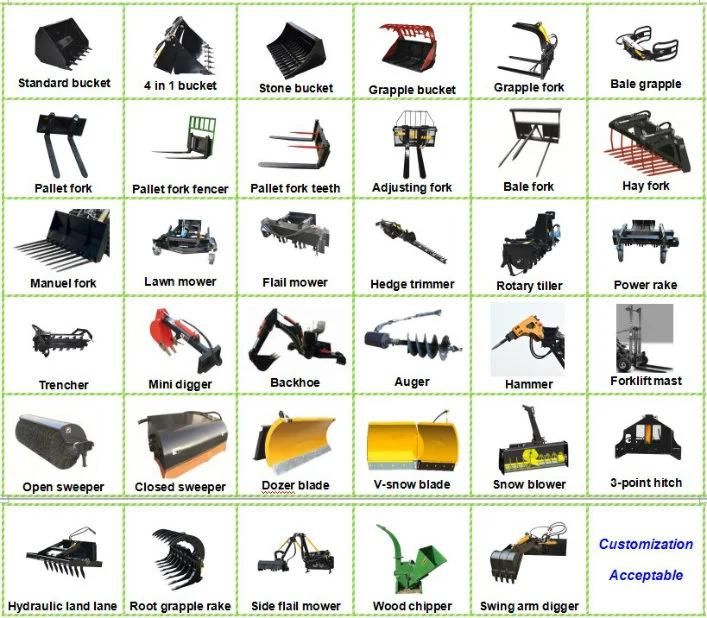

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.
Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.

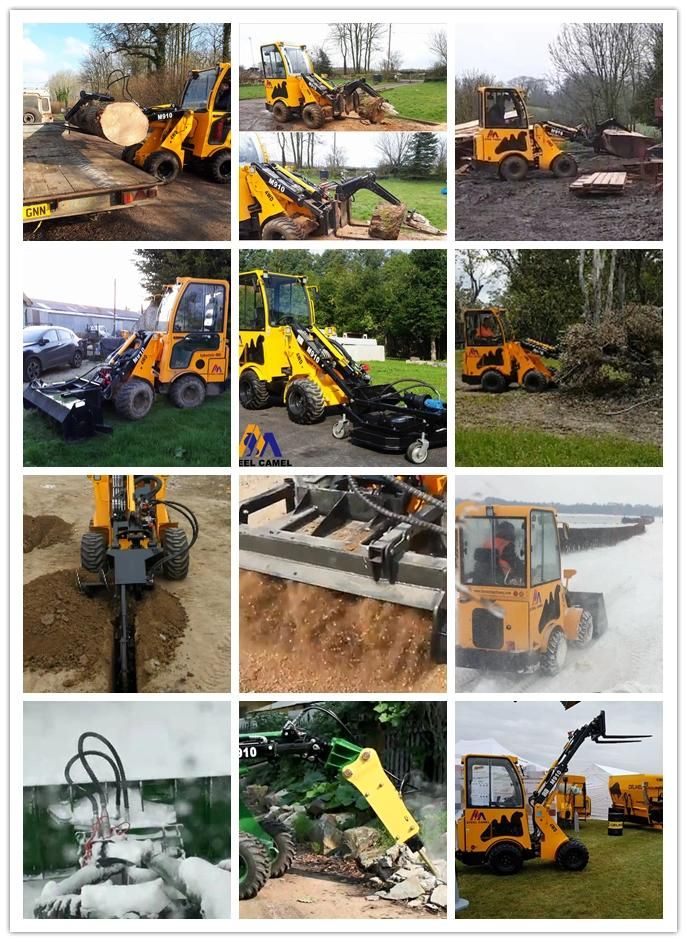

STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.
Compact Equipment Tractors Machine Front Wheel Loader for Agriculture

Compact Equipment Tractors Machine Front Wheel Loader for Agriculture

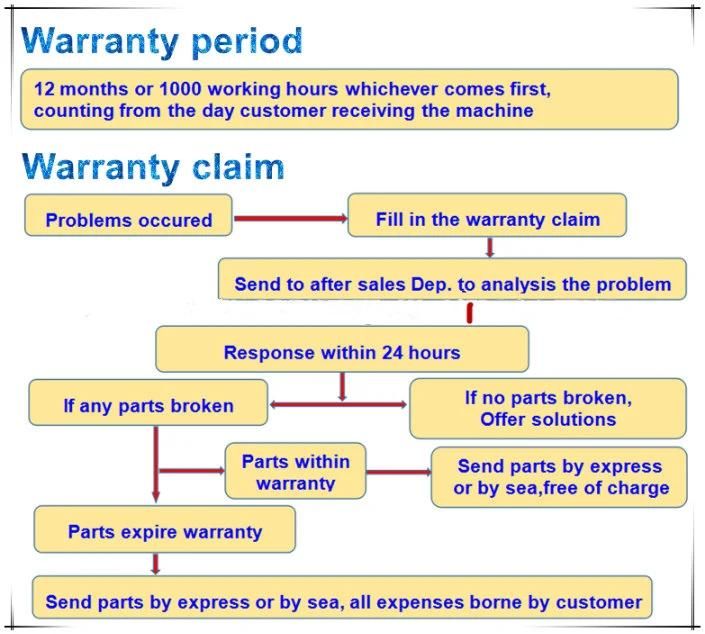

Loader warranty:
Compact Equipment Tractors Machine Front Wheel Loader for Agriculture

Packing and loading:

2 sets/20'GP; 4 sets/40'HQ
Compact Equipment Tractors Machine Front Wheel Loader for Agriculture

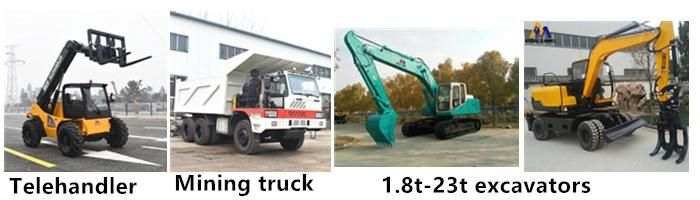

Other hotsale machines you may interest:
Compact Equipment Tractors Machine Front Wheel Loader for Agriculture

Contact now to get a detaill quotation:
