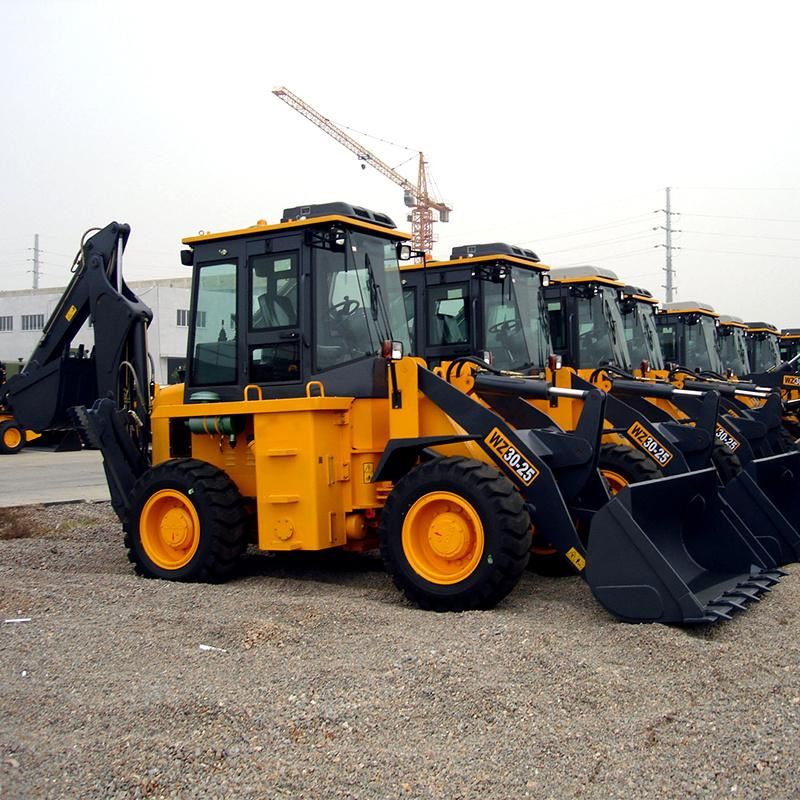

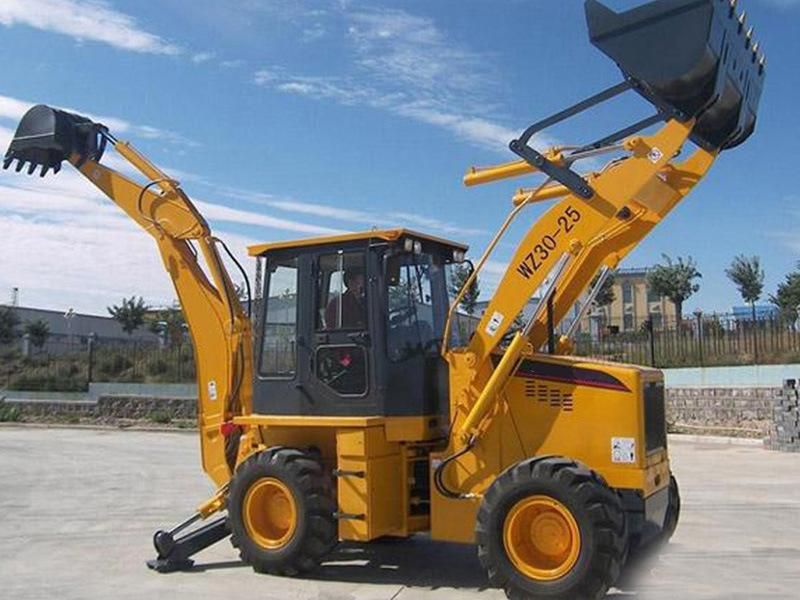

• Model NO.：WZ30-25
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Engine：4bt4.5-C99
• Transport Package：Nude
• Specification：7007*2350*3234 mm
• Trademark：SINOMADA
• Origin：China
• Production Capacity：100 Sets Per Month

Overview Product Description

Overall Dimension1Length(with bucket on ground)7077(mm)2Width2350(mm)3Load Bucket width2313(mm)4Height(To the top of the cab)2720 (mm)5Height(To the top of the digging pole)3424 (mm)6Wheelbase2155.5(mm)7Back wheel Tread1557(mm)8Fore wheel Tread1714(mm)9Min. ground clearance355(mm) for 2WD 275(mm) for 4WDMain Loading Technical Specification1Rated load1700(Kg)2Operating weight7000KG Max lifting capability>2500KG3Rated load bucket capacity1.0(m³)4Max. load breakout force>40kN5Max. dump clearance2611(mm)6Dump reach726(mm)7Dump angle at any position≥43.5°8Min. turning radius (1) Outside of bucket5280(mm) for 2WD 5670(mm) for 4WD(2) Center of front wheel

3795 (mm) for 2WD 4300(mm) for 4WD

9Lifting time of loading bucket≤5.1(sec.)10Lowering time of loading bucket≤4.9(sec.)11Dumping time≤0.9(sec.)12Traveling speed(Km/h),4 forward and 4 reverse (1) gear forward5.8(2) gear forward10.5(3) gear forward20.1(4) gear forward40.2(1) gear reverse7.0 (2) gear reverse12.6(3) gear reverse24.3(4) gear reverse48.6Main Digging Technical Specification1Rated digging bucket capacity0.3(m³)2Max. digging depth4338(mm)3Max. digging force>50±10%kN4Max. digging radius5481(mm)5Max. dumping height3737(mm)Diesel engine1Model4BT4.5-C992TypeDirect injection. Turbocharged. Water cooling3Rated output74(kW)4Total exhaust of cylinder4.5(L)5Inter-bore of cylinder/stroke102/138(mm)6Voltage of starting motor12(V)7Rated speed2200(r/min)8Max. Torque414(N.M)9Starting typeElectric10Min. specific fuel consumption225(g/Kw.h)Transmission SystemPackaging & Shipping
