• Model NO.：MZ130Y-2
• Air Consumption(M3/Min)：10-26
• Air Pressure(MPa)：0.7-2.46
• Pipe Diameter(mm)：76,89
• Bore Diameter(Screw)(mm)：100~400
• Bore Depth(Screw)(M)：0-30
• Rotation Speed(R/Min)：0-70
• Host Power (Kw)：56
• Weight(Kg)：4710
• Walk Speed(Km/H)：0-2.5
• Transport Package：Standard Shipping Packing
• Specification：4700*1950*2500mm
• Trademark：LONGYE
• Origin：China
• HS Code：8430419000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. MZ130Y-2 Air Consumption(M3/Min) 10-26 Air Pressure(MPa) 0.7-2.46 Pipe Diameter(mm) 76/89 Bore Diameter(Screw)(mm) 100~400 Bore Depth(Screw)(M) 0-30 Rotation Speed(R/Min) 0-70 Host Power (Kw) 56 Weight(Kg) 4710 Walk Speed(Km/H) 0-2.5 Transport Package Standard Shipping Packing Specification 4700*1950*2500mm Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 500 Sets/Year

Product Description

     Product Introduct
    We are China No.1 solar ground pile Piling Machines manufacturer that cover more than 60% in Chinese solar market, and we. exported to over 60 countries !

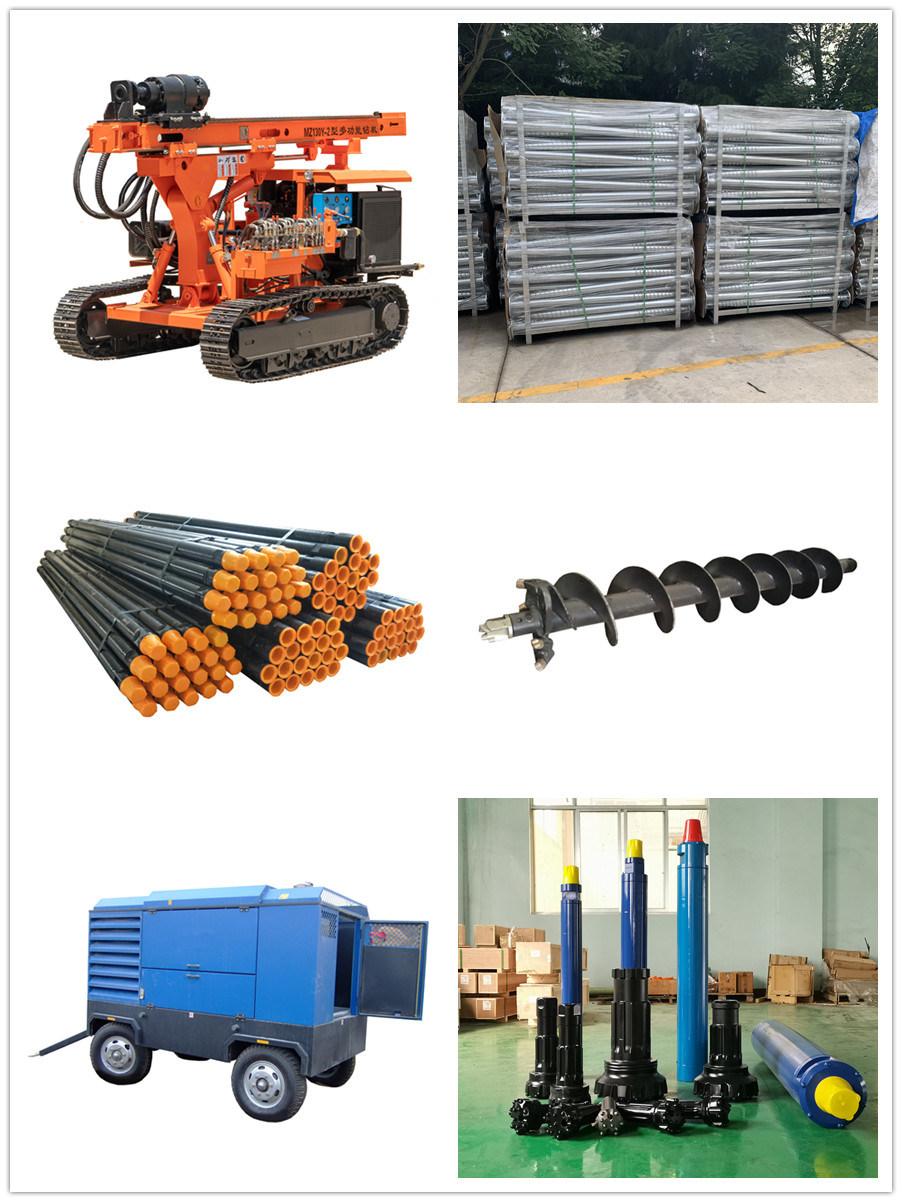

     Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our
company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60 countries...
    Technical parameters
  MZ130Y-2 ground screw drilling machine can :

• Drill maximum 3m long ground screw piles.
• Drill 130-400mm diameter auger spiral soil holes.
• Drill 90-300mm diameter DTH stone rocky ground holes .
• Working on flat ground or maximum 15 degree slope ground

Bore diameter(DTH hammer)(mm)	90-300
Bore depth(m)	20-100
Air consumption(m³/min)	10-26
Air pressure(Mpa)	0.7-1.6(medium);1.6-2.46(high)
Pipe diameter(mm)	76/89
For rock(F)	6-20
Bore diameter(screw)(mm)	Max 400
Bore depth(m)	0-30
Screw pipe diameter(mm)	130-400
Once promotion(mm)	2000
Skid pitch(°)	100
Swinging angle of skid(°)	Left and right total 40
Rotation speed(r/min)	0-70
Host power(kw)	56
Climb ability(°)	35
Dimension(L*W*H)(mm)	4700*1950*2500
Weight(kg)	4710
Walk speed(km/h)	0-2.5

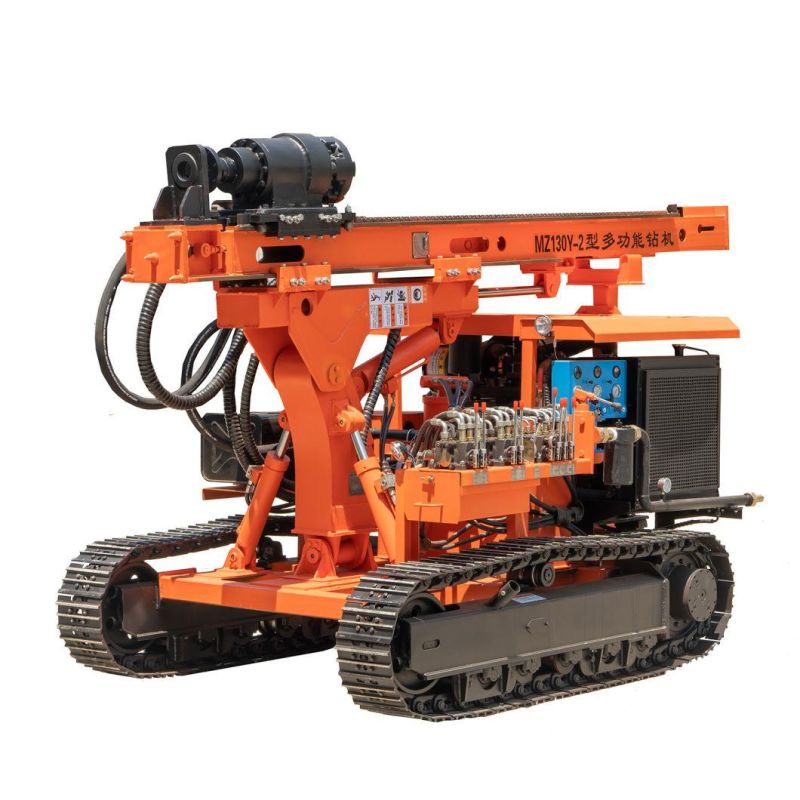

Product Display

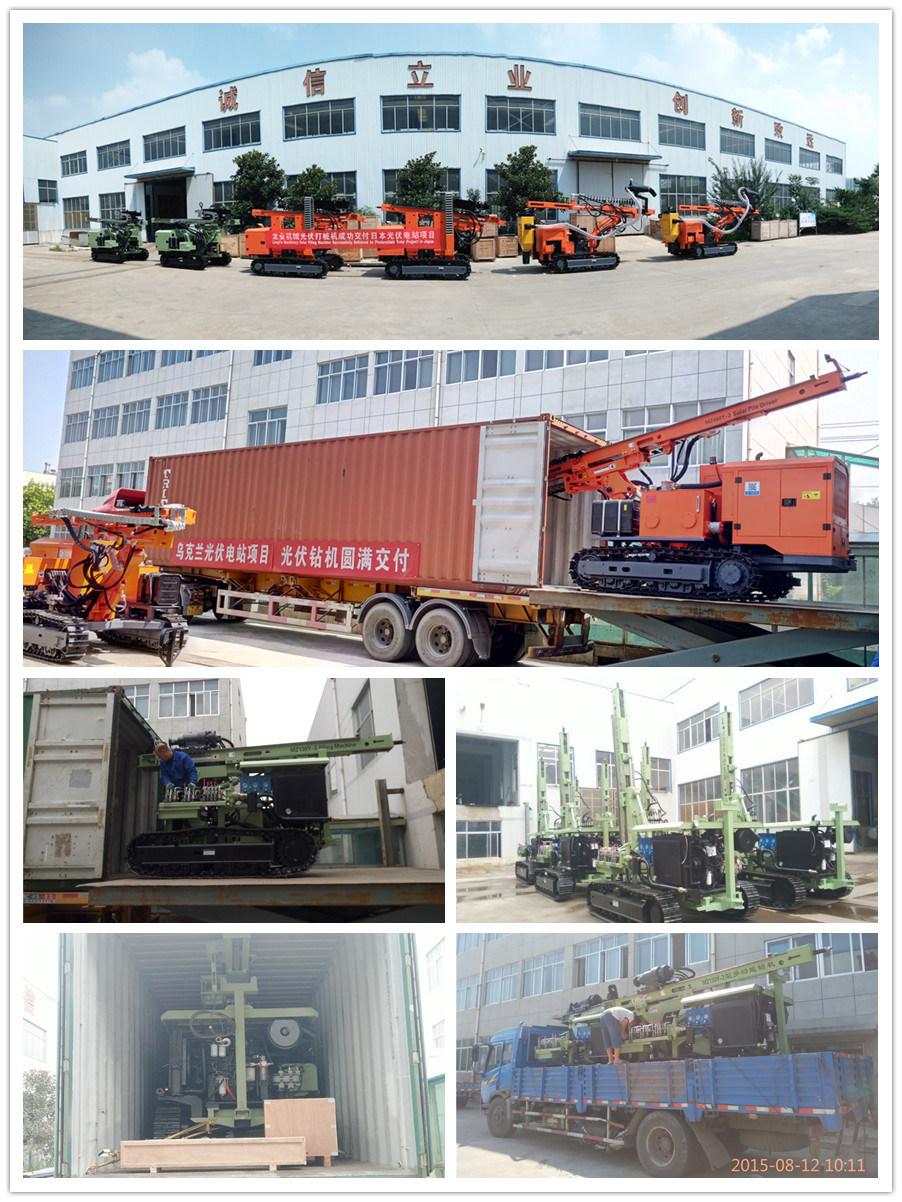

Shipping and Packages

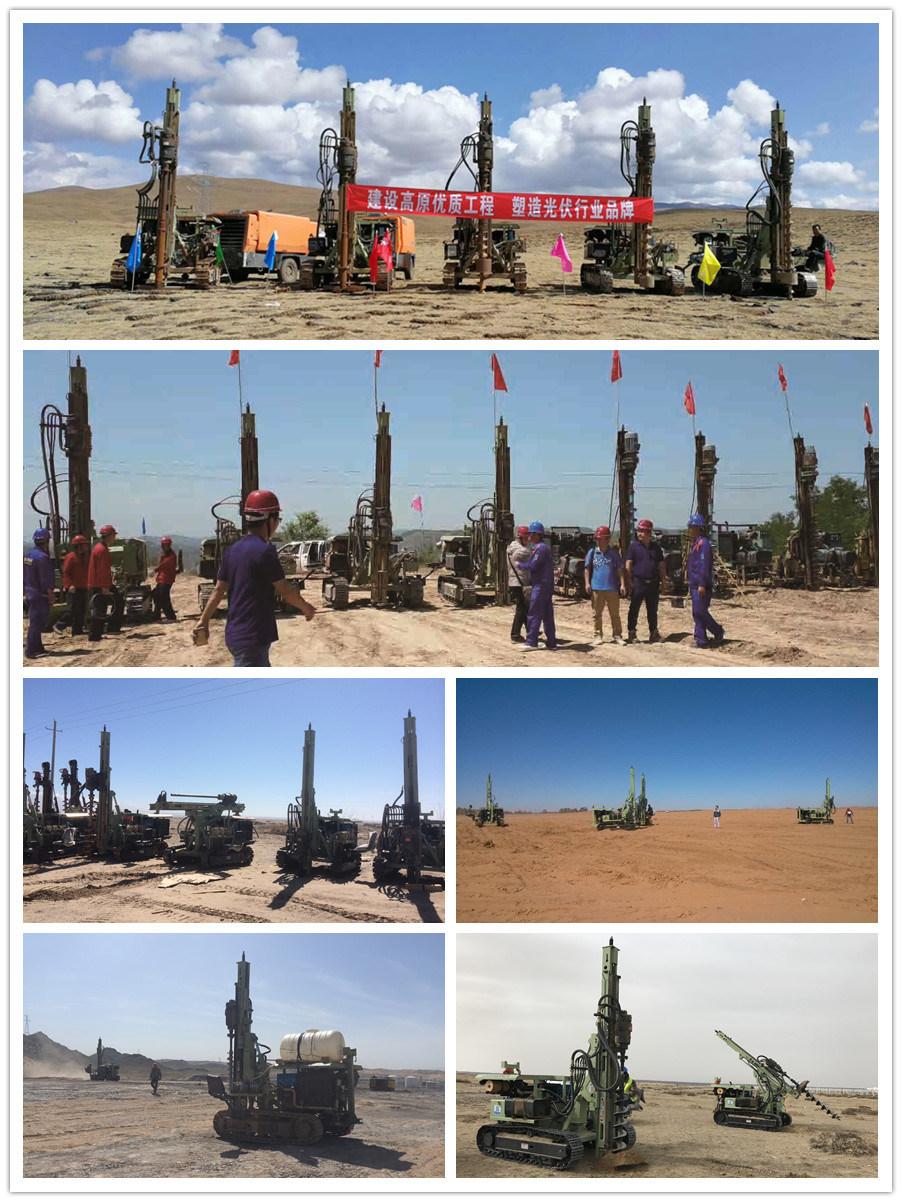

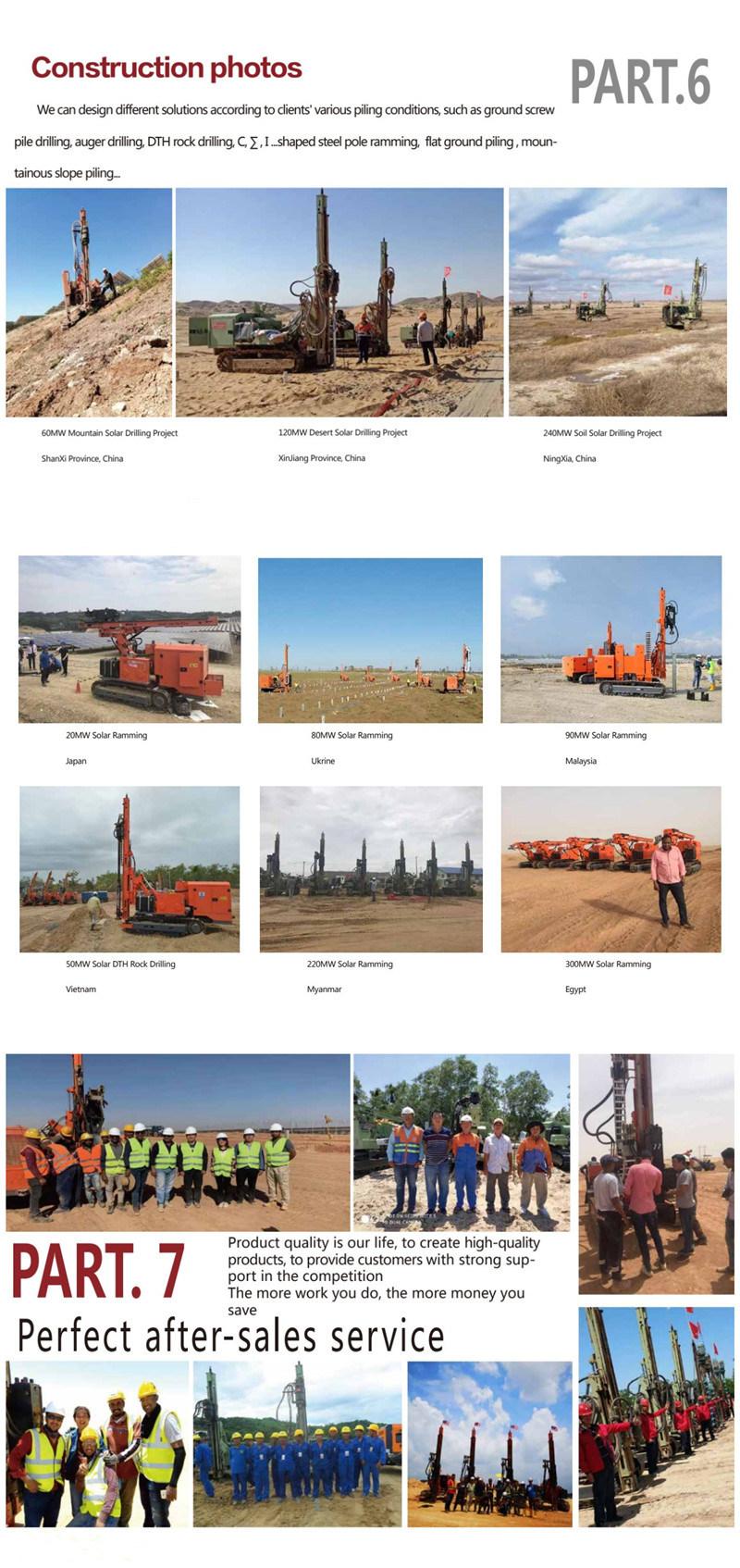

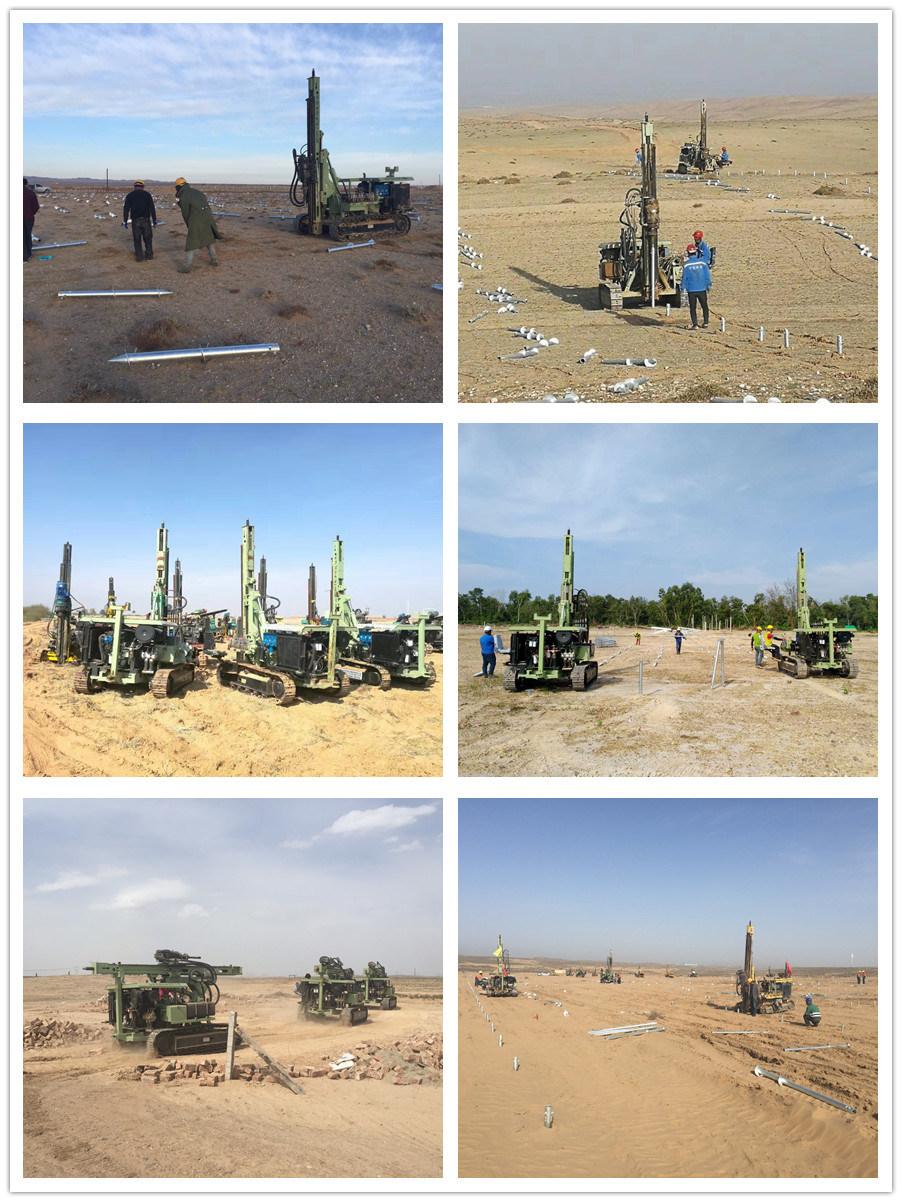

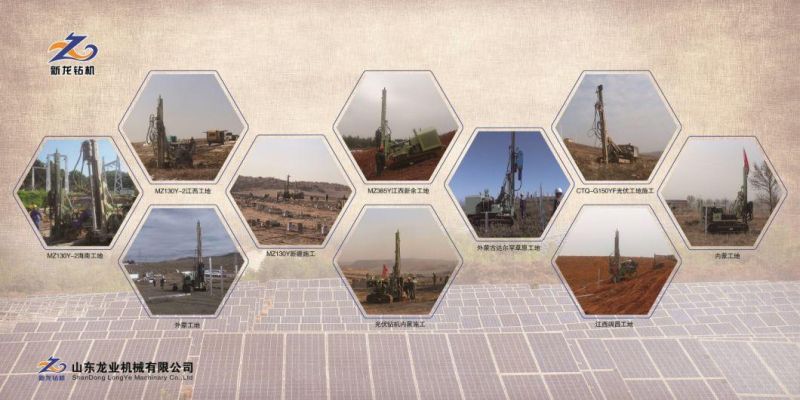

WORKING SITE


Company Profile
FAQ

Q1: What's your delivery time?

A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , One touch , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for  operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year  for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government ,and verified by Ali baba Trade Assurance. 100% refund of the Trade Assurance Amount .Alibaba can guarantee all of you payment .Just order from US !
