High Quality Shantui Construction Road Roller Sr26t with Low Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：SR26T
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：0-8km,H
- Centrifugal Force：40KN
- Certification：CE, ISO 9001:2000
- Condition：New
- Operating Weight (Kg)：26000
- Exciting Force (Kn)：180
- Vibration Frequency (Hz)：60
- Ground Pressure (Kpa)：200-420
- Gradeability (%)：20
- Engine Model：Sc7h
- Rated Power/Rated Speed (Kw/Rpm)：118,1800
- Wheelbase (mm)：3840
- Fuel Tank (L)：180
- Compacting Width(mm)：2750
- Transport Package：Container,RO-RO
- Specification：5060*2892*3338mm
- Trademark：SHANTUI
- Origin：China
- HS Code：8429401100
- Production Capacity：100units,Month
Description
Basic Info.
Model NO. SR26T Compaction Depth 40cm Engine Type Diesel Engine Travel Speed 0-8km/H Centrifugal Force 40KN Certification CE, ISO 9001:2000 Condition New Operating Weight (Kg) 26000 Exciting Force (Kn) 180 Vibration Frequency (Hz) 60 Ground Pressure (Kpa) 200-420 Gradeability (%) 20 Engine Model Sc7h Rated Power/Rated Speed (Kw/Rpm) 118/1800 Wheelbase (mm) 3840 Fuel Tank (L) 180 Compacting Width(mm) 2750 Transport Package Container/RO-RO Specification 5060*2892*3338mm Trademark SHANTUI Origin China HS Code 8429401100 Production Capacity 100units/MonthProduct Description

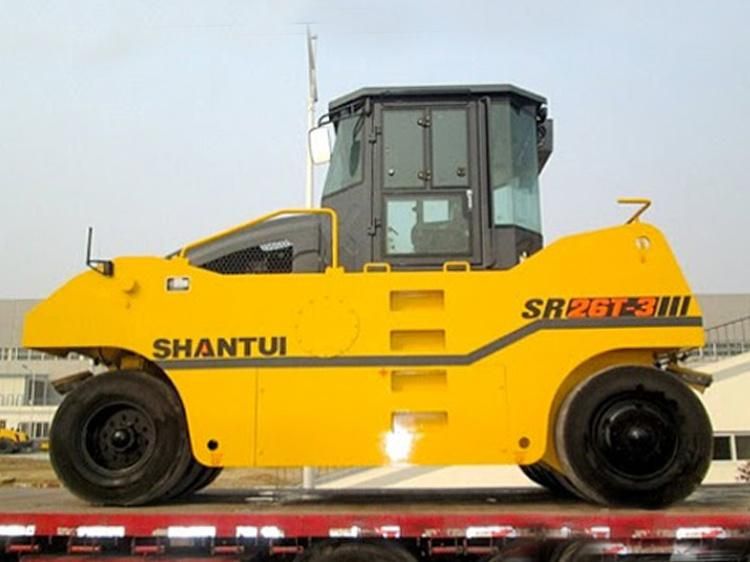

High Quality Shantui Construction Machine Road Roller SR26T with Low Price
Product discription
Operating cost
The proprietary match technology can achieve high operating efficiency and reasonable fuel economy.
The configuration of brand core parts achieves high quality and reliability and reduces the malfunction downtime.
Working performance
The high-strength three-point swing M frame for front wheels guarantees the uniform compacting on rugged ground.
The special tires for construction machinery feature good wear resistance and long life.
The hydraulic torque converter and power shift transmission with automatic stepless speed regulation are applied to achieve automatic adaptability and stable compacting drive of the road roller.
High maintenance convenience
The centralized oil drainage system eases the maintenances of engine, transmission, radiator, fuel tank, and hydraulic oil tank.
All body parts are designed with service hatches and uplifting covers to ease the maintenances and repairs of parts.
The centralized lubrication system for the rear wheels eases the centralized maintenances of the rear wheels.
High operating comfort
The downward exhaust design and the optimized heat dissipation air ducts reduce the radiation of engine compartment temperature towards the cab.
The double control mode is designed strictly as per ergonomic principles and the functional buttons are centralized to ease the access.
The octahedral cab provides a broad vision.
Parameter
| Parameter name | SR26T |
| Performance parameters | |
| Operating weight (Kg) | 26000 |
| Exciting force (KN) | - |
| Vibration frequency (Hz) | - |
| Nominal amplitude (mm) | - |
| Ground pressure (KPa) | 200-420 |
| Gradeability (%) | 20 |
| Engine | |
| Engine model | SC7H |
| Rated power/rated speed (kW/rpm) | 118/1800 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 5060*2892*3338 |
| Driving performance | |
| Forward speed (km/h) | F1:0-8,F2:0-18 |
| Reversing speed (km/h) | R1:0-8,R2:0-18 |
| Chassis System | |
| Wheelbase (mm) | 3840 |
| Tank capacity | |
| Fuel tank (L) | 180 |
| Working device | |
| Compacting width(mm) | 2750 |
