Customized Diesel Small Mobile Cement Concrete Mixer Truck for Morocco

JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.
  • After-sales Service:Provide
  • Warranty:One Year
  • Type:Concrete Mixing Truck
  • Shotcrete Type:Wet
  • Machining Process:Hydraulic
  • Structure:Spiral Type

Base Info

  • Model NO.:2m3
  • Productivity:16cbm,H
  • Feeding Height:2500mm
  • Vibrating Amplitude:0.8mm
  • Certification:ISO9001: 2000, CE
  • Condition:New
  • Color:White and Blue
  • Actual Mixing Capacity:2.0cbm
  • Rotary Drum Capacity:2.3cbm
  • Slump of Concrete:70-260mm
  • Tank Capacity:540L
  • Reducer Ratio:01:10
  • Rated Power:76kw
  • Max Torque:255,1500-1800 380,1500-1800 N.M,R,Min
  • Max Running Speed:24km,H
  • Min Steering Radius:4250mm
  • Climbing Capacity:26
  • Tire:23.5,70-16
  • Driving Way:4*4
  • Weight:4880kg
  • Maximum Load Capacity:3000kg
  • Whole Machinery Weight:6480kg
  • Transport Package:Nude Package
  • Specification:6700*2300*2900
  • Trademark:HW
  • Origin:China
  • HS Code:8705400000
  • Production Capacity:300sets,Month

Description

The main performance parameters of the chassis and the main performance parameters of the engine

Engine type / displacement

L

CF4B68G-Z-13B2/CF4C100T-Z-13B2

model



Straight injection type four-stroke water-cooled supercharged diesel engine

Rated power

kw/r/min

76KW/2400

Max torque

N.m/r/min

255/1500-1800 380/1500-1800

Max running speed

km/h

24

Min steering radius

mm

4250

Climbing capacity

%

26

Tire



23.5/70-16

Driving way



4×4

Weight

kg

4880

Maximum load capacity

kg

3000

Whole machinery weight

kg

6480

Overall size(L*W*H)

mm

6700*2300*2900

The wheelbase

mm

2250

Bucket capacity

0.45/0.55


Customized Diesel Small Mobile Cement Concrete Mixer Truck for Morocco

The concrete output is 2.0m3  per Batch, 12 m3 per Hour.  The wide cabin and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance

Customized Diesel Small Mobile Cement Concrete Mixer Truck for Morocco
Customized Diesel Small Mobile Cement Concrete Mixer Truck for Morocco
Customized Diesel Small Mobile Cement Concrete Mixer Truck for Morocco

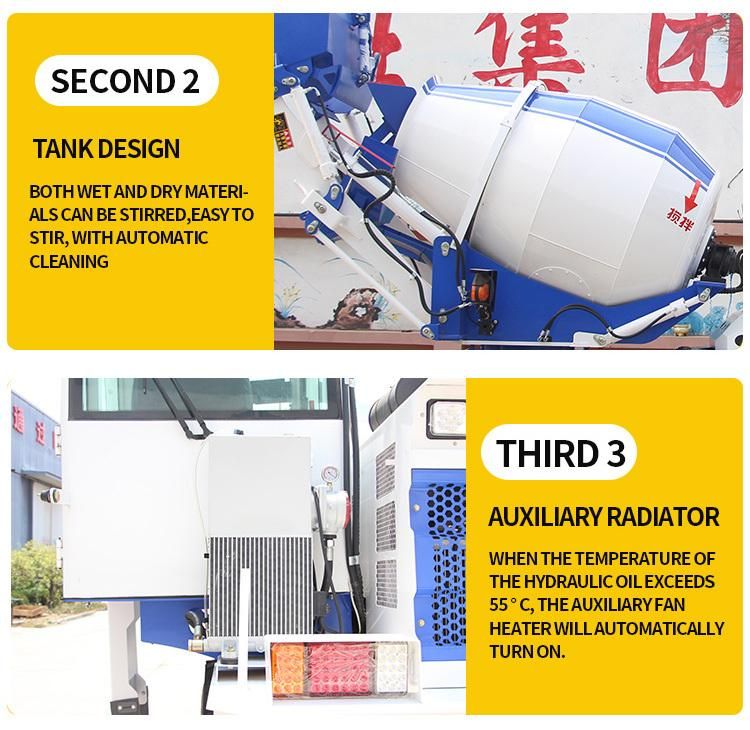

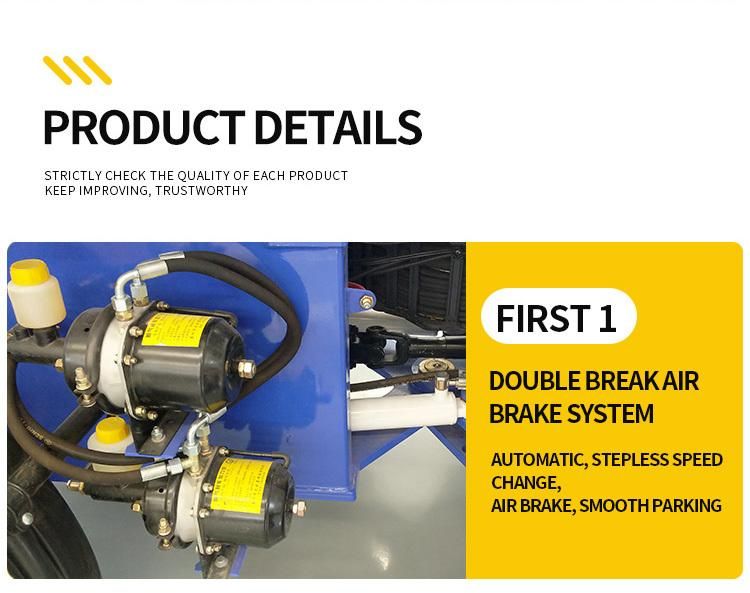

Automatic feeding concrete mixer truck Product details
Customized Diesel Small Mobile Cement Concrete Mixer Truck for MoroccoCustomized Diesel Small Mobile Cement Concrete Mixer Truck for MoroccoConstruction Site

Customized Diesel Small Mobile Cement Concrete Mixer Truck for MoroccoPacking:
2 units can be loaded into 40HQ Container

Customized Diesel Small Mobile Cement Concrete Mixer Truck for Morocco

Company Profile
Customized Diesel Small Mobile Cement Concrete Mixer Truck for Morocco


Certification
Customized Diesel Small Mobile Cement Concrete Mixer Truck for Morocco
Exhibition:
Customized Diesel Small Mobile Cement Concrete Mixer Truck for Morocco
