• Model NO.：ZTW30-25
• Type：Small Loader
• Backhoe Bucket Capacity：0.3cbm
• Rated Loading Bucket Capacity：1cbm
• Max Dump Heigh：2612mm
• Dump Reach at Max Dump Heigh：727mm
• Rated Lifting Force：25kn
• Engines Rated Power：75kw,60kw
• Total Operating Weight：7660kg
• Max.Digging Radius：5150mm
• Radius at The Max.Dump Height：1084mm
• Digging Buckets Max.Rotating Angle：180
• Max.Digging Force：>50kn
• Transport Package：Nude
• Specification：7077*2350*3420MM
• Trademark：ZTMACHINE
• Origin：China
• HS Code：842959000
• Production Capacity：30

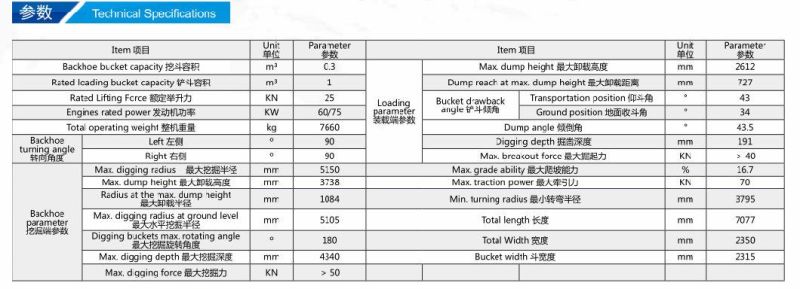

Basic Info.

Model NO. ZTW30-25 Type Small Loader Backhoe Bucket Capacity 0.3cbm Rated Loading Bucket Capacity 1cbm Max Dump Heigh 2612mm Dump Reach at Max Dump Heigh 727mm Rated Lifting Force 25kn Engines Rated Power 75kw/60kw Total Operating Weight 7660kg Max.Digging Radius 5150mm Radius at The Max.Dump Height 1084mm Digging Buckets Max.Rotating Angle 180 Max.Digging Force >50kn Transport Package Nude Specification 7077*2350*3420MM Trademark ZTMACHINE Origin China HS Code 842959000 Production Capacity 30

Product Description



Production description:
What is the main feature for backhoe loader ZTW30-25

1.7660kgs, CUMMINS engine, 4x4WD,  Hydraulic torque converter transmission, Spacious cab, 0.3m3 bucket, 1m3 loading bucket, 7077*2350*3420mm

2.Low fuel consumption, low noise and strong power characteristics by using CUMMINS ENGINE  (75kw)/XINCHAI ENGINE (60KW).

3.Super cab is designed with principle of ergonomics to provide the operator a low-noise environment, and possesses fine shock absorption.

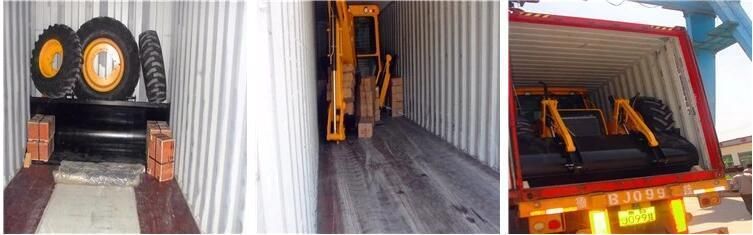

Packing & Delivery
Container 40HC 2 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
