1000kg Home Usage Small Front End Backhoe Loader
Shandong Honest Machinery Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE, Rops Fops
- Condition：New
- Rated Load：1-3t
- Transmission：Hydrostatic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：M910
- Type：Small Loader
- Category：Construction,Farming,Forestry Machine
- Engine：Perkins,Yanmar,Kohler,Chinese
- Power：30-70HP
- Power Source：Diesel
- Bucket Capacity：0.5-1.5m3
- Driving Speed：0-24km,H
- Weight：1600-3000kg
- Common Choice for Normal Use：Loader with Bucket and Forklift
- Common Choice for Forestry：Loader with Log Grabber
- Common Choice for Construction：Loader with Hammer and Concrete Mixer
- Transport Package：Nude Packing
- Specification：2690X1240X2285mm
- Trademark：STEEL CAMEL
- Origin：Shandong
- HS Code：8429510000
- Production Capacity：800 Sets Per Year
Description
Advantages of M910 multifunction wheel loader:
| Items | STEEL CAMEL loader | Other loader |
| Driving system | Full hydostatic 4WD One piston pump+4 hydraulic motors combine its driving system | Hydraulic/Mechanical driving Axle+torque converter+transmission shaft axle+gearbox motor |
| Working system | Twin pump for working devices Can choose the flow to be one pump's or twin pumps' | Single pump, no option |
| Independent system | Yes. The driving system and working system are independent closed system, can give max. output even when the loader is steady | No. The driving system and working system share some circuit, the output is relative with the driving speed |
| Boom | Telescopic | No-telescopic |
| Boom floating | Standard | Option for extra charge |
| Hydraulic quick coupling | Standard | Depends |
| Electric output on boom | Standard | Not available |
| Components | Perkins/Cummins engine, Italy pump and valves, UK seals | At most have an oversea engine, the rest are all local parts |
| Rear hydraulic output | Standard | Not available |
| 3 point hitch | Available as option | Not available |
| Tiltable cabin | Standard | Not availabl |
Loader+Tractor, one Multi-purpose helper for all your works
Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.
STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

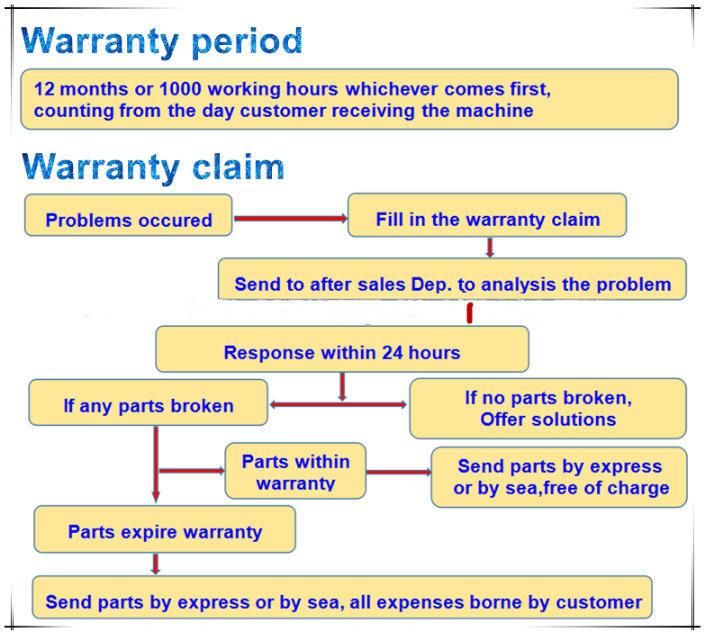

Loader warranty:

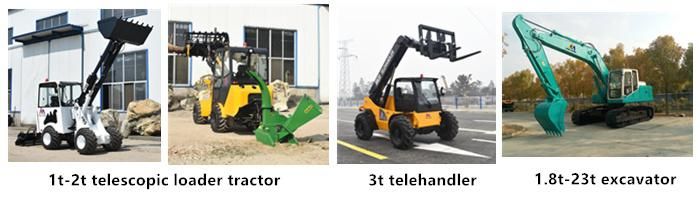

Other hotsale machines you may interest:
Contact me for more details now:
With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime. Any of your inquiry will be treated seriously with top attention, looking forward to hearing from you.
Anna Guan/Marketing director
**************************************
Shandong Honest Machinery Co., Ltd
