• Model NO.：930
• Motor Power：33kw
• Noise：With Noise
• Certification：ISO 9001:2000, ISO 9001:2008
• Condition：New
• Appearance：Loader Type
• Hammer Weight：230 Kgs
• Impact Frequency：11 to 15 Hz
• Working Flow：50 to 65 L,Min
• Working Pressure：12 to 14 MPa
• Diesel Engine Power：36.8 Kw
• Model：930
• Transport Package：Fixed by Steel Wire in Containers
• Specification：3801mm× 2200mm× 2702mm
• Trademark：Tongsu
• Origin：China
• HS Code：8430100000
• Production Capacity：100 Unit,Month

SPECIFICATIONS

Technical Parameter

Item

Descriptions

Model

930

Hammer Weight (Kgs)

230

Impact Frequency of Hydraulic Hammer (Hz)

11-15

Hydraulic Hammer Working Flow (L/min)

50-65

Hydraulic Hammer Working Pressure (Mpa)

12-14

Diesel Engine Power (Kw)

36.8

Flow Rate of Hydraulic System (ML/r)

42-50

Rated System Pressure (Mpa)

16

Wheel Track, Track distance (mm)

1730

Overall Dimensions (l * w * h) (mm)

3801×2200×2702

Machine Weight (Kgs)

4600

Extractor

High Frequency Vibration

Note: Due to technology progress, we reserve the right to update technical parameters without further notice.

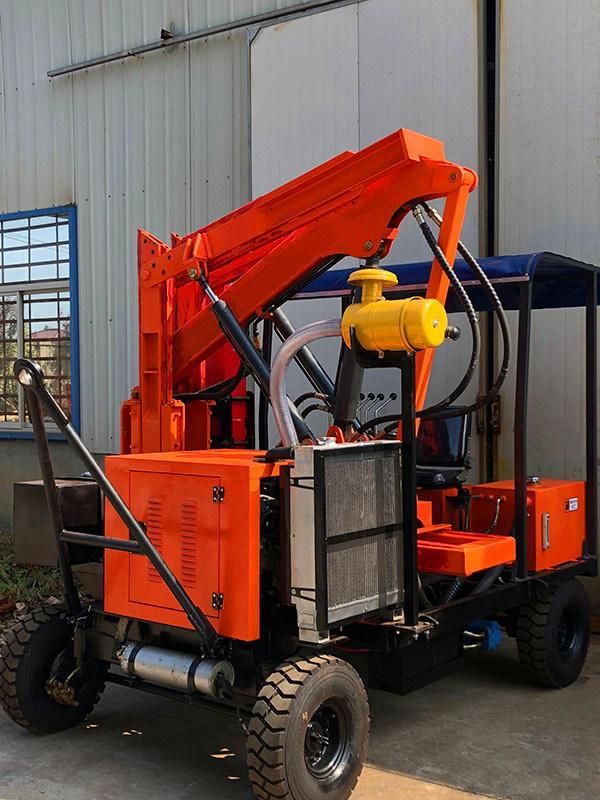

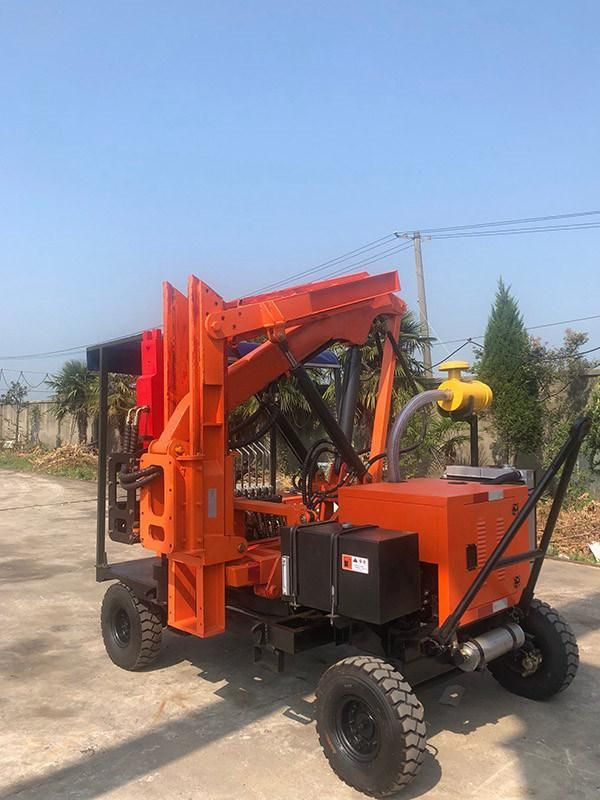

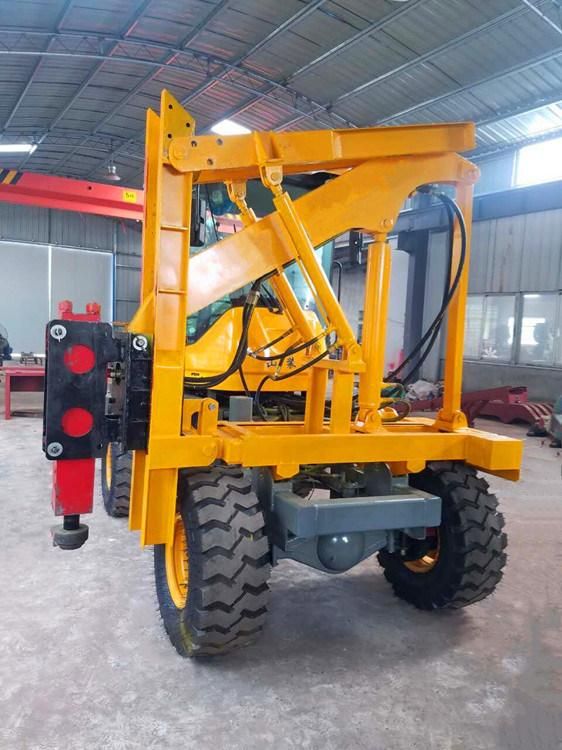

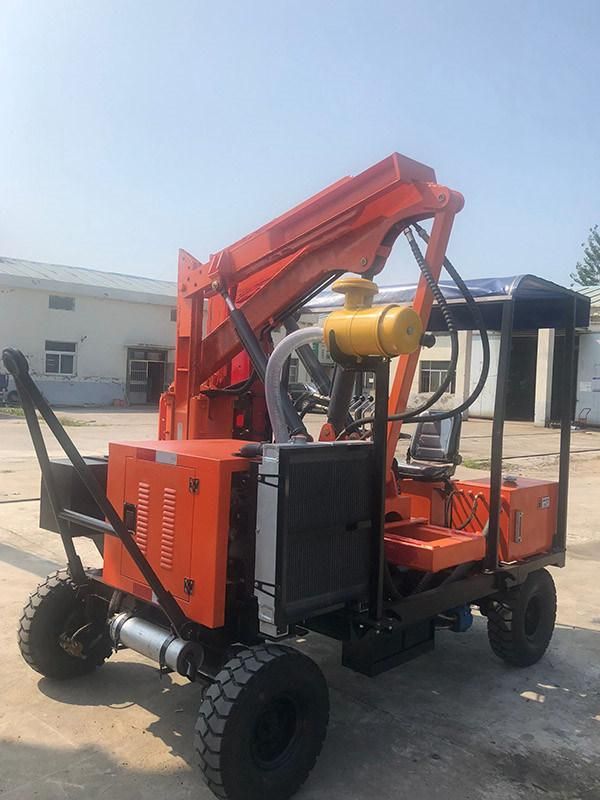

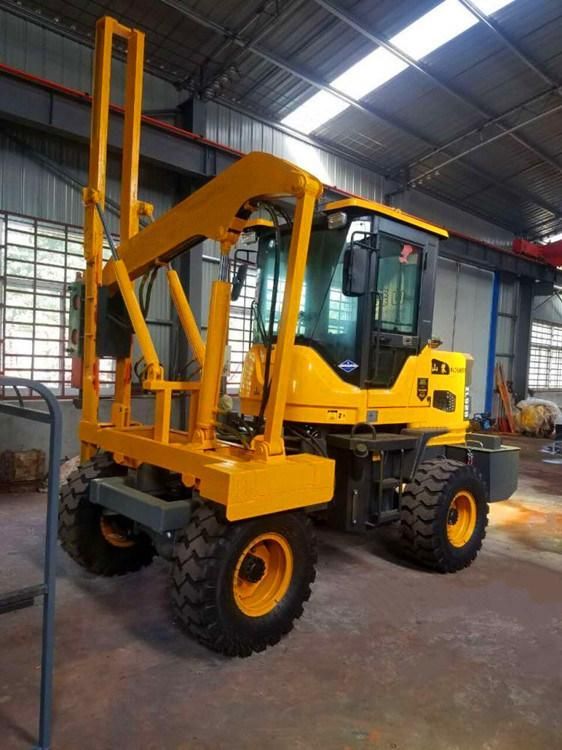

Operating Method of Hydraulic Guardrail Pile Driver:

1. Adjust the vertical position of the chassis and the lateral position of guardrail post to make post reach specified position.

2. Raise hydraulic hammer to the top, place the lower part of guardrail post on the pile position, align the upper part with the lower part of the hydraulic hammer, press the post, and then hammer the post. When driving a post, the position of the post should be observed at any time.

3. The pile head keeps pressure on guardrail post until the post is driven to accurate positioning.

4. The impact and vibration of the machine is obvious when it is working, and the dynamic state of each part should be observed at any time when it is operating. If abnormal noise or other abnormal phenomena occur, the machine should be stopped at any time for inspection, after the failures are removed, the machine can be restarted only.

If leakage of hydraulic system joints or loose parts are found, the machine should be shut down to adjust and tighten so that it can continue to be used after normal operation.

5. Hydraulic hammer should be lowered to the lowest level at the time of the end of operation.

Miscellaneous:

Productivity: 90 sets per month

Freight: Ocean

Place of Origin: Jiangsu

Lead Time: 100 Units per month

Certificate: ISO 9001:2000

Port: Shanghai Port
