• Model NO.：swd120
• Engine Power：74~147kw
• Certification：ISO9001: 2000, ISO140001
• Condition：New
• Color：Yellow
• Track Width：450 mm
• Blade Type：Straight
• Max. Tractive Force：80kn
• Travel Speed：10.4 Km,H
• Operating Weight：13.5 Ton
• Transport Package：Nude
• Specification：ISO
• Trademark：Sinoway
• Origin：China
• HS Code：84294090
• Production Capacity：300 PCS,Month

Basic Info.

Model NO. swd120 Engine Power 74~147kw Certification ISO9001: 2000, ISO140001 Condition New Color Yellow Track Width 450 mm Blade Type Straight Max. Tractive Force 80kn Travel Speed 10.4 Km/H Operating Weight 13.5 Ton Transport Package Nude Specification ISO Trademark Sinoway Origin China HS Code 84294090 Production Capacity 300 PCS/Month

Product Description

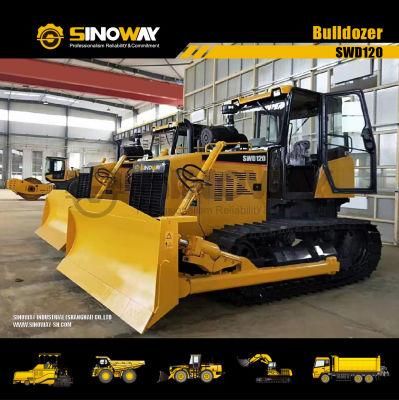

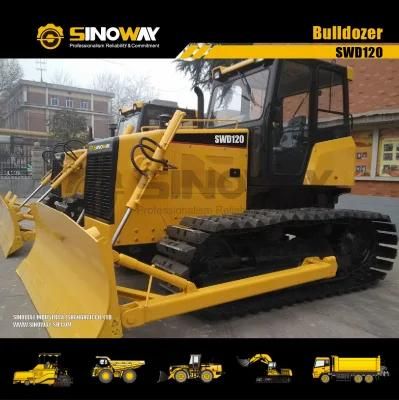

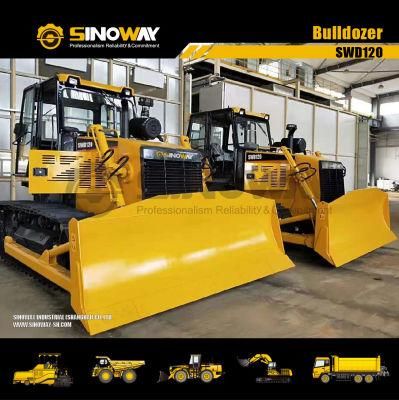

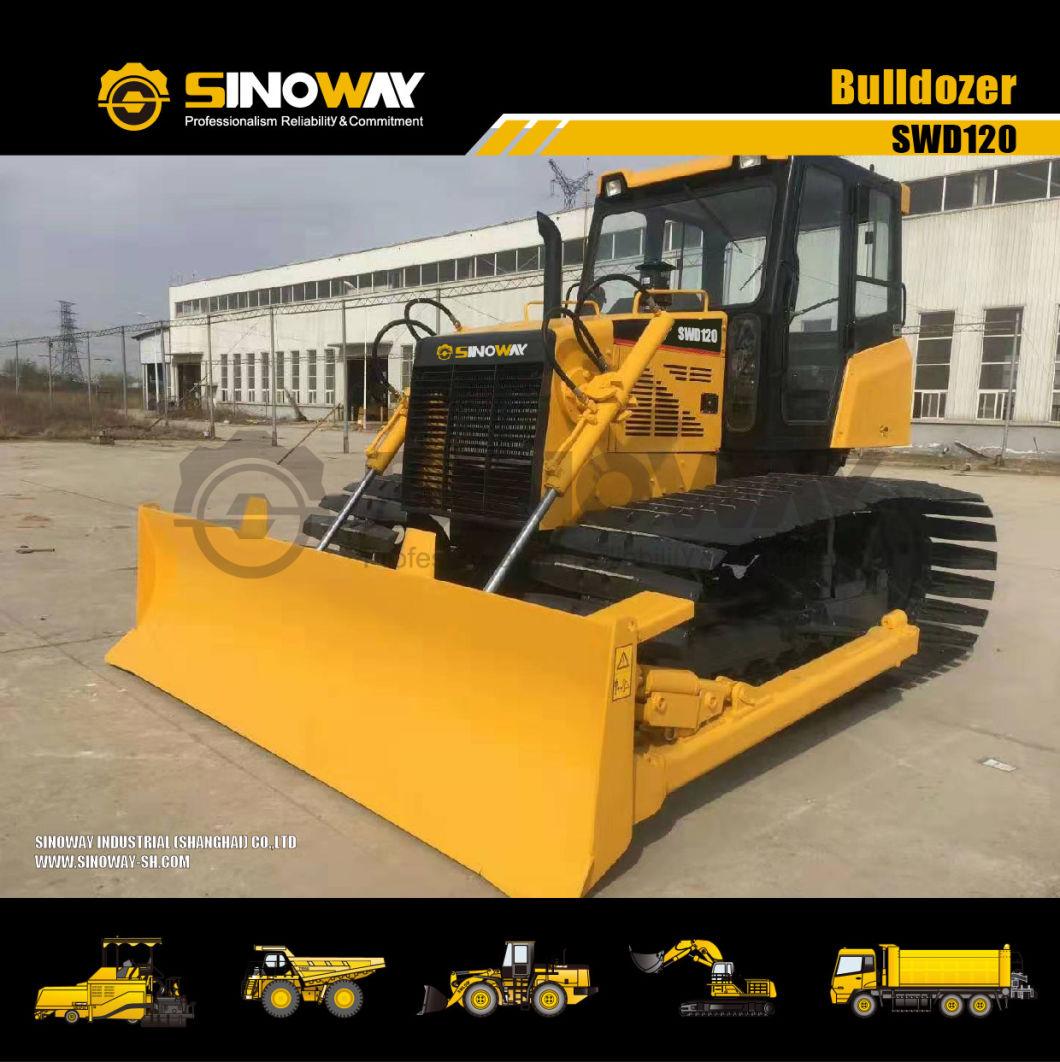

Sinoway SWD120 Bulldozer Features

SWD120 bulldozer is 120 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
120 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair & maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.
It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defence cabin etc.. It is can ideal machine used in communication, oil field, power, mining etc. large earth moving program.

With the maturest technology introduced, Sinoway offers both flat design track dozers as Komatsu and elevated track bulldozers as Caterpillar. As a supplement, Sinoway provide also wheeled bulldozer for your application which crawler dozers are not allowed. From a wide horsepower range of 80HP to 430HP, with various blade types and attachments available, the last thing now is just selecting the right bulldozer for your application.

Engine
Model	Luotuo LR6A3Z
Type	Six-cylinder,water-cooled turbocharged,mechanical injectio
Rated power	88.2KW
Rated speed	2000rpm
Implement Hydraulic System
Hydraulic flow rate	130L/min
Hydraulic pressure	16MPa
Pump type	Gear pump
Control valve	Hand operated
Under Carriage System
Sprocket	Segmented
Number of track rollers (each side)	5
Number of carrier rollers (each side)	(3 single, 2 double)
Number of front idler (each side)	21
Track type	Single grouser
Track tension	Hydraulic
Track pitch	171mm
Track width	500mm
Number of track shoes (each side)	43
Track length on ground	2502mm
Ground clearance	368mm
Main Technical Specification
Operating weight(without ripper)	13500Kg
Ground pressure(without ripper)	0.051MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	4565×3135×2980mm
Max. tractive force	115KN
Working Equipment
Blade type	Straight
Width	3135mm
Height	970mm
Max. digging depth	400mm
Max. lift above ground	894mm
Tilting angle	8.5°
Blade capacity	3.5m3
Transmission System
Gear box	Mechanical
Bevel gear	One pair spiral bevel gear
Final drive	One pair columnar gear floating sealing
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F4/R2
Forward/Reverse I	2.4~10.6
Forward/Reverse II	3.8~7.0
Service Capacities
Fuel tank	255L
Water tank	22L
Implement oil tank	35L
Steering clutch	Dry multi-plate, floating control
Steering brake	Mechanical pedal control

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
