• Model NO.：SWG165-II
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Engine：Diesel
• Engine Power：165HP
• Drive Type：6X4
• Blade Width：4268 mm
• Max. Bank Cutting Angle：90 Degree
• Rear Ripper：as Optional
• Color：Yellow
• Transport Package：Nude
• Specification：ISO2008
• Trademark：Sinoway
• Origin：China
• HS Code：84292092
• Production Capacity：30 Units,Month

Basic Info.

Model NO. SWG165-II Walking Mode Wheeled Type Medium-sized Grader Engine Diesel Engine Power 165HP Drive Type 6X4 Blade Width 4268 mm Max. Bank Cutting Angle 90 Degree Rear Ripper as Optional Color Yellow Transport Package Nude Specification ISO2008 Trademark Sinoway Origin China HS Code 84292092 Production Capacity 30 Units/Month

Product Description

Highlights of SINOWAY SWG165-II Motor Graders

The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
The electro-hydraulic controls the power shift gearbox,with 6 forward gears and 3 reverse gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .
 Komatsu technology, Equipped with Cummins engine, 165hp, ZF tech. transmission, heavy duty blade, cabin with air conditioner. Front dozer and five shank ripper as optional.

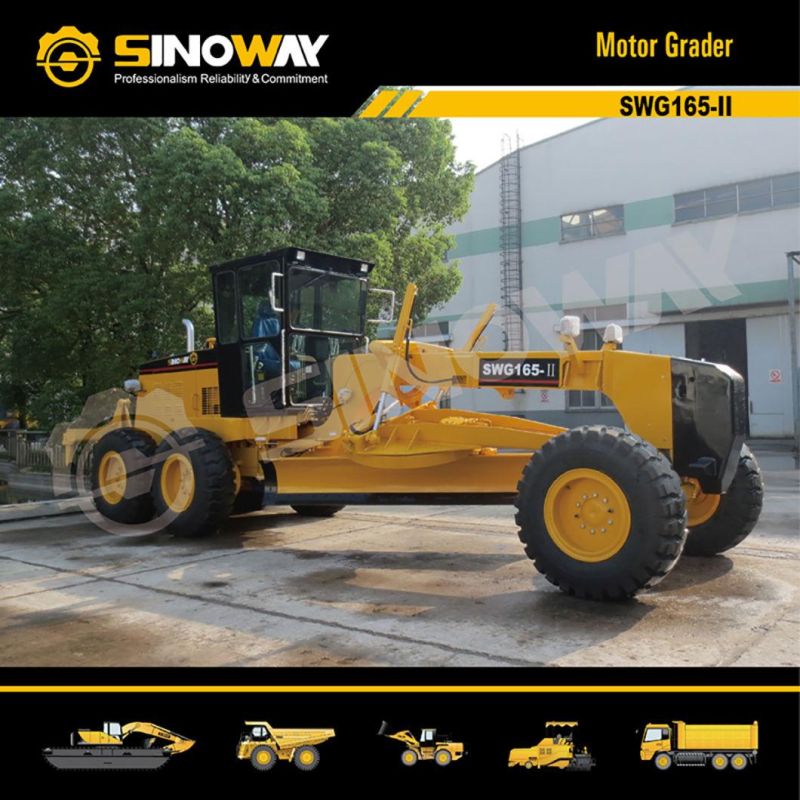

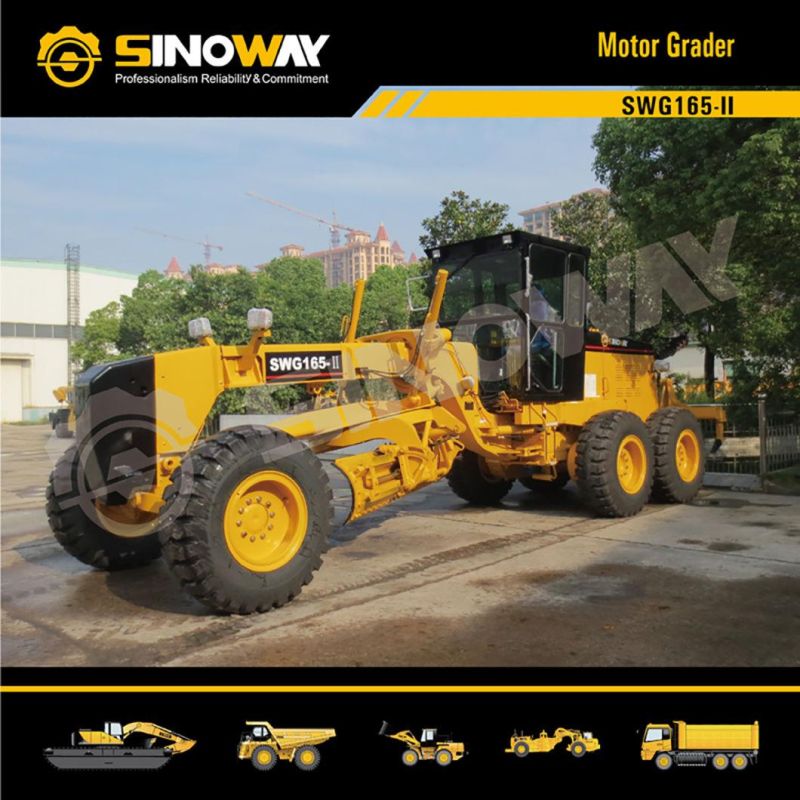

Product Show




Specifications


Engine
Model	Cummins
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	132KW
Rated speed	2100rpm
Transmission System
Torque conveter type	3 elements, single stage
Torque ratio	2.52
Cooling type	Oil cooled, pressure circulation
Gearbox type	Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F6/R3
Forward/Reverse I	6.5/6.5
Forward/Reverse II	11.4/14.6
Forward/Reverse III	14.6/30.0
Forward IV	24.8
Forward V	30
Forward VI	49.2
Steering System
Front wheel steering angle	49º(L/R)
Articulated steering angle	26º(L/R)
Drive type	Dual action cylinder
Axle
Drive type	Four wheel drive(6×4)
Front axle ground clearance	610mm
Front wheel lean	32º(L/R)
Oscillation	±15º
Drive axle	Imported No-SPIN differential
Working Equipment
Control system	Hydrostatic drive system
Hydraulic pump	Gear pump
Control valve	HUSCO
Control pressure	18MPa
Hydraulic oil cylinder	HYUNDAI
Max. tractive force	78.5KN
Ground penetration	535mm
Blade width	3660mm
Blade cycling	360º
Max. bank cutting angle	90º(L/R)
Operating weight	14500kg
Braking System
Service brake	Hydraulic assist actuated on inner-expanding drum brake
Parking brake	Flexible shaft control actuated drum brake
Dimensions
Overall length	8630mm
Overall width(wheel outside)	2600mm
Overall height	3370mm
Wheel base	6100mm
Front tread	2120mm
Rear tread	2120mm
Tyre size	17.5-25
Service Capacities
Fuel tank	350L
Engine crank case	27L
Hydraulic tank	70L
Gear box	45L
Rear axle	18L
Balance box	42L(each)
Worm gear case	3L
Tandem Drive
Type	Swing type with roller chain transmission
Speed ratio	18.03
