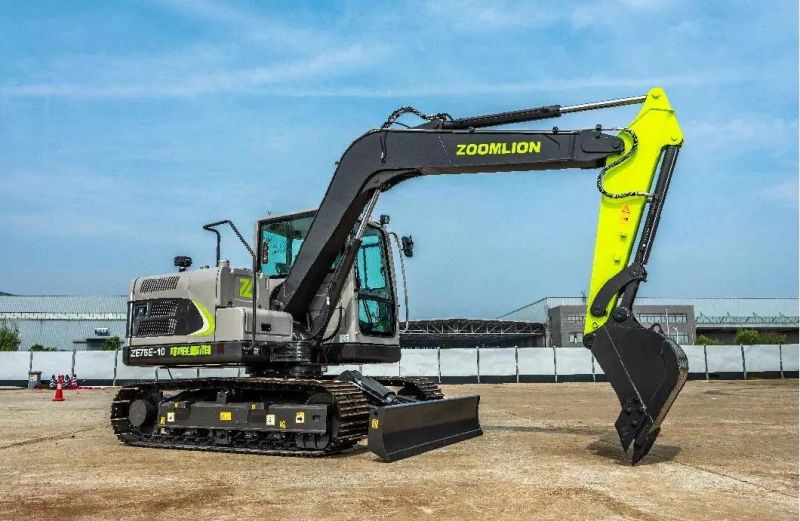

Hot Zoomlion Liugong Mini Small 5.5ton 6ton 7.5ton Excavator Ze60e-10 Ze60e
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Online Support or Field Maintenance
- Warranty：One Year Warranty
- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：ZE60E-10
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Engine Model：Yanmar
- Rated Power：36.2 Kw
- Max. Traction：54.3 Kn
- Emission：EU III
- Arm Digging Force：28.5 Kn
- Bucket Digging Force：45.5 Kn
- Transport Package：Container
- Specification：5880*1900*2628mm
- Trademark：Zoomlion
- Origin：Hunan, China
- Production Capacity：100units,Month
Description
Overview
Product DescriptionBasic Technical Data Operating Weight kg 6050 Standard Capacity m³ 0.23 Slewing Speed r/min 10.8 Traveling Speed(high/low) km/h 4.2/2.2 Max. Drawbar Pull kN 54.3 Digging Force of Bucket kN 45.5 Digging Force of Stick kN 28.5
Engine
DimensionsLength mm 5880 Width mm 1900 Height mm 2116 Tail Slewing Radius mm 1700 Track Gauge mm 1500 Length of Track On Ground mm 1950 Operating Range Max. Digging Radius mm 6160 Max. Digging Reach mm 5980 Max. Digging Depth mm 3850 Max. Digging Height mm 5790 Max. Dumping Height mm 3980
Detailed Photos
Engine
Dimensions
