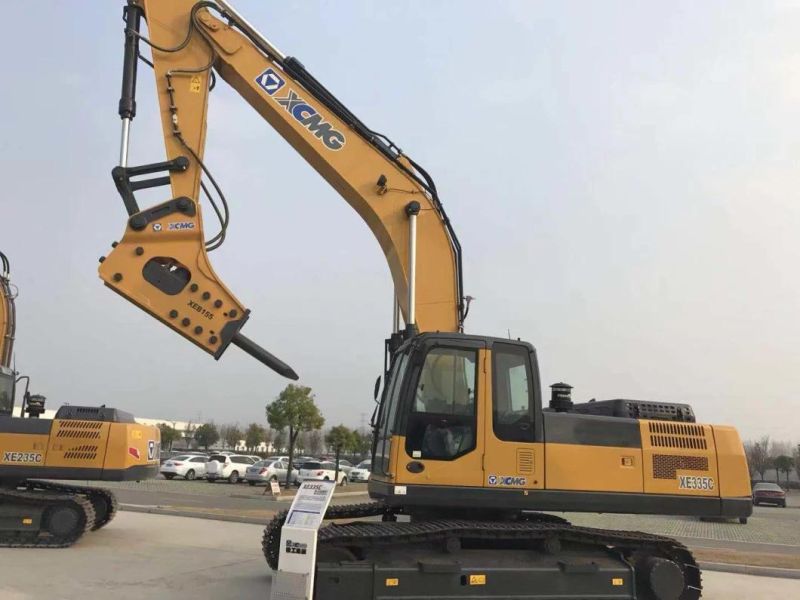

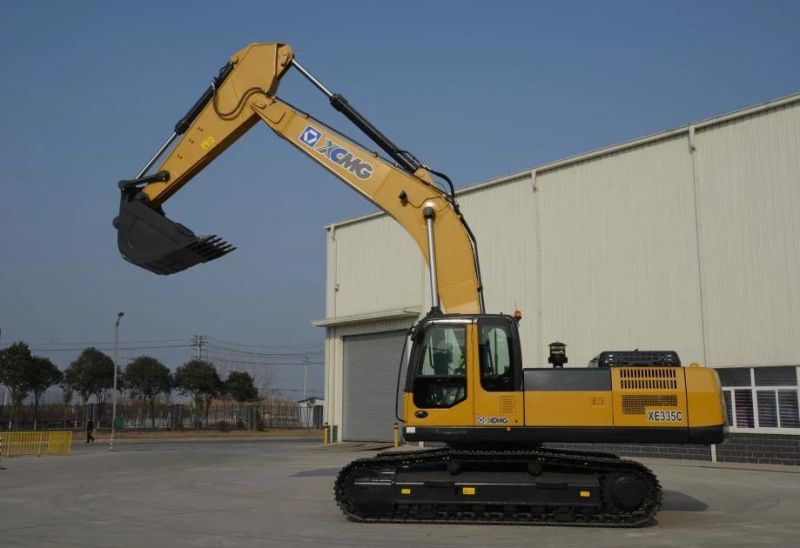

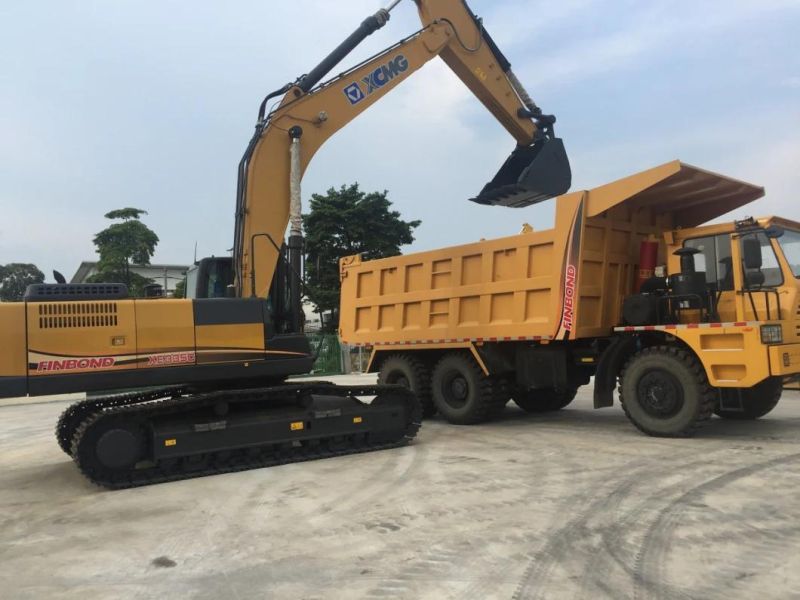

XCMG Excavator Xe335c 190kw 30 Ton Hydraulic Crawler Excavator Machine with 1.6m3 Bucket
XCMG E-Commerce Inc.- Warranty：1 Year
- Type：Crawler Excavator

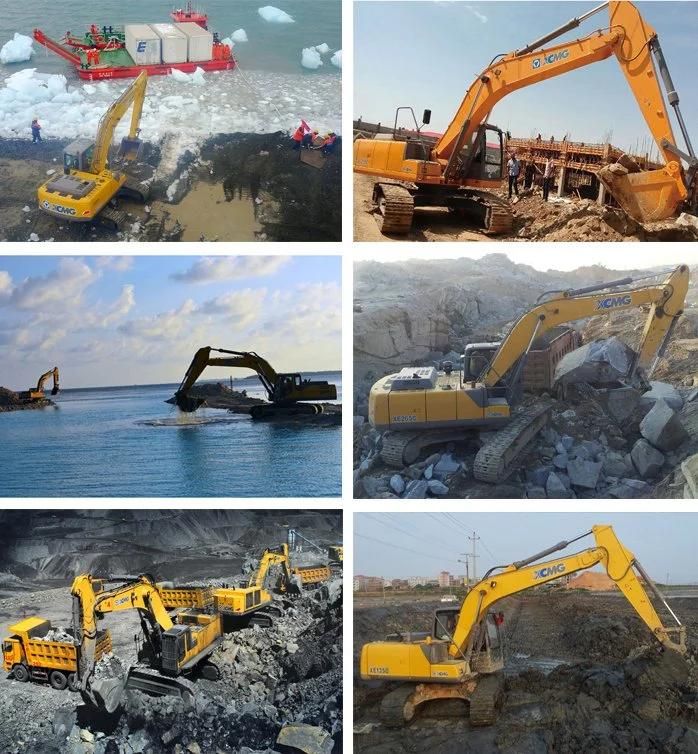

- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Transmission：Hydraulic Transmission
- Bucket Capacity：1.4cbm
- Size：Medium-Sized
Base Info
- Model NO.：xe335c
- Certification：CE, ISO9001: 2000
- Condition：New
- Rated Speed：3.3-5.5km,H
- Maximum Digging Height：10074mm
- Power(W)：190.5 Kw
- Unique Selling Point：Environmental, Energy-Saving, Large Power Engine
- Maximum Digging Depth：6972mm
- Hydraulic Valve Brand：Kawasaki
- Hydraulic Pump Brand：Kawasaki
- Moving Type：Crawler Excavator
- Engine Brand：Isuzu
- Bucket Digging Force：289 Kn
- Transport Package：Comply with Export Packaging Requirements
- Specification：11388*3190*3515mm
- Trademark：XCMG
- Origin：Jiangsu, China
- Production Capacity：1000 Unit,Units Per Year
Description
Overview
Product ParametersUnitParameters Model Operating weight kg 33800 Bucket capacity m³ 1.4-1.6-10 Engine Engine model / ISUZU AA-6HK1XQP Cylinders / 6 Output power of engine Kw/rpm 190.5/2000 Max.torque/engine N.m/rpm 872.8/1700 Displacement L 7.79 Mian pertormance Travel speed km/h 5.5/3.3 Slewing speed r/min 9.7 Gradient capability ° ≤35° Ground pressure kPa 66 Digging capacity of tcuket kN 263 Digging capacity of tcuket rod kN 225 Max.traction kN 261 Working scope A Max.digging height mm 10074 B Max.unloading height mm 6898 C Max.digging depth mm 6972 D Digging depth at the range of 8feets horizontally mm 6728 E Max.vertical digging depth mm 5366 F Max.digging radius mm 10650 G Max.swing height mm 4424 Standard configuration Boom length mm 6400 Length of bucket rod mm 2670 Bucket capacity m³ 1.4 Optional counfiguration Length of bucket rod mm 2900/3200/4000 Bucket capacity m³ 1.6
