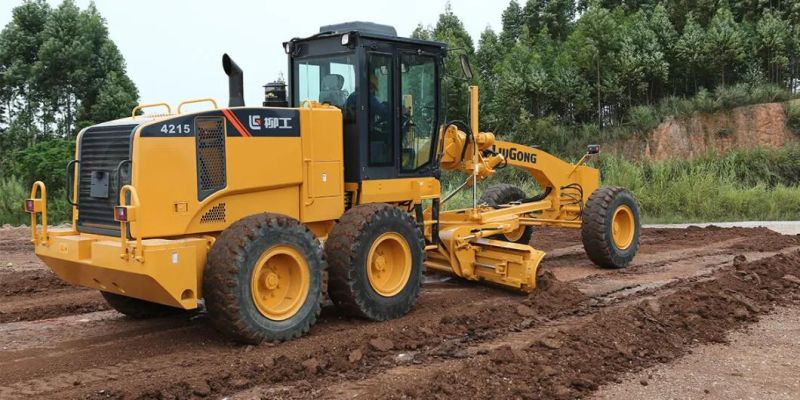

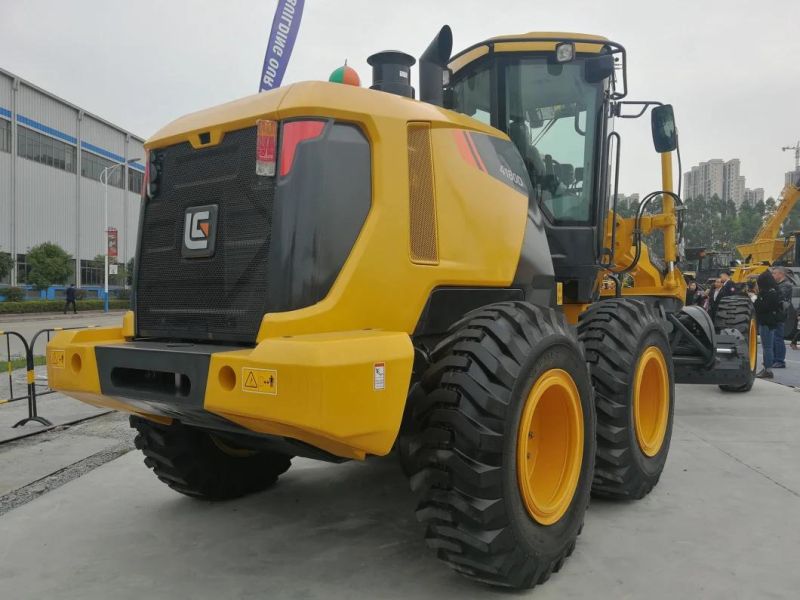

Road Machinery 165HP Liugong Clg4165 Grader Motor in Algeria
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Transmission：Hydraulic
- Walking Mode：Wheeled
- Type：Small Grader
- Operating Weight：15000 Kg
Base Info
- Model NO.：CLG4165
- Weight on Front Wheels：4500 Kg
- Weight on Rear Tandem：10500 Kg
- Model：6btaa5.9-C170
- Rated Power：125 Kw (170 ) @ 2200 Rpm
- Maximum Travel Speed, Forward：42 ,H
- Maximum Travel Speed, Reverse：26.2 ,H
- Blade Width：3960 mm
- Transport Package：Nude Packing
- Specification：8900*2625*3470mm
- HS Code：84295100
- Production Capacity：1000,PCS
Description
Operating weight
15000 kg
Weight on front wheels
4500 kg
Weight on rear tandem
10500 kg
Drawbar pull
82 kN
Model
6BTAA5.9-C170
Emission regulation
Tier 2 / Stage II
Rated power
125 kW (170 ) @ 2200 rpm
Net power
113 kW (153 ) @ 2200 rpm
Type
Power shift
Speeds
6f / 3r
Maximum travel speed, forward
42 /h
Maximum travel speed, reverse
26.2 /h
Turning radius
7300 mm
Articulation angle
±20°
Maximum overall height
3500 mm
Width over tires
2600 mm
Blade width
3960 mm
Overall length
9245 mm
