• Model NO.：PLD800
• Vibrating Amplitude：1.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Orange
• Overall Dimension：6400*1600*3000
• Machine Weight：2300kg
• Power：3.2.2kw
• Belt Conveying Speed：1.25m,S
• Aggarete Types：2
• Maxmium Weighing：1500kg
• Storing Volume：2.2m3
• Weighing Volume：0.8m3
• Raw Material：Sand
• Warranty：One Year
• Transport Package：Suitable for Sea Transportation
• Specification：6400*1600*3000mm
• Trademark：Raytone Machinery
• Origin：Shandong, China(Mainland)
• HS Code：847431000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. PLD800 Vibrating Amplitude 1.2mm Certification ISO9001: 2000, CE Condition New Color Orange Overall Dimension 6400*1600*3000 Machine Weight 2300kg Power 3.2.2kw Belt Conveying Speed 1.25m/S Aggarete Types 2 Maxmium Weighing 1500kg Storing Volume 2.2m3 Weighing Volume 0.8m3 Raw Material Sand Warranty One Year Transport Package Suitable for Sea Transportation Specification 6400*1600*3000mm Trademark Raytone Machinery Origin Shandong, China(Mainland) HS Code 847431000 Production Capacity 50 Sets Per Month

Product Description

PLD800 Concrete Batching Machine Brief Introduction:

On the basis of combining advantages of various foreign concrete batch plant and advanced technology, Our wet mixed concrete batch plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.
1 High intensity & efficiency, and can be applied to produce such kinds of concrete as plastic and stiff consistency concrete.

2 Uses JS serial double horizontal shaft compulsory mixer as mixing system's mainframe

3 Adopts such latest controlling technology as electronic weighting system, computer controlling and digital display.

4 Electronic weighting all has the device of cushion and the function of self-compensation with high measurement accuracy.

5 Feeding system adopts flat-belt or miter-belt to feed materials, and sets up overhauling passage.

Main Technical Parameters:

Model	PLD800
Weighing volume	0.8m3
Storing volume	2×2m3
productivity	48m3/h
Batching accurancy	±2%
Maxmium weighing	1500kg
Aggarete types	2
Feeding height	2364mm
Belt conveying speed	1.25m/s
power	3×2.2kw
Machine weight	2300kg
Overall dimension mm(l×w×h)	6400×1600×3000

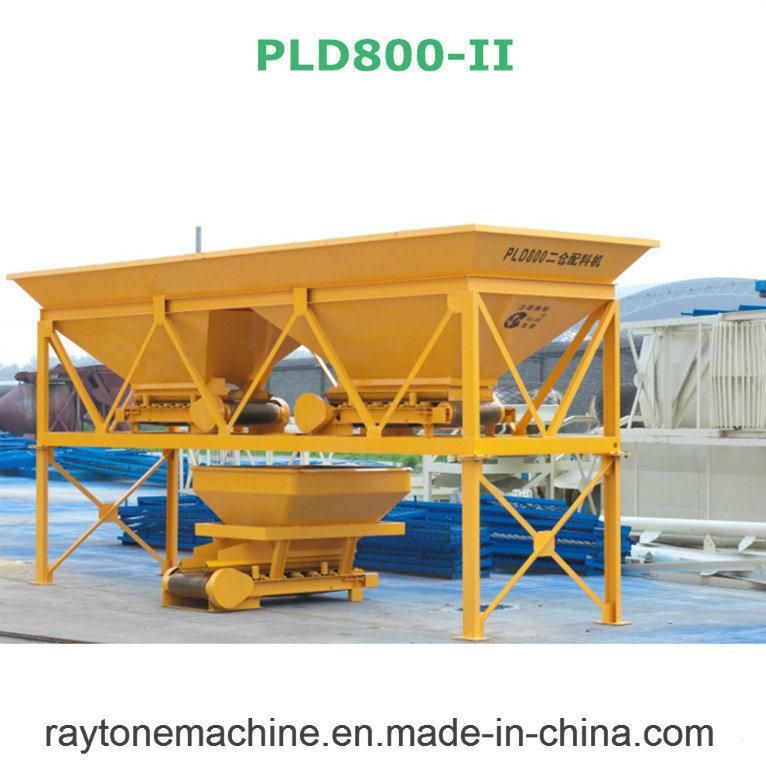

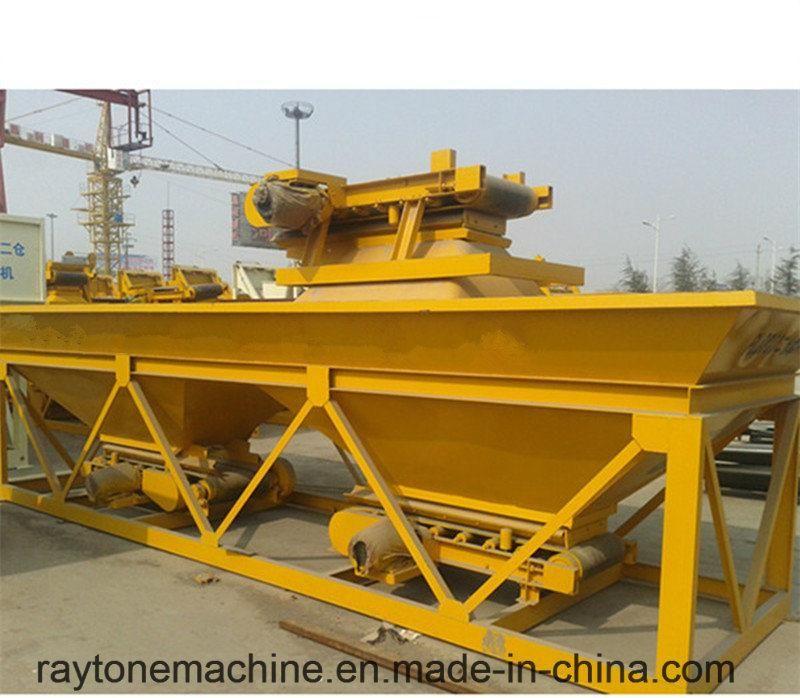

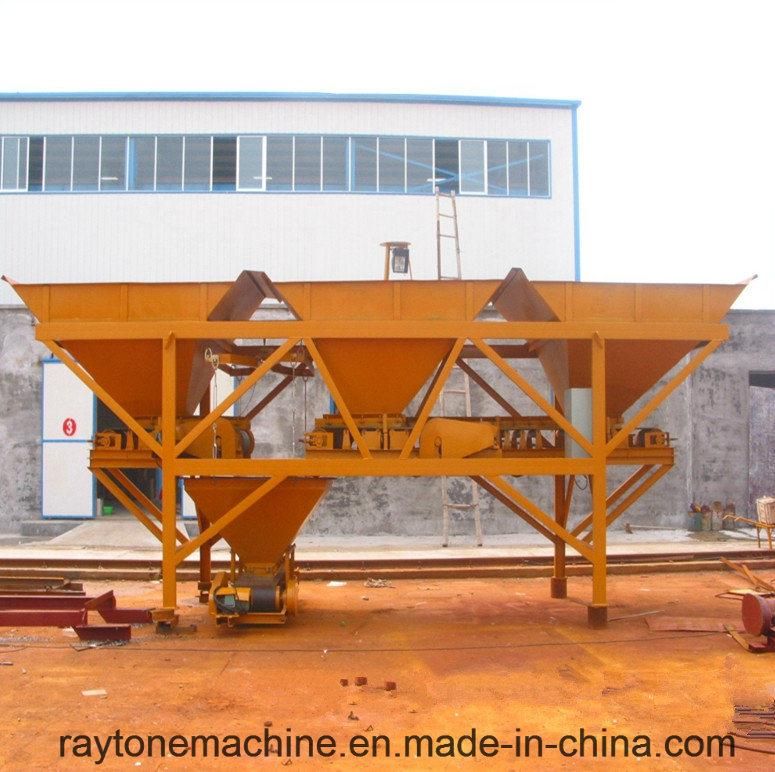

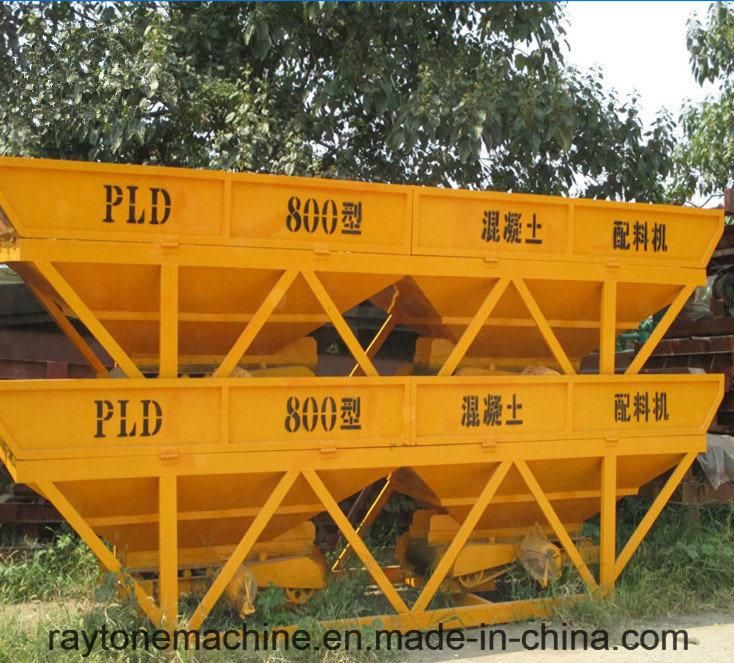

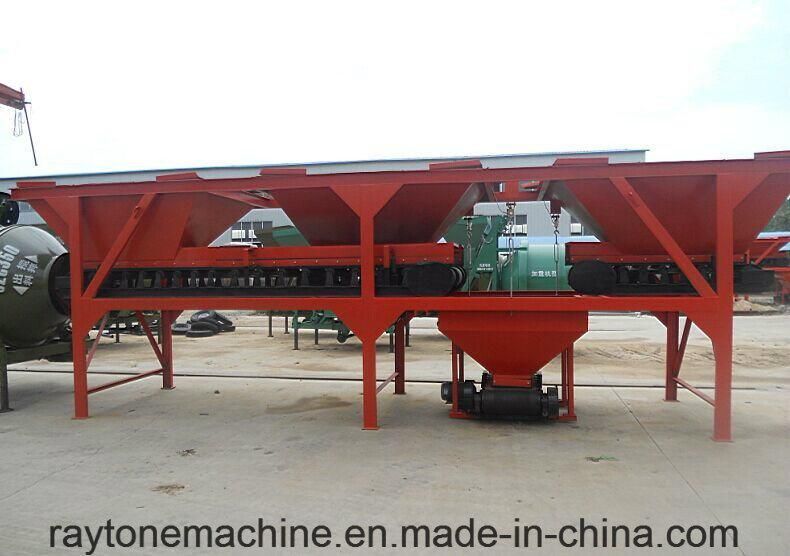

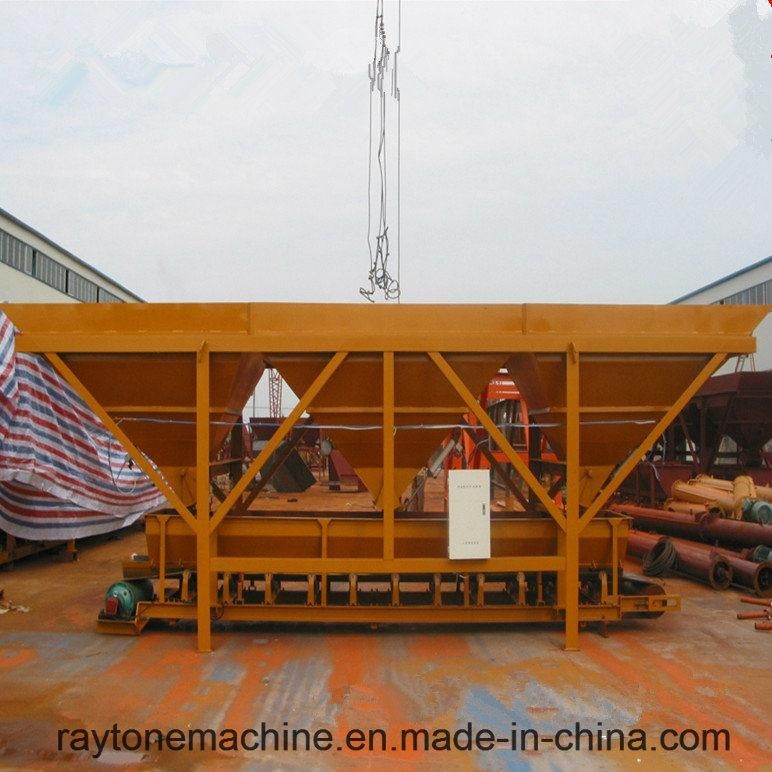

Detailed PIctures:
