China Wzyd55-8c Bonny 55 Ton Hydraulic Material Handler with Muti-Tine Grab

Sichuan Bonny Heavy Machinery Co., Ltd.
  • Type:Electric Material Handler
  • Usage:Special Excavator, Material Handler
  • Bucket:Multi-Tine Grab,Magnet Devices
  • Transmission:Hydraulic Transmission
  • Drive Type:Electric Drive
  • Bucket Capacity:1.0~1.5m³

Base Info

  • Model NO.:WZYD55-8C
  • Size:Large-Scale
  • Certification:ISO9001: 2000
  • Condition:New
  • Operationg Weigth:53ton
  • Capacity with Multi-Tine Grab:1.0,1.2m3 (5-Tines)
  • Transport Package:Export Pakage
  • Trademark:BONNY
  • Origin:China
  • HS Code:8429521200
  • Production Capacity:100PCS Per Month

Description

Basic Info.

Model NO. WZYD55-8C Size Large-Scale Certification ISO9001: 2000 Condition New Operationg Weigth 53ton Capacity with Multi-Tine Grab 1.0/1.2m3 (5-Tines) Transport Package Export Pakage Trademark BONNY Origin China HS Code 8429521200 Production Capacity 100PCS Per Month

Product Description

Features & Advantages

1. Bonny's material handlers are efficient special equipment for loading and unloading, specially designed for loading and unloading working conditions (including special main valves, special hydraulic systems, etc.), not simple modification from excavators.

2. -8C series material handler is the latest products in Bonny, it is equipped with the world famous brand hydraulic components. it adopted special undercarriage, enlarge distance between sprocket and idler, and two tracks, largely improve the working stability and elevating capacity; develop the working attachment further, largely improve the operation efficiency under ensuring the working reaching.

3. Electric hydraulic material handler has the unique advantages of zero emission, low noise, low operating & maintenance cost.

4. Bonny's material handlers have several individual scheme combinations between power unit, working attachment, working tools, driver's cab and undercarriage, can be fully satisfied the personalized requirements of customers.The following advanced systems can be selected individually or in combination as required: Monitoring system with displayer, electronic weighing system, radiation detection system, automatic central lubricating system, rubber track, tools applicable (Multi-tine Grab, Clamshell grab, Timber grab, Hydraulic shears, Hydraulic pliers etc.).

5. Applicable for loading, unloading, stacking, transferring and packing in scrap steel yards, wharf yards, railway yards, as well as light material industry.

Specifications

ItemUnitData
Machine weightt53
Rated powerkW160 (380V/50Hz)
Speedrpm1485
Max. flowL/min2×267
Max. operation pressureMPa30
Swing speedrpm7.4
Travel speedkm/h2.7/4.9
Cycling time of operations21
Working attachment Data
Boom lengthmm9000
Stick lengthmm6800
Capacity with Multi-tine Grabm31.0 (semi-closure)/1.2 (open type)
Max. grabbing reachmm16844
Max. grabbing heightmm14032
Max. grabbing depthmm8188

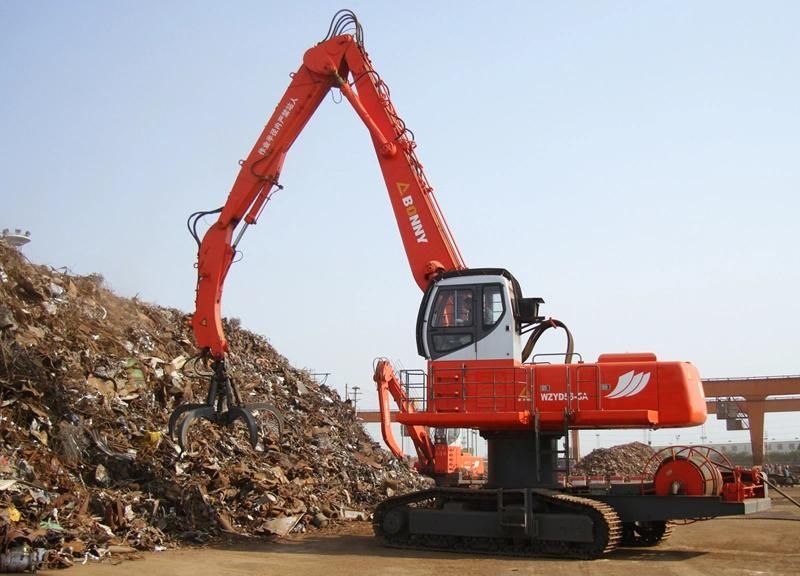

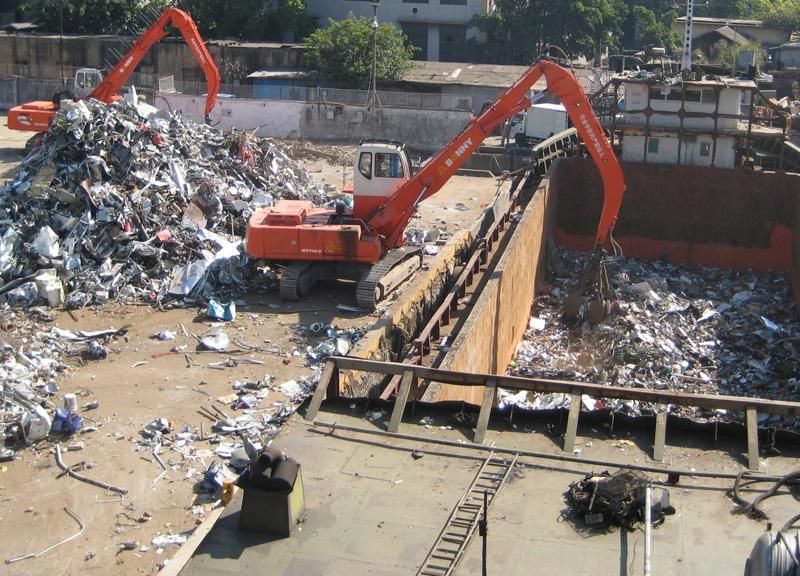

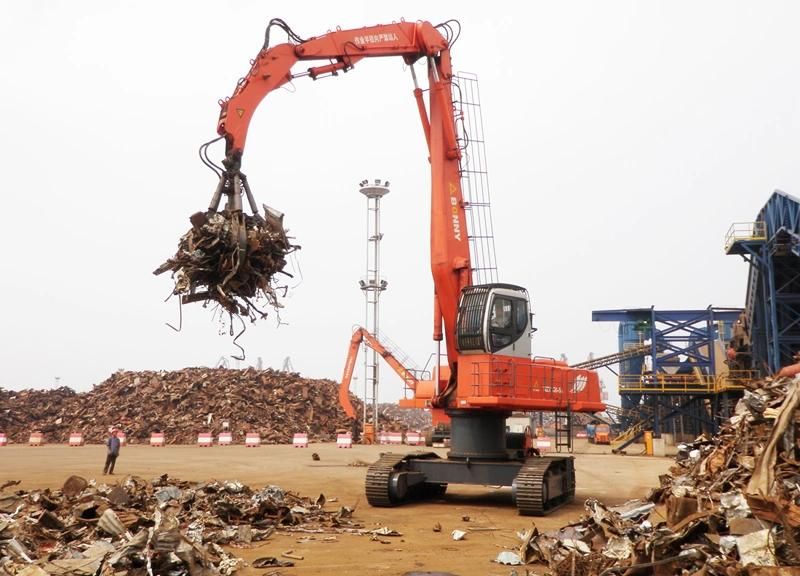

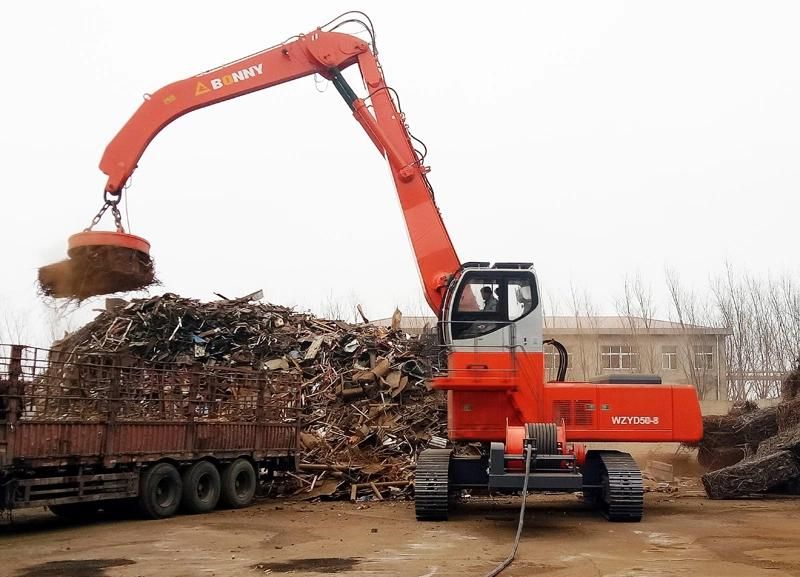

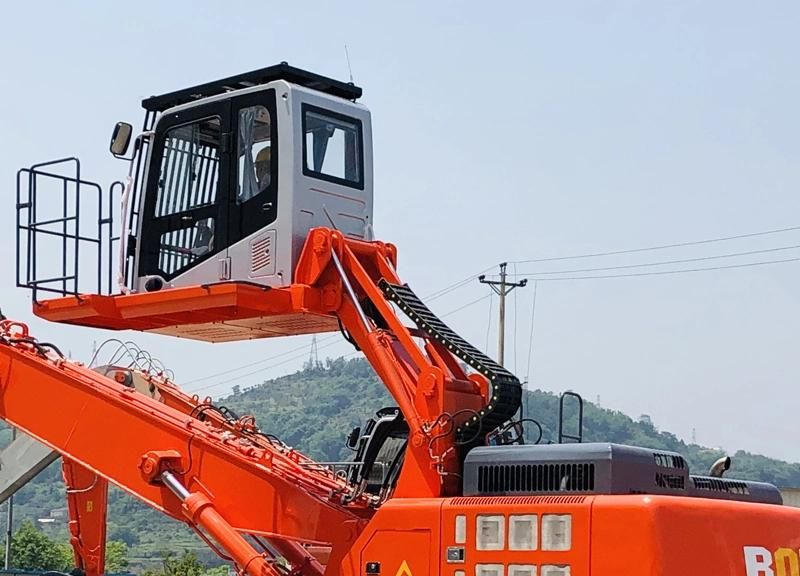

Product Show

China Wzyd55-8c Bonny 55 Ton Hydraulic Material Handler with Muti-Tine GrabChina Wzyd55-8c Bonny 55 Ton Hydraulic Material Handler with Muti-Tine GrabChina Wzyd55-8c Bonny 55 Ton Hydraulic Material Handler with Muti-Tine GrabChina Wzyd55-8c Bonny 55 Ton Hydraulic Material Handler with Muti-Tine GrabChina Wzyd55-8c Bonny 55 Ton Hydraulic Material Handler with Muti-Tine GrabChina Wzyd55-8c Bonny 55 Ton Hydraulic Material Handler with Muti-Tine Grab

Certificate

China Wzyd55-8c Bonny 55 Ton Hydraulic Material Handler with Muti-Tine Grab

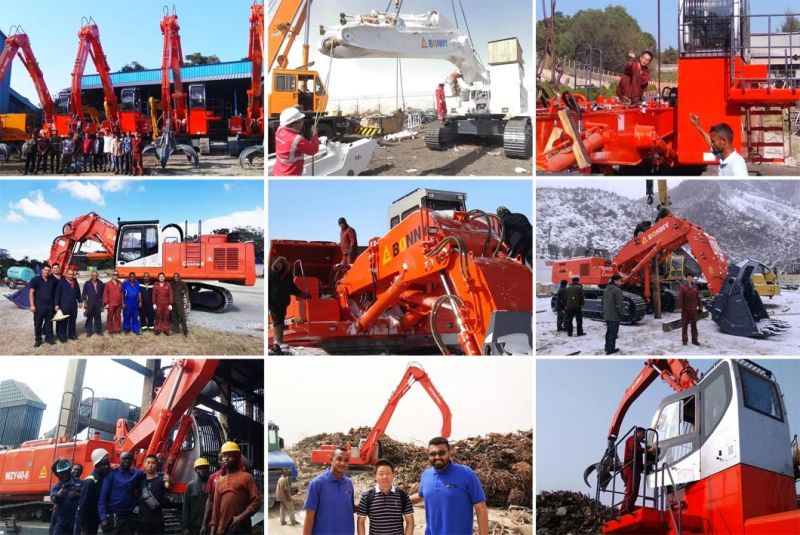

Service on Site

China Wzyd55-8c Bonny 55 Ton Hydraulic Material Handler with Muti-Tine Grab


Packing & Shipping

China Wzyd55-8c Bonny 55 Ton Hydraulic Material Handler with Muti-Tine Grab

FAQ

1: What about the delivery time?
A: It depends on the type of machine. In general circumstance, it will take more than from 60 days to 90 days to produce the ordered machine after receiving the deposit. But we can reduce to 10 working days if the machine areinstock.

2: Which payment terms can be accepted?
A: Normally our payment term is based on by T/T (30% down payment, 70% before shipment) or irrevocable Letter of Credit at sight. But if you prefer other payment terms please contact us for further information.

3: What is the warranty time?
A: The warranty period shall be 15 months counted from goods arrival in Chinese port, or 1 year (12 months) or 2000 operating hours since handover (after assembling and commissioning) on operation site, whichever comes earlier.

4: How soon can you respond client inquires?
A: Our team is consisted of a group of diligent and dynamin people, working 24/7 to respond clinent inquires and questions all time, most of them can be solved within 12 hours.

5: What kind of logistic service do you supply?
A: We can ship construction machinery by various transportation ways including by road, railway and container. For light spare parts in urgent demand, we can send it by international express service, such as DHL, TNT, UPS, FedEx, or by Air.

6. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
