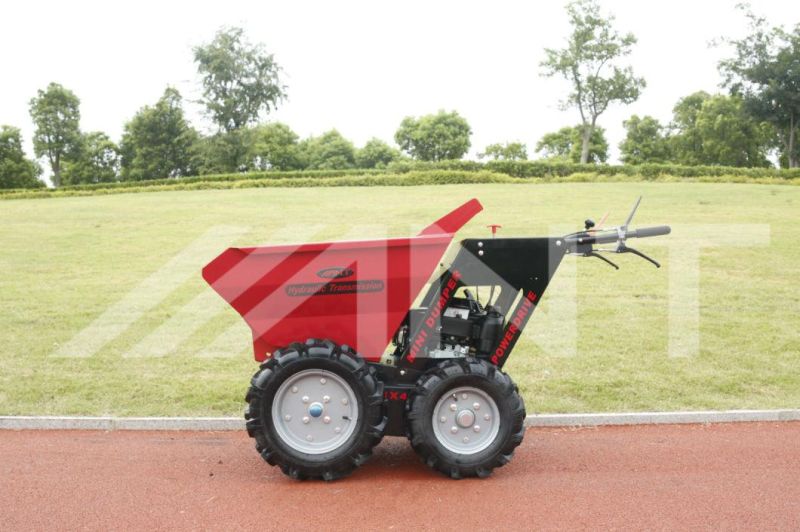

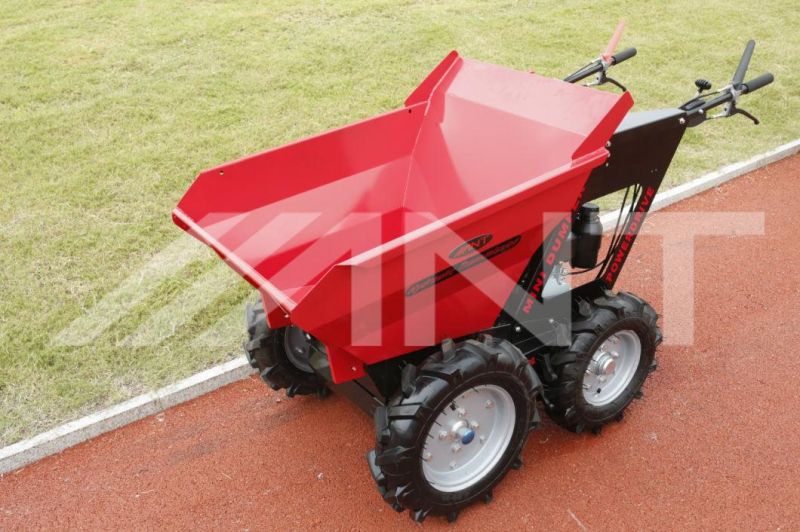

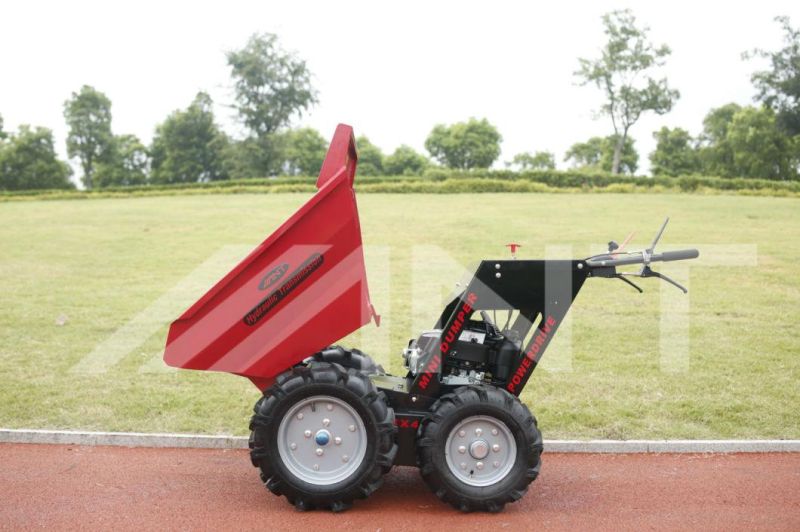

By300 Civil Construction Tools Mini Dumper Truck with Track 4X4 Muck Truck
NANTONG ANT MACHINERY CO., LTD.- Transmission：Hydraulic Transmission
- Walking Mode：Wheeled
- Load and Unload Method：Front Discharge
- Certification：CE
- Condition：New
- Color：Red
Base Info
- Model NO.：BY300
- Drum Material：Hot DIP Galvanizing or Plastic-Spray
- Engine：Honda Gxv160 5.5HP
- Loading Capacity：300kg
- Transport Package：Retort Stand or Plywood Case
- Specification：CE
- Trademark：ANT
- Origin：Jiangsu, China
- HS Code：84289090
- Production Capacity：1000PCS,Year
Description
Basic Info.
Model NO. BY300 Drum Material Hot DIP Galvanizing or Plastic-Spray Engine Honda Gxv160 5.5HP Loading Capacity 300kg Transport Package Retort Stand or Plywood Case Specification CE Trademark ANT Origin Jiangsu, China HS Code 84289090 Production Capacity 1000PCS/YearProduct Description
BY300 civil construction tools mini dump truck with track 4x4 muck truckSpecifications:
*This model is hydraulic design and 4wheels driven.
*The main parts are imported from USA with global warranty.
*The max loading weight is 300kgs and the width is 78cm narrow.
*It's powerful to carry bricks, sand, stones, wood, crops, fruits around varous sites.

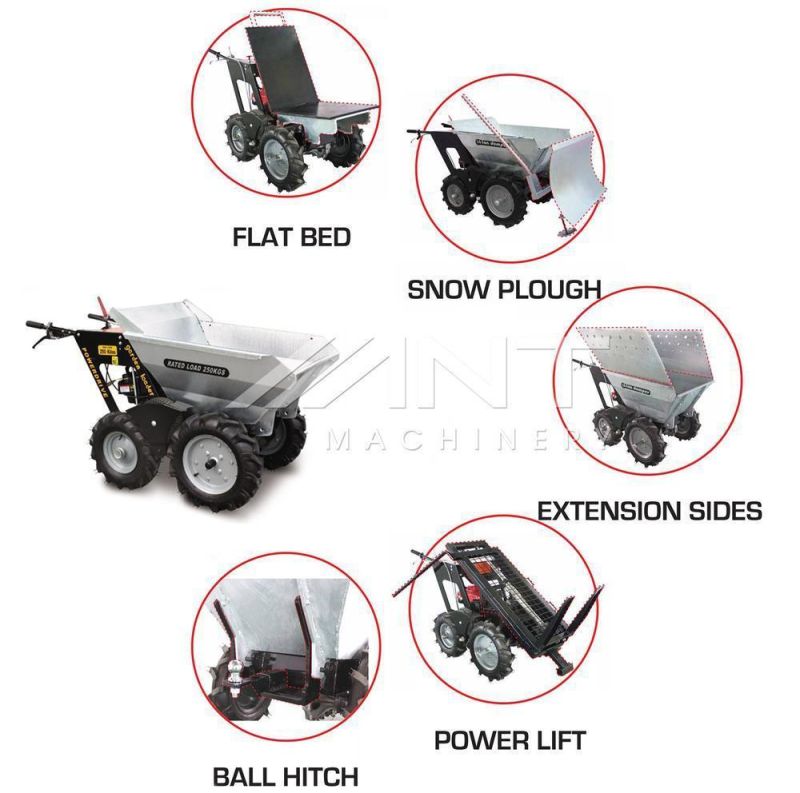

*There are rich accessries to add the value, such as flat bed, extension sides, snow plough, ball hitch, power lift and so on.
MODELBY300
EngineHonda GXV160 5.5HP
Engine type4stroke, 1cylinder, OHV, air-cooled
Transmissionhydro-gear assembled in USA
Speedsstepless forward and reverse
Capacity6cu. Ft. (170L) or 300kgs
BrakeDisk
Cabelsprotected
WheelsFront 400× 10, 4 ply, rear 400× 8
Drum Materialred plastic spray
Packing
Weight131kgs
Dimension128*74*108(L*W*H cm)
20GP24PCS
40GP54PCS
This model is hydraulic design and 4wheels driven. The main parts are imported from USA with global warranty. The max loading weight is 300kgs and the width is 78cm narrow. It's powerful to carry bricks, sand, stones, wood, crops, fruits around varous sites. There are rich accessries to add the value, such as flat bed, extension sides, snow plough, ball hitch, power lift and so on.
| MODEL | BY300 |
| Engine | Honda GXV160 5.5HP |
| Engine type | 4stroke,1cylinder,OHV,air-cooled |
| Transmission | hydro-gear assembled in USA |
| Speeds | stepless forward and reverse |
| Capacity | 6cu.ft.(170L) or 300kgs |
| Brake | Disk |
| Cabels | protected |
| Wheels | Front 400×10,4 ply,rear 400×8 |
| Drum Material | red plastic spray |
| Packing | |
| Weight | 131kgs |
| Dimension | 128*74*108(L*W*H cm) |
| 20GP | 24PCS |
| 40GP | 54PCS |
