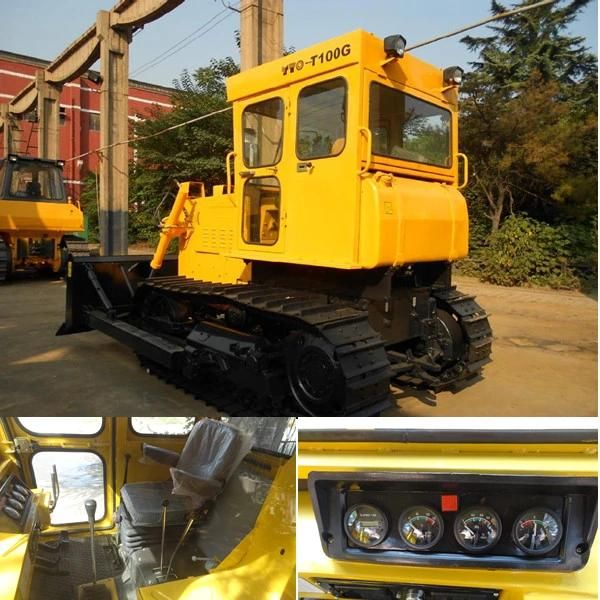

• Model NO.：T100G
• Condition：New
• Color：Yellow
• Transport Package：Bulk
• Specification：SGS
• Trademark：KUDAT
• Origin：China
• Production Capacity：500PCS,Year

Basic Info.

Model NO. T100G Condition New Color Yellow Transport Package Bulk Specification SGS Trademark KUDAT Origin China Production Capacity 500PCS/Year

Product Description

MAIN FEATURES :

1. Engine: choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil consumption, stronger torsion.

2. Master clutch: choose dry, double piece and constant combining clutch, stronger torsion, simple and reliable.

3. Gearbox: choose 4F+2R mechanical gearbox, simply operating, conveniently maintaining, reliably using.

4. Turning clutch: choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintaining, lightly and conveniently operating.

5. Transmission: choose two classes, straight teeth, big modulus gear transmission, stronger carrying capacity, and higher reliability.

6. Work device: many kinds of work device are chosen for users according to requirements.

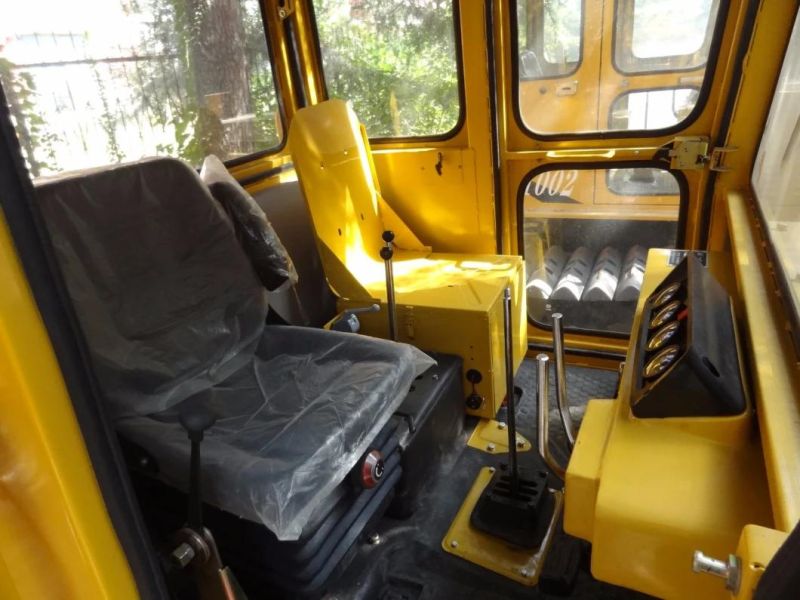

7. Operating environment: choose fully completed close, low noise cab, 100G- II effectively reducing ear noise.

8. Electric system is characterized by electronic monitor, making real-time monitor for complete machine to assure normal operation.

9. Reliably using, conveniently maintaining, spare parts are easily purchased.

Specifications:

Model		T100G	TS100(wide shoe)
Operating weight	kg	10400	11360
Max. drawbar pull	kN	81	81
Engine Model		LR6105T13A	LR6105T13A
Rated output/rotation speed	kw/ r/min	73.5/2300	73.5/2300
Fuel consumption	g/km.h	≤238	≤238
Max. torque	N.m	400	400
Forward 1-4 speed	km/h	2.6~10.4	2.6~10.4
Backward 1-2 speed	km/h	3.1~6.7	3.1~6.7
Shoe width	mm	450	720
Ground pressure	kPa	54.4	36.5
Dimension (Length × Width × Height)	mm	4190×2985×2982	4190×3240×3020
Blade(Width × Height)	mm	2985×960	3240×878
Max. lifting height	mm	830
Max. digging depth	mm	350

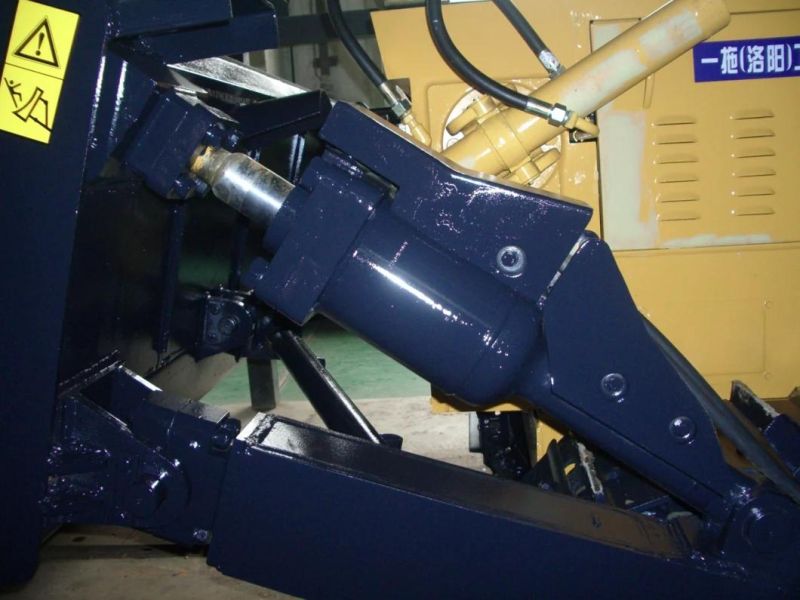

Ripper(optional)		Three-shank
