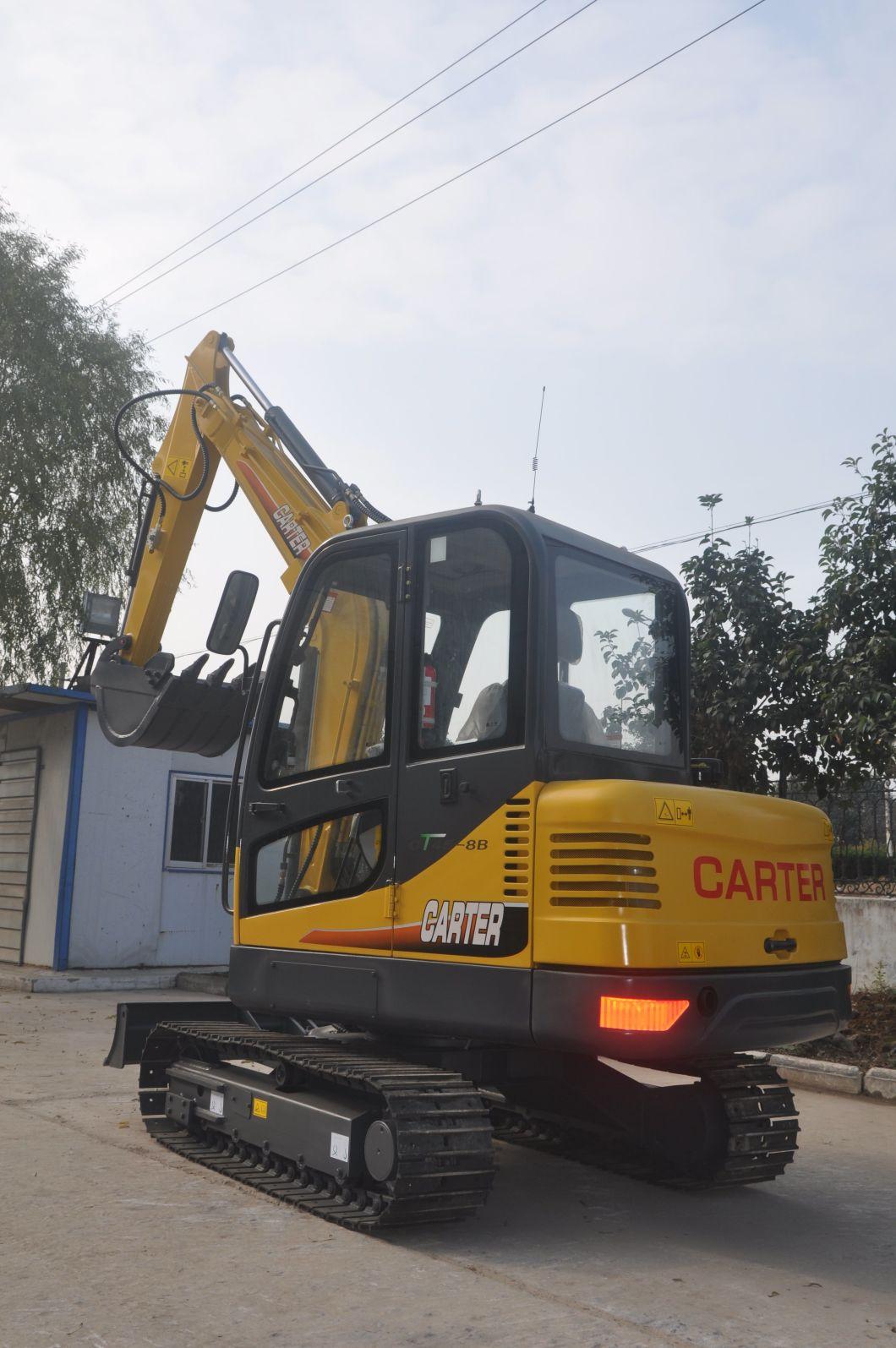

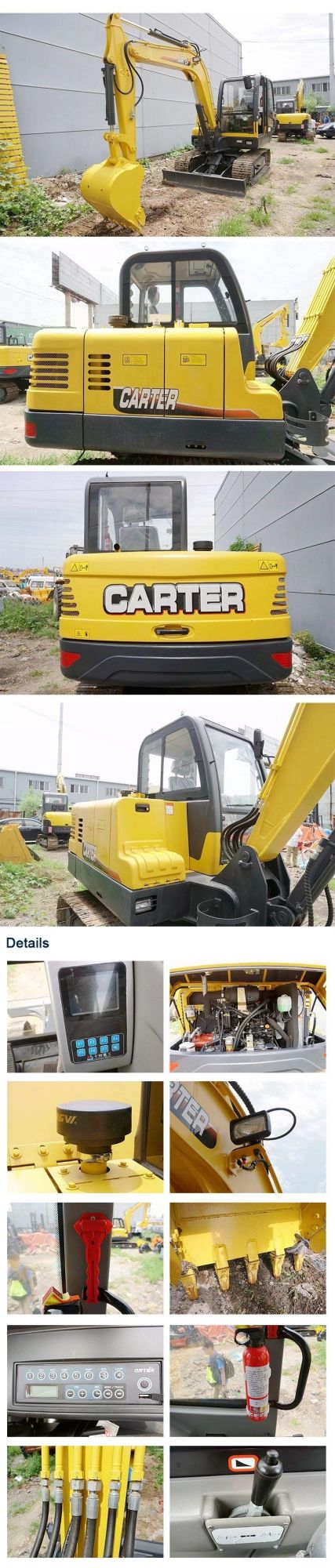

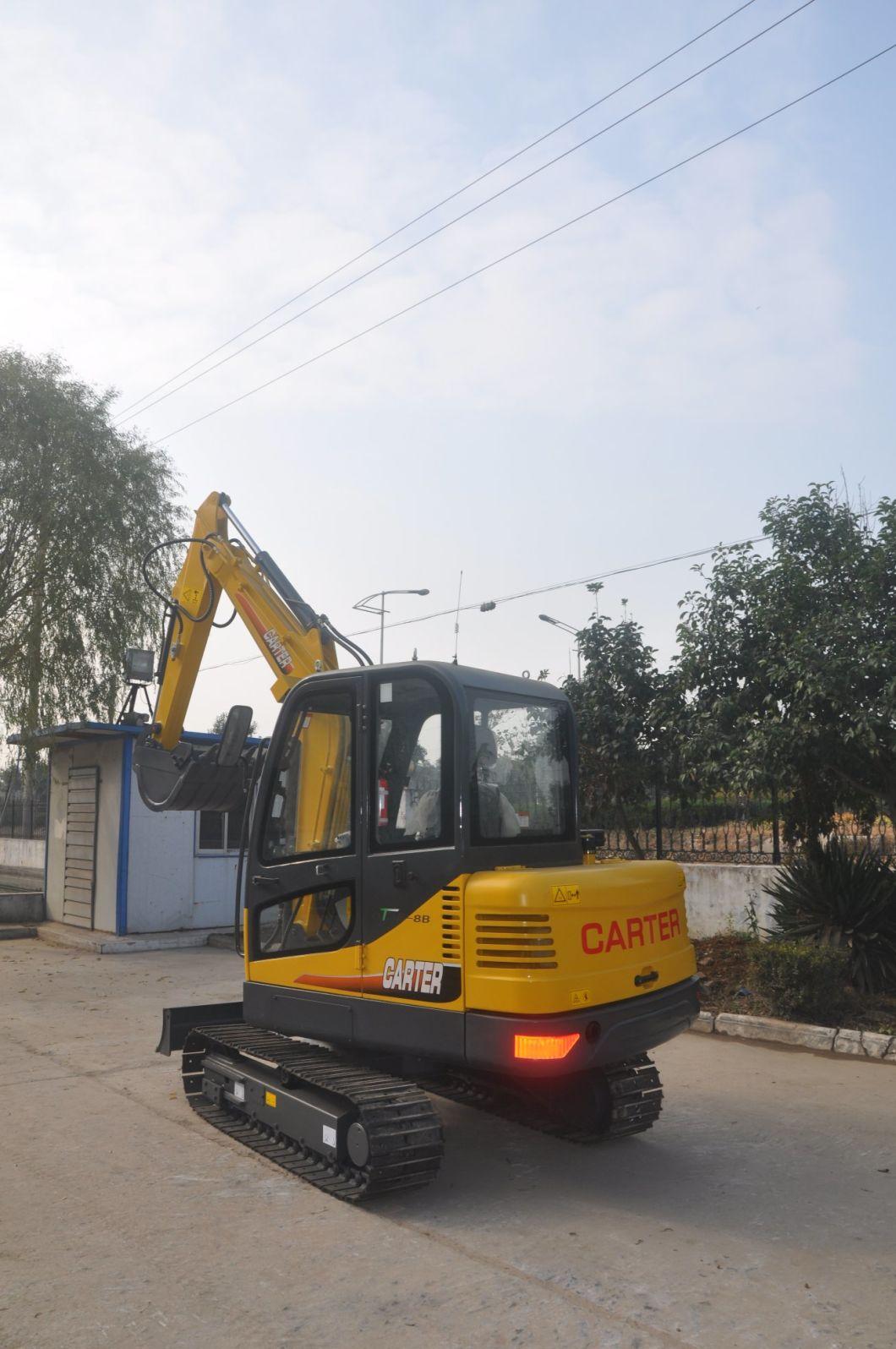

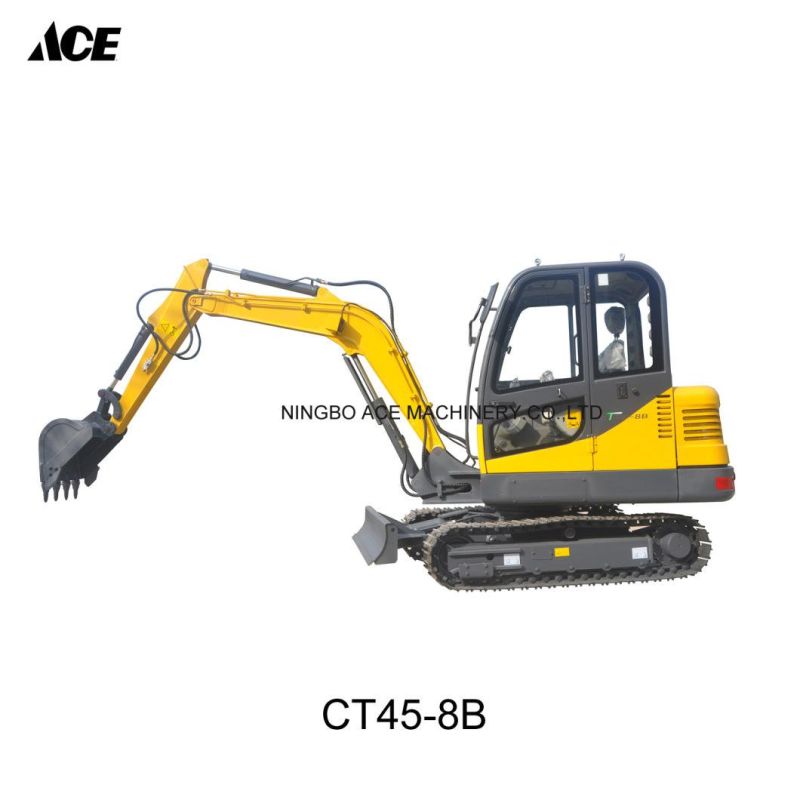

Carter CT45-8b Hot Sales (4.5t) Backhoe Mini Crawler Excavator Factory
Ningbo Ace Machinery Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator, Small Project, in Garden, Farmland, Municipal Work
- Bucket：Backhoe
- Transmission：Mechanical Transmission
- Drive Type：Diesel Engine
- Bucket Capacity：0.17 Cbm
Base Info
- Model NO.：CT45-8b
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Product Name：Hydraulic Mini Excavator Bucket
- Operating Weight：4200kgs
- Engine：Yanmar
- Rated Power：27kw,2200rpm
- Displacement：2.19L
- Transport Package：PE
- Specification：3500x1600x2455 mm
- Trademark：ace
- Origin：Zhejiang, China
- HS Code：84295212
- Production Capacity：5000PC,Year
Description

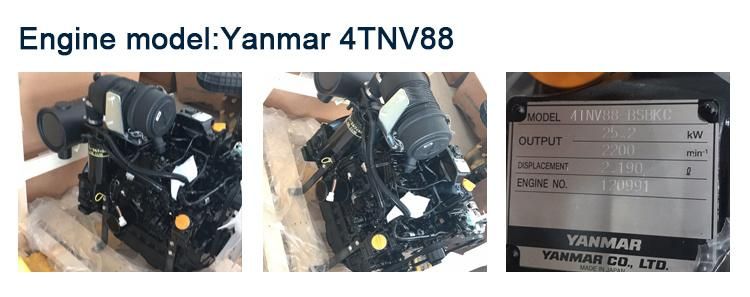

Engine Travel System Model YANMAR 4TNV88 Travel motors KYB, Japan; Type Direct injection, water cooled, natural intake Support roller quantities 2×5 Carrier roller quantities 2×1 No. of cylinder 4 Travel shoes 2X35 Bore and stroke 88X90(mm) Travel speed 2.7/4.4(km/h) Displacement 2.19L Drawbar pulling force 35kN Power output 25.2kw/2200rpm Gradeability 58%(300) Max. torque 142N.m/1200rpm Ground clearance 350mm Cab & Electrical System Pump KYB, Japan Cab All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat; LED display, Automatic monitoring, display Type axial piston pump+ gear pump Max. discharge flow 2x45.7+36.9(L/min) Max. discharge pressure Boom, arm and bucket 21.5 MPa Voltage 12V Travel circuit 15.7 MPa Batteries 1x12V Swing circuit 15.7 MPa Battery capacity 80Ah Control circuit 3.9 MPa Boom, Arm & Bucket Pilot control pump Gear type Boom cylinder Φ90xΦ50xS552-L915 Main control valves KYB, Japan Arm cylinder Φ85xΦ50xS580-L920 Oil cooler Air cooled type Bucket cylinder Φ70xΦ45xS443-L745 Swing System Refilling Capacity & lubrication Swing motor KYB, Japan Fuel tank 82 L Swing motor type Axial-piston motor Cooling system 12 L Brake Hydraulic oil released Engine oil 6L Parking brake Hydraulic disc brake Hydraulic oil tank 59L Tank Oil Level Swing speed 10 r/min 85L Hydraulic System Bucket Type Backhoe bucket Bucket capacity 0.17m3 (SAE) Bucket Capacity scope 0.069-0.24m3 Number of bucket teeth 4 Bucket width 640 mm Boom length 2650m A Max. digging height 5030mm B Max. dumping height 3410mm C Max. digging depth 3405mm D Max. vertical digging depth 2900mm F Max. digging distance 5530mm G Max. digging reach at ground level 5420mm H Min swing radius of work equipment 2185mm Digging Force (ISO6015) Arm length 1450mm A Bucket digging force 23.7 KN B Arm digging force 21.6 KN A Overall length 5500mm I Track grounding length 1710mm B Ground contact length 3353mm J Track length 2190mm C Overall height(to top of boom) 1861mm K Track gauge 1400mm D Overall width 1750mm L Track width 1750mm E Overall height(to top of cab) 2455mm M Track Shoe width 350mm F Counter weight ground clearance 585mm O Bonnet height 1437mm G Min Ground clearance 350mm P Revolving frame width 1600mm H Tail swing radius 1600mm Q Distance from swing center to tail 1600mm Operating weight includes basic machine; Operating weight 4200 Kg Ground pressure 36 KPa
Product Uses:
Product Uses:
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
