• Model NO.：CT45-7B
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Excavator Model：CT45-7b with Cab
• Cargo Body Size：5690*2130*2180
• Operate Weight：4200 Kg
• Engine Model：Yanmar 4tnv88
• Engine Power：32 Kw
• Swing Speed：11rpm
• Ground Pressure：38.7kpa
• Travel Speed：4.4,2.7km,H
• Tracking Force：34.1kn
• Transport Package：Bulk
• Specification：SGS CE
• Trademark：KUDAT
• Origin：China
• HS Code：8429521000
• Production Capacity：500PCS,Month

Excavator modelCT45-7B  with cabCargo body size (LxWxH)(mm),
20GP:5690*2130*2180load 2 units in
one 40 HQ containerOperate weight kg4200 kgBucket capacity M30.17m³Engine modelYanmar 4TNV88Engine power(kw)32 KwSwing speed(rpm)11 rpmGround pressure(KPa)38.7Travel speed(km/h)4.4/2.7Tracking force(kn)34.1Gradeability(°)30°(58%)

Main dimensionsUpperstrcuture witdth(mm)1600Undercarriage width(mm)1750Cabinet height(mm)2455Rear swing radius(mm)1600Ground clearance(mm)350


Working rangeMax.digging radius(mm)5530Max.digging depth (mm)3405Max.digging height(mm)5030Max.dumping height(mm)3410Max.dozer cutting depth(mm)380Max.dozer lifting height(mm)255

Standard

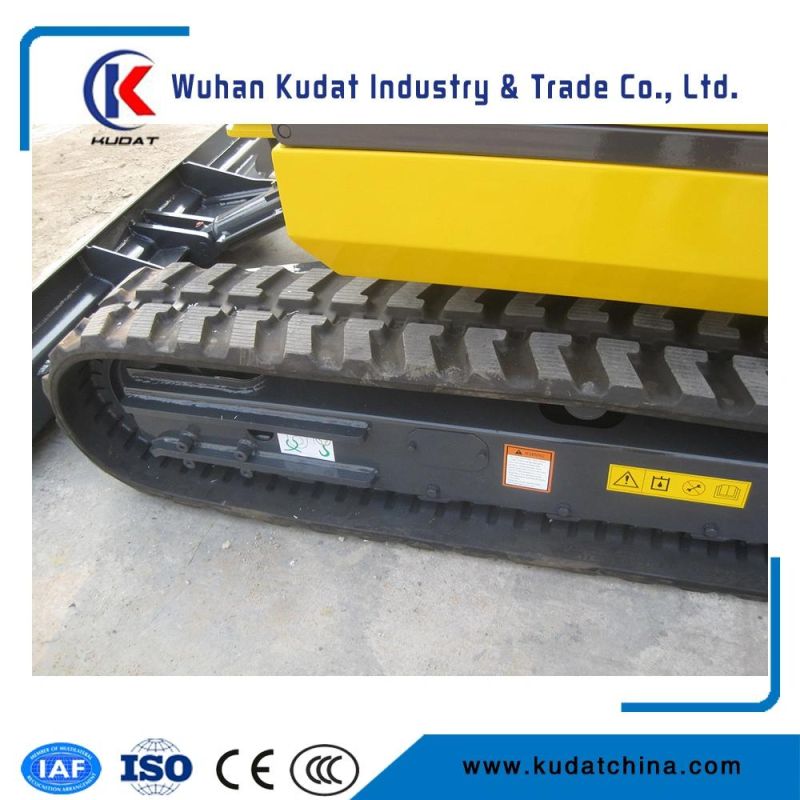

EquipmentJapan made KYB main pumpKYBJapan made KYB travel motor KYBJapan made KYB swing motor KYBJapan KYB multi-circuit valve ,pilot control leverKYB,Japanese Bridgestone rubber trackCold&warm air conditioner supply under different kinds of weather conditions
