• Model NO.：M910
• Walking Mode：Wheeled
• Type：Small Loader
• Price：Wholesale Price
• Engine：Diesel Perkins,Yanmar,Chinese
• Rated Power：30HP, 40HP, 50HP, 60HP, 70HP, 80HP
• Rated Loading Capacity：1ton, 1.5ton, 2 Ton, 2.5ton, 3 Ton
• Weight：2000kg, 3000kg, 3500kg, 5000kg
• Max. Lifting Height：3000mm, 4000mm, 5000mm, 6000mm
• Min. Ground Clearance：268mm
• Attachments Changing：Hydraulic Quick Hitch System
• Attachments Available：Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe...
• Loader Usage：Farming, Construction, Gardening, Landscaping
• Chassis Type：Articulated Wheel Loader
• Boom Type：Telescopic Arm Loader
• Driving Type：4 Wheel Motor Drive
• After Sales Service：Free Spare Parts, Technical Support
• Transport Package：Container
• Specification：1200kg load capacity, 3000mm lifting height
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8429510000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. M910 Walking Mode Wheeled Type Small Loader Price Wholesale Price Engine Diesel Perkins/Yanmar/Chinese Rated Power 30HP, 40HP, 50HP, 60HP, 70HP, 80HP Rated Loading Capacity 1ton, 1.5ton, 2 Ton, 2.5ton, 3 Ton Weight 2000kg, 3000kg, 3500kg, 5000kg Max. Lifting Height 3000mm, 4000mm, 5000mm, 6000mm Min. Ground Clearance 268mm Attachments Changing Hydraulic Quick Hitch System Attachments Available Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe... Loader Usage Farming, Construction, Gardening, Landscaping Chassis Type Articulated Wheel Loader Boom Type Telescopic Arm Loader Driving Type 4 Wheel Motor Drive After Sales Service Free Spare Parts, Technical Support Transport Package Container Specification 1200kg load capacity, 3000mm lifting height Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 500 Sets/Year

Product Description

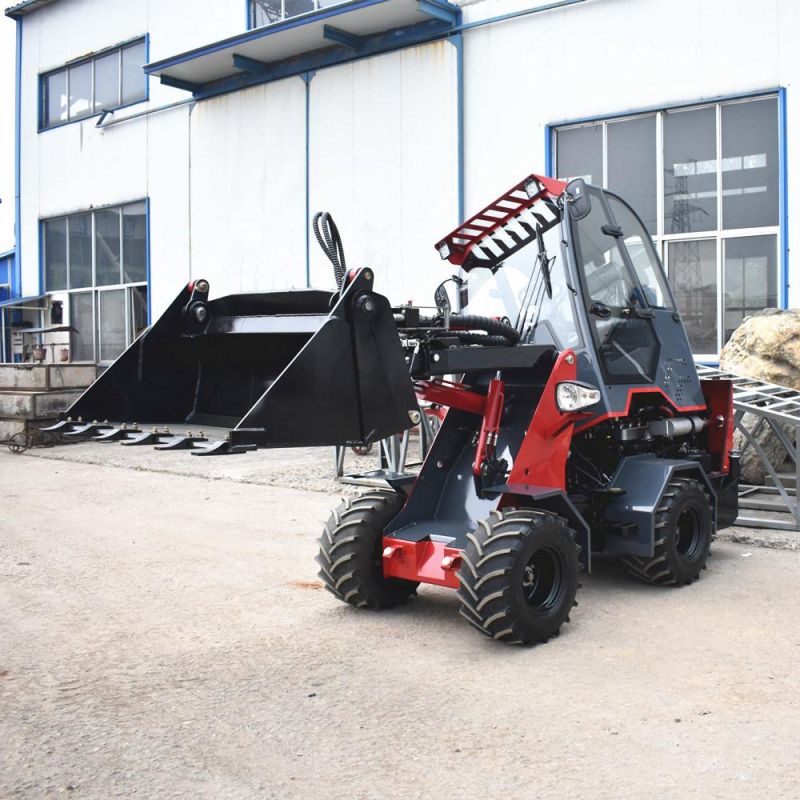

Avant mini loader telescopic long arm wheel loader with ce for sale
GENERAL INTRODUCTION:


STEEL CAMEL M910 mini telescopic wheel loader can be found working in various fields, like farming, gardenning, landscaping, animal house, construction, bee keeping, minicipal work etc. There are many reasons for its popular:

1. Multifunction
1. Front telescopic boom can reach 3m
2. Front hydraulic output & quick coupling
3. Front electrical output
4. Rear hydraulic output and 3 point hitch

2. Working device
1.Telescopic boom with 3000mm reach
2.Big hydraulic auluary for attachments, 33.5l/min, or 67L/min, two gears meet different work requirement.
3. Electrical output for some special attachments
4.  Hydraulic quick coupling for easy changing attachments
5. Boom floating and self levering

3. Driving system:

1. Hydrostatic 4 wheel drive, piston pump+ 4 hydraulic wheel motor drive the loader
2. Independent closed working and driving system, the engine speed do not influence the auxuary to the attachments
3. Flexible articulation, fantastic motility in rough terrain

DETAILED IMAGES:

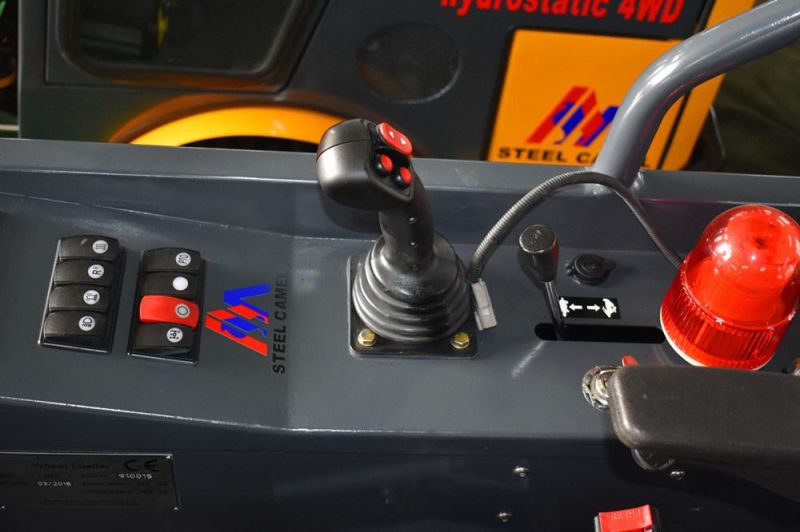

1.Control Panel



2. Tipping cabin

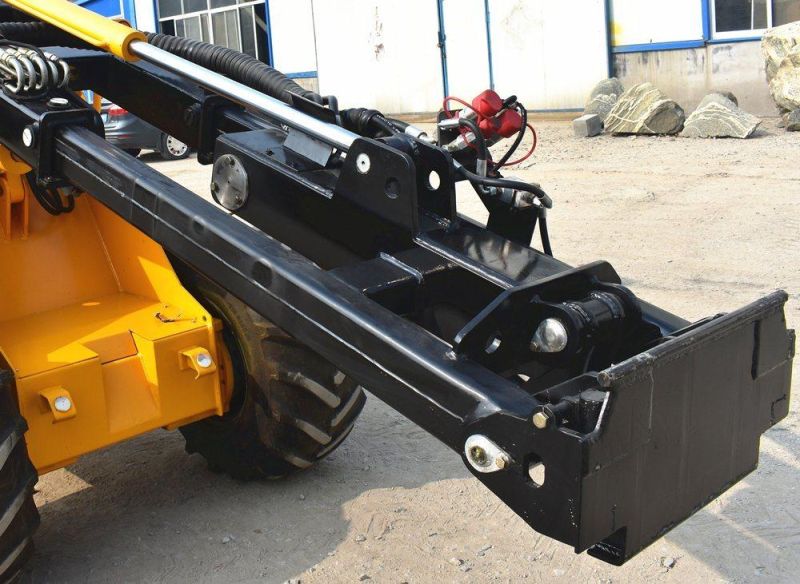

3. Telescopic boom

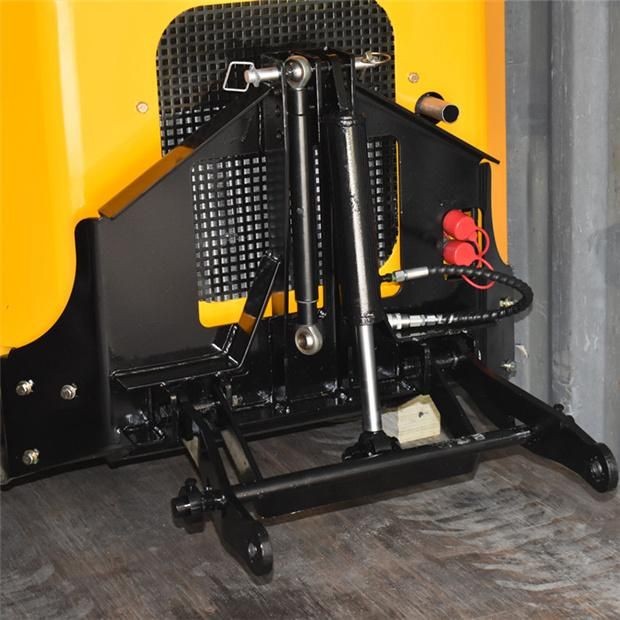

Rear hydraulic output and 3 point linkage


TECHNICAL DATA:


Model	STEEL CAMEL M910 mini loader
Dimension (LxWxH)	2690 X1240 X 2285mm
Max. lifting height (boom extended)	3030mm
Max. lifting height (boom retracted)	2512mm
Max. dumping height	2630mm
Bucket capacity	0.5cbm
Max. loading capacity	1200kg
Min. turning radius	2120mm
Turning angle	45 degree
Min. ground clearance	268mm
Speed	0-12 km/h single speed  0~8~16km/h two speed (optional)
Weight	1850 kg
Standard tire	26X12-12
Tire pressure	2.8 bar
Oil tank capacity	45L
Pressure	190bar
Working oil flow	33.5L/minx2
Tracking oil flow	78L/min
Oil model(mineral oil)	L-HL46
Fuel tank capacity	30L
Battery	60Ah, 12V
Engine	Perkins 404D-15
Rated power	24.5kw/33hp

APPLICATION:

Loader+Tractor, one Multi-purpose helper for globle customers

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor, with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.

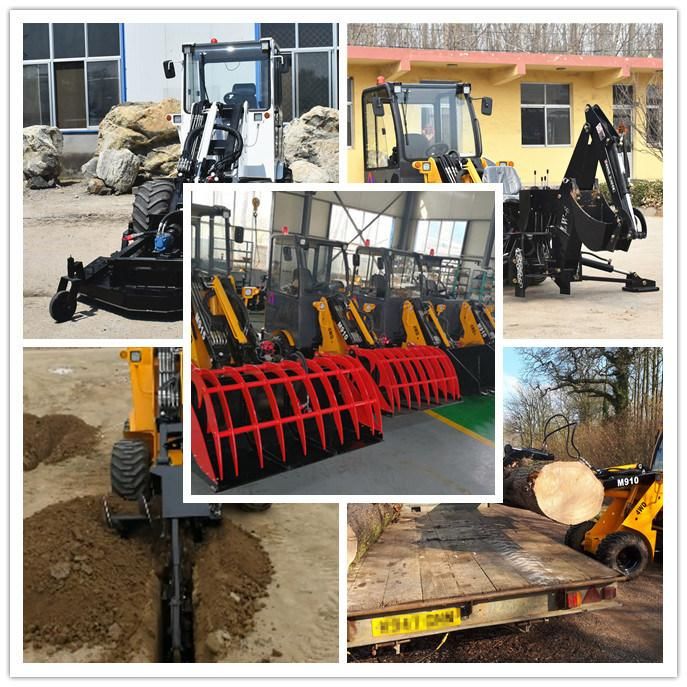

STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.



Various attachments available for different work


LOADING CONDITION:

STEEL CAMEL concern every needs of customer, we designed the loader to the biggest compact to save transporting cost.

Loading condition of M910 mini tractor loader as below:
3 sets/20' GP, 6 sets/40'GP

Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Germany, Russia, Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain.....
