• Model NO.：PD-90
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Available Rigidity Rock：F=6-16
• Drill Scope：27-64mm
• Drill Speed：500-1000mm,Min
• Lowest Horizontal Hole Height：250mm
• Once Propel Travel：3m
• Compressor Type：1.8m3-3.2m3
• Drifter Weight：90kg
• Whole Weight：1.2t
• Transport Package：Standard Package
• Specification：HIGH QUALITY
• Trademark：PRODRILL
• Origin：China
• HS Code：84303120
• Production Capacity：100set,Months

Basic Info.

Model NO. PD-90 Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Available Rigidity Rock F=6-16 Drill Scope 27-64mm Drill Speed 500-1000mm/Min Lowest Horizontal Hole Height 250mm Once Propel Travel 3m Compressor Type 1.8m3-3.2m3 Drifter Weight 90kg Whole Weight 1.2t Transport Package Standard Package Specification HIGH QUALITY Trademark PRODRILL Origin China HS Code 84303120 Production Capacity 100set/Months

Product Description

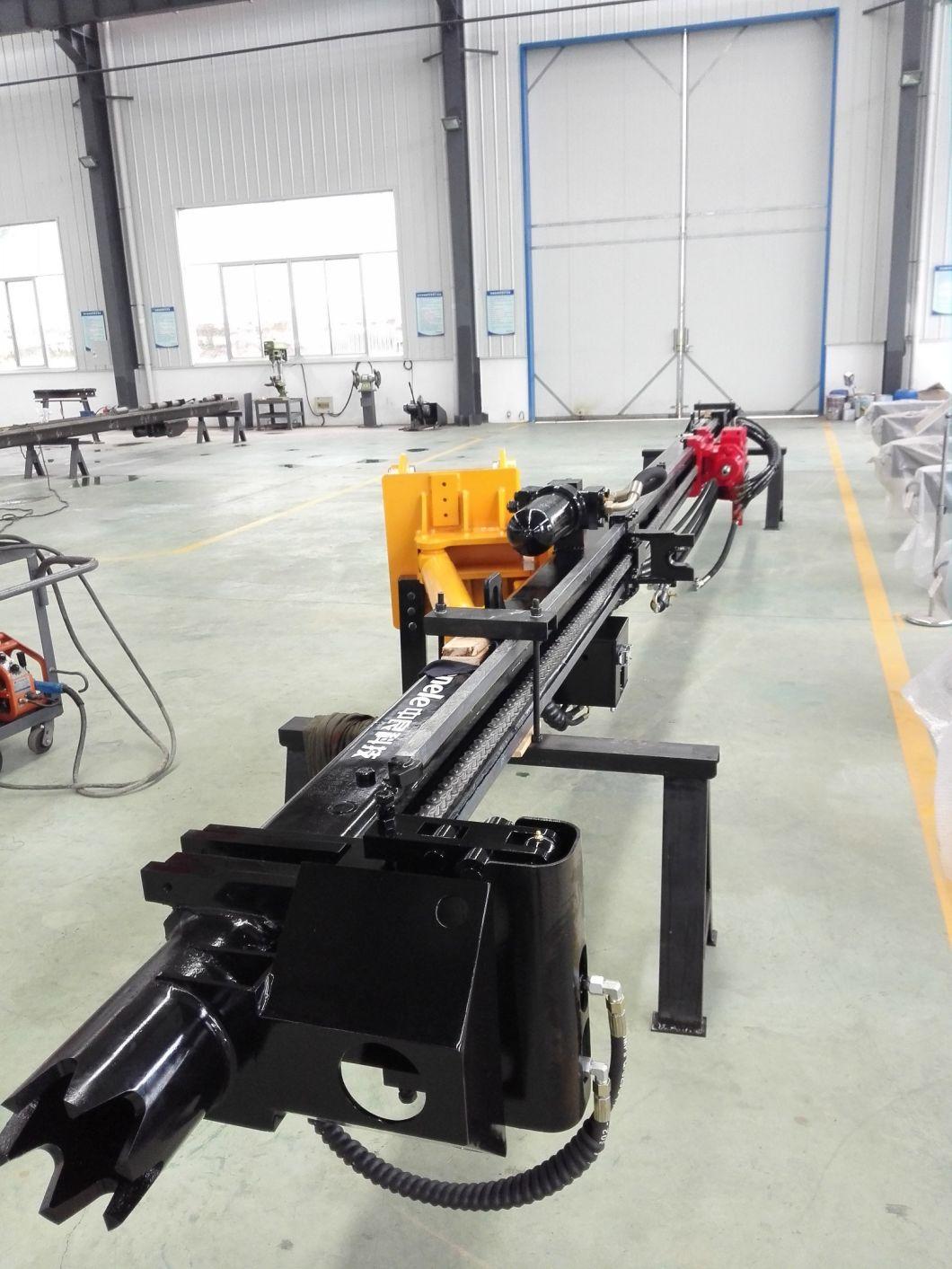

PD-90 Hydraulic Excavator Mounted Rock Drill Description:


the PD-90 Excavator Mounted Drill is a hi-tech product driven by high-pressure hydraulic oil. It adopts advanced technologies and innovative structure, featuring low energy consumption, small size, light weight, huge impact energy, fast drilling, low noise, little vibration, trivial labor intensity. It is widely applied to rock drilling of marble, granite, metal, non-metal and coal mines.


products type	PD-Y90
available rigidity rock	F=6-20
drill scope	38-89mm
drill speed	500-1000mm/min
lowest horizontal hole height	250mm
once propel travel	3m
oil pressure	≤19Mpa
compressor type	1.8m3-3.2m3
size	7488*140*252mm
drifter weight	115kg
whole weight	1.2t

Our main products are as below:
Construction & Mining & Rock Drill Tools:
1). DTH Hammer and Bit (2''-24''), Overburden Drilling System; RC System; Hydraulic Breaker Hammer (4 ~ 20ton)
2). Top Hammer (drill hole dia.: 33 ~ 152mm):
a) Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58,GT60)
b) High Rang Soundless Cracking Agent (dia. 40 ~ 50mm), High Range Grout, (Expansive Mortar Grade A)



Quarrying Drill Tools (drill hole dia.: 17 ~ 45mm):
1) Taper Drill Tools (Bit: button/chisel; Rod: Tapered/Integral), Carbide Tips, Segment, Grinding Wheel, Grinder/Grinding machine, Grinding Cup, Grinding Pin;
3) Pneumatic Rock Drill: Handheld (Y10, Y18, Y20, Y24, TY24C), Airleg (YT28, YT29A) and Gasoline (YN27C, YN27J);
4) Expansive Mortar (dia. 30 ~ 35mm), Expansive Grout, Soundless Cracking Agent, Rock Breaking Chemical;
    Hydraulic Rock Splitter PD40-250, Aluminum or Steel Cylinder;
5) Air Pushing Bag, Water Bag; Pneumatica Splitter G10, Hand Splitter, etc


We are not the biggest one of career field, but we are sincere and specialist.Our products is stable,best in quality and reasonable in price. Because of this main point,we have gained the good reputation from our customers all around the world.
