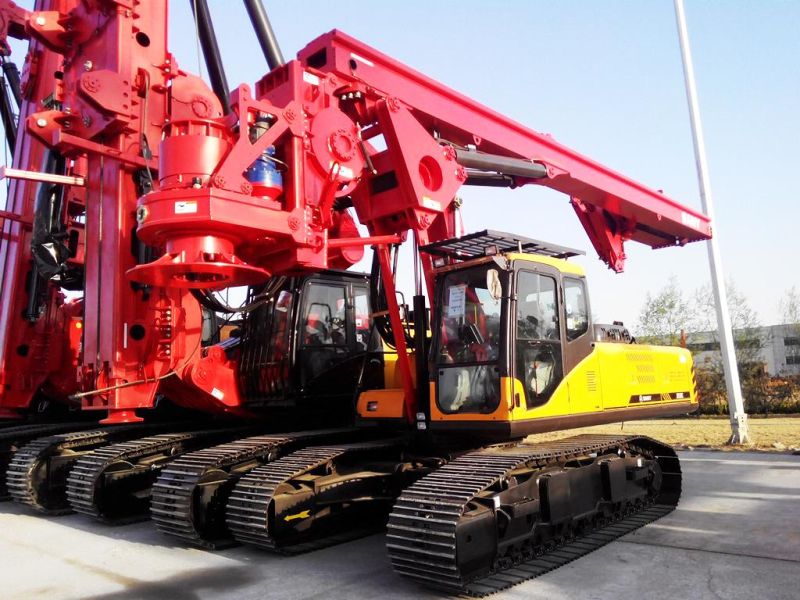

Zr360L Steel Crawler Mounted Rotary Portable Water Well Drilling Rig
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Available
- Warranty：1 Year
- Type：Vibration Piling Machine
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
Base Info
- Model NO.：ZR360L
- Motor Power：212kw
- Noise：Without Noise
- Certification：CE
- Condition：New
- Line Pull：160kn
- Stroke：4200mm
- Max. Pile Depth：64,51m
- Max. Pile Diameter：1800mm
- Transport Package：Nude
- Trademark：top Brand
- Origin：Jiangsu, China
- HS Code：8429521200
Description
Overview
NAME SPEC. Torque(KN.M) 360 Drilling Diameter(mm) 2500 Drilling Depth(m) inter-locking 58/65 Friction 88/100 Drilling Speed(r/min) 6~28 Engine Model imported QSM11 Rated Power(kw) 298 Rated Engine Speed(r/min) 1900 Max.Crowd Force(kN) 300 Max.Crowd Cylinder Pull(kN) 360 Line Pull(main winch)(kN) 340 Line Speed(main winch)(m/min) 72 Line Pull(aux.winch)(kN) 90 Line Speed(aux.winch)(m/min) 70 Operating Mass(t) 108 Traction Force(kN) 560 Rope diameter(Main winch)(mm) 36 Rope diameter(auxiliary winch)(mm) 22
