• Model NO.：XP301,XP302
• Travel Speed：40cm,s
• Centrifugal Force：40KN
• Certification：ISO 9001:2000
• Condition：New
• Specification：30TON
• Trademark：X C M G
• Origin：China
• HS Code：8429401100
• Production Capacity：200,Month

Basic Info.

Model NO. XP301/XP302 Travel Speed 40cm/s Centrifugal Force 40KN Certification ISO 9001:2000 Condition New Specification 30TON Trademark X C M G Origin China HS Code 8429401100 Production Capacity 200/Month

Product Description

X C M G brand road roller pneumatic tyre roller compactor XP301 /X302

Model	Unit	XP301/XP302
Min. working weight	kg	14500
Max. working weight	kg	30000
Axle load,wheels	kg	2900
Static linear load	kg	12600
Theoretical gradeability	%	20
Min. turning external radius	mm	9000
Min. ground clearance	mm	290
Tyre overlap amount	mm	50
Front wheel swing range	mm	±45
Compaction width	mm	2750
Ground pressure	kPa	260~450
Wheel base	mm	3840
Travel speed	km/h	0~8
	km/h	0~16
Tyre specification		11.00-20
Tyre tread		Smooth
Tyre amount		Front 5 rear 6
Engine model		SC8D180F2B1
Rated speed	r/min	2000
Rated power	kw	132
Engine oil consumption	g/kW•h	232
Water tank capacity	L	2900
Hydraulic oil tank capacity	L	100
Fuel tank capacity	L	180

Company Profile
------------------------------------------------------------------------------------------------------------------------------------------------------
Shandong Weiyang Construction Machinery Co., Ltd ( WYCM ) has been offering a complete range of most reliable and cost-effective construction equipment from China to rest of the world which include but not limited to wheel loader, backhoe loader, motor grader, road roller, excavator, truck crane, bulldozer , and etc.

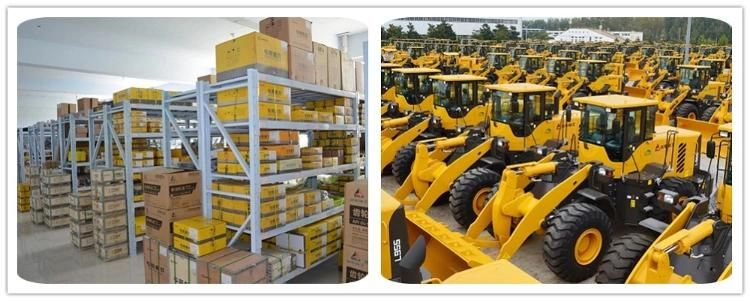

As one of the biggest export distributors of China machines spare parts, our business has reached more than 60 regions orcountries world widely. The 2000 CBM warehouse and convenient transportation will guarantee you the high availability and short
lead time.

Each of our team is rich in construction machinery background and committed to create the most values to our customers.



Exbihition
------------------------------------------------------------------------------------------------------------------------------------------------------

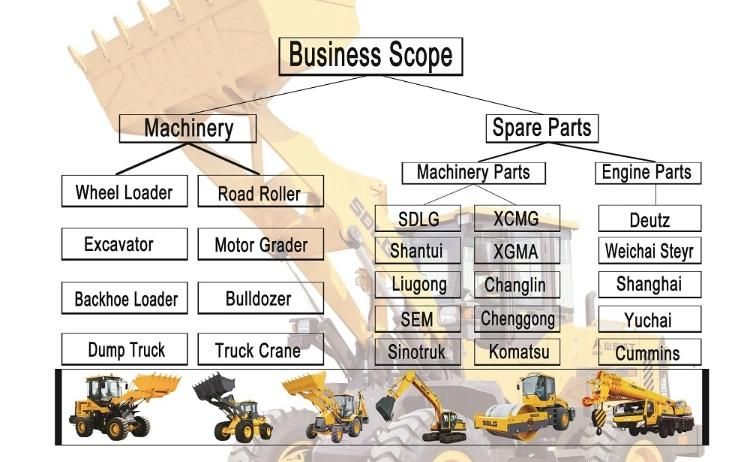

Business Scope
------------------------------------------------------------------------------------------------------------------------------------------------------
