ISP-120 Factory Direct Sales Internal Expansion Portable Pipe Beveling Machine

Zhejiang Wellnit Mechanical Technology Co., Ltd.
  • Voltage：220V 50,60Hz

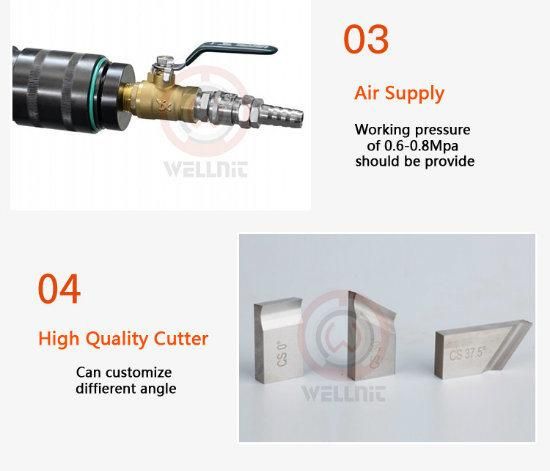

  • Air Supply：0.6-0.8MPa
  • Air Consumption：650-1000L,Min
  • Working Range Inside Diameter：40-120mm
  • Pipe Thickness：Less Than 15mm
  • Rotation：30r,Min

Base Info

  • Model NO.：ISP-120
  • Motor：Pneumatic Motor
  • Mounting Method：Pipe Inside
  • Packing Deatail：Wooden Case
  • After-Sales Service Provided：Engineers Available to Service Machinery Overseas
  • Transport Package：Wooden Case
  • Specification：CE ISO
  • Trademark：Wellnit
  • Origin：Zhejiang China
  • HS Code：8461909000
  • Production Capacity：500 Sets,Month

Description

≤7516r/minISP/M-352-2Φ150-3566''-14''14r/minISP/M-426-2 Φ273-42610''-16''12r/minISP/M-630-2Φ300-63012''-24''10r/minISP/M-850-2Φ600-85024''-34''9r/min
Product introduction
ISP-120 Factory Direct Sales Internal Expansion Portable Pipe Beveling Machine
ISP-120 Factory Direct Sales Internal Expansion Portable Pipe Beveling MachineISP-120 Factory Direct Sales Internal Expansion Portable Pipe Beveling Machine
ISP-120 Factory Direct Sales Internal Expansion Portable Pipe Beveling Machine
Order Guide

Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
