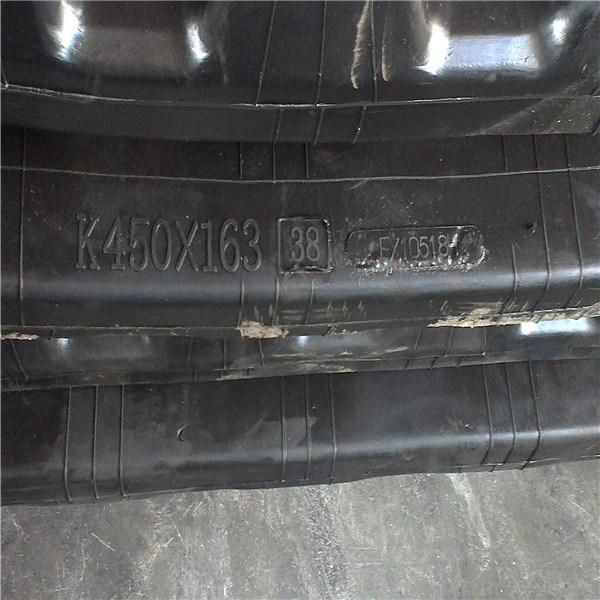

• Model NO.：450X163X38
• Pitch：163mm
• Link：38
• Overall Length：6194mm
• Transport Package：Pallet
• Specification：450X163X38
• Trademark：PY
• Origin：China
• HS Code：8431499900
• Production Capacity：3000 PCS Per Month

Basic Info.

Model NO. 450X163X38 Pitch 163mm Link 38 Overall Length 6194mm Transport Package Pallet Specification 450X163X38 Trademark PY Origin China HS Code 8431499900 Production Capacity 3000 PCS Per Month

Product Description

Application:

MODEL	ORIGINAL SIZE	REPLACE SIZE	ROLLER
PC60	450X163X38	450X163X38	B2
PC60.6	450X163X38	450X163X38	B2
PC70	450X163X38	450X163X38	B2
PC75	450X163X38	450X163X38	B2
PC75U.1	450X163X38	450X163X38	B2
PC75UU	450X163X38	450X163X38	B2
PC75UU.2	450X163X38	450X163X38	B2
PC70FR.1	450X163X37	450X163X37	B2
PC75.6	450X163X37	450X163X38	B2
PC75.6	450X163X37	450X83,5X74	B1
PC70.6	450X163X36	450X163X36	B2
PC70.7	450X163X36	450X163X36	B2

Description:

Warranty:Guarantee one year under normal use

Appliciation:mainly used in excavator and other model number can be used

in snowblower,snowmobile,robot,wheelchair,(mini) excavators,track loaders,pitch

paver,agricultural,harvest,dumpers...etc.

Characteristics of rubber track:

1).Less damage to the ground surface

2).Low noise

3).High running speed

4).Less vibration;

5).Low ground contack specific pressure

6).High tractive force

7).Light weight

8).Easy to change

About us:

We supply Rubber Tracks,Rubber Tracks for Truck,Small Rubber Track,Mini Asphalt Paver

Rubber Track,Rubber Track for Harvesting Excvavtor,Rubber Track for Skid Steer

Loader,Rubber Track for snowmobile,Rubber Track for snowblower,Rubber track for robot,etc.


size width*pitch	link	A	B	C	D	F	pattern	guiding
130*72	29-40	23	64.5	28	28	15	AF1	A2
150*60	32-40	22	64	22.5	24.5	15	AC	A2
150*72	29-40	23	64	23	23	15	AC	A2
170*60	30-40	19	57	22	22	13	CE	A1
180*60	30-40	23.5	64	21	21.5	15	AM	A1
180*72	31-43	25	68	29	29	15	BK	A2
180*72K	32-48	20	61	22	19.5	17	BB1	B2
B180*72	31-43	23	66	30	29	15	BB1	B2
H180*72	30-50	23	64	27	26	17	BK	A2
190*60	30-40	23.5	64	21	21.5	14	AM	A1
190*72	31-41	21	68	27.5	26.5	15	BF	A2
200*72	34-47	23	76	28.5	26.5	18	BB1	A2
200*72K	37-47	21	69	29.5	29	18	BM	A2
Y200*72	40-52	24	64	28.5	29.5	12	BK	A2
230*48	60-84	24	72	24	25	21	BI	B1
230*48K	60-84	24	66	21	20	19	BI	B2
230*72	42-56	24	82	30	26	18	AF1	A2
230*72K	42-56	20	69	29.5	28	16	BD	A2
230*96	30-48	25	68	23.5	25.5	22	BE	B1
230*101	30-36	25	74	22.5	29	19	BO	B1
250*47K	84	23	70	24	20	22	BD	B2
250*48.5K	80-88	24	66	21	20	19	CA	B2
250*52.5K	72-78	26	81	23	25	25	BA	B2
250*52.5	72-78	29	72	23	25	21	BI	B1
250*72	47-57	24	82	30	26	18	AF1	A2
B250*72	34-60	23	64	29	22	10	CI	A2
B250*72B	34-60	23	78	29	26	16	AB	B2
250*96	35-38	25	70	20	19	22	BB1	B2
250*109	35-38	40	89	24.5	14	20	CG	B1
260*55.5K	74-80	31	80	21.5	27	24	CA	B2
Y260*96	38-41	25	68	23	25.5	22	AB	B1
260*109	35-39	30	84	24	29	15	AB	B1
E280*52.5K	70-88	29	84	27	26	22	BI	B2
280*72	45-64	25	78	29.5	26	22	AL	A2
Y280*106K	35-42	30	80	27.5	28	20	AB	B2
300*52.5N	72-98	30	82	25	18	20	BI	B1
300*52.5W	72-92	43	96	22	23	22	BE	B1
300*52.5K	70-84	29	84	27	26	22	BI	B2
300*52.5KW	72-92	40	92	25	24	22	BI	C1
E300*52.5K	70-88	29	84	27	26	22	BI	B2
KB300*52.5	72-92	40	90	24.5	24.5	22	BI	C1
KB300*52.5N	72-98	30	82	23	20	25	BI	B1
JD300*52.5N	72-98	30	80	23.5	22	22	BI	B1
300*53K	80-96	31	88	25	19.5	21	BI	B2
300*55	70-88	29	86	25.5	27.5	23	BI	B1
300*55.5K	76-82	31	82	22	27	21.5	CA	B2
300*71K	72-76	42	106	23	24	40	BD	B2
300*72	36-40	23	75	40	34	18	BK	A2
BA300*72	36-46	26	76	29	27	19	AF1	A2
300*109N	35-42	29	82	27	28	25	BE	B1
300*109W	35-44	38	90	26	29	24	BB1	B1
K300*109	37-41	27	85	23.5	27.5	20	AB	B2
300*109WK	35-42	40	90	24.5	14	23	CG	B1
320*52.5	72-98	30	83	23.5	18	21	BI	B1
320*54	70-84	29	80	23	21	20	AB	B1
B320*55K	70-88	30	82	25	30	23	BE	B2
Y320*106K	39-43	31	80	26	27	24	AB	B2
350*52.5	70-92	40	94	22.5	19	30.5	BE	B1
E350*52.5K	70-88	29	84	27	26	22	BI	B2
350*54.5K	80-86	40	92	23.5	22.5	23	AD	B2
B350*55K	70-88	30	82	25	30	23	BE	B2
350*56	80-86	39	89	25.5	16.5	20.5	BC	B1
350*75.5K	74	37	98	24.5	25	25	CA	C2
350*108	40-46	40	90	24.5	14	25	CG	B1
350*109	41-44	40	92	26	20	25	BO	B1
Y370*107K	39-41	38	94	25.5	28	23.5	AB	B2
400*72.5N	70-80	38	100	26	24	25	AF3	B1
400*72.5W	68-92	51	108	26	24	25	BI	B1
Y400*72.5K	72-74	28	86	30	24.5	25	AF3	C2
KB400*72.5K	68-76	37	94	24	26	23.5	BA	B2
400*72.5KW	68-92	46	112	24	23.5	25	BI	B2
400*74	68-76	38	100	25.5	29.5	24	BH2	B1
400*75.5K	74	39	100	25	26	25	CA	C2
Y400*107K	46	38	89	27	25	25	AB	C2
K400*142	36-37	27	87	34	27	29	CF	C2
400*144	36-41	47	98	27	11	30	CF	B1
Y400*144K	36-41	35	126	29.5	26	25	BE	B2
450*71	76-88	42.5	115	29.5	17	30	BE	B1
DW450*71	76-88	44	114	31	27	25	BD	B1
450*73.5	76-84	42	118	31	34	28	CG	B1
450*76	80-84	48	122	30.5	31.5	26	BI	B1
450*81N	72-80	42	117	26	24	27	BE	B1
450*81W	72-78	58	140	29	32	30	BI	B1
KB450*81.5	72-80	42	110	31.5	27.5	26	BD	B1
K450*83.5	72-74	42	112	24.5	25	28	BI	B1
Y450*83.5K	72-74	38	113	24	27	26	CA	B2
K450*163	38	38	114	27	28	30	AB	B2
485*92W	74	62	142	34	33	30	BE	B2
K500*71	72-76	41	106	23	24	42	BE	B2
500*92	72-84	48	130	27	26	29	BI	B1
500*92W	78-84	64	155	32.5	35.5	33	BI	B1
K500*146	35	40	106	26.5	24.5	50	BB1	A2
