Cummins Engine 180HP Gr180 China Motor Grader Price

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic
  • Walking Mode：Wheeled
  • Type：Large Grader

Base Info

  • Model NO.：GR180
  • Transport Package：in Nude
  • Specification：9298*2601*3430 mm
  • Trademark：ORIEMAC
  • Origin：Jiangsu, China
  • HS Code：84292090
  • Production Capacity：5000PCS,Year

Description

GR180 motor graderBasic specificationEngine modelCUMMINS CTAA8.3 /SC 8D190G2B1Rated power/speed138kW/2200  140kW/2300rpmDimension(LxWxH)8900×2625×3470mmOperating weight(Standard)15400kgPerformance specificationTravelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.8)84KNMax. gradeability30%Tire inflation pressure260 MPaWorking hydraulic pressure18 MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheelsLeft / Right50°Max. lean angle of front wheelsLeft / Right17°Max. oscillation angle of front axleUp / down15°Max. oscillation angle of balance boxBefore / after15Frame articulation angleLeft / Right27°Min. turning radius using articulation7.3mBladeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°_70°Circle reversing rotation360°Moldboard height X width3965×610mm

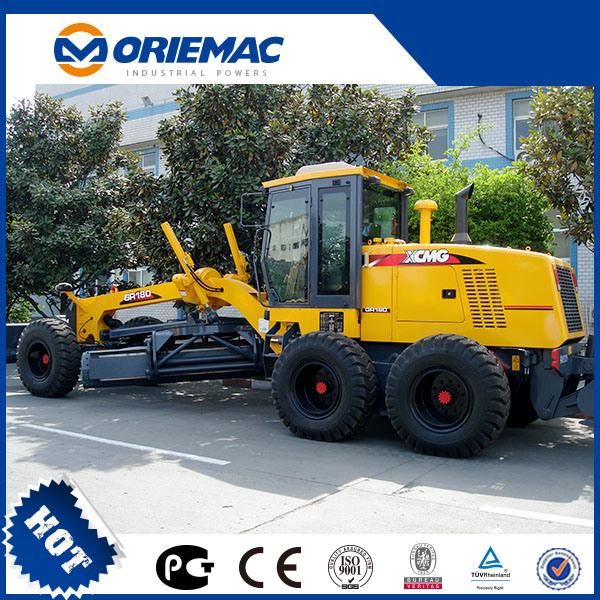

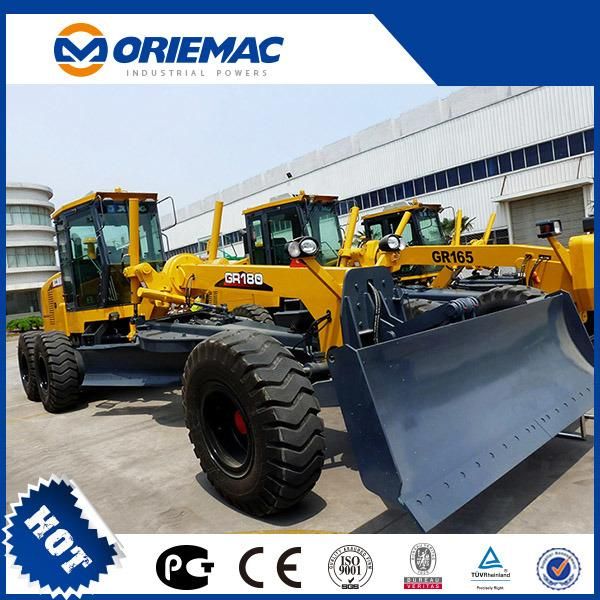

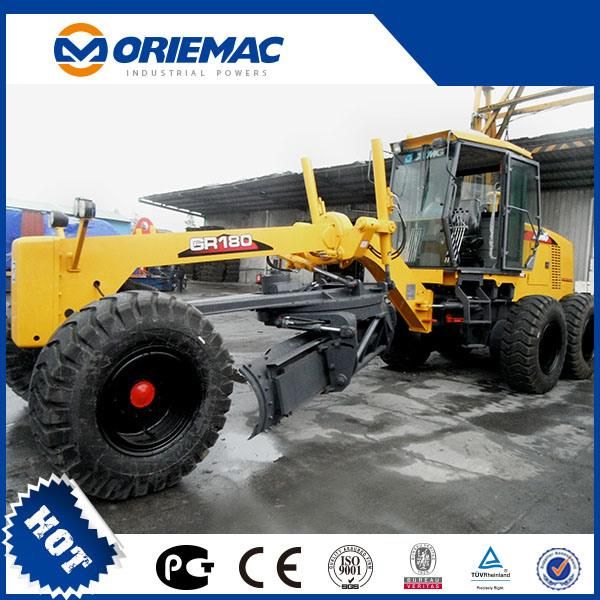

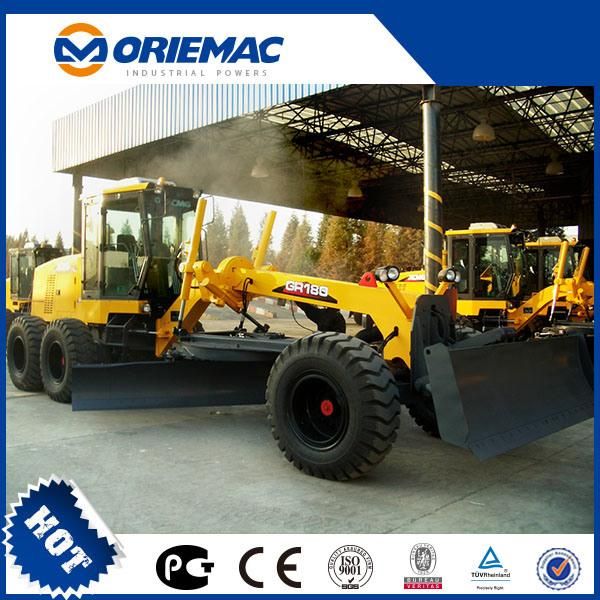

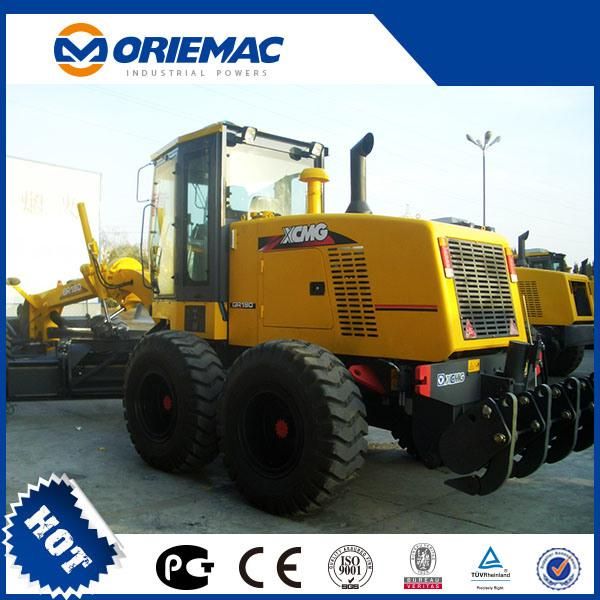

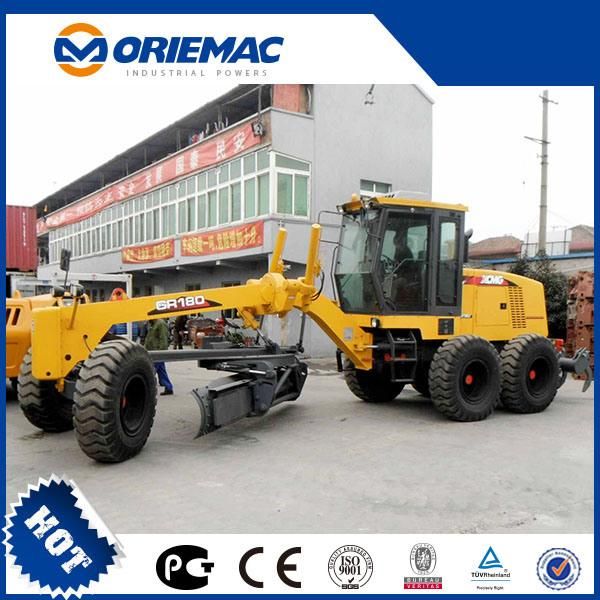

Product Pictures
