• Model NO.：sc60
• Mixing Method：Continuous Drum
• Automatic Grade：Automatic
• Product Capacity：40～400t,h
• Certification：ISO9001: 2000, CE
• Condition：New
• After-Sales Service Provided：Engineers Available
• Heat Conduction Oil Stove：500,000 Kcol,H
• Emission Standard：50mg,Nm3
• Fuel Oil：5.5-7 Kg,T
• Mixing Cycle：45s
• Transport Package：Sea Worthy Packing
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8474310000
• Production Capacity：5000PC,Year

TypeLB500LB750LB1000LB1500LB2000LB2500LB3000Rated production30-40t/h50-60t/h60-80t/h90-120t/h120-160 t/h160-200 t/h200-240 t/hCold aggregate container4containers4containers4containers4containers5 containers5 containers5 containers×6m3×6m3×9m3×9m3×11m3×11m3×11m3Dry cylinder1.1m×4.2m1.3m×5m1.5m×6m1.8m×7m2.2m×8m2.35m×9m2.5m×10mBag dust-removerCNM156CNM240CNM357CNM476CNM654CNM832CNM1012Emission standard50mg/nm350mg/nm350mg/nm350mg/nm350mg/nm350mg/nm350mg/nm3Vibrating screen4 layers4 layers4 layers4 layers5 layers5 layers5 layersHot aggregate container12t12t26t26t5/40t40t80tMixing kettle capacity500kg750kg1000kg1500kg2000kg2500kg3000kgMixing cycle45s45s45s45s45s45s45sMineral powder tank volume30t30t26+36t26+36t30+43t30+43t50+35tAsphalt tank volume30000L30000L50000L50000L2×50000L2×50000L3×50000LHeat conduction oil stove200,000 kcol/h200,000 kcol/h300,000 kcol/h300,000 kcol/h500,000 kcol/h500,000 kcol/h800,000 kcol/hEnd-product container volume50t50t90t90t110t110t200t
 Main Components:No.ComponentRemark1Cold Aggregate Supply System1 unit2Aggregate drying &heating system1 unit3Hot Aggregate Elevating System1 unit4Aggregate Screening System1 unit5Aggregate Weighting System1 unit6Mixing Tower Assembly1 unit7Deducting System1 unit8Filler Supply System1 unit9Compressed Air System1 unit10Bitumen Supplying System1 unit11Finished Storage Silos(Optional)1 unit12Control System1 unit

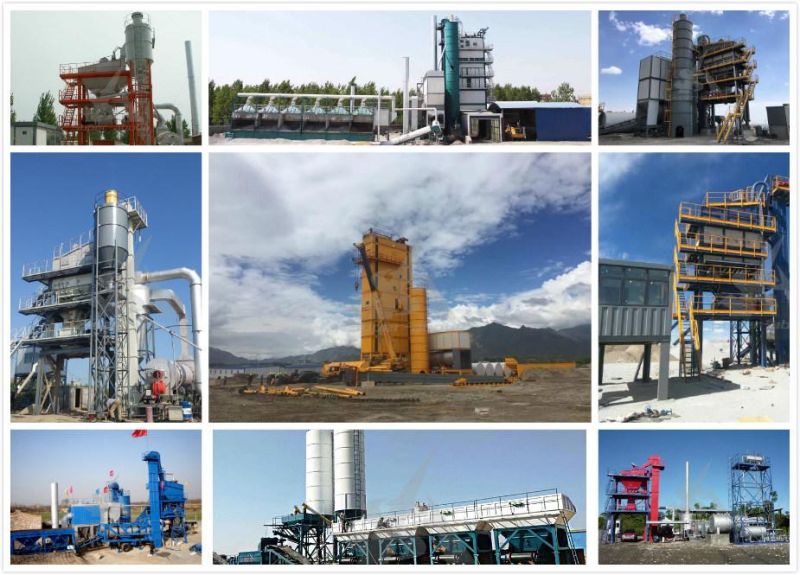

Our Cases
