Haiqin Brand CE Certificated Articulated (HQ915) for Sale 1.5ton Small Wheel Loader
Weifang Haiqin Top Machinery Co., Ltd.- After-sales Service：24 Hours Every Day Technology ,Spare Parts Service
- Warranty：1 Year
- Certification：TUV, ISO, CE, SGS,Rops&Fops
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
Base Info
- Model NO.：HQ915
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Loading Weight：1500kg
- Engine：Euro III or Euro 5
- Operating Weight：4250kg
- Max Lift Capacity：1800kg
- Power：37kw , 42kw
- Transport Package：3 Units in One Hq40 Container
- Specification：CE, ISO, SGS, ROPS&FOPS
- Trademark：Haiqin
- Origin：Shandong, China
- HS Code：84295100
- Production Capacity：8000 Units , Year
Description
Specifications of HQ915 wheel loader :1,Engine Details Model: CHINA YUNNEI OR XINCHAI 498BT ( Euro III and EPA ) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine Rated Power: 37kw / 42kw Rated Speed: 2400 r/p. Min (rpm) Fuel Consumption ratio in standard working condition: 230g/kw. H 2,Transmission System Type: Fixed-spindle Power shift Shift gear control oil pressure: 1.2~1.5MPa Rated input speed: 2500 (rpm) 3,Bucket Bucket Capacity: 0.8m3 Bucket width: 1750mm Bucket type: Heavy-duty bolt on teeth Max. Breakout Force: 45KN Rated Load: 1500kg Max loading weight : 1800kg Operating Weight: 4250kg 4,Overall Dimensions Overall Length (Bucket on ground position): 5300mm Overall Height : (a) Ground to Cab Top: 2720mm (b) Dumping Height: 2650mm (c) Overall Width: 1750mm 5, Operating Specifications Steering System: Articulated Frame with hydraulic power steering Min Turning Radius: 4400mm Driving System: Hydraulic converter 6,Brake System Service Brake: Four Wheel Hydraulic spread-shoed brake Parking Brake: Hand operated 7,Tyre Model: 12-16.5 / 14-17.5 8,Wheelbase : 1950mm 9,Track: 1400mm

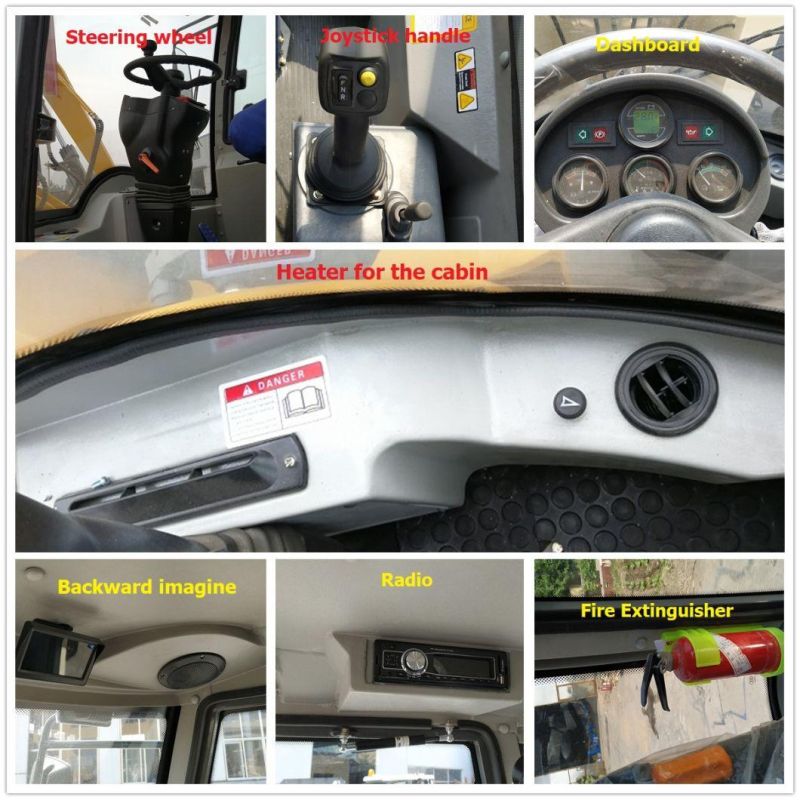

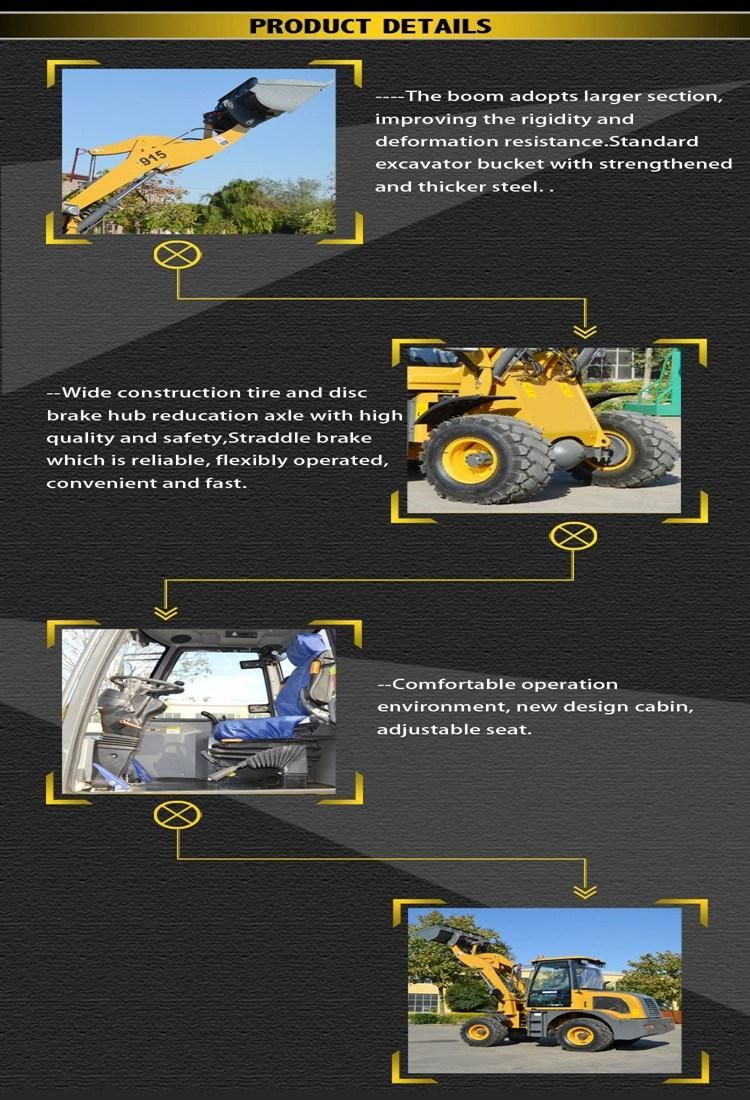

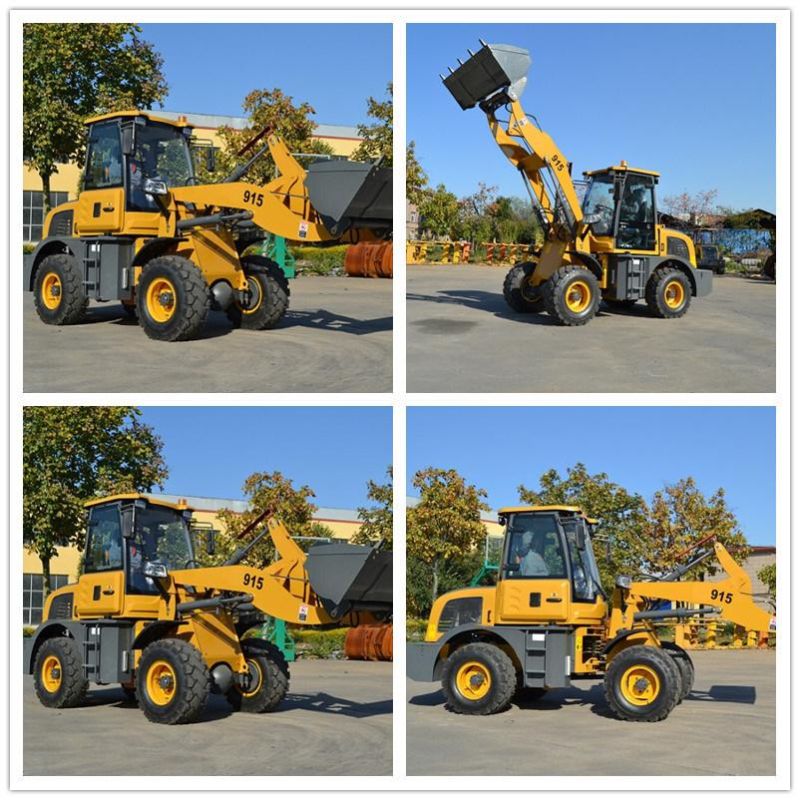

3, Details Photos of HQ915 Wheel Loader

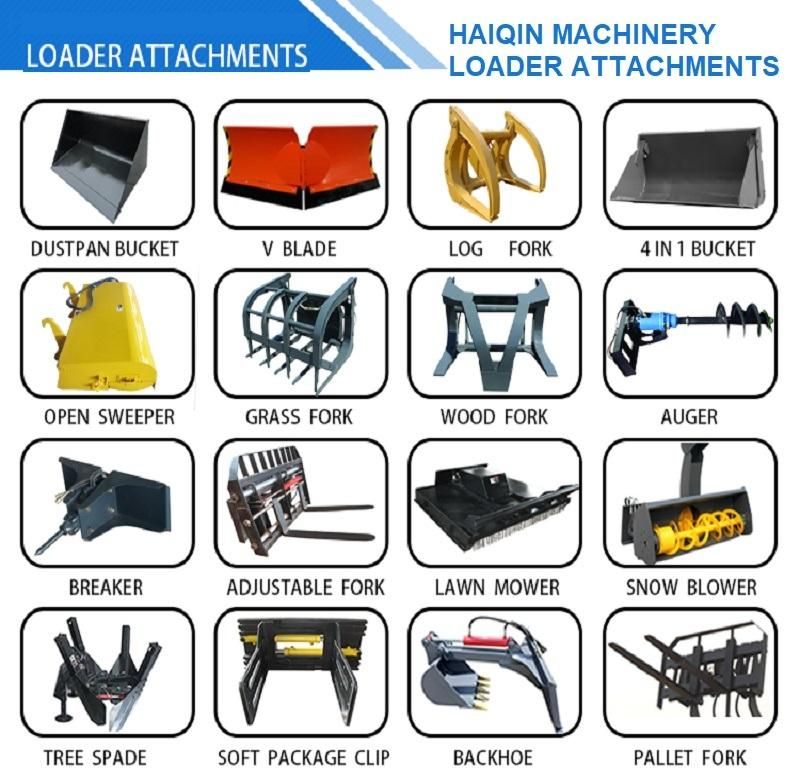

4,Optional Attachments for HQ915 Wheel Loader

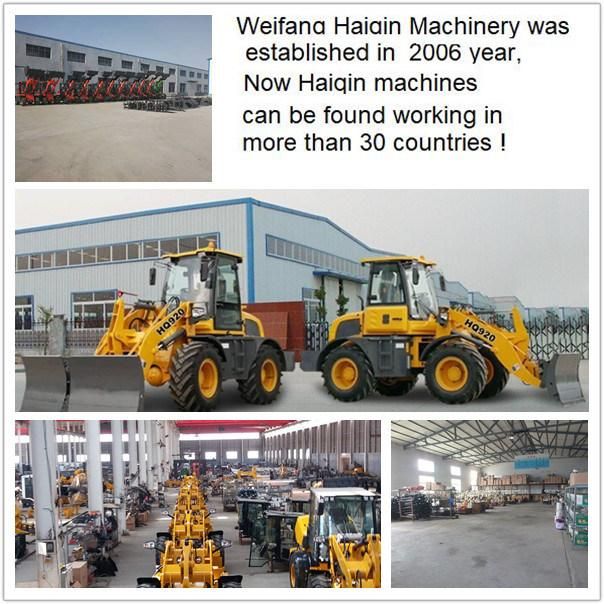

5, Factory introduction of Haiqin Machinery

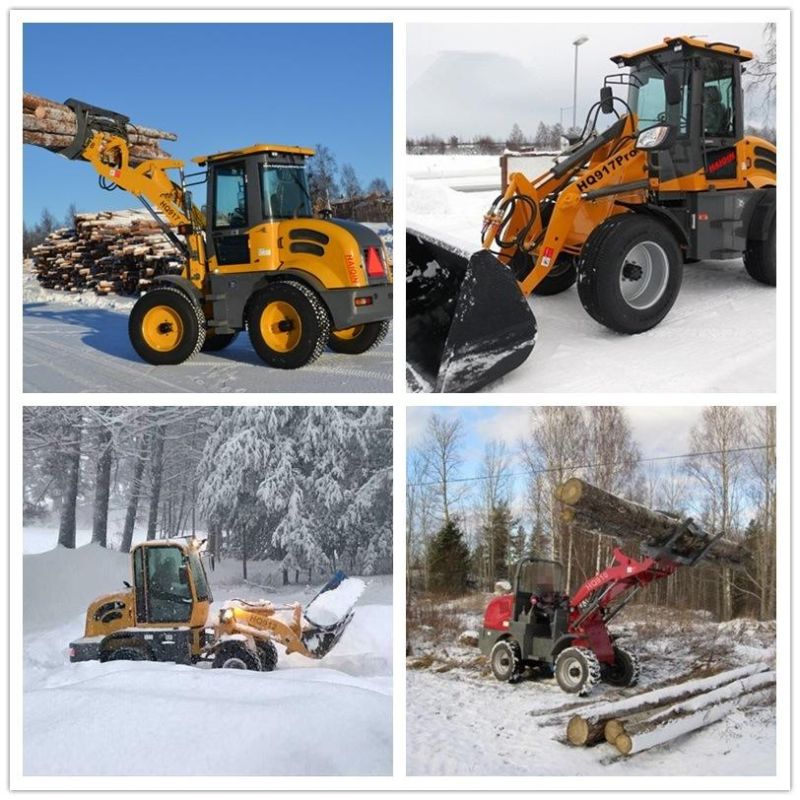

6,Working Case in the foreign countries of Haiqin Machinery' Loaders.
7,Certificate of Haiqin Machinery

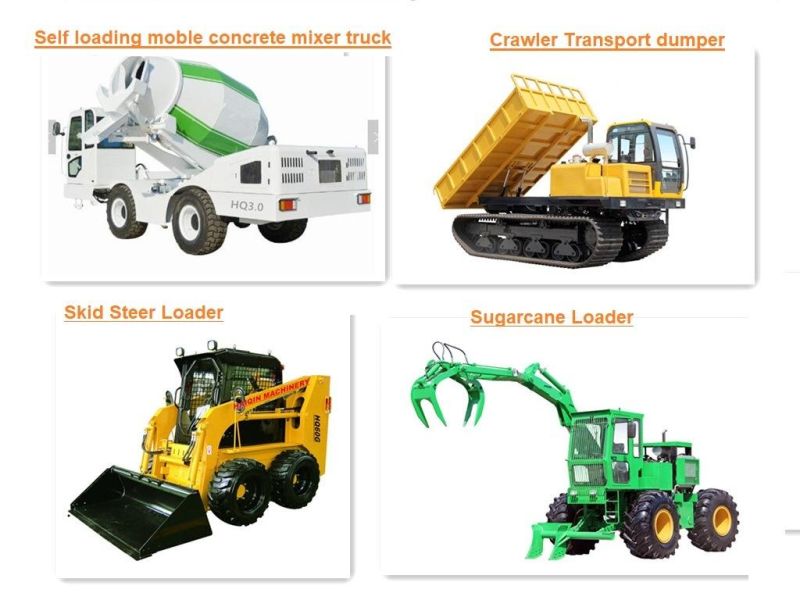

8, MORE PRODUCT CATEGORIES
9, Warranty and Service.
HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
Choose HAIQIN, and then better after-service will be guaranteed.
Contact us right now for more information! Online 24 hours a day!
