• Model NO.：ZL50GN
• Type：Medium-sized Loader
• Rated Operating Loade：5000kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：8165*3016*3485 mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84295100
• Production Capacity：10000 Units,Year

Basic Info.

Model NO. ZL50GN Type Medium-sized Loader Rated Operating Loade 5000kg Transport Package Comply with Export Packaging Requirements Specification 8165*3016*3485 mm Trademark XCMG Origin Xuzhou, Jiangsu, China HS Code 84295100 Production Capacity 10000 Units/Year

Product Description

Factory Price XCMG Official Lw500Zl50gZl50gn 5ton Wheel Loader

In recent years, XCMG made numerous breakthroughs in loader technology development and continously make history in loader industry. Implementation of"service throughout full life cycle" brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.

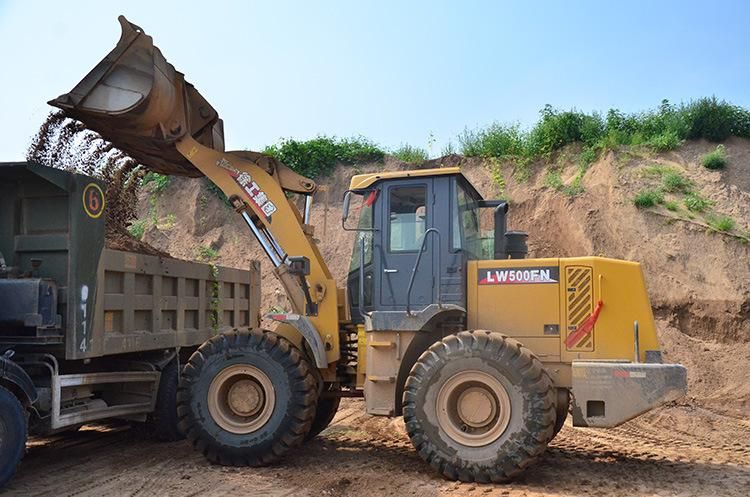

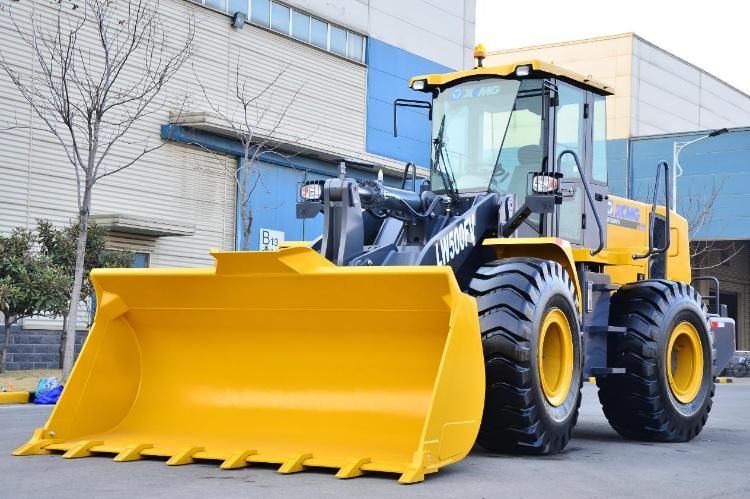

1. LW500FN:

LW500FN wheel loader is set by ten years of professional experience, the new high efficient and energy-saving products to create,is the latest cross-generation product developed by  on the basis of the globalized technologic resources.The machine is especially adapted to the working conditions of aggregate, earthmoving, coal.

1.Large strength:
The 170kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
The air-assisted hydraulic four-wheel caliper brakes feature stable braking and high safety and reliability.

2.Good ventilation:
optimize the ventilation order of hydraulic oil and cooling water. The water cooling of the transmission oil settles issue of the high temperature which is common problem in the industry.

3.High efficiency :
Quick action: the total time of three devices is only 9.9s, leading in the industry.

Optional parts
Air conditioner/ grasping grass pliers / Sliding fork / Standard bucket/ Side dumping
A/C/ 2.5m3 Blade bucket/ 4.5m3 Lignt material Blade bucket/ 2.5m3 Reinforced bucket.

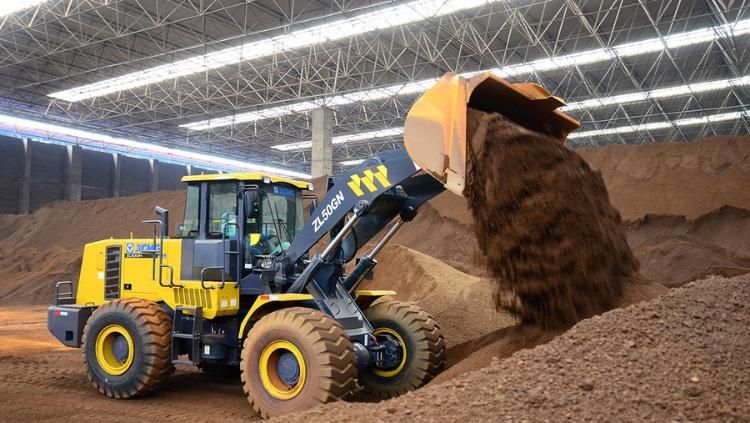

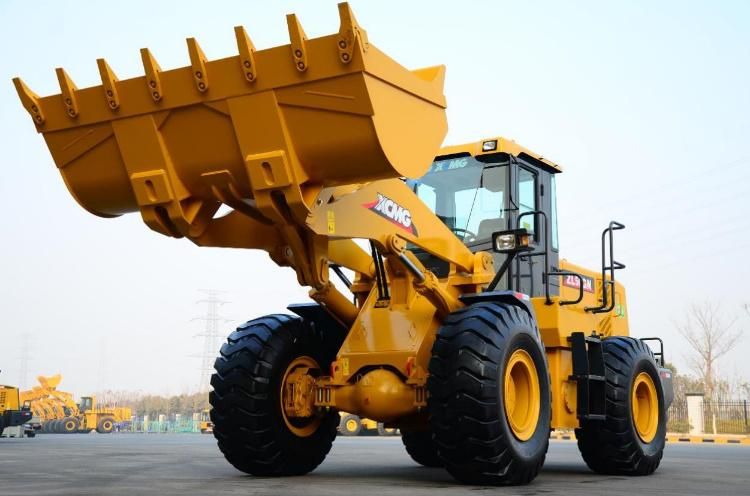

2. ZL50GN:

XCMG wheel loader ZL50GN is the most popular model of China 5t wheel loader,Now ZL50GN is upgrading to new model ZL50GV equipped with EURO III engine with electric injector, new model will have high performance.

ZL50GN wheel loader is the latest cross-generationproduct developed ,the first-choice equipment for the production organizationin the fields of ports, mines, engineeringconstructions, and logistics.

1.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

2.The large rock bucket with capacity of 2.5m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.

3.The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.

Optional parts:
* Grasping grass pliers / Sliding fork / Standard bucket/ Side dumping / Light material Blade bucket 3.5m3 /4m3/4.5m3,2.5m3 Mine bucket.

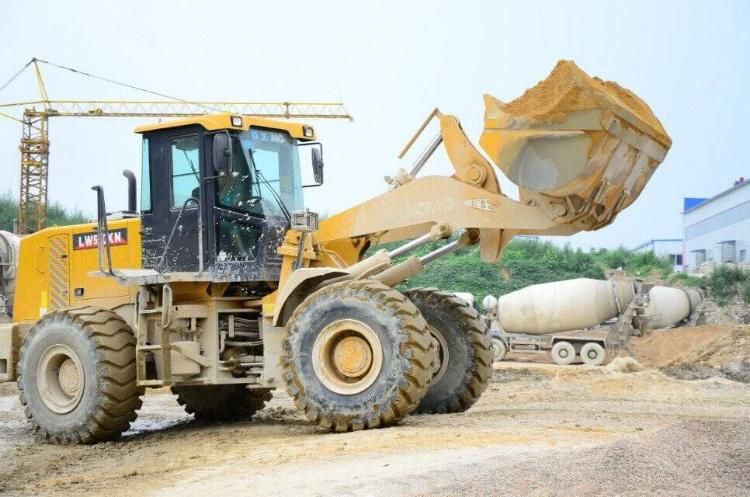

3. LW500KN:

Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

The large rock bucket with capacity of 3.0M3 is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.

[Product Parameter]

Description	Unit	lw500fn	zl50gn	lw500kn
Rated operating load	kg	5000	5000	5000
Bucket capacity	m³	2.5~4.5	2.5~4.5	2.7~4.5
Machine weight	kg	16900	17500	17200
Dump clearance at maximum lift	mm	3150~3560	3100~3780	3150~3560
Reach at maximum lift	mm	1100~1190	1100~1220	1100~1190
Wheel base	mm	2960	3300	3300
Tread	mm	2250	2250	2250
Height of hinge at maximum lift height	mm	4112	4112	4112
Working height(fully lifted)	mm	5510	5510	5407
Max.breakout force	kN	170	175	170
Hydraulic cycle time-raise	s	≤6	≤6S	≤6.5 s
Total hydraulic cycle time	s	≤10.5	≤11S	≤11 s
Min. turning radius over tyres	mm	5950	5925	5925 mm
Articulation angle	°	35	38	30 º
Gradeability	°	28	30	45 º
Tyre size		23.5-25-16PR	23.5-25-16PR	23.5-25-16PR
Overall machine dimension L×W×H	mm	7910×3016×3515	8225×3016×3515	8870*3000*3350
Model		WD10G220E21	SC110B220G2B1	WD10G220E21
Rated Power	kW	162	162	162

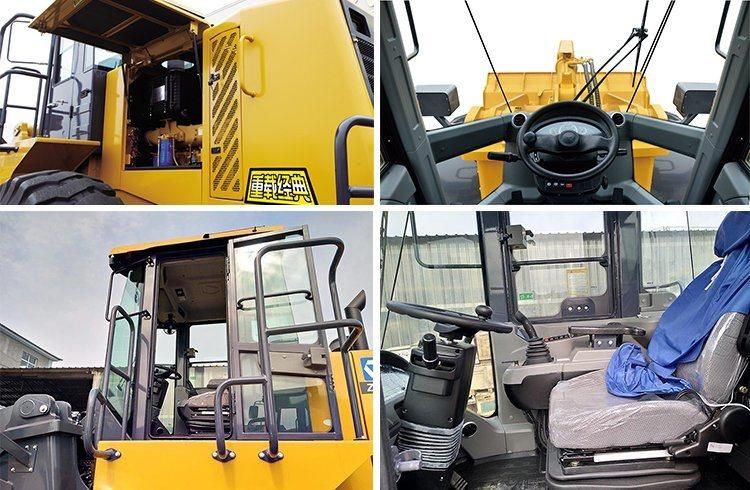

[Product Picture]







[Company Information]






[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
