Brand New Shantui Bulldozer SD22
Evangel Industrial (Shanghai) Co., Ltd.- Overall Dimension L*W*H：5750*3725*3395mm
- Operating Weight：23.4t
- Engine Model：Wd12g240e26,Ntaa855-C280s20
- Blade Capacity：Semi-U 7.0, (S)6.4, Tiltdozer 4.7 U7.5
- Rated Power/Speed：162,1800kw,Rpm
- Transport Package：Suitable for Ocean Shipment
Base Info
- Model NO.：SD22
- Specification：Standard Configuration
- Trademark：Shantui
- Origin：Shandong, China
- Production Capacity：20 Sets, Month
Description
Basic Info.
Model NO. SD22 Specification Standard Configuration Trademark Shantui Origin Shandong, China Production Capacity 20 Sets/ MonthProduct Description

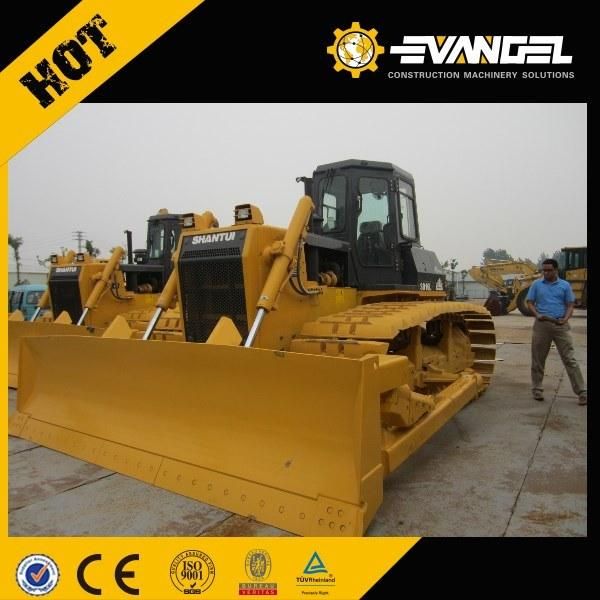

Brand new Shantui bulldozer SD22
1. Shantui SD bulldozers series, products are 130hp, 160hp, 220hp, 230hp, 320hp etc., 12 class, there are standard, wetland, wetland, desert, plateau type, pushing coal deformation, forest logging and sanitation and other products.
2. Various types of bulldozer optional straight tilting shovel, Angle blade, u-shaped shovel, sanitation shovel cab and air conditioning, easy rolling bridge, bridge and three teeth ripper, single tooth ripper, scraper device etc.
3. It is mainly used in airports, roads, mines, DAMS, railways and other job site conditions.
Features of Shantui bulldozer SD22 for sale:
1)Choose the supercharged diesel engine with strong power, reservation and coefficient.
2)The hydraulic torgue converter and gearbox with hydraulic power shift adopted in the hydraulic system to meet many kinds of work condition.
3)The steering system and brakeing system be controlled by hydraulic power. The shovel blade and scarifier controlled by joystick, flexible, safe and reliable.
4)Humanized operation layout of the cab is applied, which features high efficient and comfortable.
5)The bulldozer has advanced structure and nice shape.
| Specification | Unit | |
| Overall Dimension L*W*H | mm | 5750*3725*3395 |
| Operating Weight | t | 23.4 |
| Rated Power/Speed | kw/rpm | 162/1800 |
| Track Center Distance | mm | 2000 |
| Ground Contact Land | mm | 2730 |
| Land Pressure | Mpa | 0.077 |
| Forward Travelling Speed | km/h | 3.6/6.5/11.2 |
| Reverse Travelling Speed | km/h | 4.3/7.7/13.2 |
| Blade Digging Depth | mm | 540 |
| Ripper Breaking Depth | mm | T/S 666/696 |
| Blade Lifting Height | mm | 1210 |
| Ripper Lifting Time | mm | T/S 555/515 |
| Grade Ability | 30° | |
| Blade Capacity | m3 | Semi-U 7.0, (S)6.4, Tiltdozer 4.7 U7.5 |
| Engine Model | WD12G240E26/NTAA855-C280S20 | |
| No.of Carry Rollers (Each Side) | 2 | |
| No.of Track Rollers (Each Side) | 6 | |
| No.of Track Link | mm | 38 |
| Track Width | mm | 560 |
| Pitch | mm | 216 |
| Blade Type | (S), (Semi-U), (T),U | |
| Blade Length*Width | mm | (S)3725*1315, (T)4365*1055,U3800*1343, (Semi-U), 3725*1374 |
| Ripper Type (tooth) | Single/Three |
