• Model NO.：CLG6520E
• Travel Speed：40cm,s
• Centrifugal Force：27KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Max. Operating Mass：20000 Kgs
• Min. Operating Mass：11000 Kgs
• Single Tire Load：1778 Kg
• Rated Power：97kw
• Gradeability：20%
• Transport Package：Nude
• Specification：4800x2310x3270 mm
• Trademark：ORIEMAC
• Origin：China
• Production Capacity：350units,Month

Basic Info.

Model NO. CLG6520E Travel Speed 40cm/s Centrifugal Force 27KN Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Max. Operating Mass 20000 Kgs Min. Operating Mass 11000 Kgs Single Tire Load 1778 Kg Rated Power 97kw Gradeability 20% Transport Package Nude Specification 4800x2310x3270 mm Trademark ORIEMAC Origin China Production Capacity 350units/Month

Product Description

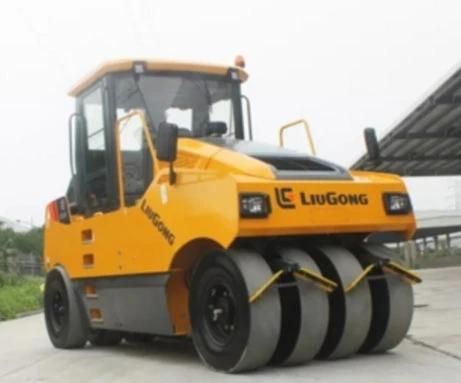

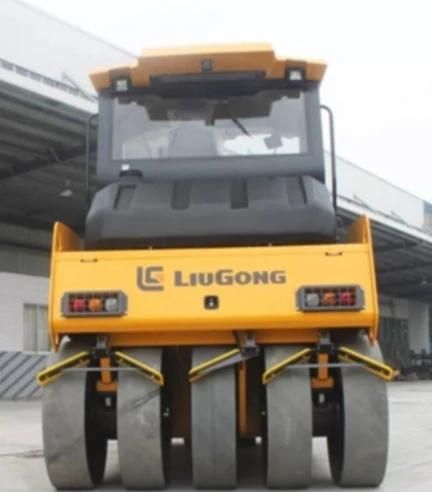

High Quality Compactor Hot Sale 20ton Tyre Road Roller CLG6520E
Contact Person: Vicky Zhu

Product Description
Top quality compaction is achieved by the kneading and rolling effect of the wheels as vertical pressure combined with horizontal forces produce an excellent, uniform surface finish.

On uneven surfaces, our patented Tire Suspension System, equipped with a tiltable front shaft, enables the 4 front wheels to swing up and down by +/- 8° achieving maximum ground contact for each wheel. This delivers optimum compact and improves safety by helping prevent the roller from tilting over.

Safety is further enhanced with a three-stage breaking system utilizing hydraulics, oil cut-off and wheel side oil breaking. This three stage system protects the operator, site workers and members of the public from accidents.
Product Specifications

Max. Operating Mass

16000 kg

Min. Operating Mass

11000 kg

Single Tire Load

1778 kg

Overlapping of Front & Rear Tire

45 mm

Model

Cummins 4BTAA3.9-C130

Emission Regulation

Stage II

Rated Power

97 kW (132 hp) @ 2200 rpm

Working Speed

0-7 km/h

Traveling Speed

0-16 km/h

Compacting Width

2250 mm

Theoretical Gradeability

20%

Min. Ground Clearance

290 mm

Wheelbase

3600 mm

Min. Outside Turning Radius

8000 mm

Tire Type

11.00-20-16PR

Tire Numbers

Front 4 Rear 5

Overall Length

4800 mm

Overall Width

2310 mm

Overall Height

3270 mm


Product Show
