• Model NO.：lg939
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Engine：Yuchai
• Axle：Awd, Big Hub Reduction
• Steering：3-Layer Articulation Steering
• Attachment：Kinds of Attachments
• Transmission Box：Automatic
• Engine Power：85kw
• Payload：2200kg
• Tyre：16,70-24
• Bucket Size：2200mmx570mm
• Dumping Height：3500mm
• Wheel Base：2560mm
• Turning Radius：4500mm
• Ground Clearance：470mm
• Service Brake：Air Hydraulic Caliper
• Operating Type：mechanical Single Joystick
• Transport Package：Container
• Specification：6200x2150x2950mm
• Trademark：LUGONG
• Origin：China
• HS Code：84295100
• Production Capacity：40000 Sets,Year

Basic Info.

Model NO. lg939 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Engine Yuchai Axle Awd, Big Hub Reduction Steering 3-Layer Articulation Steering Attachment Kinds of Attachments Transmission Box Automatic Engine Power 85kw Payload 2200kg Tyre 16/70-24 Bucket Size 2200mmx570mm Dumping Height 3500mm Wheel Base 2560mm Turning Radius 4500mm Ground Clearance 470mm Service Brake Air Hydraulic Caliper Operating Type mechanical Single Joystick Transport Package Container Specification 6200x2150x2950mm Trademark LUGONG Origin China HS Code 84295100 Production Capacity 40000 Sets/Year

Product Description

Professional Compact wheel loader manufacturer-LUGONG GROUP

Product Details for compact/mini/small loader

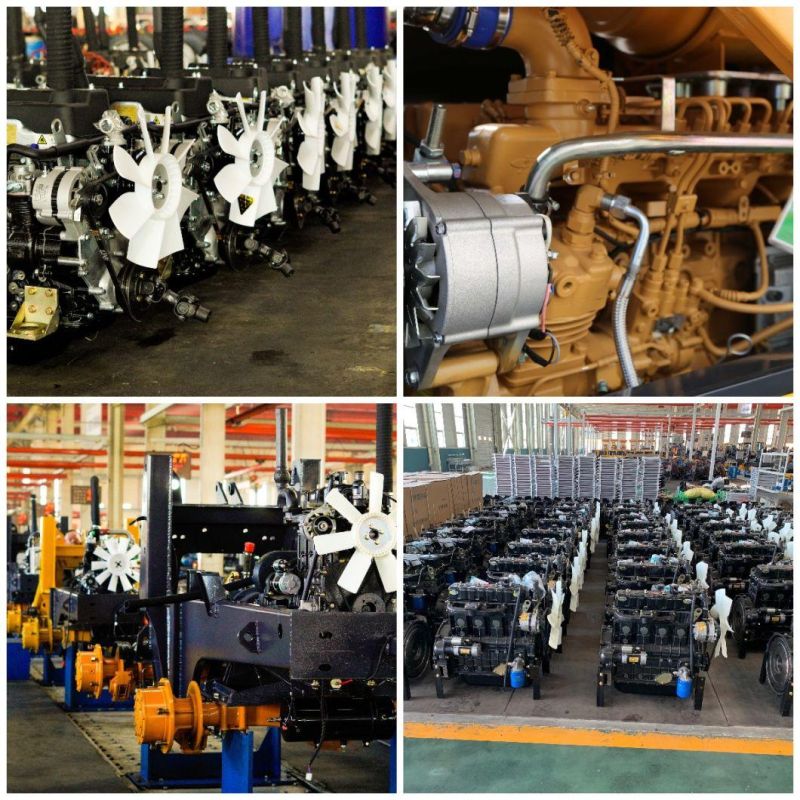

*High performance engine from YUCHAI, WEICHAI-HF, SIDA;
*Best match for our small loader base on 20 years experience;
*DEUTZ, YUNNEI, CUMMINS for optional.

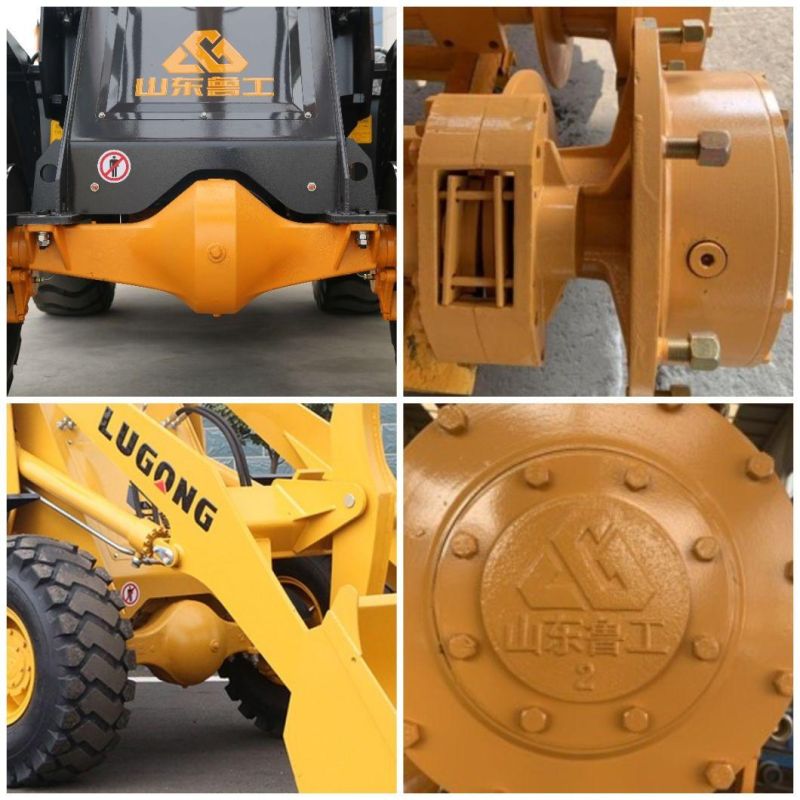

*Special 7:41 speed ratio with big hub reduction brings large torque,
more powerful and quick acceleration;
*High grade main reducer for light truck gets low failure rate;
*Casting steel material, 200kgs heavier than others, stronger and more durable;
*Big size brake disc and brake caliper get good brake action.

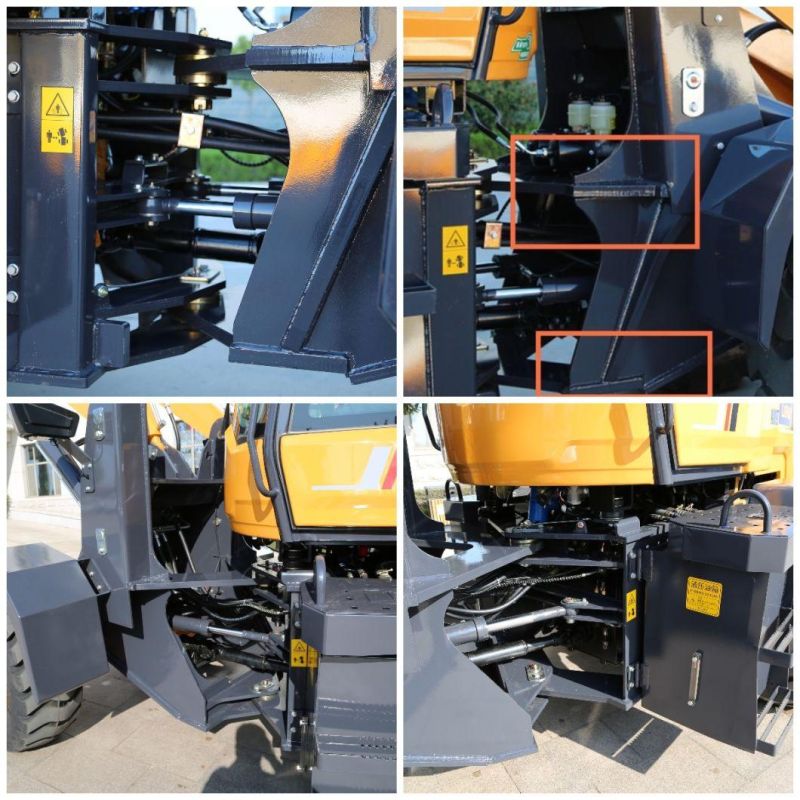

*Three-layer articulated steering design can uniform stress, prevent deformation;
*Extended and widened hinge plate wedge in column strengthen whole frame greatly;
*Trajectory coincidence technology reduce engine load and tire wear, get small turning radius and more flexible operation.

*Stamping steel plate gets high structural strength;
*Arc design brings good visual effect;
*Electro-coating ensures excellent anti-corrosion property.

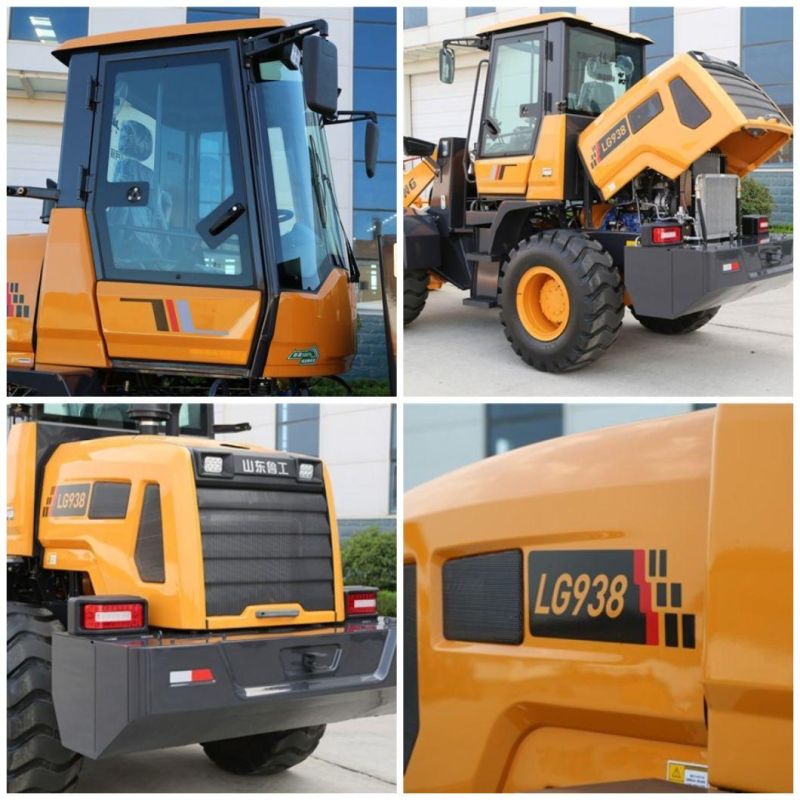

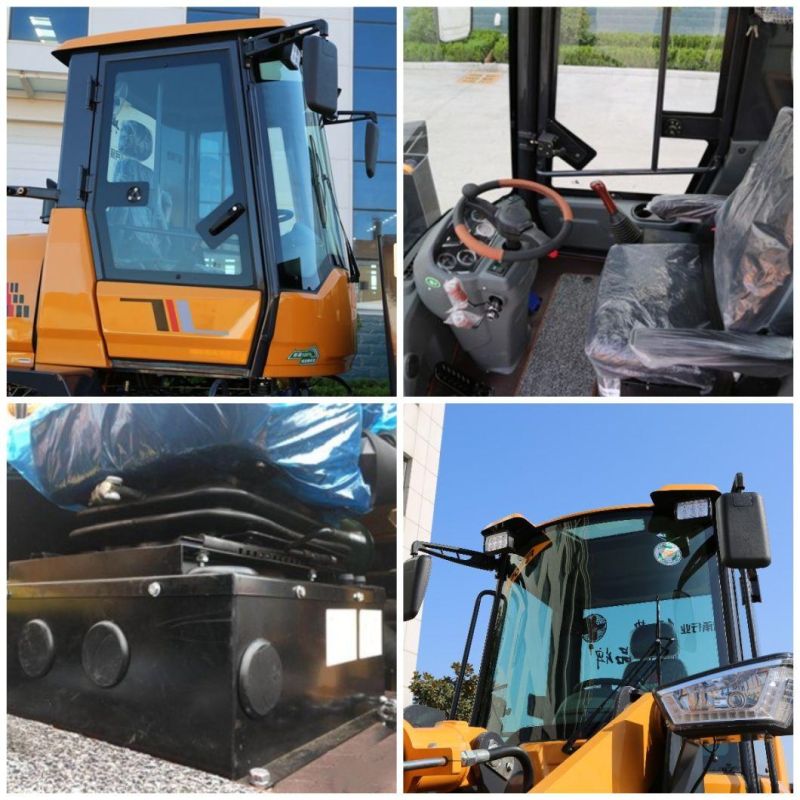

*Made of stamping steel plate gets large cab space and strong structure;
*Curved one-piece windshield brings better driving vision;
*Luxury seat with high grade damper reduce fatigue of long time driving;
*Optional high quality air conditioner improve driving comfort.

*Stamping steel plate gets high structural strength for hood;
*Large open angle is convenient for maintenance;

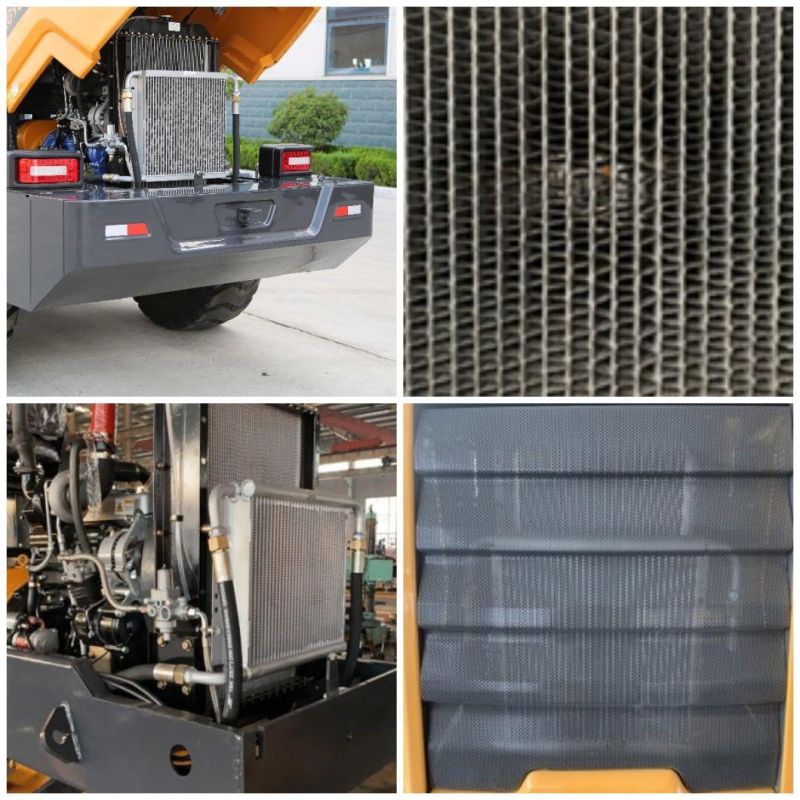

*High level water tank, Large hole grid with 32mm double pipe increase heat dissipation;
*Motor temperature is not high even continuous working 20 hours at air temperature 50ºC.

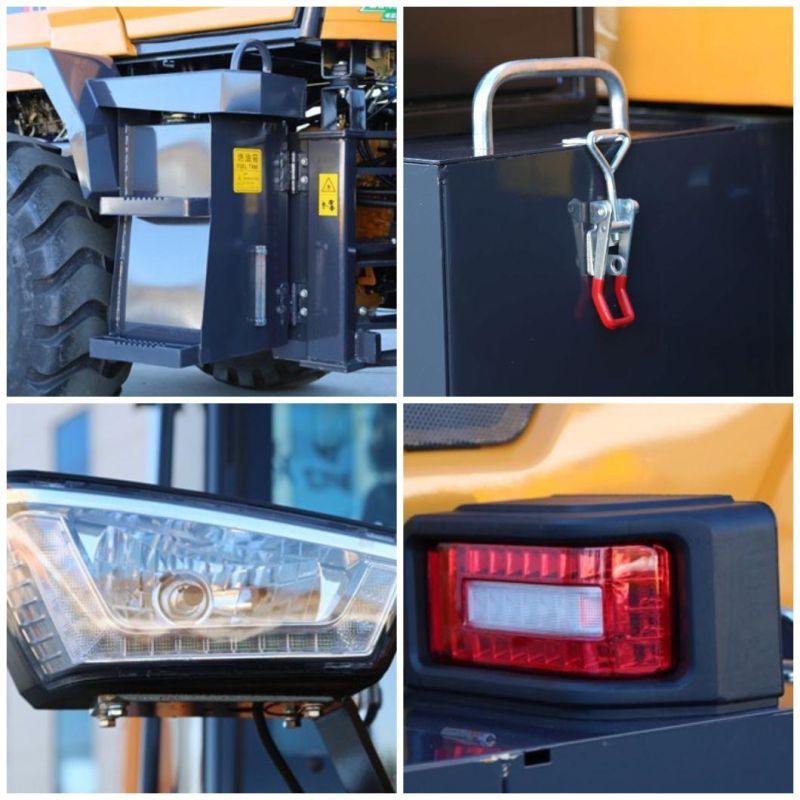

*New LED lights bring better brightness and longer life;
*Pickling and phosphating treated oil tank avoid block in hydraulic system;
*Fast joint on air tank for blowing gun, air inflation and grease gun;
*Shanghai "Steel" brand 18PR Nylon tyre, service life much longer than other brands.

Detailed Specs for LUGONG small front end mini loader

Rated Load	2200kgs	Engine Model	Yuchai 4105 Turbo
Standard Bucket	1.1m3	Gross Power	85KW
Operating Weight	5450kgs	Torque Converter	Hydraulic
Max. Dumping Height	3500mm	Transmission Box	CVT AWD 300 Split type
Turning Radius	4900mm	Axle	big hub reduction gear
Tyre	16/70-24	Service Brake	Dual Air Hydraulic Disc

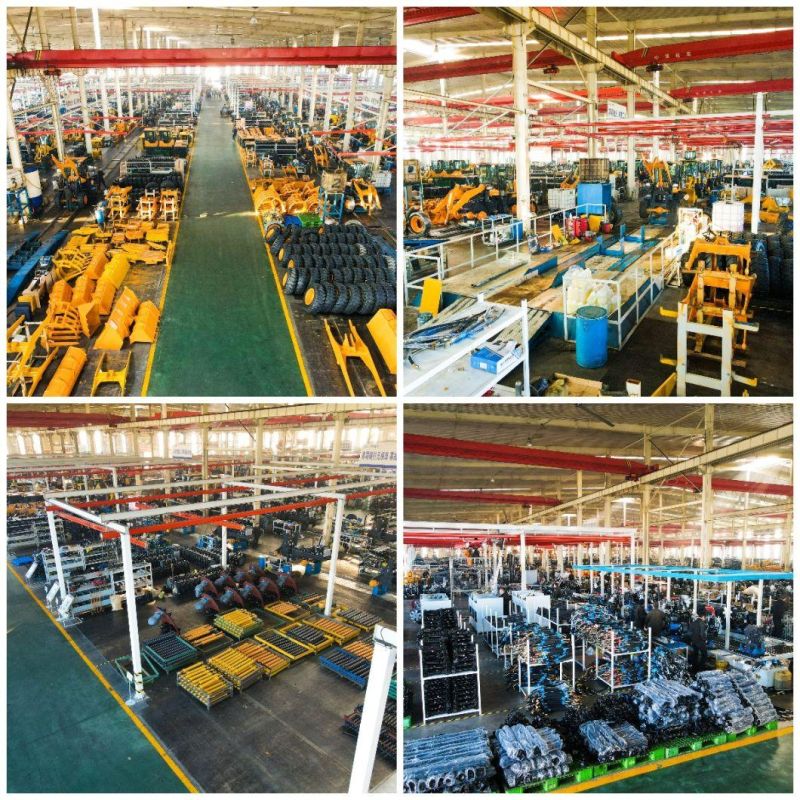

Company Brief

*Leading manufacturer of Compact Wheel Loader;

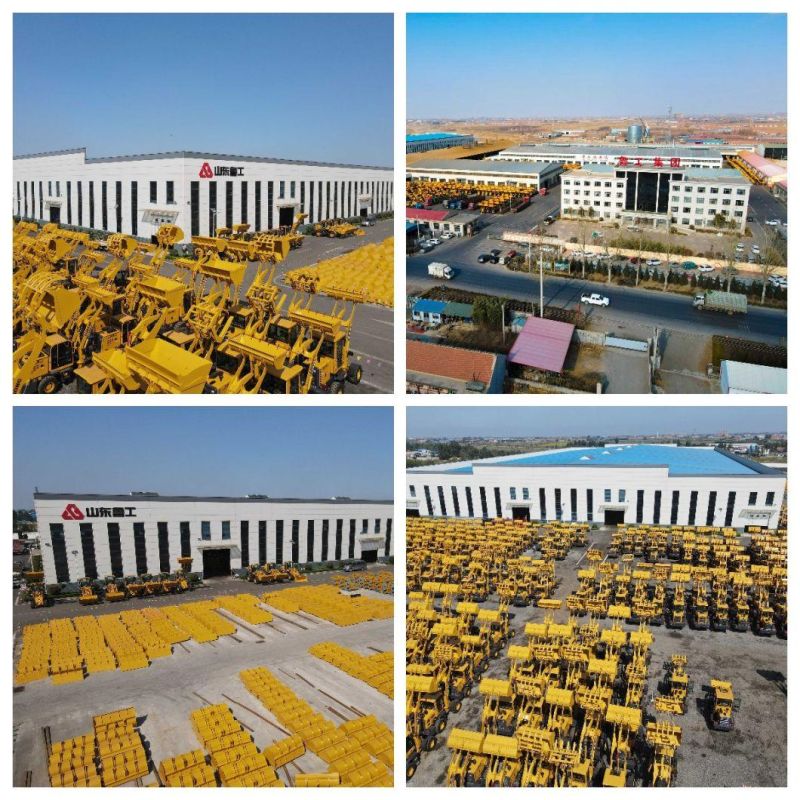

*Founded in 2000. Land 200,000 Sq. meters;
*Employee more than 1100;
*Certificate ISO9001:2015; CE;
*Sales 40,000+ sets loader in 2020.
