Good Quality Combine Rubber Tire Asphalt Road Roller in Stock
Shandong Storike Engineering Machinery Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Light Grind
- Compaction Depth：25cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：ST4000
- Travel Speed：0-10km,H
- Centrifugal Force：32kn
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Product Name：Good Quality Combine Rubber Tire Asphalt Roller
- Engine：Changchai Zn390b,Yanmar 3tnv88
- Output Power (Kw)：28.5
- Walking Speed (Km/H)：0-10
- Theoretical Climbing Ability：30%
- Vibration Wheel：Front+Back
- Drive Form：Hydraulic Motors
- Vibration Frequency (Hz)：60
- Exciting Force(Kn)/(Front/Back)：40
- Water Spray Form：Intermittent Pressure Water Spray
- Hydraulic Oil Capacity(L)：42
- Fuel Capacity(L)：42
- Water Tank Capacity (L)：140
- Transport Package：Wooden Box or Iron Frame
- Specification：2480*1370*2630mm
- Trademark：Storike
- Origin：China
- HS Code：8429401900
- Production Capacity：100sets,Month
Description

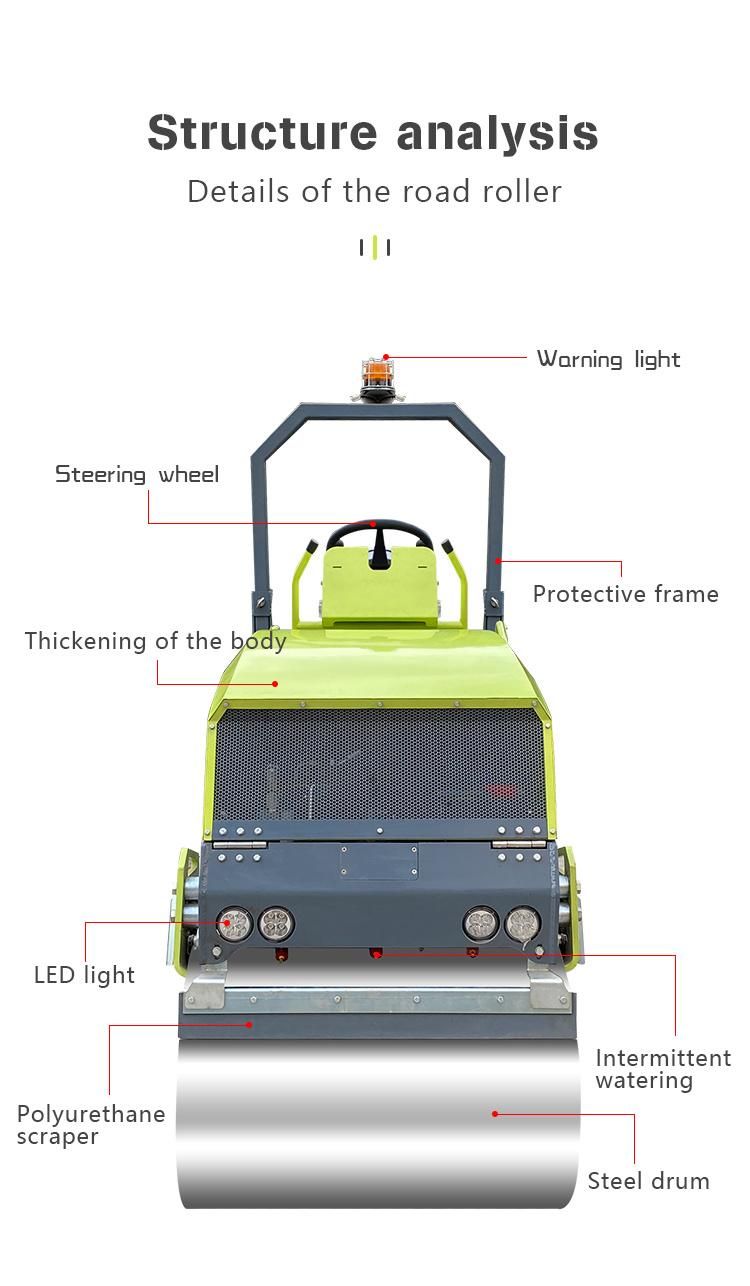

Standard configuration
Variable piston pump stepless variable speed walking
Parallel travel drive
Hydraulic articulated steering
Swing hinge in the middle of the fuselage
Vibration switch on the handle
Linkage dual manipulation handle
Two scrapers per steel wheel
Pressure intermittent water spray system
Adjustable driving seat
Hood with lock
Control and warning lights
Work chronometer
Steel water tank
Anti-fall protection frame
LED front and rear lights
Rear reflector
Seat gravity sensor automatically goes out
Features:
- Equipped with China Changchai engine ZN390B, 28.5KW. Or imported from Japan Yanmar engine 3TNV88 26.9KW.
- The width of the steel wheel is 1200MM, the diameter of the steel wheel is 720MM.

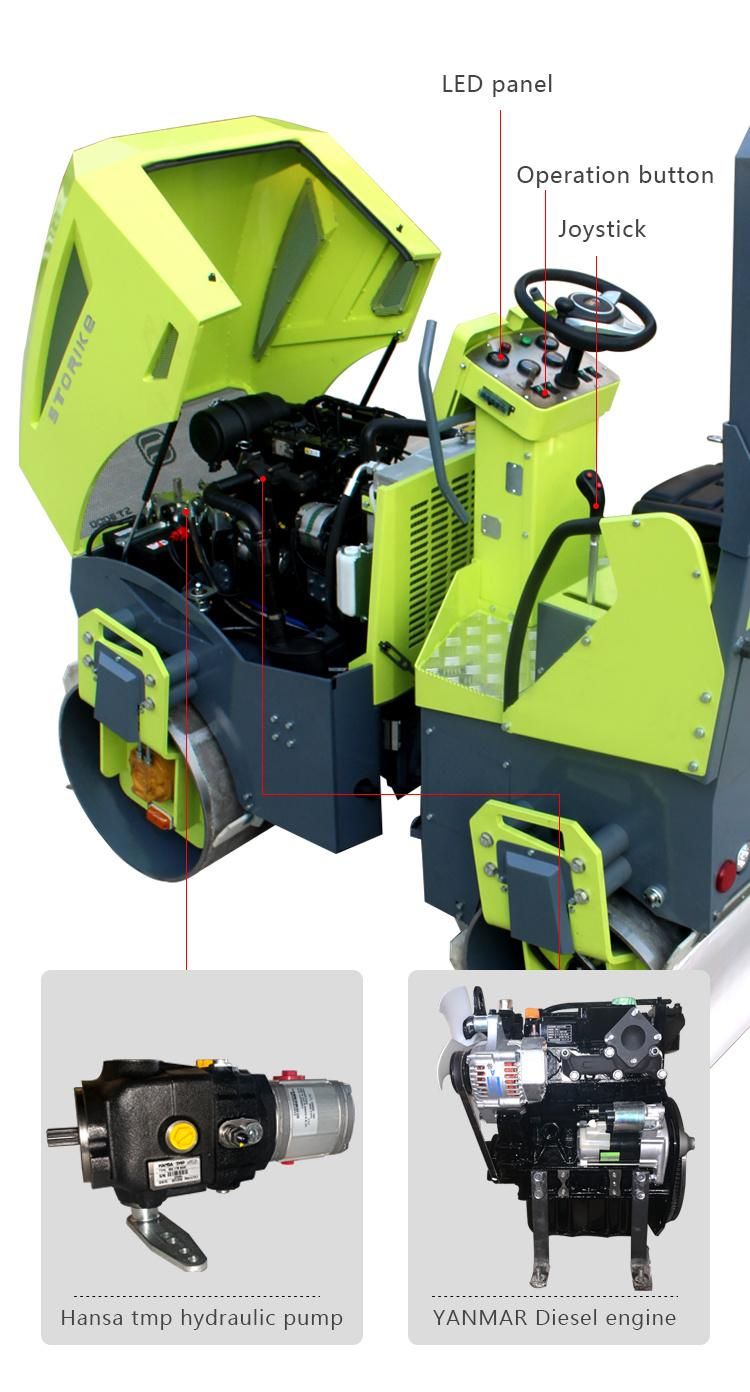

- Equipped with the HANSA-TMP hydraulic pump imported from Italy

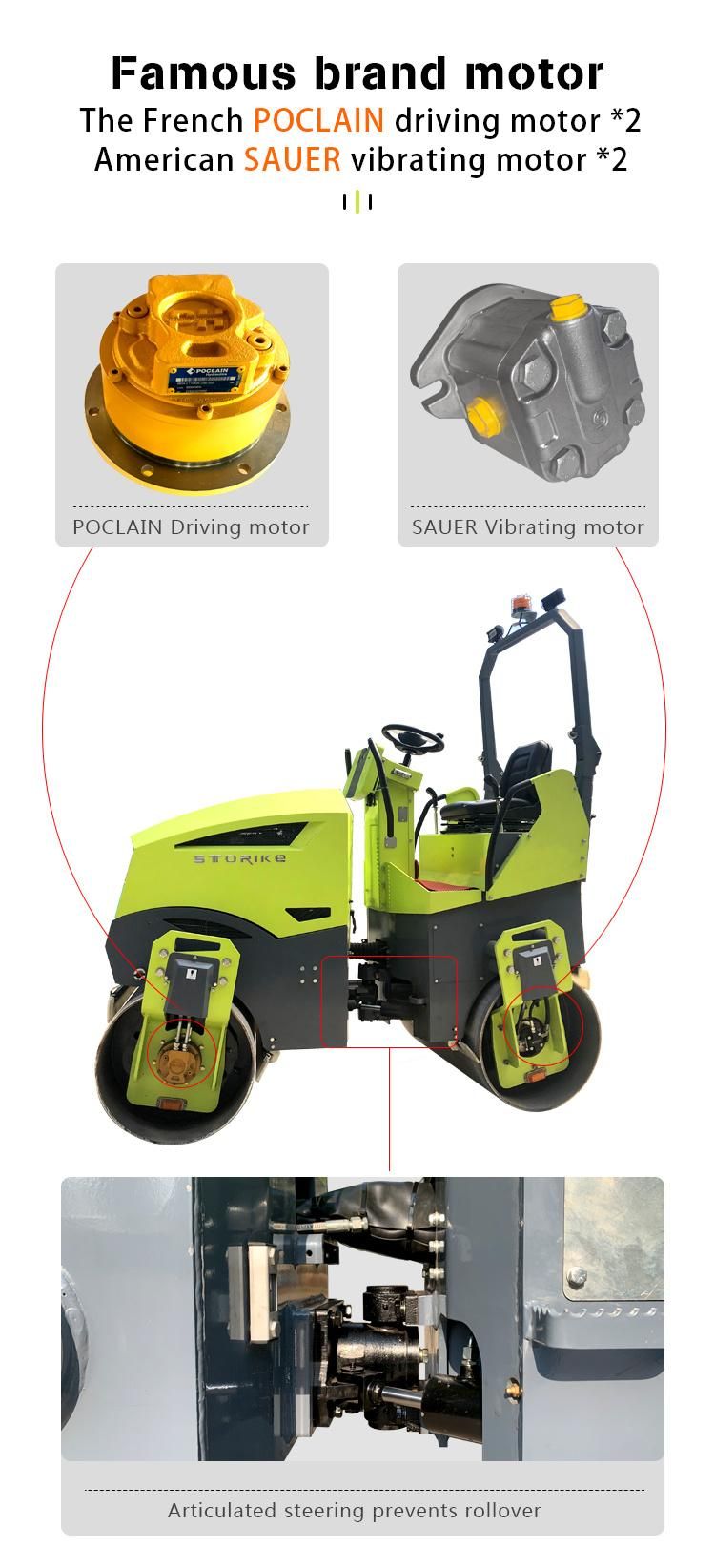

- Imported French Poclain drive motor and Denmark Danfoss vibration motor,
- It is double-drive double vibration

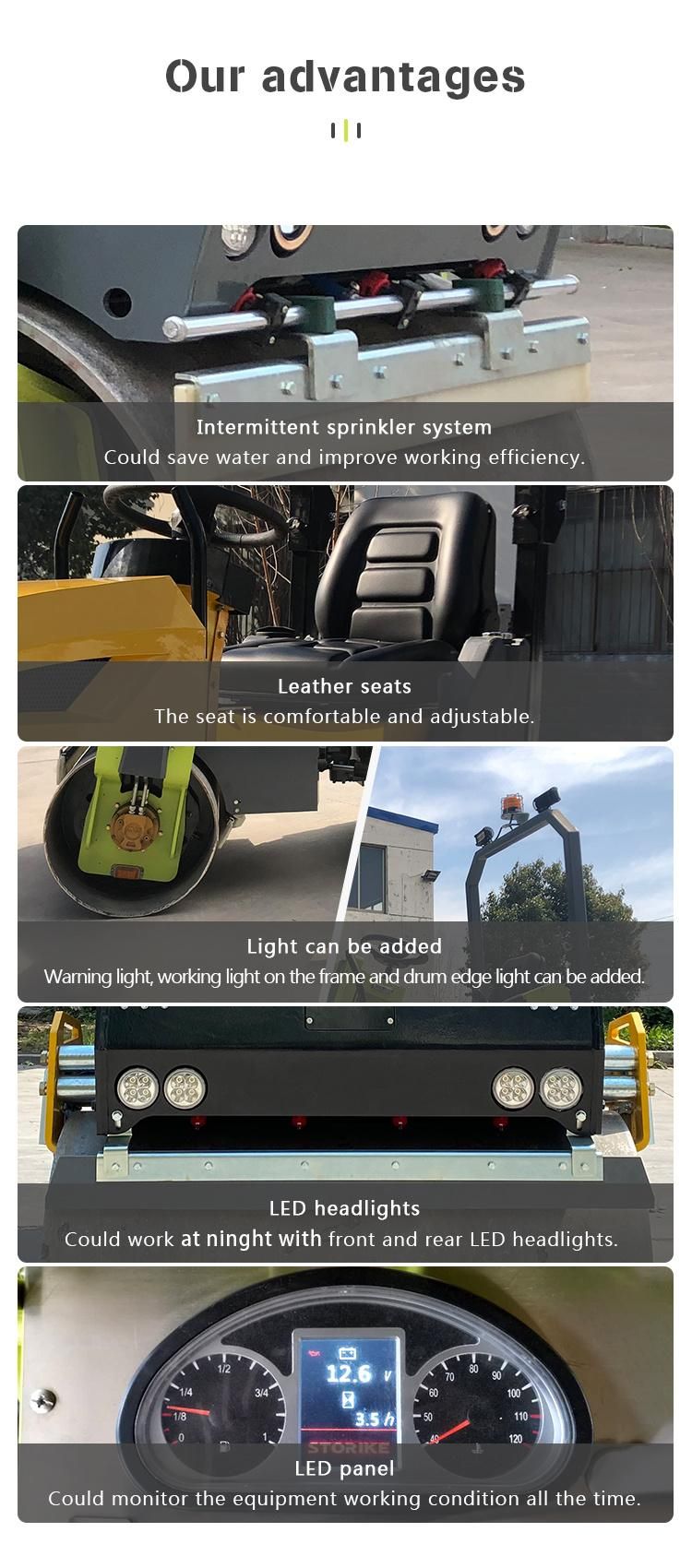

- Equipped with adjustable leather seat
- Equipped with LED work lights and warning lights
- LED display instrument panel, with complete functions on the instrument panel.
- The electric intermittent spraying system , even spraying, can also save water
