• Model NO.：SWWD220X
• Size：Medium-Sized
• Certification：ISO9001: 2000
• Condition：New
• Blade：Straight
• Drive Model：4X4
• Warranty：One Year
• Model：Swwd220X
• Brand：Sinoway
• Engine Make：Weichai
• Rated Power：220 HP
• Transport Package：Nude
• Specification：220hp
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：150 PCS Per Year

Basic Info.

Model NO. SWWD220X Size Medium-Sized Certification ISO9001: 2000 Condition New Blade Straight Drive Model 4X4 Warranty One Year Model Swwd220X Brand Sinoway Engine Make Weichai Rated Power 220 HP Transport Package Nude Specification 220hp Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 150 PCS Per Year

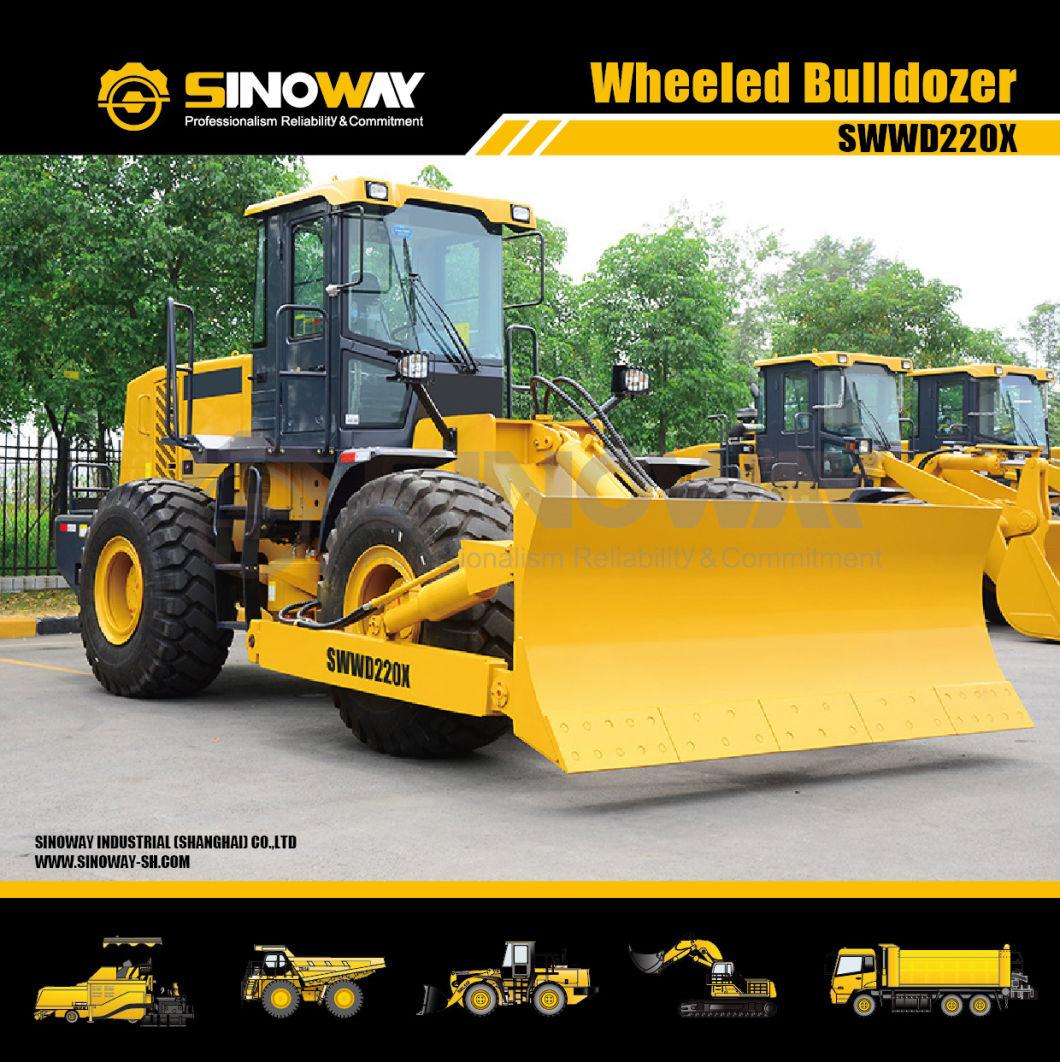

Product Description

Product Description

Equipped with WEICHAI engine, direct injection, turbocharged engine equipped features high torque reserve coefficient,excellent energy-conservation and environment-friendliness, and strong power.
Full hydraulic steering, power shift speed, hydraulic control work device, light operation, flexible and comfortable.
Working device using box-like structure of the push arm, push the length, adjustable length of the link structure, the ball link. Chain block construction machinery drive shaft, impact resistance, power transmission reliability.
Button release of gas pressure protection and emergency braking integration, safe and reliable.
Good maneuverability, easy transfer of work, no damage to the road.
Optional new air-conditioned luxury cab, vision, sealed vibration, good operating environment.

Product Show

Specifications

Engine
Model	WEICHAI
Type	Six-cylinder,water-cooled,turbocharged,mechanical injection
Rated power	162KW
Rated speed	2200rpm
Implement Hydraulic System
Integral multi-valve	DF32.2F3A
Hydraulic pressure	16MPa
Pump type	Gear pump
Driving And Tyre
Driving type	4 wheel drived
Tyre size	23.5-25
Tyre pressure	0.3~0.32Mpa
Electrical System
System voltage	24V
Battery	6-QW-120(2pcs)
Lamp voltage	24V
Starting voltage of diesel	24V
Main Technical Specification
Operating weight	16500Kg
Grade ability	47%
Overall dimensions (L×W×H)	7214×3390×3380mm
Max. tractive force	130KN
Wheel base	3470mm
Tread	2240mm
Working Equipment
Blade type	Straight
Width	3390mm
Height	1000mm
Max. digging depth	400mm
Max. lift above ground	1000mm
Transmission System
Torque ratio	3.7
Gear box	Counter-shaft transmission
Bevel gear	One-stage spiral bevel gear deceleration
Wheel reducer	One-stage spur gear deceleration
Gear shifts(Forward/Reverse) Travelling speed(km/h)	F2/R1
Forward/Reverse I	13/17
Forward II	38
Steering System
Type	Co-axis flow amp.articulated steering
Bore of cylinder/stroke	2-Φ100mm/360mm
Working system pressure	15Mpa
Steering angle	35°~36°
Braking System
Traveling braking	Air-pushing-oil disc brake on four wheels
Parking braking	Internal expanding with double horseshoe
Service Capacities
Fuel tank	230L
Water tank	70L
Implement oil tank	110L
