• Model NO.：SWG315
• Diesel Engine：Cummins
• Zf Transmission：Power Shift
• Usage：Universal Type
• Engine Power：147~515kw
• Color：Yellow
• Warranty：One Year
• Transport Package：Naked
• Specification：ISO2008
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：5 PCS,Month

Basic Info.

Model NO. SWG315 Diesel Engine Cummins Zf Transmission Power Shift Usage Universal Type Engine Power 147~515kw Color Yellow Warranty One Year Transport Package Naked Specification ISO2008 Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 5 PCS/Month

Product Description

Product Advantages
Cummins engine delivers great power, performance and stability.
German ZF electronic-hydraulic control power shift gearbox offers 6 forward gears and 3 reverse gears for easy operation.
International brand rear axle uses a differential to provide sufficient traction to wheels on one side of the motor grader when wheels on the other side tend to slip on the road surface. The middle and rear wheels are fitted with planetary gear for reliable operation.
Tandem drive uses gears for stability and reliability in power transmission.
Road grader SWG315 is a rear-wheel-drive vehicle, with the front axle forced to turn during steering. The front axle has been put through a process known as cascade welding.
Wet multi-disc brake comes with twin hydraulic circuits for steady braking motion, maximum safety and maintenance-free performance.
Spacious cab offers a wide-angle view. Three-level alarm indicators and various other monitoring instruments ensure maximum safety. Ergonomic layout design of control elements makes for great comfort ion operation. Vibration-damping cab seat is adjustable in 3 directions, allowing cab driver to operate the console with great ease.
Falling object protective structures (FOPS) and rollover protective structure (ROPS) are as optional.

Sinoway treat Service as a significant segment in our value chain, from the moment you get in touch with Sinoway, our commitment to service is a complete guarantee that we will make every effort to be there for you. That is our pledge to you. We wish to not just satisfy but surpass the expectations of our customers.

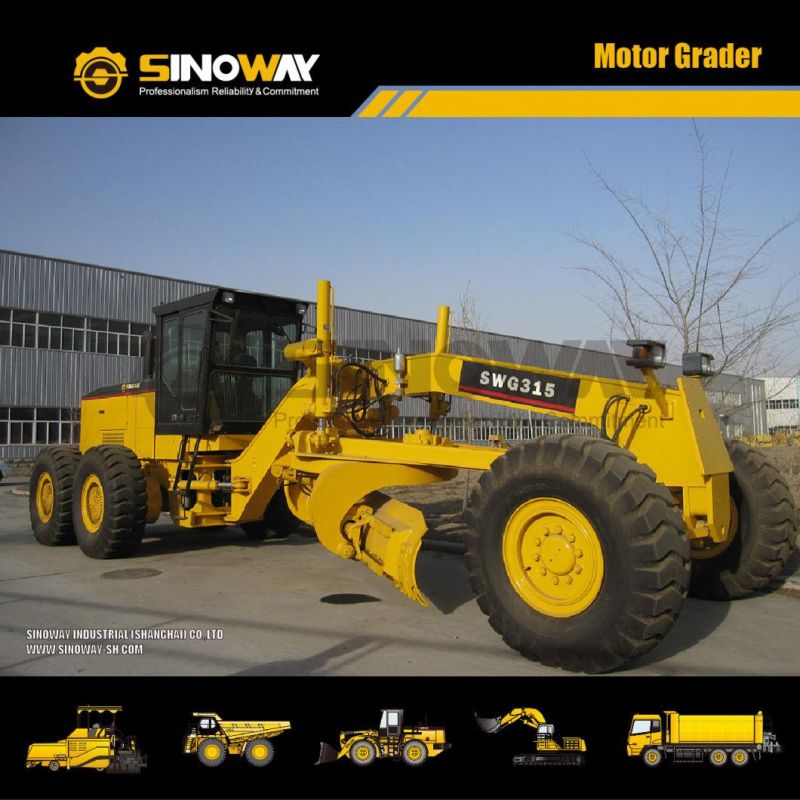

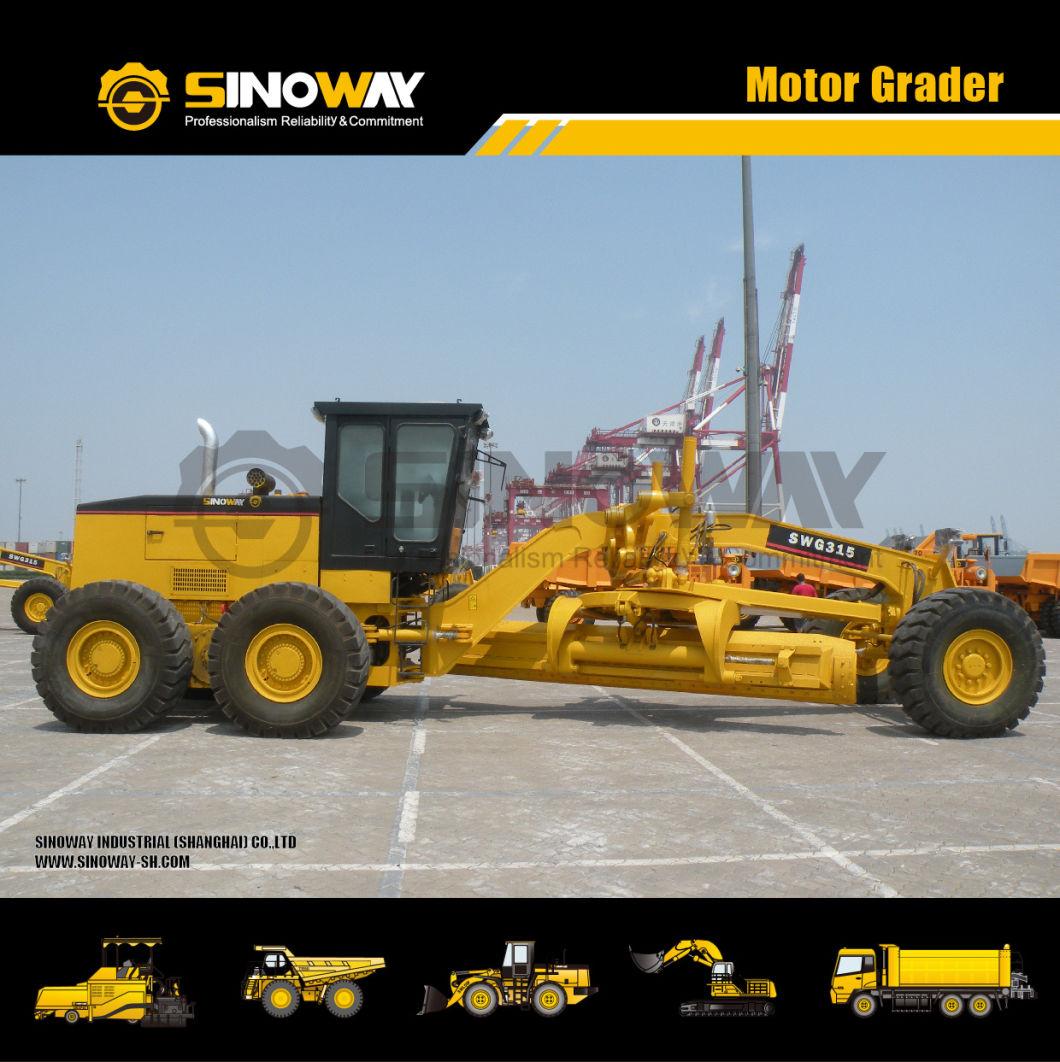

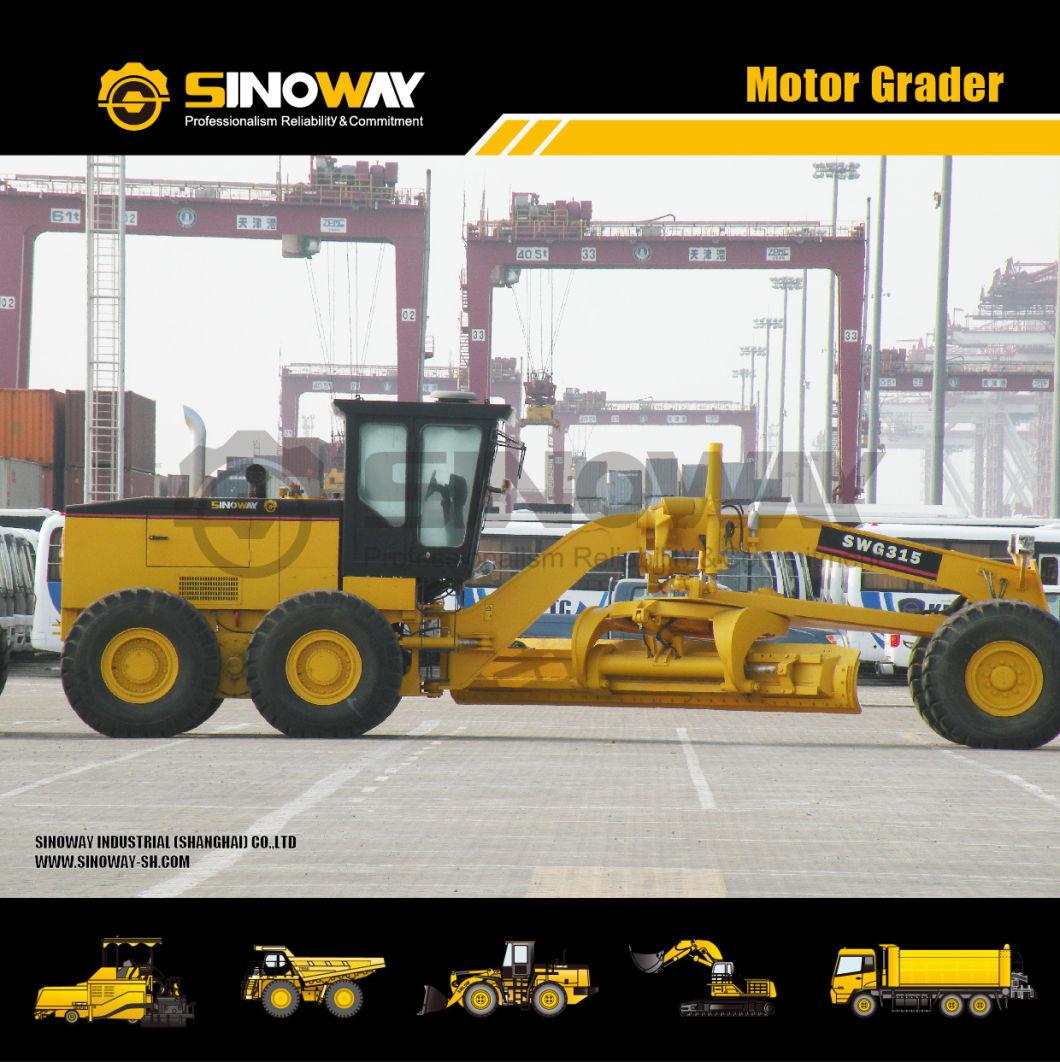

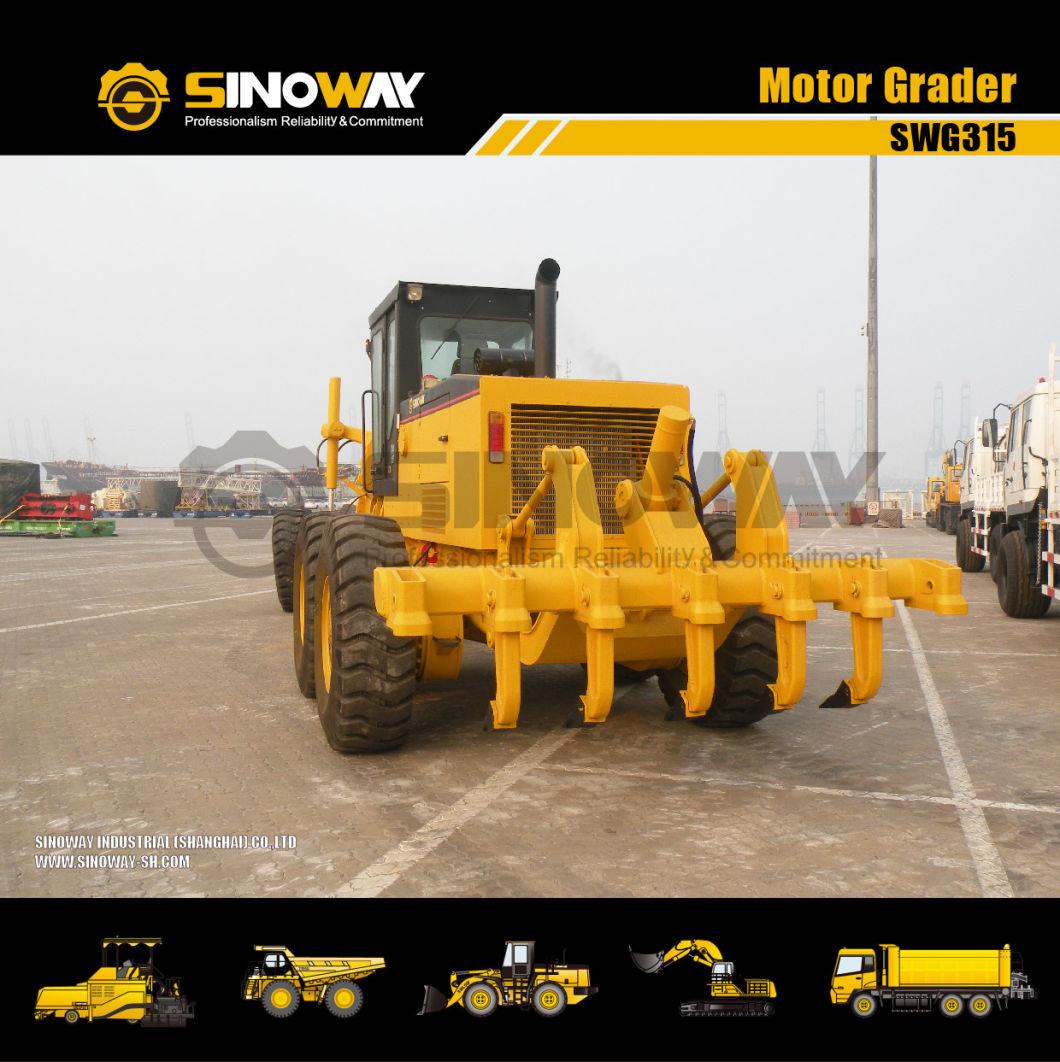

Product Show




Specifications

Engine
Model	CUMMINS
Type	Six-cylinder,water-cooled,turbocharged,electronic injection,tier III
Rated power	228KW
Rated speed	2100rpm
Transmission System
Torque conveter type	3 elements, single stage
Torque ratio	2.8
Cooling type	Oil cooled, pressure circulation
Gearbox type	Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F6/R3
Forward/Reverse I	5.2/5.2
Forward/Reverse II	8.1/12.5
Forward/Reverse III	12.5/27.1
Forward IV	19.1
Forward V	27.1
Forward VI	40
Steering System
Front wheel steering angle	50º(L/R)
Articulated steering angle	27º(L/R)
Drive type	Dual action cylinder
Axle
Drive type	Four wheel drive(6×4)
Front axle ground clearance	670mm
Front wheel lean	17º(L/R)
Oscillation	±15º
Drive axle	Imported No-SPIN differentia
Working Equipment
Control system	Hydrostatic drive system
Hydraulic pump	Gear pump
Control valve	Two sets, five pieces per set
Control pressure	25MPa
Hydraulic oil cylinder	Dual action cylinder
Max. tractive force	165KN
Ground penetration	470mm
Blade width	4920mm
Blade cycling	360º
Max. bank cutting angle	80º(L/R)
Operating weight	26000kg
Braking System
Service brake	Wet brake,actuate 4 rear wheels
Parking brake	Hand operated hoop brake
Dimensions
Overall length	10500mm
Overall width(wheel outside)	3140mm
Overall height	3650mm
Wheel base	7760mm
Front tread	2494mm
Rear tread	2494mm
Tyre size	18.00-25
Service Capacities
Fuel tank	380L
Engine crank case	30L
Hydraulic tank	130L
Gear box	45L
Rear axle	35L
Balance box	40L(each)
Worm gear case	6L
Tandem Drive
Type	Swing type with roller chain transmission
Speed ratio	18.03
