ND-5  2-Stroke Vertical Vibratory Railway Tamper  Internal Combustion Tamping Rammer

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Type：Rammer Compactor
  • Working Method：Vibration
  • Axle：Biaxial Dual-Drum
  • Grinding Wheel Type：Slot Grind
  • Compaction Depth：30cm
  • Engine Type：Petrol Engine

Base Info

  • Model NO.：Railway Tamper
  • Travel Speed：25cm,s
  • Centrifugal Force：40KN
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Model：ND-5rail Tamping Machine
  • Dimension：1050*350*350 mm
  • Power：1.42 Kw
  • Exciting  Efficiency：120-140 Hz
  • Exciting Force：≥4.2 Kn
  • Working Style：Two Stroke All-Round
  • Weight：13.5kg
  • Rated Rpm：8500r,Min
  • Exciting Power：5kn
  • The Largest Free Amplitude：5mm
  • Transport Package：Exported Package
  • Specification：16kg
  • Trademark：China Coal
  • Origin：China
  • Production Capacity：10000

Description

Basic Info.

Model NO. Railway Tamper  Travel Speed 25cm/s Centrifugal Force 40KN Certification CE, ISO 9001:2000 Condition New Model ND-5rail Tamping Machine Dimension 1050*350*350 mm Power 1.42 Kw Exciting  Efficiency 120-140 Hz Exciting Force ≥4.2 Kn Working Style Two Stroke All-Round Weight 13.5kg Rated Rpm 8500r/Min Exciting Power 5kn The Largest Free Amplitude 5mm Transport Package Exported Package Specification 16kg Trademark China Coal Origin China Production Capacity 10000

Product Description

Application of ND-5 2-stroke Vertical Vibratory Railway Tamper Internal Combustion Tamping Rammer

ND-5 2-stroke vertical vibratory railway tamper works in the impact tamping way, with various types of tamping picks, and it is applicable for all breaking and tamping jobs.zmwm02
ND-5 railway tamper adopts with 2 stroke petrol engine, and thin oil lubrication, so that it can continuously work for 2 hours without stop for cooling down.
Perfectly human nature design, the handle frame operate comfortable, it also have the spring shock absorption and accelerator self-control function.
ND-5 railway tamper also comes with the walking trolley, easy and fast transportation.
ND-5 railway tamper has the Wacker tamping tool's character but selling in the traditional tamping tool's price.

Technical Parameters of ND-5 2-stroke Vertical Vibratory Railway Tamper Internal Combustion Tamping Rammer

ModelND-5 Rail Tamping machine
Dimension1050*350*350 mm
Materialstainless steel
Colorred+black
Applicationtamping the ballast
ModelG4L-D  Komatsu Petrol Engine
Power1.42 KW
Exciting  Efficiency120-140 Hz
Exciting Force≥4.2 KN
Working StyleTwo Stroke All-round
Weight13.5kg
rated rpm8500r/min
work modetwo stroke, all directions
exciting power5kN
The largest free amplitude5mm
The vibration frequency117Hz
Max. Impact power500N

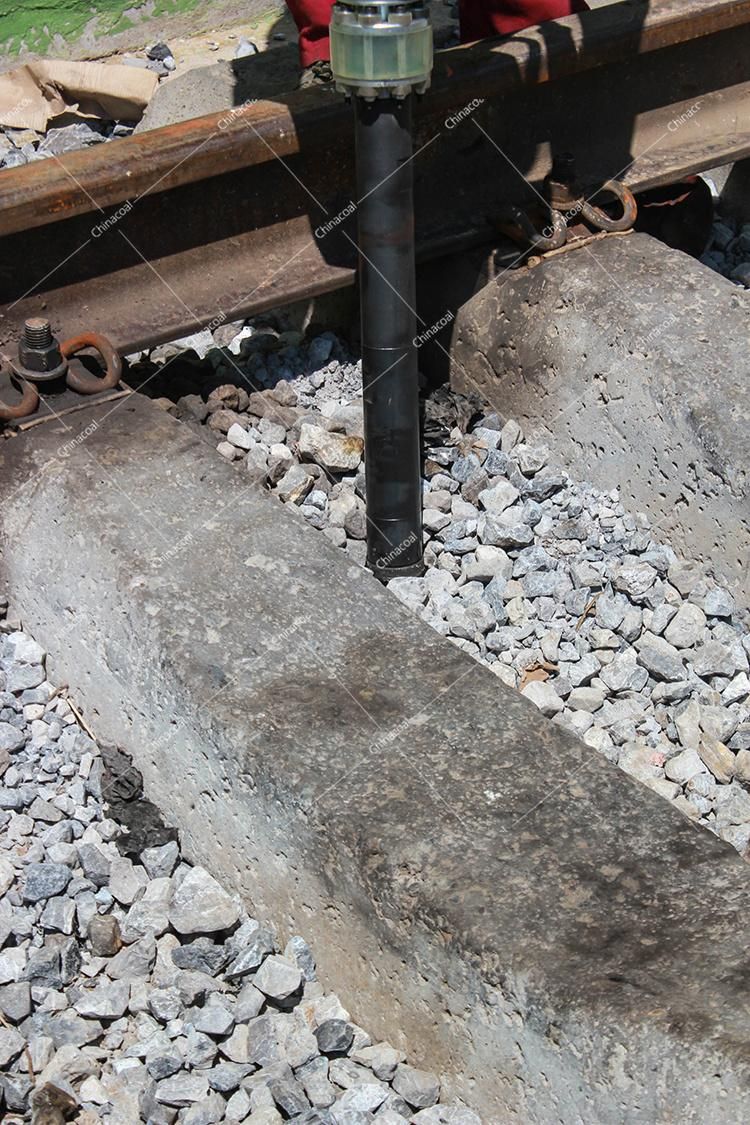

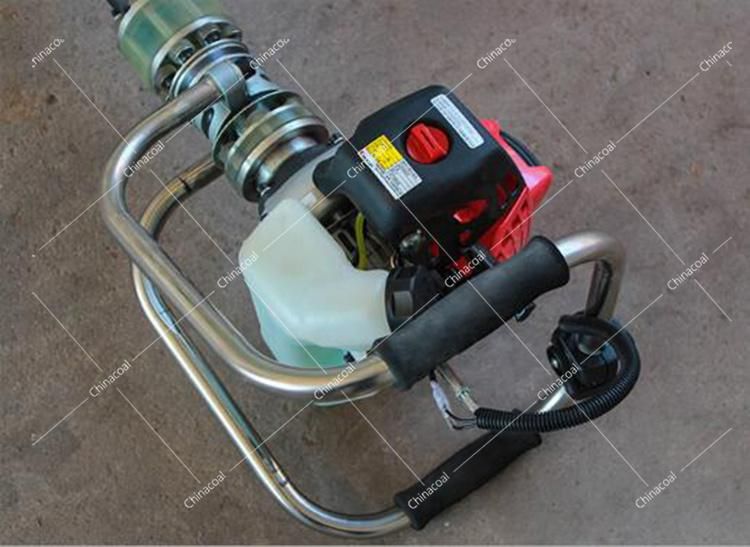

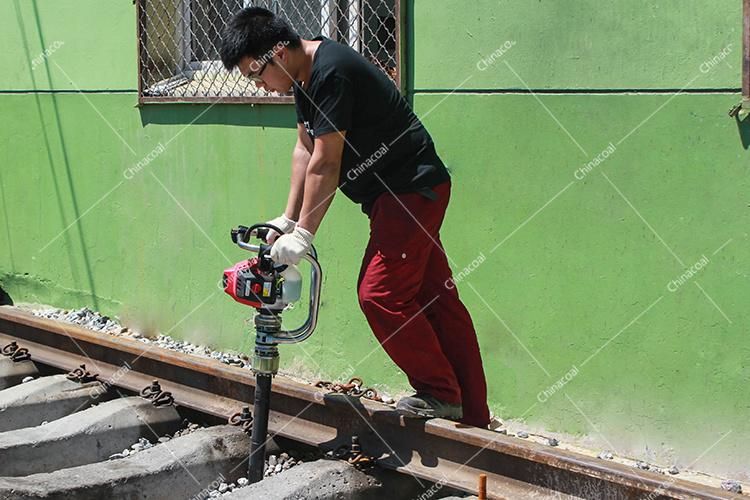

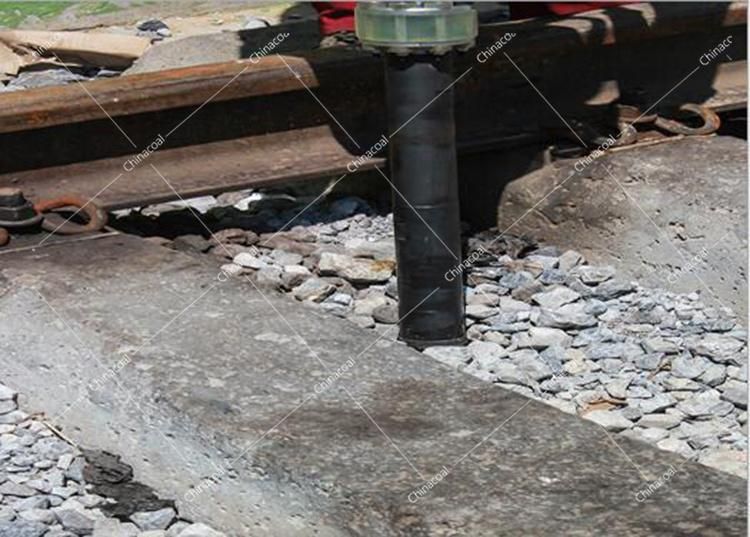

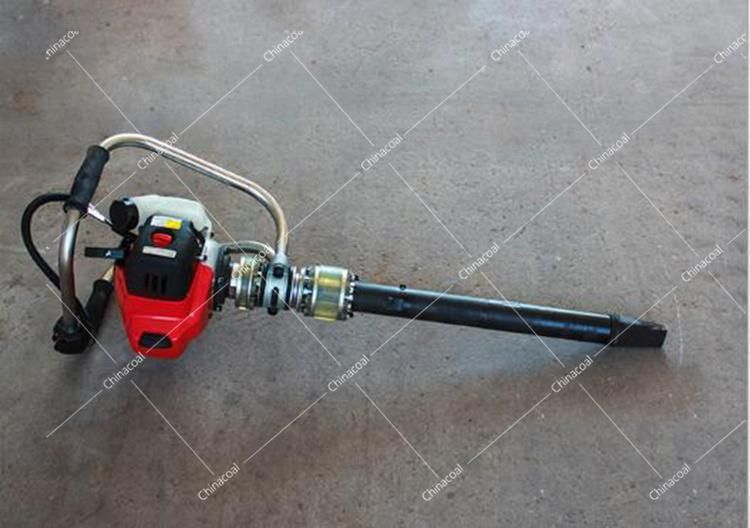

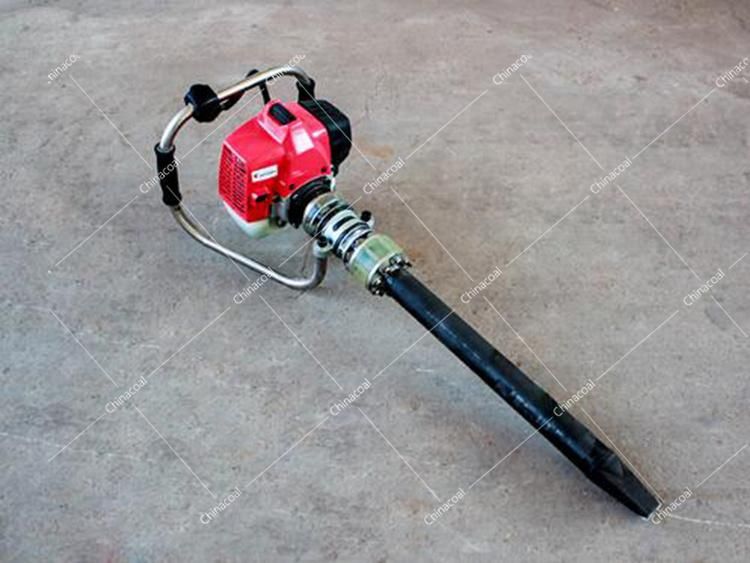

Photos of ND-5 2-stroke Vertical Vibratory Railway Tamper Internal Combustion Tamping Rammer
