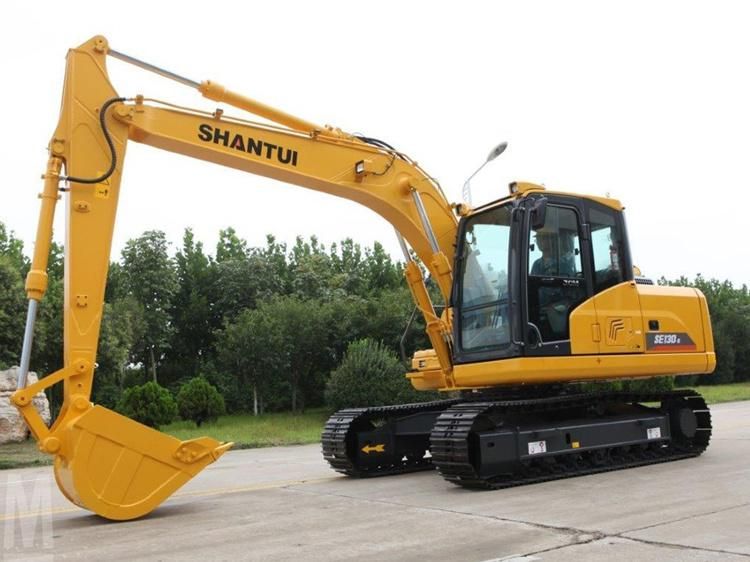

Shantui 13500kg Excavator Se135 with Hydraulic System for Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- Type：Crawler Excavator
- Usage：GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
Base Info
- Model NO.：SE135
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Overall Length (mm)：7860
- Ground Clearance of Counterweight (mm)：915
- Minimum Ground Clearance (mm)：425
- Tail Turning Radius (mm)：2380
- Track Length (mm)：3645
- Standard Track Shoe Width (mm)：500
- Turntable Width (mm)：2490
- Maximum Digging Height (mm)：8495
- Maximum Dumping Height (mm)：6060
- Maximum Digging Depth (mm)：5490
- Maximum Vertical Digging Depth (mm)：4625
- Maximum Digging Distance (mm)：8300
- Maximum Digging Distance at Ground Level：8175
- Working Device Minimum Turning Radius (M：2445
- Displacement (L)：3.76
- Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
- Specification：7860*2800*2500mm
- Trademark：shantui
- Origin：China
- Production Capacity：300piece,Month
Description
Basic Info.
Model NO. SE135 Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Overall Length (mm) 7860 Ground Clearance of Counterweight (mm) 915 Minimum Ground Clearance (mm) 425 Tail Turning Radius (mm) 2380 Track Length (mm) 3645 Standard Track Shoe Width (mm) 500 Turntable Width (mm) 2490 Maximum Digging Height (mm) 8495 Maximum Dumping Height (mm) 6060 Maximum Digging Depth (mm) 5490 Maximum Vertical Digging Depth (mm) 4625 Maximum Digging Distance (mm) 8300 Maximum Digging Distance at Ground Level 8175 Working Device Minimum Turning Radius (M 2445 Displacement (L) 3.76 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 7860*2800*2500mm Trademark shantui Origin China Production Capacity 300piece/MonthProduct Description
Shantui 13500kg Excavator SE135 With Hydraulic System For SaleContact Ash for more information
High-end system configuration
World's leading high-adaptability turbocharged engine.
The world's first-class hydraulic configuration features high working pressure and low pressure loss.
Enhanced working deviceThe design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.
The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.
The booms, bucket arms, and buckets of diversified specifications can be combined easily to adapt to diversified working conditions.
Drive sprockets, idlers, track rollers, carrier rollers, and tracksWith 30 years of R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and with industry's leading technologies, it's the first choice for excavators.
The mature and high-quality forging and heat treatment processes guarantee stable and reliable quality.
Intelligent electronic control and optimal power controlThe intelligent control system realizes the optimal match between power system and hydraulic system to improve the working efficiency and reduce the fuel consumption.
The man-machine friendly new generation intelligent electronic control system enables you to master all working status of your machine.
Four preset working modes of P (Heavy-Load), E (Economic), A (Automatic), and B (Breaking Hammer) feature easy switchover.
Spacious and comfortable operating environmentThe colors of the injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator's visual fatigue.
The control devices are reasonably arranged to realize large space, broad vision, and convenient and comfortable operations.
The high-power A/C system and the air-cushioned seat guarantee comfortable driving/riding.
Quick and convenient maintenancesSupported by two cylinders, the backward-opening engine hood features handy opening, large opening angle, and easy maintenances.
The electric parts are centrally arranged to ease the checking and maintenances.
The filling of coolant, the replacement of air filter element, and the power master switch are easily accessible.
The parallel radiator effectively avoids the overheating and eases the cleaning.
The fuel filter element, engine oil filter element, and pilot filter element are centrally arranged so that all maintenances and replacements can be completed from on same position.
The high-precision fuel filter element features high water capacity and strong fuel adaptability and the attached electric delivery pump features automatic fuel refilling and easy start.
Optional equipment of machineRefueling pump
Cab warning lamp
Cab ceiling lamp
Cab overhead protective net
Cab front upper protective net
Cab front lower protective net
Rubber track
Narrow bucket
Optional attachmentsCrusher
Ripper
Timber grab
Hydraulic tamper
Stone grab
Quick change coupling
Breaking hammer pipeline
PARAMETER| Comparative item | SE135 (Standard version) | SE135W(Weichai engine version) |
| Overall dimensions | ||
| Overall length (mm) | 7860 | 7860 |
| Ground length (During transport) (mm) | 4320 | 4320 |
| Overall height (To the top of boom) (mm) | 2800 | 2800 |
| Overall width (mm) | 2500 | 2500 |
| Overall height (To top of cab) (mm) | 2855 | 2855 |
| Ground clearance of counterweight (mm) | 915 | 915 |
| Minimum ground clearance (mm) | 425 | 425 |
| Tail turning radius (mm) | 2380 | 2380 |
| Track length (mm) | 3645 | 3645 |
| Track gauge (mm) | 2000 | 2000 |
| Track width (mm) | 2500 | 2500 |
| Standard track shoe width (mm) | 500 | 500 |
| Turntable width (mm) | 2490 | 2490 |
| Distance from slewing center to tail (mm) | 2375 | 2375 |
| Working range | ||
| Maximum digging height (mm) | 8495 | 8495 |
| Maximum dumping height (mm) | 6060 | 6060 |
| Maximum digging depth (mm) | 5490 | 5490 |
| Maximum vertical digging depth (mm) | 4625 | 4625 |
| Maximum digging distance (mm) | 8300 | 8300 |
| Maximum digging distance at ground level (mm) | 8175 | 8175 |
| Working device minimum turning radius (mm) | 2445 | 2445 |
| Maximum lifting height of bulldozer blade (mm) | - | - |
| Maximum digging depth of bulldozer blade (mm) | - | - |
| Engine | ||
| Model | QSF3.8T(China III) | WP4.1(China III) |
| Type | 4-cylinder inline and water-cooled and turbocharged | Inline 4-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 3.76 | 3.76 |
| Rated power (kW/rpm) | 86/2200 | 92/2200 |
| Hydraulic system | ||
| Type of hydraulic pump | Variable displacement duplex plunger pump | Variable displacement duplex plunger pump |
| Rated working flow (L/min) | 2x130 | 2x130 |
| Bucket | ||
| Bucket capacity (m³) | 0.4~0.65(0.55) | 0.4~0.65(0.55) |
| Swing system | ||
| Maximum swing speed (r/min) | 11.3 | 11.3 |
| Brake type | Mechanically applied and pressure released | Mechanically applied and pressure released |
| Digging force | ||
| Bucket arm digging force (KN) | 70 | 70 |
| Bucket digging force (KN) | 97 | 97 |
| Operating weight and ground pressure | ||
| Operating weight (kg) | 13500 | 13500 |
| Ground pressure (kPa) | 41.5 | 41.5 |
| Traveling system | ||
| Traveling motor | Axial variable displacement plunger motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.25/5.2 | 3.25/5.3 |
| Traction force (KN) | 118 | 118 |
| Gradeability | 70%(35°) | 70%(35°) |
| Tank capacity | ||
| Fuel tank capacity (L) | 220 | 245 |
| Cooling system (L) | 20 | 20 |
| Engine oil capacity (L) | 12 | 12 |
| Hydraulic oil tank/system capacity (L) | 177/205L | 177/205L |
