4 Cbm Automatic Feeding Concrete Cement Mixer Self Loading Mobile Truck Mixer
Shandong Hixen Machinery Co., Ltd.- Type:Concrete Mixing Truck
- Shotcrete Type:Wet
- Machining Process:Hydraulic
- Structure:Rotor Type
- Productivity:25m²,h
- Feeding Height:1650mm
Base Info
- Model NO.:HN4000
- Vibrating Amplitude:0.8mm
- Certification:ISO9001: 2000, CE
- Condition:New
- Color:Customized
- Drum Rotation:270°
- Engine:Ycd4j22t-116
- Fuel:Diesel
- Speed:Low Speed 0-25 Kph, High Speed 0-40kph
- Bucket:0.6cbm
- Tyre:12r-22.5
- Diesel Fuel Tank:130L
- Dydraulic Fuel Tank:130L
- Water Tank:2*150L+700L
- Turning Radius:2880mm
- Rated Power:85kw
- Climb:40°
- Length:7500mm
- Width:2750mm
- Height:3200mm
- Transport Package:Container
- Specification:8500kg,set
- Trademark:Hixen
- Origin:China
- HS Code:8705400000
- Production Capacity:100set,Moths
Description
Basic Info.
Model NO. HN4000 Vibrating Amplitude 0.8mm Certification ISO9001: 2000, CE Condition New Color Customized Drum Rotation 270° Engine Ycd4j22t-116 Fuel Diesel Speed Low Speed 0-25 Kph, High Speed 0-40kph Bucket 0.6cbm Tyre 12r-22.5 Diesel Fuel Tank 130L Dydraulic Fuel Tank 130L Water Tank 2*150L+700L Turning Radius 2880mm Rated Power 85kw Climb 40° Length 7500mm Width 2750mm Height 3200mm Transport Package Container Specification 8500kg/set Trademark Hixen Origin China HS Code 8705400000 Production Capacity 100set/MothsProduct Description

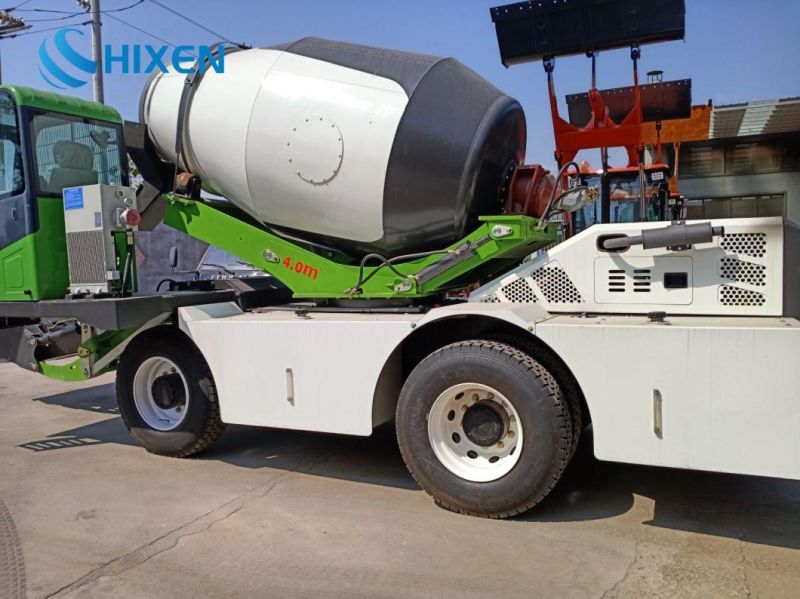

HT4.0 m³ left front drive self-loading mixer truck
The self-loading concrete mixer truck is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
>>Product Description
1 .Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.
2.The engine is directly connected to the 265 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive.
3. Drum discharge port height 1.6meters, 270 degrees horizontal rotation, tank can be raised and lowered
4. The speed is dual altitude, low speed 0-25 kph, high speed 0-40 kph
5. Widen luxurious cab, anti-rollover, anti-falling object type
6. Open type oil, two gear pumps to participate in the work
7.Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank
8. equipped with two 70 cm detachable chute to increase discharge length.
9.self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine
10. Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper
>>Product Parameters
Item | HT1.6 | HT2.0 | HT2.4 | HT3.0 | HT3.5 | HT4.0 |
Output per lot | 1.6m³ | 2m³ | 2.4m³ | 3.0m³ | 3.5m³ | 4.0m³ |
Discharge height | 1.4m | 1.6m | 1.65m | 1.65m | 1.75M | 2.2M |
Horizontal rotation | 270° | Left 90° right 90° | 270° | 270° | 270° | 270° |
Production capacity | 8m³/ h | 10m³/ h | 9.6m³/ h | 13.5m³/ h | 15.5m³/ h | 18m³/ h |
Engine | Yunnei power Yn33gbz | Yuchai power Ycd4m22t | Yuchai Power Ycd4m22t 105 | Yuchai Power Ycd4j22t-116 | Yuchai Power Ycd4j22t-116 | Yuchai Power Ycd4j22t-116 |
Fuel | diesel | diesel | diesel | diesel | diesel | diesel |
Cooling system | water cooled | water cooled | water cooled | water cooled | water cooled | water cooled |
Rated Speed | 2400 RPM | 2400 RPM, | 2400 RPM, | 2400 RPM, | 2400 RPM, | 2400 RPM, |
Rated power | 65kw | 77.3 kw | 77.3 kw | 85kw | 85kw | 85kw |
Climb | 40° | 40° | 40° | 40° | 40° | 40° |
Drive system | 4-wheel drive | 4-wheel drive | 4-wheel drive | 4-wheel drive | 4-wheel drive | 4-wheel drive |
Speed | 0-40km/h | 0-40km/h | 0-40km/h | 0-40km/h | 0-40km/h | 0-45km/h |
Bucket | 0.4 m³ | 0.6m³ | 0.6m³ | 0.6m³ | 0.6m³ | 0.7m³ |
Clay groove | 70cm | 70cm | 70cm | 70cm | 150cm | 150cm |
Tyre | 20.5/16 | 1670/20 | 1670/20 | 12R-22.5 | 12R-22.5 | 1670/20 |
Power System | 24V | 24V | 24V | 24V | 24V | 24V |
Diesel fuel tank | 110l | 100L | 120L | 130L | 130L | 130L |
Dydraulic fuel tank | 110L | 125L | 120L | 130L | 130L | 130L |
Water tank | 380L | 220L*2 | 420L | 150L*2+700L | 700L+150L*2 | 380L*2 |
Weight | 6500kg | 7500kg | 7500kg | 8500kg | 8500kg | 10000kg |
Length,width,height | 6700mm*2340mm *2700mm | 7000mm*2300mm *2900mm | 7150mm*2650mm *3000mm | 7500mm*2750mm *3200mm | 7700mm*2750mm *3250mm | 7500mm*2850mm *3500mm |
Wheelbase | 2500mm | 2525mm | 2900mm | 2946mm | 2900mm | 2950mm |
Tread | 1800mm | 2000mm | 2100mm | 2150mm | 2150mm | 2150mm |
Turning radius | 2355 mm | 2450mm | 2800 mm | 2800 mm | 2818mm | 2870mm |
Driving image | yes | yes | yes | yes | yes | yes |

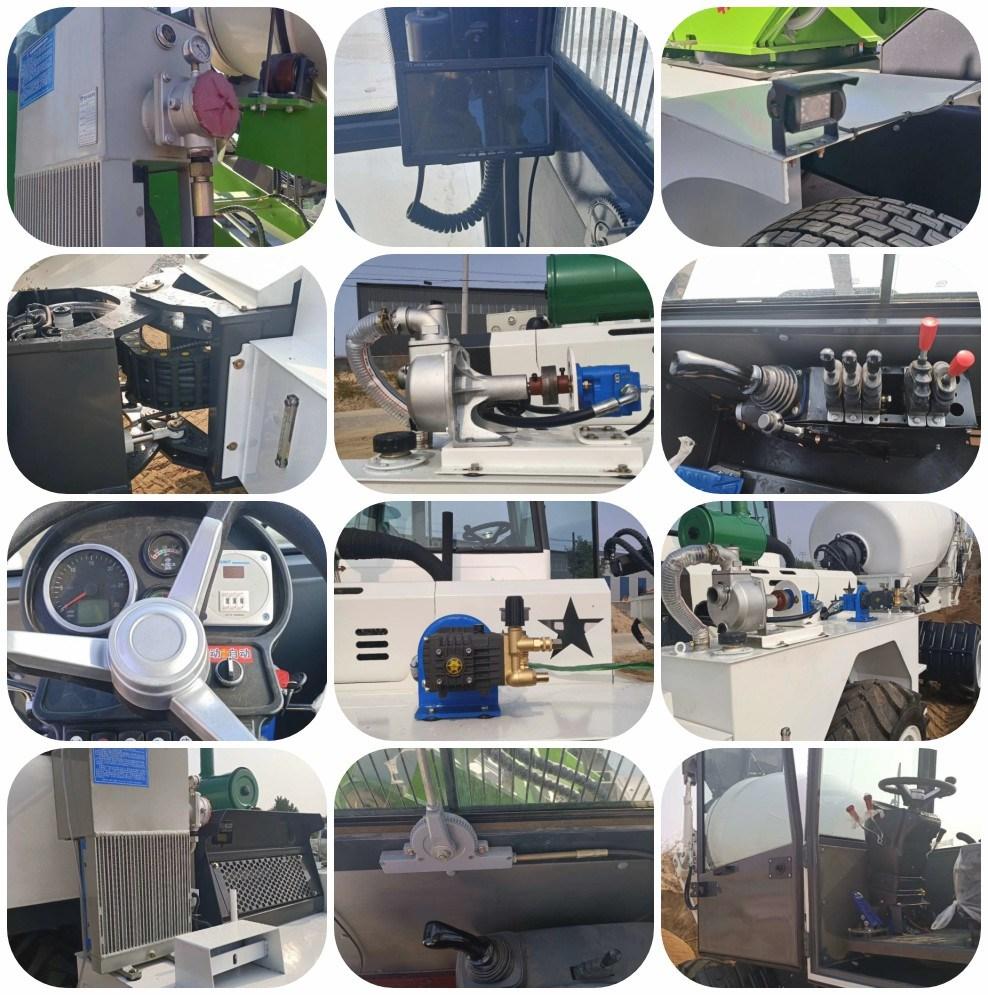

>>Product details

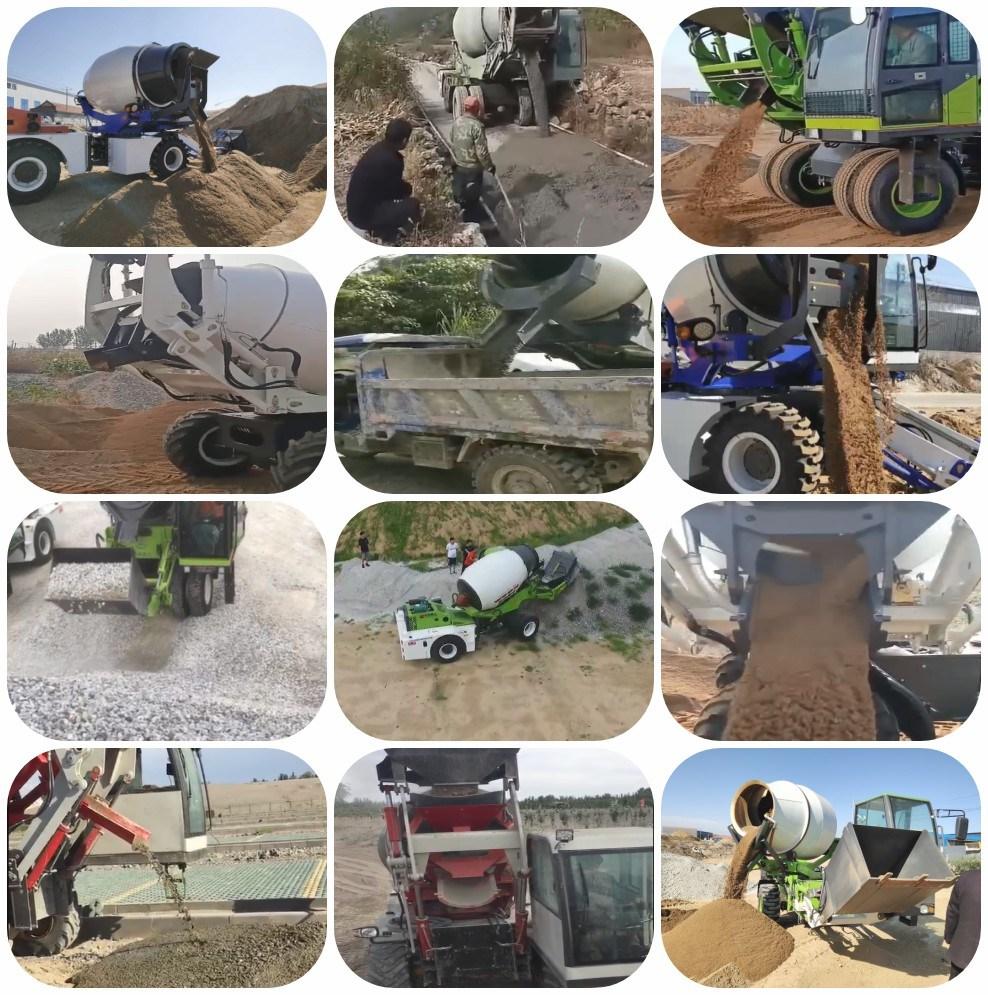

>>Product application

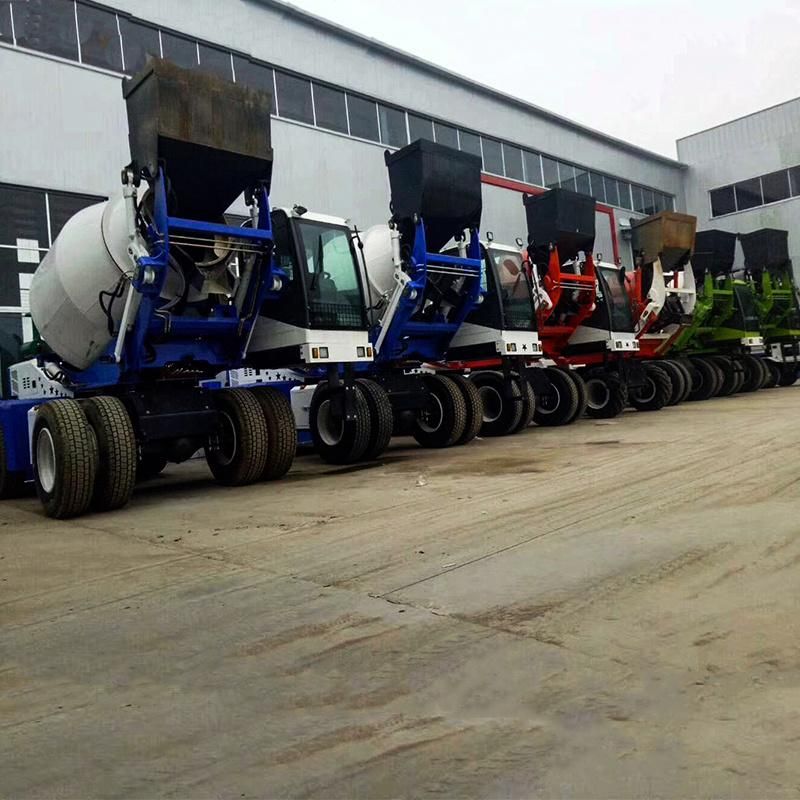

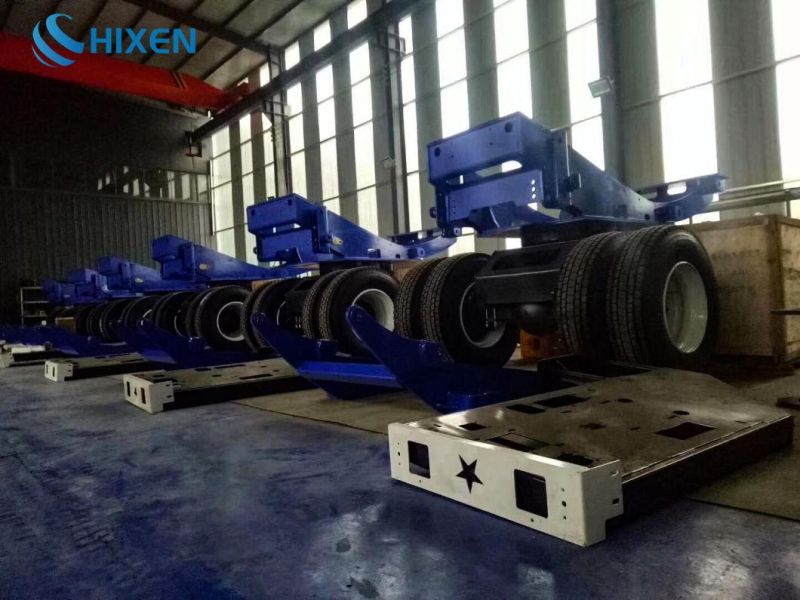

>> Workshop

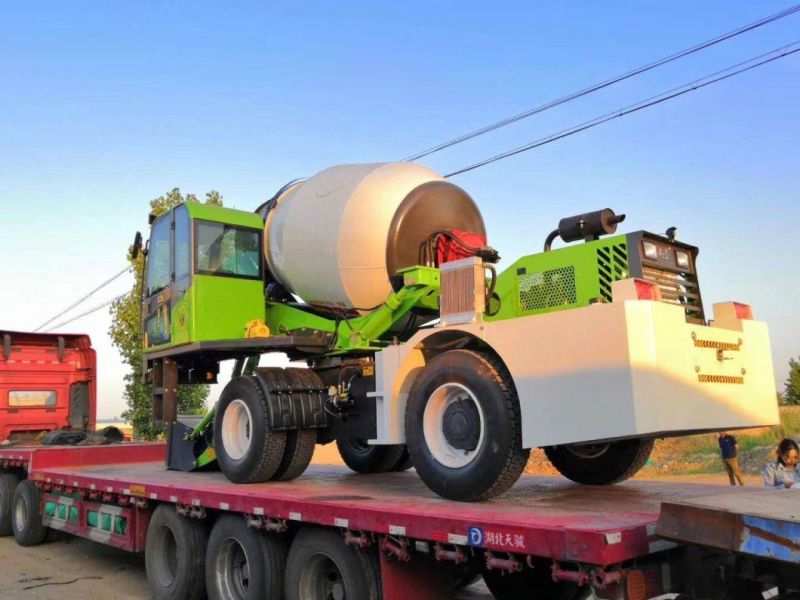

>>Packaging&Delivery
>>FAQ
Q1.What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days.The rest time depends on the distance and transport method which need to be negotiated.
Q2.What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.
Q3.How long is the product guarantee?
We provide one year quality guarantee.
Q4.What kind of service could you provide?
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.
2) On-sale service:We strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.
3) After-sale service:We provide some consumables with the equipment;
We have operation manual for instructing the basic installation and operation;Video guidance for trouble shooting;Engineers ready for field maintenance and repairing when necessary.
Q5.Can we have the special order like specification change, logo making?
Yes, we accept the customization.We can make it clear in the contract and then our technical start design and production as per your requirement.
For more questions, please feel free to contact us. We sincerely welcome all friends paying visits to us and reach a mutual success.
