• Model NO.：3~7, 7~14, 10~15, 18~26 ,28~35,30~45,40~55tons
• Striking Frequency：240-250 Bpm
• Suitable Excavator：5-45tons
• Chisel Diameter：75-155mm
• Color：Yellow, Red, Blue
• Breaker Type：Hydraulic Breaker
• Transport Package：Standard Boxes
• Specification：CE, SGS, ISO: 9001
• Trademark：Prodrill
• Origin：China
• HS Code：8401200000
• Production Capacity：1000sets,Month

Basic Info.

Model NO. 3~7/ 7~14/ 10~15/ 18~26 /28~35/30~45/40~55tons Striking Frequency 240-250 Bpm Suitable Excavator 5-45tons Chisel Diameter 75-155mm Color Yellow, Red, Blue Breaker Type Hydraulic Breaker Transport Package Standard Boxes Specification CE, SGS, ISO: 9001 Trademark Prodrill Origin China HS Code 8401200000 Production Capacity 1000sets/Month

Product Description

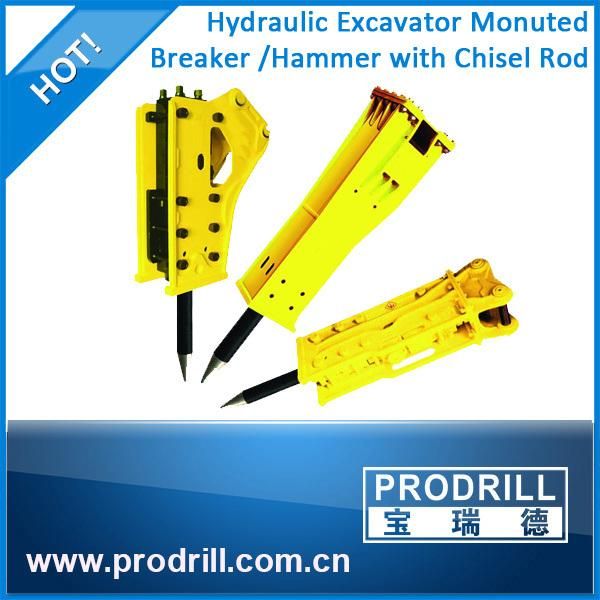

Hydraulic Mounted Rock Jack Breaker/Pneumatic/Hammer


Hydraulic rock breaker is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic rock breaker

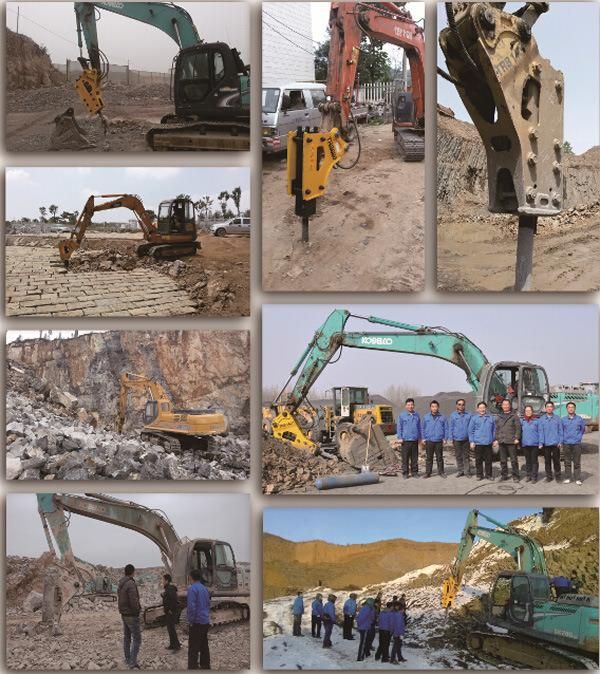

Hydraulic breaker has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations. Excavator Hydraulic Breaker, also known as hydraulic breaker or hydraulic rock breaker (Excavator Hydraulic Breaker).
 Hydraulic Mounted  rock jack Breaker  for excavators Parts





Hydraulic Mounted  rock jack Breaker  for excavators Parts
Feathers:
1.       Use the highest strength material to get better wearing resistance.
2.       Easy maintenance, prolonged life.
3.       We have accumulated sales of 20,000 units, rich maintenance experience.
4.       The warranty period is 1 year.


	TRB680	TRB850	TRB1000	TRB1350	TRB1400	TRB1550	TRB1650	TRB1750
Weight (kg)	258	557	753	1653	1774	2569	2752	3912
Length (mm)	1415	1735	1994	2367	2414	2760	2816	3176
Required oil Flow (L/min)	40~70	60~100	80~110	120~150	130~1800	180~240	200~260	210~290
Working pressure (kgf/cm2)	110~140	130~1640	150~170	160~180	160~180	160~180	160~180	160~180
impact rate	500~900	400~800	350~700	400~800	350~500	300~450	250~400	200~350
Hose Diameter  (In)	0.5	0.75	0.75	1	1	1	1.2	1.2
Chisel Diameter (mm)	68	85	100	135	140	155	165	175
Chisel Length (mm)	700	900	1000	1300	1300	1500	1600	1600
Applicate Exvacator (Ton)	3~7	7~14	10~15	18~26	18~26	28~35	30~45	40~55

 -----------------------------------------------
Terms  & Conditions of Ordering:
1 .Payment Terms: T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
    Based on order quantity, normally it takes 25 days for production.
    Only 2 or 3 days if we have stock on your request size.
3. Transportation:
    Sample order: we suggest Courier express or by air
    Bulk order: we suggest by air or by sea.
4. Quality & Service:
    A. There will be strict inspection and testing for every order before shipping out.
    B. Our sales team and Technical Support will response for your question within 24 hour.
    C. Free replacement will provide once the failure confirmed caused or our product quality;
Not satisfied with a refund.



-----------------------------------------------
Ps.: Others about Prodrill Equipment Co., Ltd

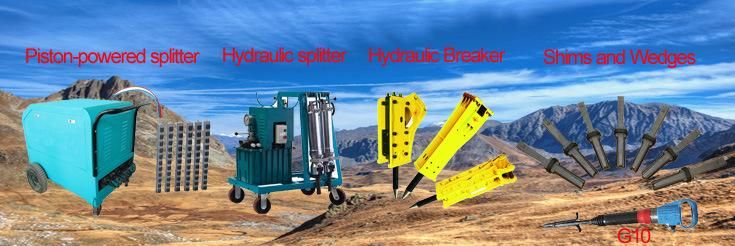

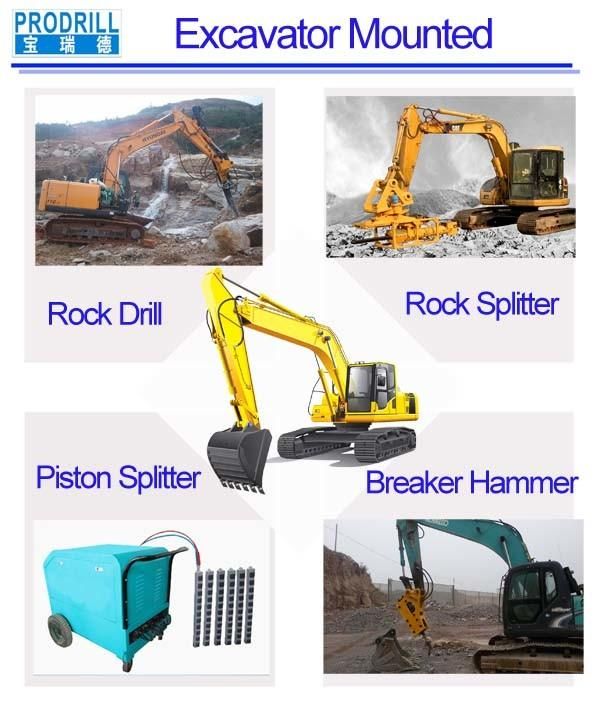

1. Prodrill Main Products as below:
1) Rock drill:
Handheld rock Drill (Jackhammer): Y10, Y18, Y20, Y24, Y26, TY24C, etc;
Airleg rock drill: YT24, YT28, etc;
Gasoline rock drill: YN27
2) Drill rod: Taper rod (hex. 22 * 108mm)
3) Drill bit: Taper button bit, Taper chisel bit, Taper cross bit; Thread button bit (Top hammer); DTH Hammer and DTH bit; Overburden Drilling System
4) Splitter: Handheld stone splitter (or shims and wedges or plug and feather), G10 pneumatic splitter; Hydraulic Splitter
5) Breaker: Hydraulic Breaker, Pneumatic Breaker G10, TPB, etc;
6) Splitting or Cracking Powder for Construction/ Quarry/ Rock: Expansive mortar Soundless Cracking Agent; High Range Soundless Cracking Agent

2. Advantages:
Compared the Rock Drilling Tools with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

3. About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.

4. Welcome your question and inquiry,
