Shantui Sg21-3 17 Ton 210HP Motor Graders

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Field Maintenance and Repair Service
  • Warranty：1 Year
  • Certification：ISO, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Power

Base Info

  • Model NO.：SG21-3
  • Walking Mode：Wheeled
  • Type：Large Grader
  • Width of Shovel Blade：3660,3965,4270mm
  • Transport Package：Roro,Nude Packing by Container,Bulk
  • Specification：9430 *3660*3400mm
  • Trademark：SHANTUI
  • Origin：China
  • HS Code：84295100
  • Production Capacity：100 Units, Month

Description

Product DescriptionProduct nameSG21-3Performance parameters Operating weight of machine (kg)16800Wheelbase (mm)6560Wheel tread (mm)2155Minimum ground clearance (mm)430Steering angle of front wheels (°)±45Articulated steering angle (°)±25Maximum traction force (kN)88.2(f=0.75)Turning radius (mm)8200 (Outer side of front wheel)Maximum gradeability (°)20Width of shovel blade (mm)3660/3965/4270Height of shovel blade (mm)635Blade slewing angle (º)360Blade cutting angle (º)37-83Maximum digging depth of blade (mm)500Length (mm)9315Width (mm)2600Heigh (mm)3400Engine Engine model6CTAA8.3-C215EmissionChina-IITypeMechanical direct injectionRated power/rated speed (kw/rpm)160kW/2200rpm

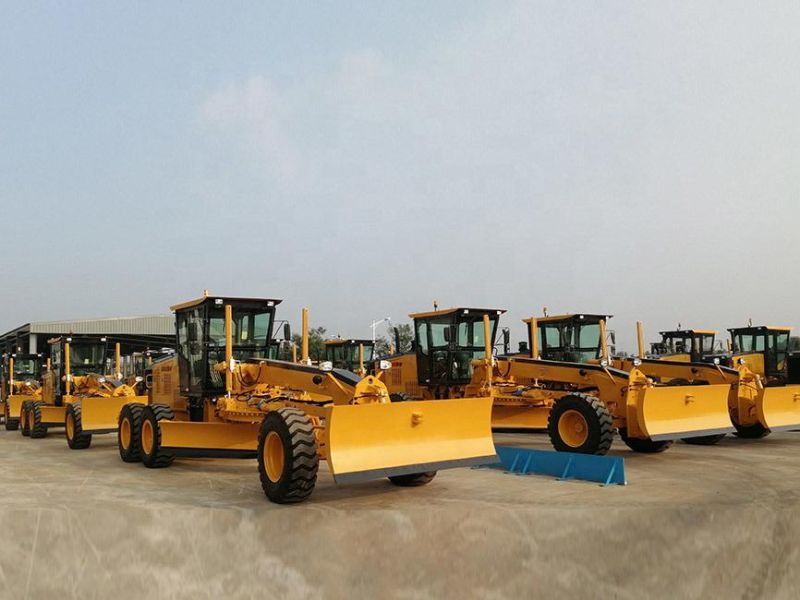

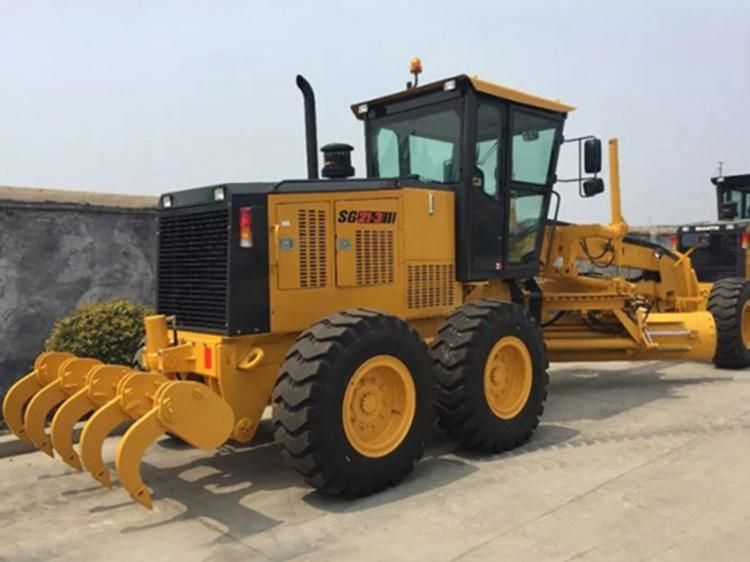

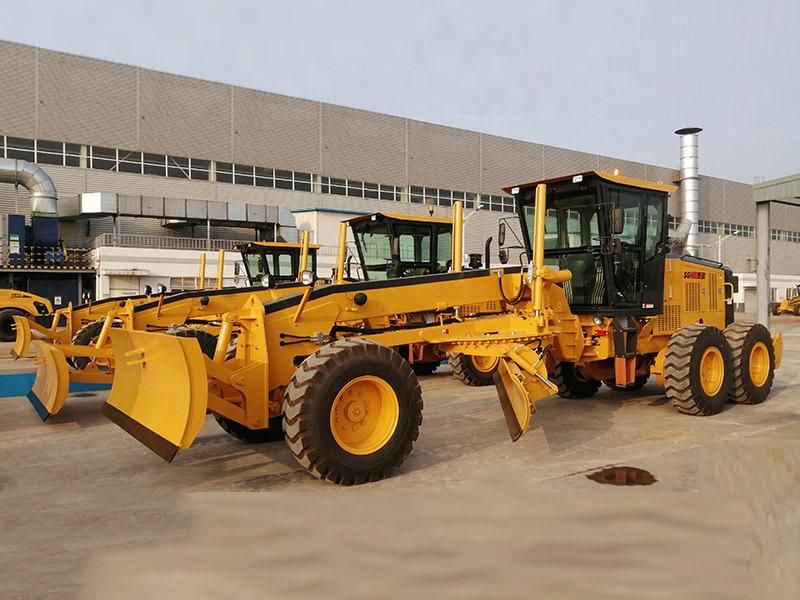

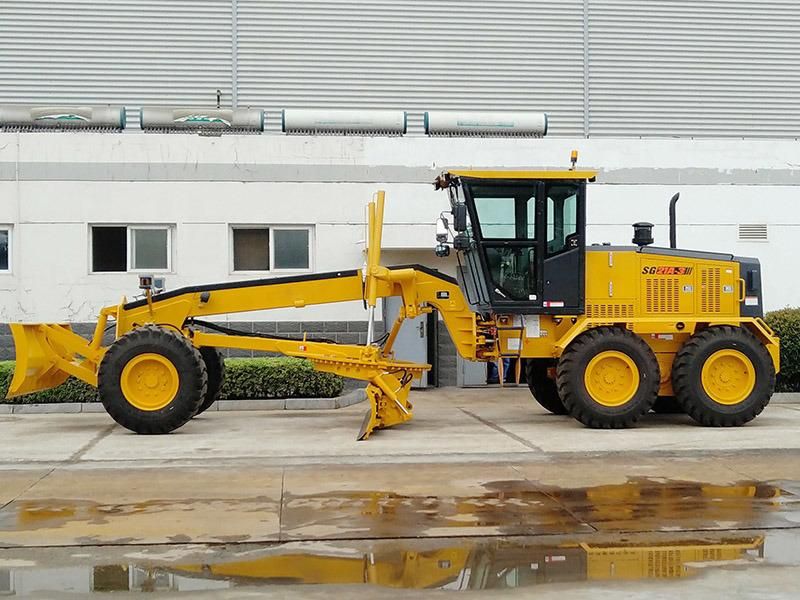

  • Product Pictures
