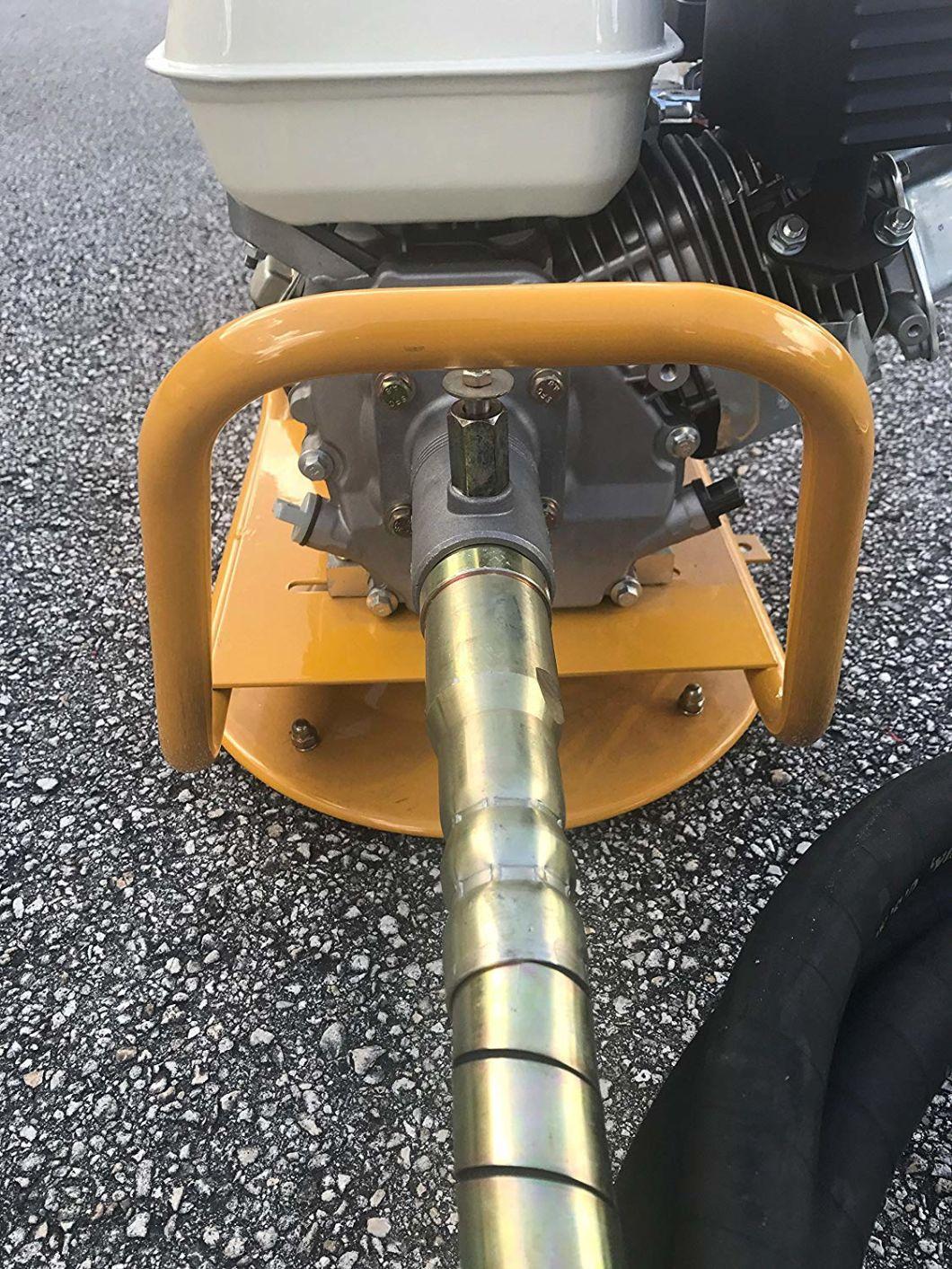

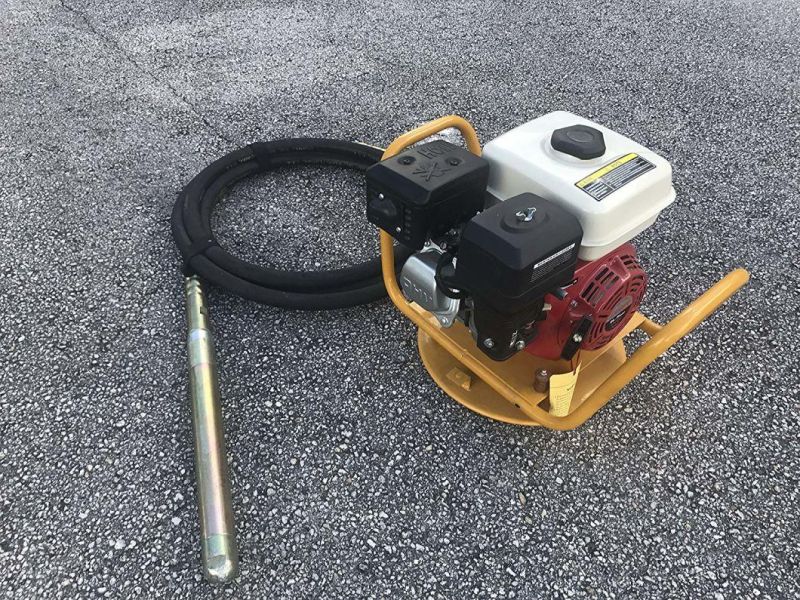

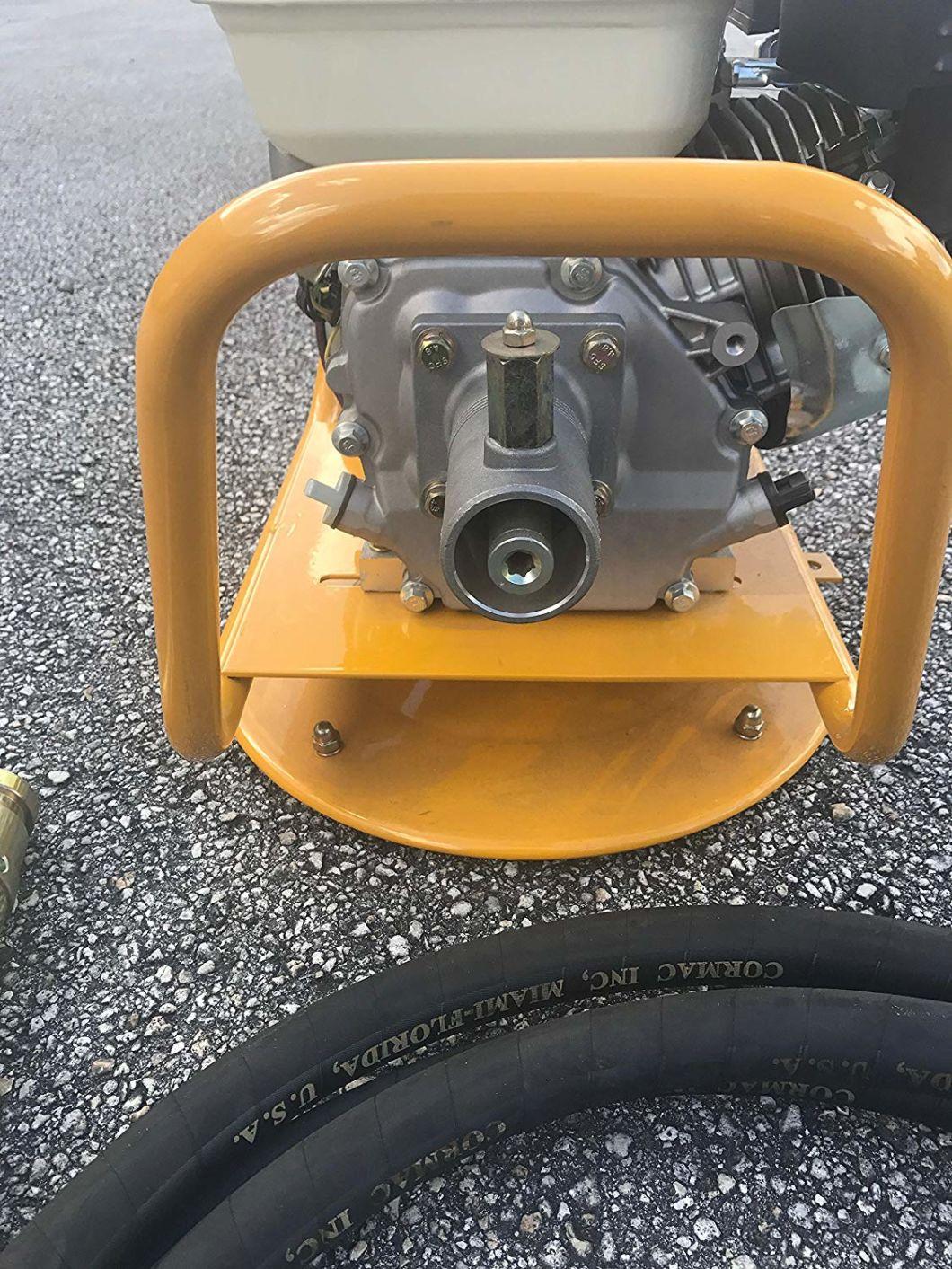

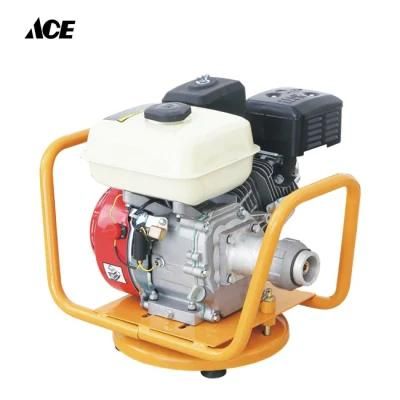

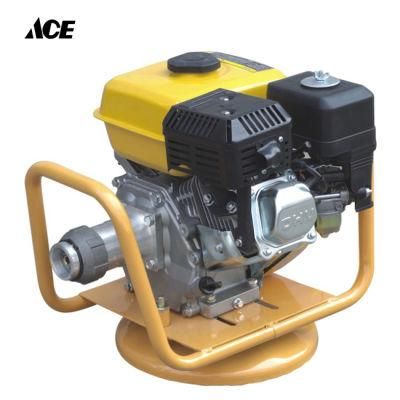

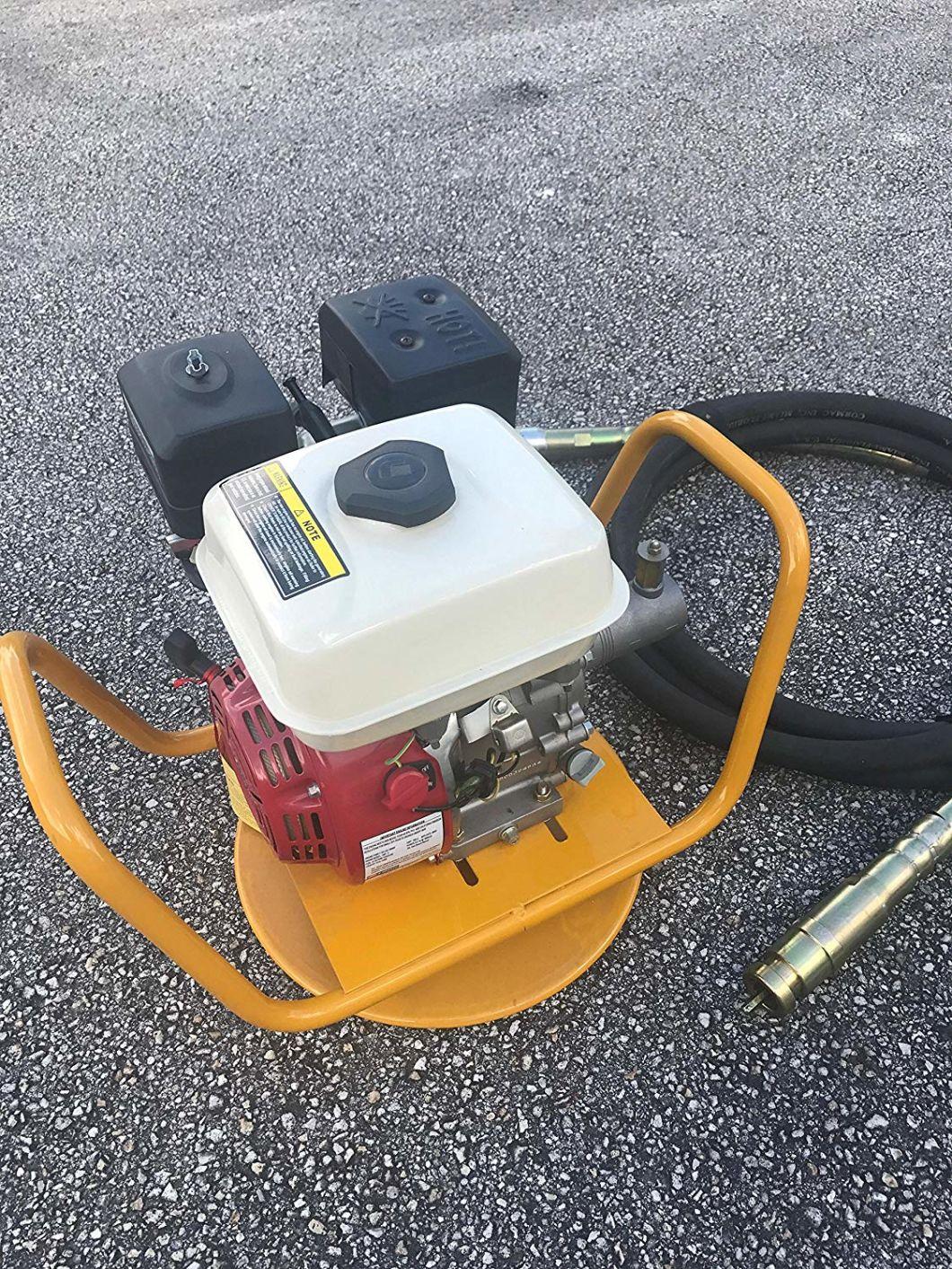

Hand Held Portable Diesel Electric Motor Gasoline Engine Concrete

Ningbo Ace Machinery Co., Ltd.
  • Type：Concrete Vibrator
  • Shotcrete Type：Semi-Dry
  • Machining Process：Welded Molding Machine
  • Structure：Rotor Type
  • Productivity：60m²,h
  • Feeding Height：1370mm

Base Info

  • Model NO.：ZXH
  • Vibrating Amplitude：1.2mm
  • Certification：ISO9001: 2000
  • Condition：New
  • Color：Yellow
  • Model：Ey20 5.0HP
  • Coupling：Japanese Type
  • Matched Shaft：Zx-38mm, Zx-45mm
  • Length：4m, 5m, 6m
  • Weight：21kgs
  • Packing Size：51*39*51cm
  • Transport Package：Carton
  • Specification：5.0HP
  • Trademark：ACE
  • Origin：Ningbo, China
  • HS Code：84306100
  • Production Capacity：300000 PCS,Year

Description

ItemGasoline engine vibratorModelZXRZXRCEngine ModelEY20copy RB20Engine type4-stroke 25° Single-cylinder with Air-cooledBorex stroke1-67*52mm1-67*52mmDisplacement183cm3183cm3Compression Ratio8.5:18.5:1Max power5hp/3600rpm5hp/3600rpmRecommded power using3.5hp /3600rpm3.5hp  /3600rpmFuel Tank capacity3.8L3.8LFuel consumption230g/hp-hr (313g/kwh)230g/hp-hr (313g/kwh)packing size51*39*51cm51*39*51cmN..W/G.W.20kgs/22kgs20kgs/22kgs

Concrete vibrator shaftModel75*75*5.5
