• Model NO.：WJ-08
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.02M3
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• power：12HP
• Transport Package：Simple Package
• Specification：2480x720x1375mm
• Trademark：VIC
• Origin：China
• Production Capacity：5000set,Year

Basic Info.

Model NO. WJ-08 Drive Type Internal Combustion Drive Bucket Capacity 0.02M3 Size Small-Scale Certification CE, ISO9001: 2000 Condition New power 12HP Transport Package Simple Package Specification 2480x720x1375mm Trademark VIC Origin China Production Capacity 5000set/Year

Product Description

Low price high quality hydraulic crawler multi-functional mini excavatorInstruction

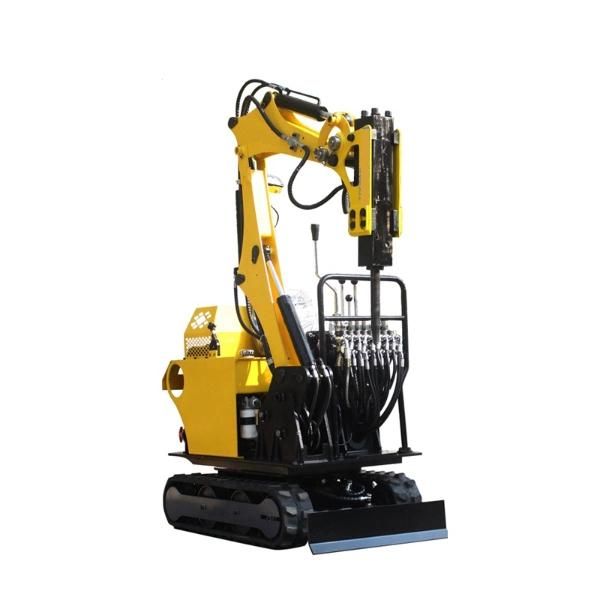

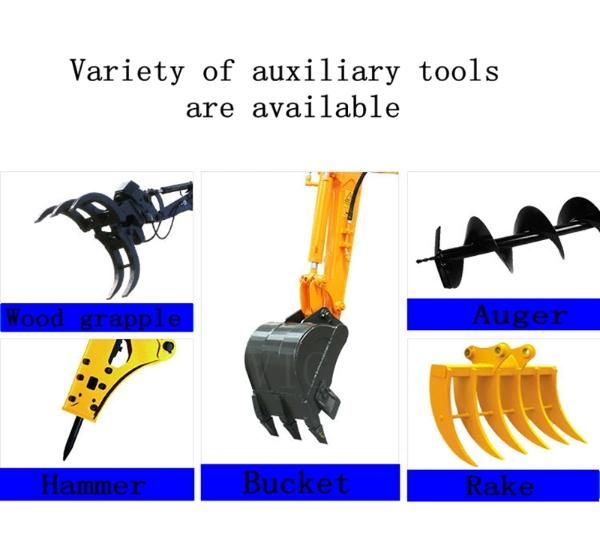

The mini excavator is an easy-to-operate multifunctional excavator. It includes a carrying frame and a walking chassis. The carrying frame is connected to the upper part of the walking chassis. The carrying frame is equipped with seats, operating devices, dozers, and machine arm, engine and hydraulic system. The mechanical arm is detachably equipped with functional accessories, which can realize digging, trenching, drilling, raking, and crushing.

Advantage
1. Using domestic well-known engines, strong power, environmental protection and energy saving, meeting European emission standards
2. Eaton motors are used for walking and slewing, with reliable quality, stable walking and fast speed
3. Adopt well-known brand reversing valve, smooth digging action, fast and accurate response
4. A detachable ceiling can be selected, no matter it is raining or sunny, it will not be exposed to rain or sun
5. Adopt rubber track or steel track to adapt to various working conditions
6. Small size, light weight, can work in a small space, strong adaptability. Pickup truck can be used for transportation, which is convenient and fast.

Main date

Model	WJ-08	WJ-10
Bucket capacity	0.02M3	0.02M3
Engine model	KOOP 192F	KOOP 192
Power	12HP/3600RPM	12HP/3600RPM
Digging height	2350mm	2490mm
Unloading height	1600mm	1750mm
Digging depth	1200mm	1600mm
Chassis width	720mm	940mm
Radius of gyration	1100mm	1190mm
Total track length	1140mm	1200mm
Track width	150mm	180mm
Track height	320mm	320mm
Seat off the ground	1100mm	1100mm
Weight	750kg	980kg
Overall size	2480x720x1375mm	2770x940x1490mm

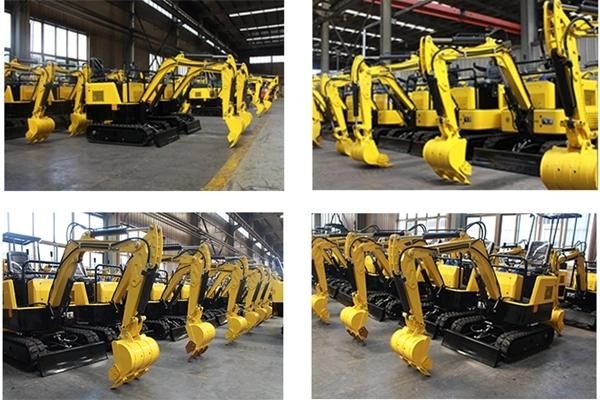

 More pictures and details

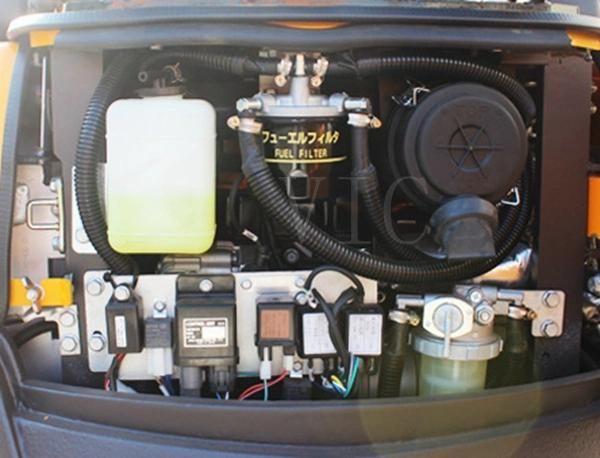

The whole series comes standard with Yanmar, Changchai, Xinchai, and KOOP engines,
with stable performance, stronger power and lower fuel consumption

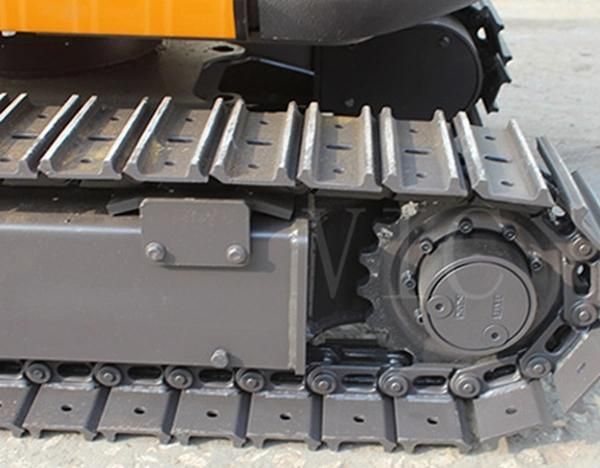

Useing Eaton walking motor imported from the United States, equipped with rubber track
or steel track, suitable for driving in various working conditions, and the speed can reach 4km/h

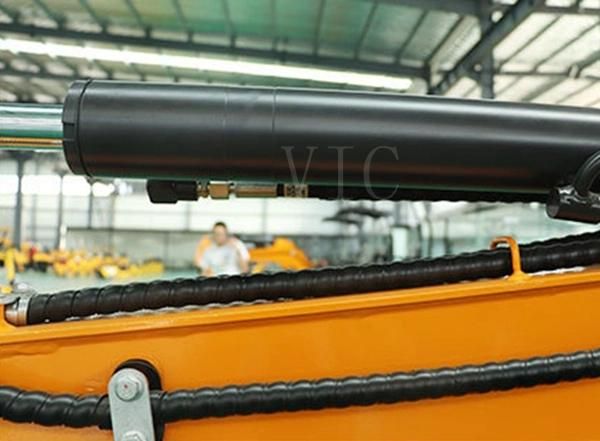

The oil cylinder with imported Parker seal works more stable and does not leak oil

The boom swing cylinder ensures that the excavator is convenient to work in a small space
 without having to move the chassis too much

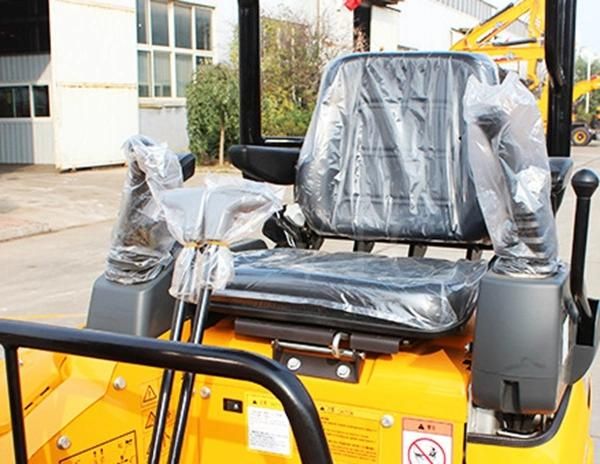

An ergonomically designed seat with seat belts makes the operation safer and more comfortable

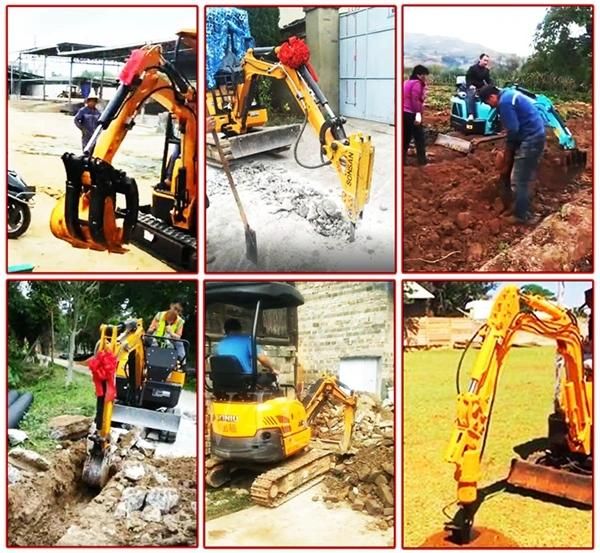

Application and customer feedback on different occasions

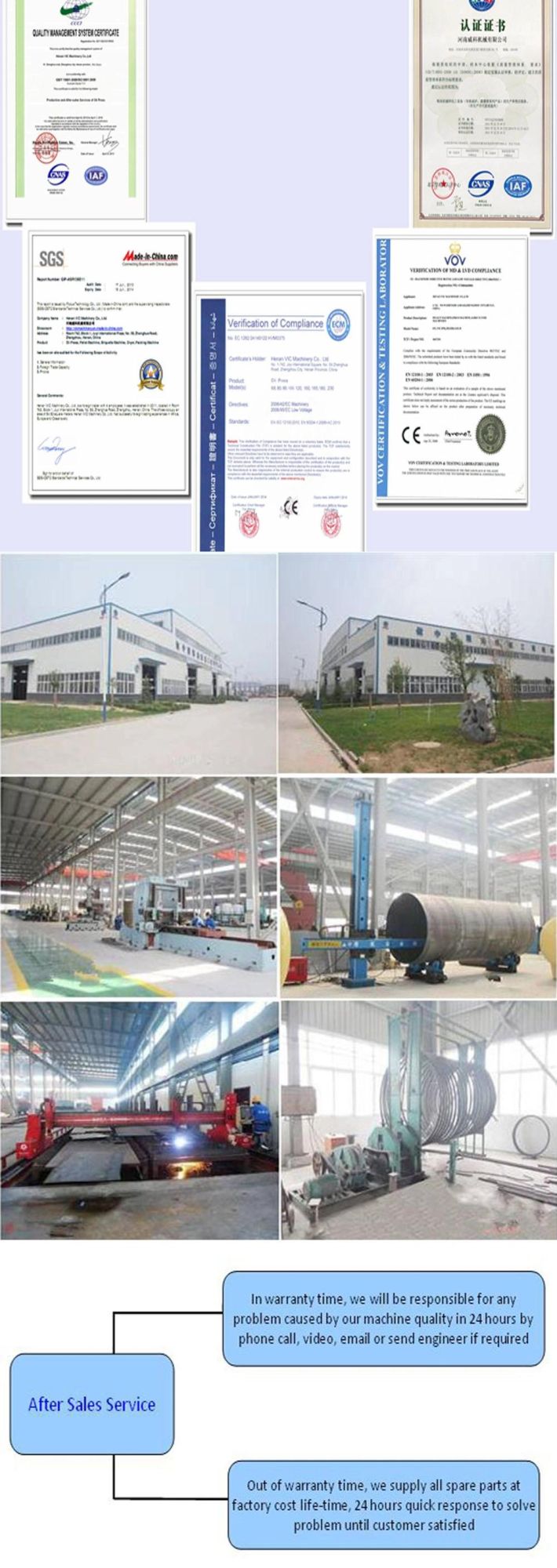

Workshop

Our factory
