• Model NO.：890H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Rated Operating Load：9000kg
• Bucket Capacity：5.4m3
• Machine Weight：30600 Kg
• Dump Clearance at Maximum Lift：3100~3780mm
• Wheel Base：3450 mm
• Bucket Breakout Force：245 Kn
• Total Cycle Time：11s
• Transport Package：Nude Package
• Specification：9352*3170*3765 mm
• Trademark：China best brand
• Origin：China
• HS Code：8429510000
• Production Capacity：50000PCS,Year

 Parameter:
 Model877H886H890H8128HOperating weight23950 kg25300 kg30600 kg52000 kgStandard bucket4.2 m³4.5 m³5.4 m³7.0 m³Gross power220 kW (299 ) @ 1600 rpm235 kW (320 ) @ 1500 rpm287 kW (390 ) @ 1800 rpm419 kW (570 ) @ 1600 rpmNet power210 kW (285 ) @ 1600 rpm223 kW (303 ) @ 1500 rpm273 kW (371 ) @ 1800 rpm398 kW (541 ) @ 1600 rpmRated load7000 kg8000 kg9000 kg12000 kgTotal cycle time10.3 s10.5 s11 s14.6 sTipping load-full turn16020 kg17560 kg20600 kg32600 kgBucket breakout force200 kN220 kN245 kN395 kNDump clearance, full height discharge3150 mm3300 mm3330 mm3910 mmDump reach, full height discharge1312 mm1385 mm1479 mm2050 mmEmissionsEPA Tier 2 / EU Stage IIEPA Tier 2 / EU Stage IIEPA Tier 2 / Tier 3 /EU Stage II / EU Stage IIIAEPA Tier 3 / EU Stage IIIACooling systemCharge air coolingCharge air coolingCharge air coolingCharge air coolingLength with bucket down9100 mm9300 mm9352 mm11845 mmWidth over tires2970 mm2970 mm3170 mm3590 mmCab height3580 mm3580 mm3765 mm4195 mmTurning radius, outside of tire6625 mm6625 mm7011 mm7620 mmBucket capacity3.5-7.0 m³3.5-8.0 m³4.5-9.0 m³6.5-12 m³General Purpose4.2 m³4.5 m³5.4 m³7.0 m³Light material5.2, 6.0, 7.0 m³6.0, 7.0, 8.0 m³7.2, 8.0, 9.0 m³10, 12 m³

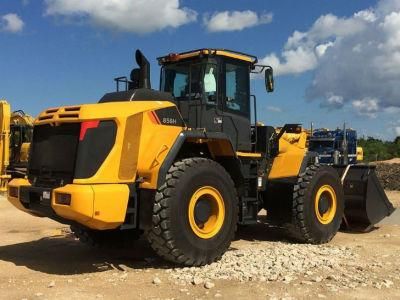

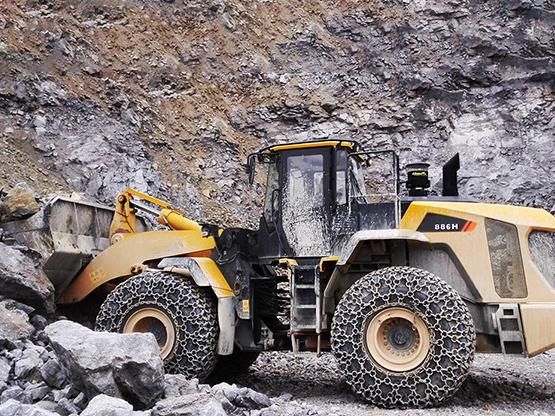

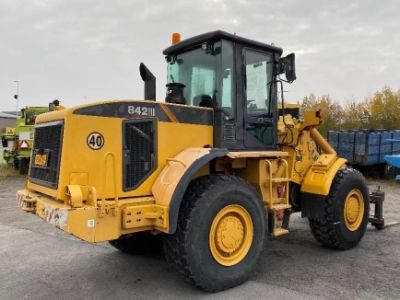

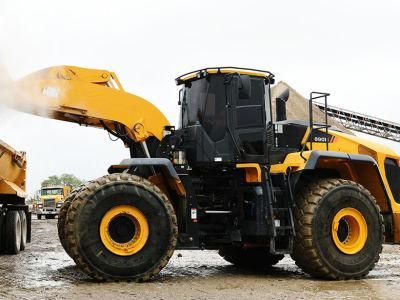

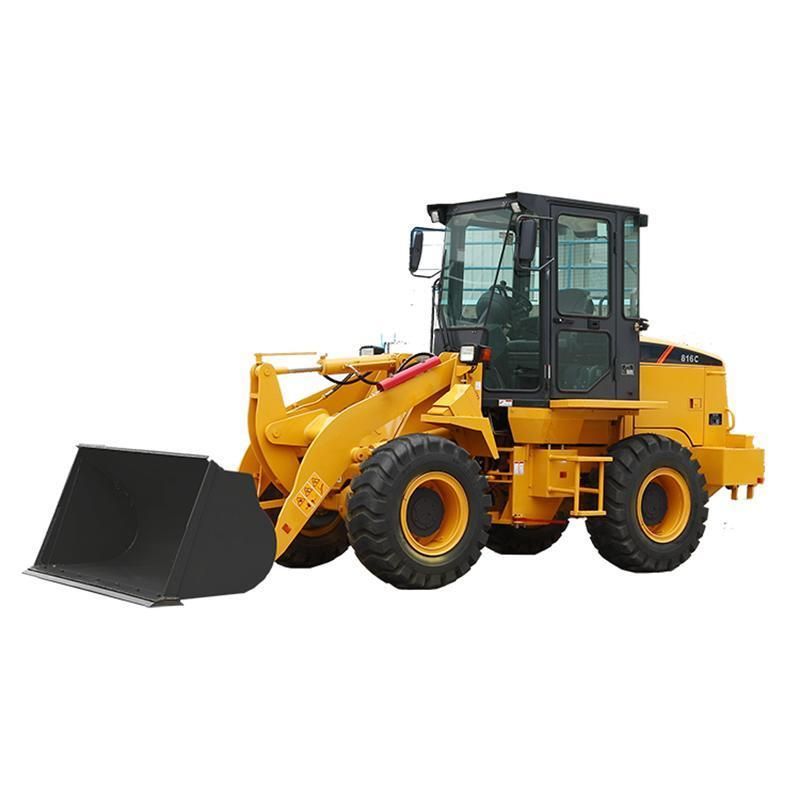

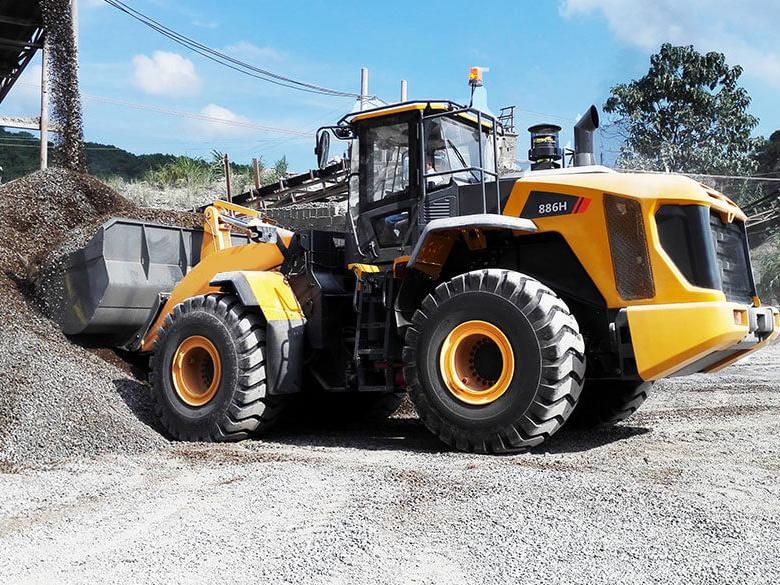

Product photo:
