• Model NO.：OKW
• Transmission：Hydraulic Transmission
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1~0.5m³
• Size：Small-Scale
• Certification：ISO9001: 2000
• Condition：New
• Maximum Excavation Distance：2728mm
• Maximum Excavation Depth：1510mm
• Maximum Excavation Height：2560mm
• Power：8.6kw
• Standard Bucket Capacity：0.03
• Walking Speed：0-2
• Minimum Ground Clearance：115mm
• Transport Package：Wooden Case
• Specification：980-8000kg
• Trademark：OUKE
• Origin：Shandong
• HS Code：8429521200
• Production Capacity：100
• Package size per unit product：600.00cm * 240.00cm * 260.00cm
• Gross weight per unit product：1000.000kg

Basic Info.

Model NO. OKW Transmission Hydraulic Transmission Drive Type Internal Combustion Drive Bucket Capacity 0.1~0.5m³ Size Small-Scale Certification ISO9001: 2000 Condition New Maximum Excavation Distance 2728mm Maximum Excavation Depth 1510mm Maximum Excavation Height 2560mm Power 8.6kw Standard Bucket Capacity 0.03 Walking Speed 0-2 Minimum Ground Clearance 115mm Transport Package Wooden Case Specification 980-8000kg Trademark OUKE Origin Shandong HS Code 8429521200 Production Capacity 100

Packaging & Delivery

Package size per unit product 600.00cm * 240.00cm * 260.00cm Gross weight per unit product 1000.000kg

Product Description

CE/ISO Certification 0.8 to 8 Ton New Diesel Hydraulic Crawler Mini Excavator

This mini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose,  landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.

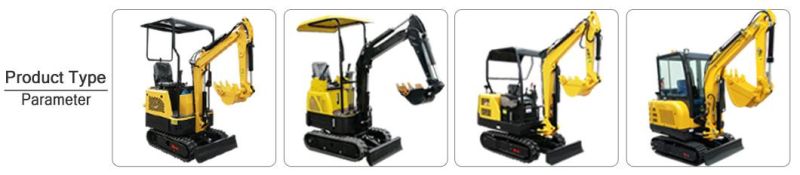

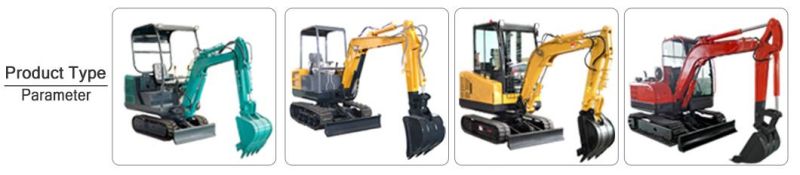

Model	OKWJ-08B	OKWJ-10	OKW13	OKWJ-15
Operating Weight	800kg	1000kg	1300kg	1500kg
Bucket capacity	0.02m3	0.025m3	0.02m3	0.025m3
Bucket size	30cm	40cm	38cm	40cm
Engine	CC192F	CC192F	EV80 /CF13	LL380 /Yanmar 3TNV70
Power	8.6Kw/2200 rpm	8.6Kw/2200 rpm	14 Kw/ 2200 rpm	13.4 Kw/2200rpm
Rotary speed	12rpm	12rpm	12rpm	12rpm
Walking speed	2km/h	2km/h	2km/h	2km/h
Grade ability	30°	30°	30°	30°
Crawler width	15cm	18cm	18cm	18cm
Crawler length	1140mm	1200mm	1090mm	1250mm
Max. Digging Radius	2400mm	2400mm	2400mm	2450mm
Max. Digging Depth	1200mm	1200mm	1400mm	1320mm
Max. Digging Height	2400mm	2400mm	2490mm	2400mm
Max unloading height	1750mm	1750mm	1750mm	1800mm

Model	OKWJ-16A	OKWJ-17	OKWJ-18S	OKWJ-25
Operating Weight	1600kg	1700kg	2000kg	2500kg
Bucket capacity	0.025m3	0.025m3	0.15m3	0.08m3
Bucket size	40cm	40cm	45cm	50cm
Engine	LL380/Yanmar 3TNV70	LL380/Yanmar 3TNV70	LL385	CC390/Yanmar 3TNV76
Power	13.4 Kw/2200rpm	13.4 Kw/2200rpm	22.1Kw/ 2350rpm	18.1 Kw/ 2350 rpm
Rotary speed	12rpm	12rpm	10rpm	12rpm
Walking speed	2km/h	2km/h	2.8km/h	2km/h
Grade ability	30°	30°	30°	30°
Crawler width	20cm	23cm	28cm	23cm
Crawler length	1250mm	1300mm	1880mm	1620mm
Max. Digging Radius	2550mm	2600mm	3850mm	2730mm
Max. Digging Depth	1500mm	1600mm	2200mm	1600mm
Max. Digging Height	2450mm	2450mm	3300mm	3300mm
Max unloading height	1900mm	1950mm	2400mm	1950mm

Hydraulic Pilot Joystick Series

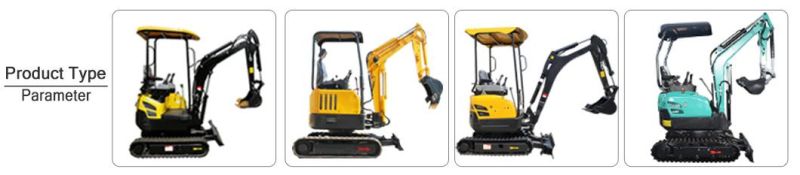

Model	OKW18	OKW18T	OKW26	OKW35
Operating Weight	1900-2000kg	1900-2000kg	2300kg	3500-3600kg
Bucket capacity	0.1m3	0.1m3	0.1m3	0.26m3
Bucket size	48cm	48cm	48cm	60cm
Engine	LL380/3TE25	LL380/3TE25	LL385/ 3TE30	ZN490/C490/Yanmar
Power	18.4 Kw/ 2350 rpm	18.4 Kw/ 2350 rpm	22.1 Kw/ 2350 rpm	36.8Kw/ 2200 rpm
Rotary speed	12rpm	12rpm	12rpm	9-11rpm
Walking speed	2km/h	2km/h	2.7km/h	2.7/ 4.6km/h
Grade ability	30°	30°	30°	35°
Crawler width	230cm	230cm	230cm	300cm
Crawler length	1850mm	1850mm	1850mm	2175mm
Max. Digging Radius	3600mm	3600mm	3690mm	4730mm
Max. Digging Depth	2000mm	2000mm	2630mm	2545mm
Max. Digging Height	3720mm	3720mm	3820mm	4450mm
Max unloading height	2000mm	2000mm	2320mm	3050mm

No Tail Type

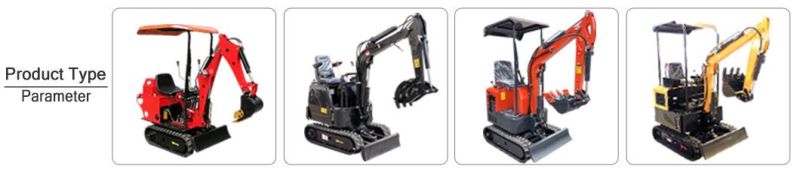

Model	16EV80	18J	18Z	20STelescopic crawler
Vehicle weight	1340kg	1340kg	1600kg	1850kg
Bucket capacity	0.025m3	0.025m3	0.045m3	0.07m3
Bucket width	40cm	40cm	40cm	40cm
Engine	EV80	Yanmar 3TNV70	Yanmar 3TNV70	Yanmar 3TNV70
Power	14 Kw/ 2200 rpm	10.3Kw/ 2200 rpm	10.3Kw/ 2200 rpm	10.3Kw/ 2200 rpm
Rotary speed	12rpm	12rpm	12rpm	12rpm
Walking speed	2km/h	2km/h	3km/h	2.7km/h
Grade ability	30°	30°	30°	30°
Crawler width	18cm	18cm	23cm	25cm
Crawler length	1090mm	1090mm	1250mm	/
Max. Digging Radius	2400mm	2400mm	3470mm	3600mm
Max. Digging Depth	1400mm	1400mm	1500mm	2320mm
Max. Digging Height	2490mm	2490mm	3275mm	3720mm
Max unloading height	1750mm	1750mm	1900mm	2260mm

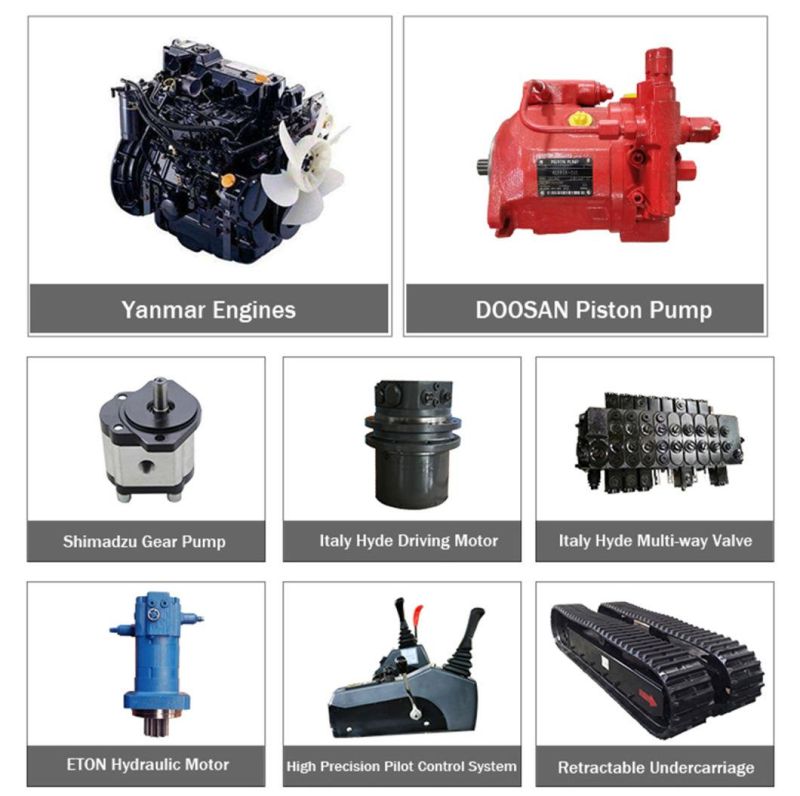

1. Optional Yanmar (EPA certified) / Changchai / Laidong engines, to meet environmental protection, cost control and other needs.

2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.

3. 1.3 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 3 tons can be equipped with high precision pilot control system.

4. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.

5. Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.

6. The boom can swing from side to side with high flexibility to meet the needs of small space operations.

7. Optional with tail or no-tail to meet the construction needs under different conditions.

8. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.

9. Made of German Continental  brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.
