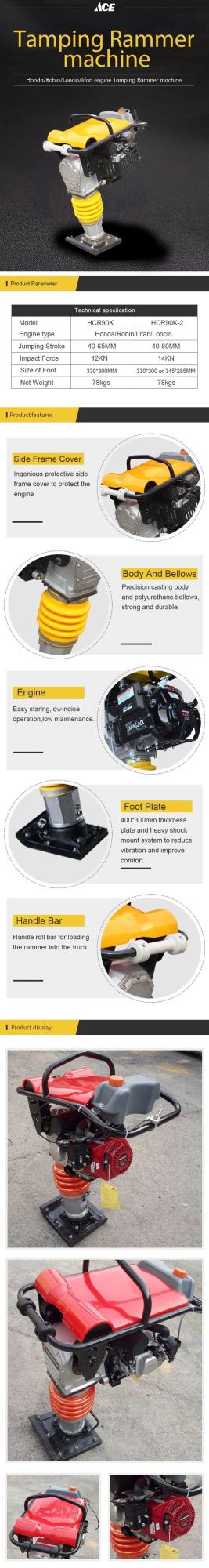

Apisonador Con Robin Eh12 4.0HP

Ningbo Ace Machinery Co., Ltd.
  • Type：Rammer Compactor
  • Working Method：Vibration
  • Axle：Uniaxial Monowheel
  • Grinding Wheel Type：Sheep Foot Roller
  • Compaction Depth：40cm
  • Engine Type：Subaru

Base Info

  • Model NO.：TR-72C
  • Travel Speed：25cm,s
  • Centrifugal Force：15KN
  • Certification：CE
  • Condition：New
  • Product Name：Tamping Rammer
  • Engine：Subaru Eh12 4.0HP
  • Plate Size：345*285mm
  • Transport Package：Hob with Carton
  • Specification：72kgs
  • Trademark：ACE
  • Origin：Ningbo, China
  • HS Code：84306100
  • Production Capacity：3000 PCS,Year

Description

1.Rational vibration system for easy operationTamping Rammer SpecificationModel:TR-72CImpact Frequency(time/min):680-710Engine:Subaru  EH12-2DType:Forced Aid-Cooled,Single Cylinder,OHV,P.O.T.,4StrokeDisplacement(ml):121Max.Power:2.9Kw/4000rpmRated Power:2.6Kw/4000rpmBore x Stroke(mm):60 x 43Condensation Ratio:8.0Starting System:Recoil StarterLgnition System:TCIFuel Tank Capacity(L):2.5Lube Oil Capacity(L):0.55Jumping Stoke(mm):65-80Advance Speed(m/min):10/15Rammer Plate Dimension(mm):340 x 285/340 x 300Impact Force (KN)15Dimensions L x W x H (mm):720 x 415 x 1043Packing size L x W x H (mm):1100 x 750 x 460Net Weight (KGS):72Gross Weight (KGS):81Quantity/Container:75pcs/20'GP 160pcs/40'HQ   Optional Engine:Honda GX100

Apisonador Con Robin Eh12 4.0HP

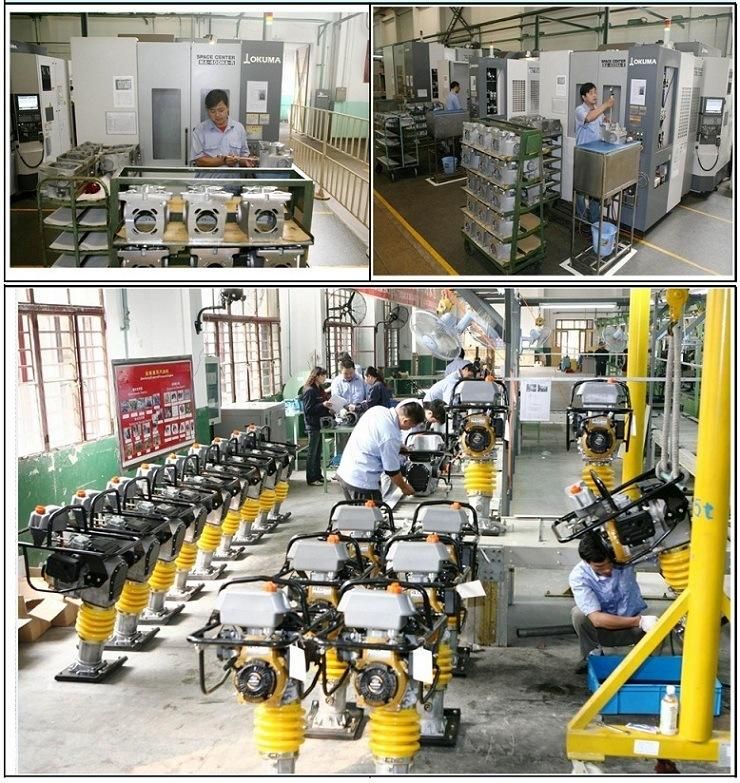

Production Flow Char:
Apisonador Con Robin Eh12 4.0HP


Main Spare parts:


Apisonador Con Robin Eh12 4.0HP
Apisonador Con Robin Eh12 4.0HP
