• Model NO.：SC-84
• Vibrating Amplitude：1.0mm
• Certification：SGS , TUV
• Condition：New
• Color：Stainless Steel and Orange
• Rendering Thickness：2-45mm
• Rendering Width：800mm
• Rendering Height：4m
• Rendering Capacity：600 Square ,8h
• Power：2.2kw
• Transport Package：Wooden Box
• Specification：1150*850*520mm
• Trademark：Yongchuang
• Origin：China
• Production Capacity：500sets,Month

Basic Info.

Model NO. SC-84 Vibrating Amplitude 1.0mm Certification SGS , TUV Condition New Color Stainless Steel and Orange Rendering Thickness 2-45mm Rendering Width 800mm Rendering Height 4m Rendering Capacity 600 Square /8h Power 2.2kw Transport Package Wooden Box Specification 1150*850*520mm Trademark Yongchuang Origin China Production Capacity 500sets/Month

Product Description

                           High efficiency plastering machine for wall

Machine Application :

1. the Automatic wall plastering machine utilize the conveyor taking mortar forwardly and upwardly, the conveyor can take mortar or stop in any position by hand control. It can render to the roof by all direction.

2. It can make the machine installation fast and stable The hydraulic telescopic rod can make the machine installation in 10 seconds.

3. There are min-vibrators after the spatula, thus there is no need to worry about hollowing and adhesion.

4. The rendering machine can saving more than 20% raw material (cement& sand).

5. The capacity is as 15 professional plasterers.

Machine Parameter :

Model	SC-84(Wire rope)	SC-86(Gear)	SC-88(Gear)	SC-106(Wire rope)	SC-108(Gear)
Rendering thickness	2-45(mm)	2-40(mm)	2-50(mm)	2-40(mm)	2-50(mm)
Rendering width	800mm	800mm	800mm	1000mm	1000mm
Rendering height	4m	3m	5m	3m	5m
Rendering capacity	600²/8H	500²/8H	500²/8H	600²/8H	600²/8H
Voltage	380/220V	380/220V	380/220V	380/220V	380/220V
Power	2.2kw	2.2kw	2.2kw	2.2kw	2.2kw
Machine weight	190kg	130kg	180kg	150kg	190kg

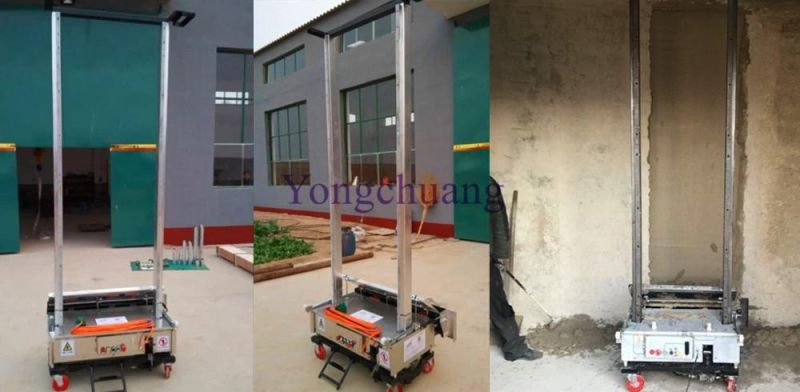

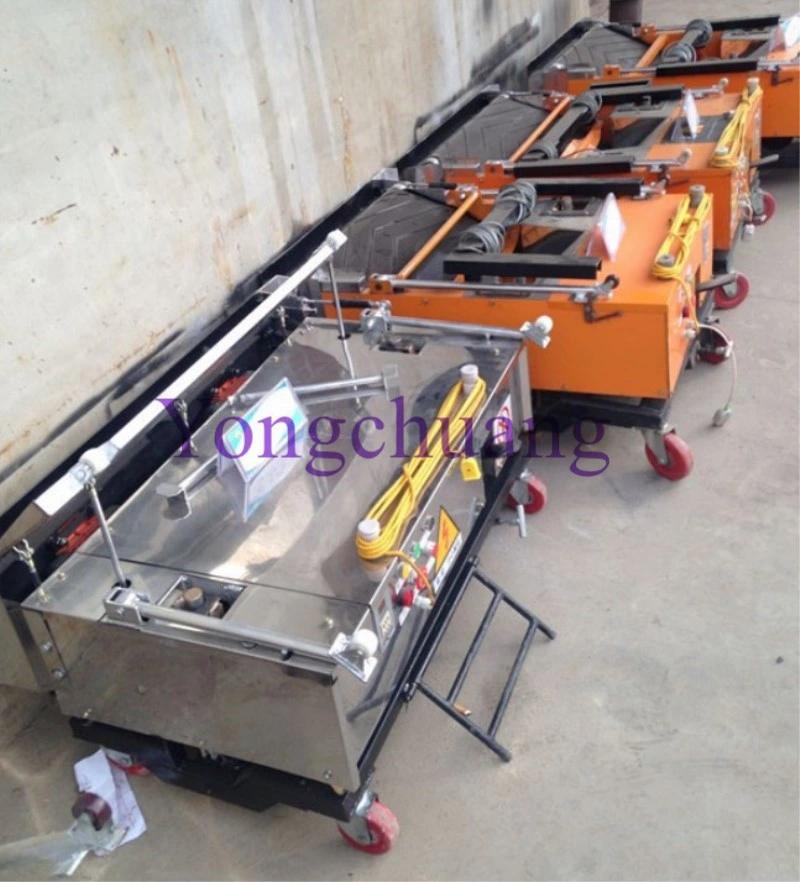

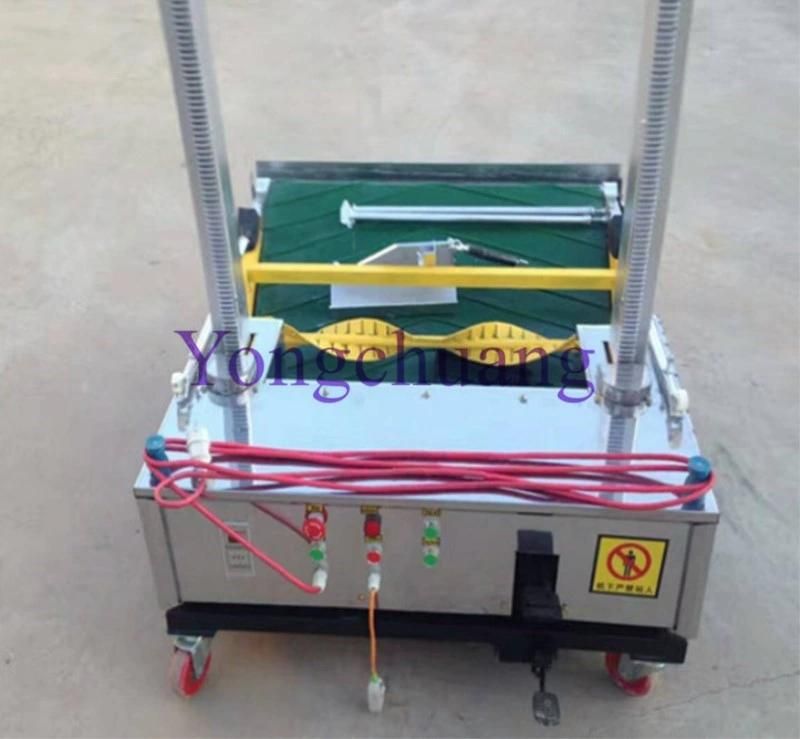

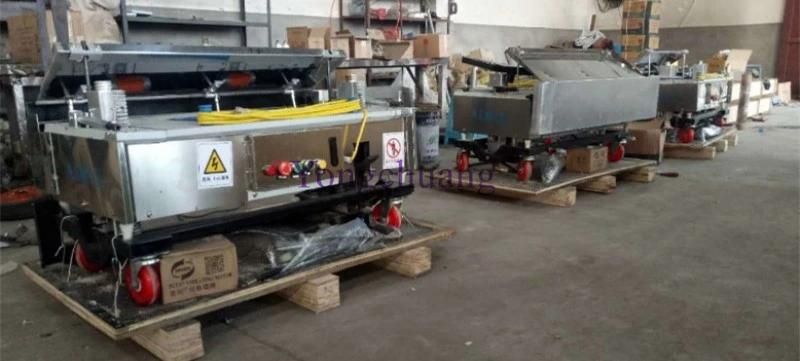

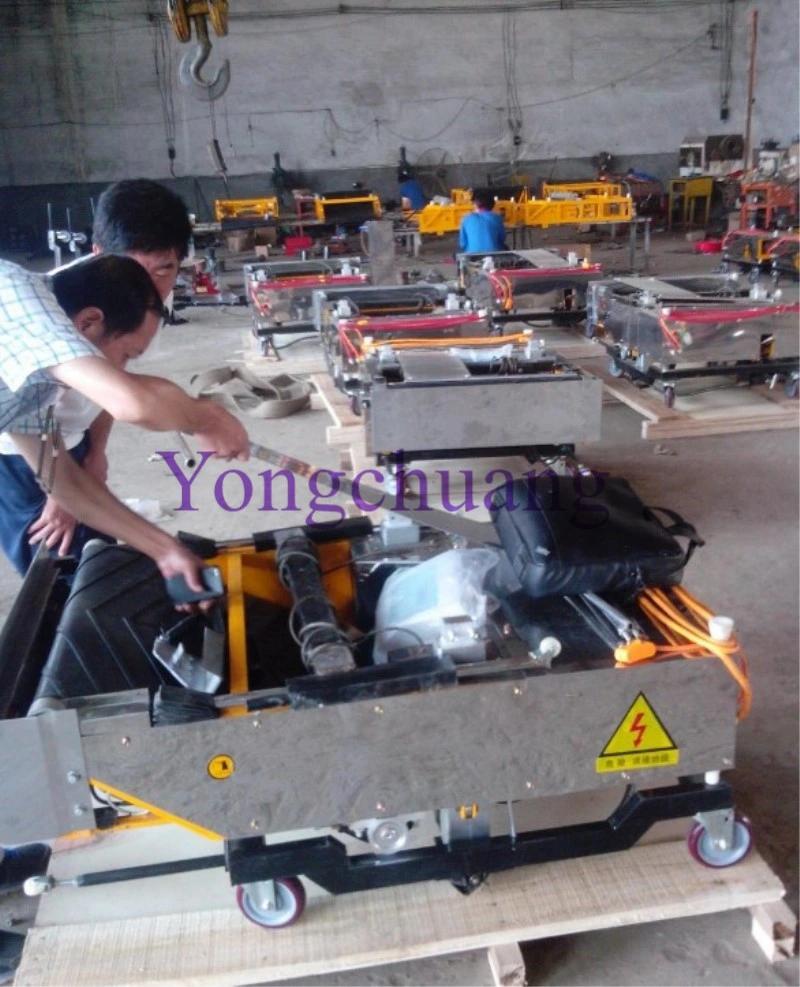

Machine Pictures:
